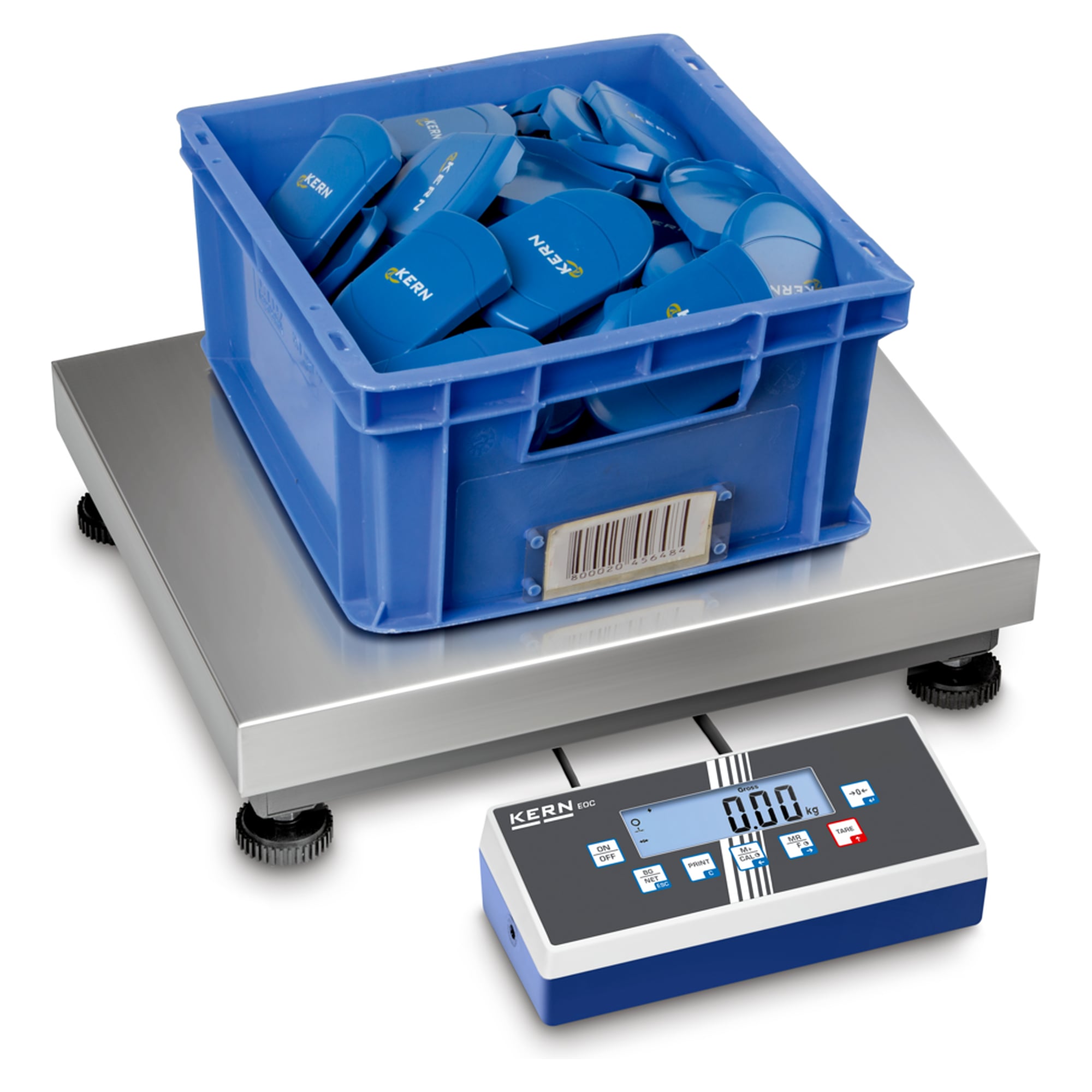

Industrial Platform Scale 60 kg / 150 kg Readability 0,02 kg / 0,05 kg - KERN IOC 100K-2M

The KERN IOC 100K-2M is a hard-wearing platform scale for goods receipt, dispatch and piece counting, with a weighing range up to 150 kg. Via the KERN Communication Protocol (KCP) and optional data interfaces you connect it directly to a PC, network or printer.

Benefits

• Verifiable, class III (e = 0,02 kg; 0,05 kg): legally compliant weighing in trade.
• Two weighing ranges: 60 kg at 0,02 kg and 150 kg at 0,05 kg, switching automatically as the load increases.
• Industry 4.0: RS-232 as standard, optional Ethernet, USB and WLAN, control via the KERN Communication Protocol (KCP).
• Hard-wearing platform: stainless steel weighing plate and a silicone-coated aluminium load cell with IP65 dust and splash protection.
• Ready to use and mobile: spirit level and levelling feet as standard, optional battery operation, compatible with KERN EasyTouch software.

Technical data

• Weighing range (Max): 60 kg; 150 kg
• Readability (d): 0,02 kg; 0,05 kg
• Verification interval (e): 0,02 kg; 0,05 kg
• Accuracy class: III
• Minimum load (Min): 0,4 kg; 1 kg
• Repeatability: 0,02 kg; 0,05 kg
• Linearity: ± 0,02 kg; 0,05 kg
• Smallest part weight (normal conditions): 50 g
• Weighing surface (W×D): 500×400 mm
• Display digit height: 25 mm
• Load cell protection: IP65
• Interfaces: RS-232 as standard; Ethernet, USB, WLAN, Alibi memory and USB host optional (factory)
• Operating temperature: -10 °C to 40 °C
• Net weight: 12 kg

Applications

Designed for warehouse logistics, goods dispatch and piece counting in production and shipping.

Compliance and origin

EAN 4045761207196, customs code 84238220, country of origin China.
