Industrial Platform Scale 300 kg / 600 kg Readability 0,1 kg / 0,2 kg - KERN IOC 600K-1M

The KERN IOC 600K-1M weighs containers and pallets up to 600 kg in verifiable quality with a readout down to 0,1 kg. As a multi-range scale it switches automatically between 300 kg and 600 kg, so light and heavy loads are captured legally for trade on one stainless steel platform of 800 x 600 mm.

Benefits

• Two ranges in one scale: automatic switching from 300 kg to 600 kg, with the finest 0,1 kg readability in the lower range.
• Verifiable (class III, e = 0,1 kg / 0,2 kg): legally compliant weighing in commercial transactions.
• Industrial platform: stainless steel weighing plate, painted steel base, load cell with dust and splash protection to IP65.
• Data connectivity: RS-232 as standard with the KERN Communication Protocol (KCP), compatible with KERN EasyTouch; Ethernet, USB and WLAN optional.
• Mobile use: compact build, spirit level and levelling feet as standard, battery operation optional.

Technical data

• Weighing range (Max): 300 kg / 600 kg
• Readability (d): 0,1 kg / 0,2 kg
• Verification scale interval (e): 0,1 kg / 0,2 kg
• Accuracy class: III
• Minimum load (Min): 2 kg / 4 kg
• Repeatability: 0,1 kg / 0,2 kg
• Linearity: ± 0,1 kg; 0,2 kg
• Weighing platform (W x D): 800 x 600 mm
• Weighing system: strain gauge
• Stabilization time: 2 s

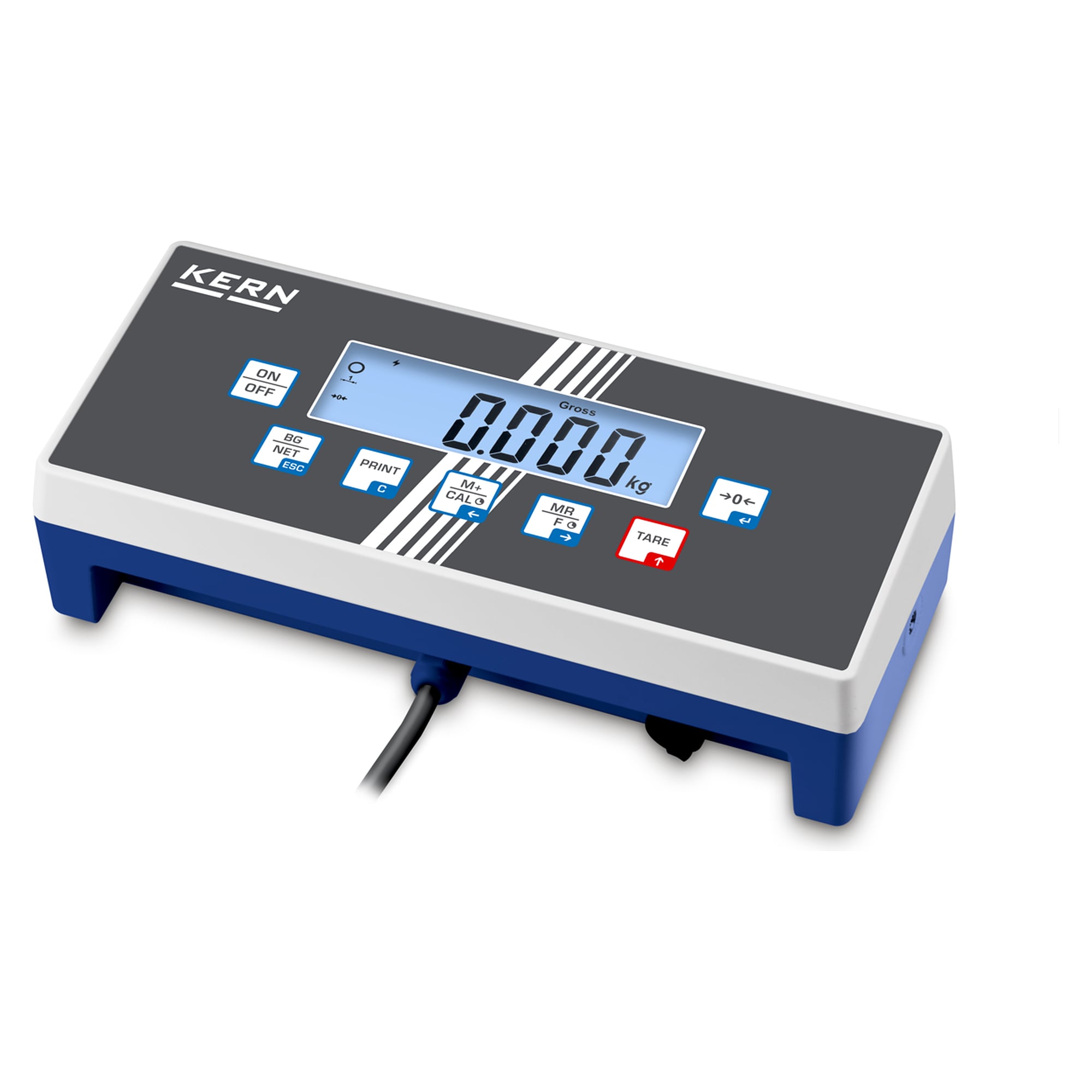

• Display: LCD, 25 mm digit height
• Interfaces: RS-232 fitted as standard; Ethernet, USB, WLAN and alibi memory optional
• Net weight: 32 kg
• Protection rating: load cell IP65

Applications

The IOC 600K-1M is designed for warehouse logistics, goods dispatch and parts counting, capturing containers, pallets and bulk goods reliably right at the workstation.

Compliance and origin

EAN 4045761207233, customs tariff code 84238220, country of origin China. It is available as a verified version in accuracy class III.
