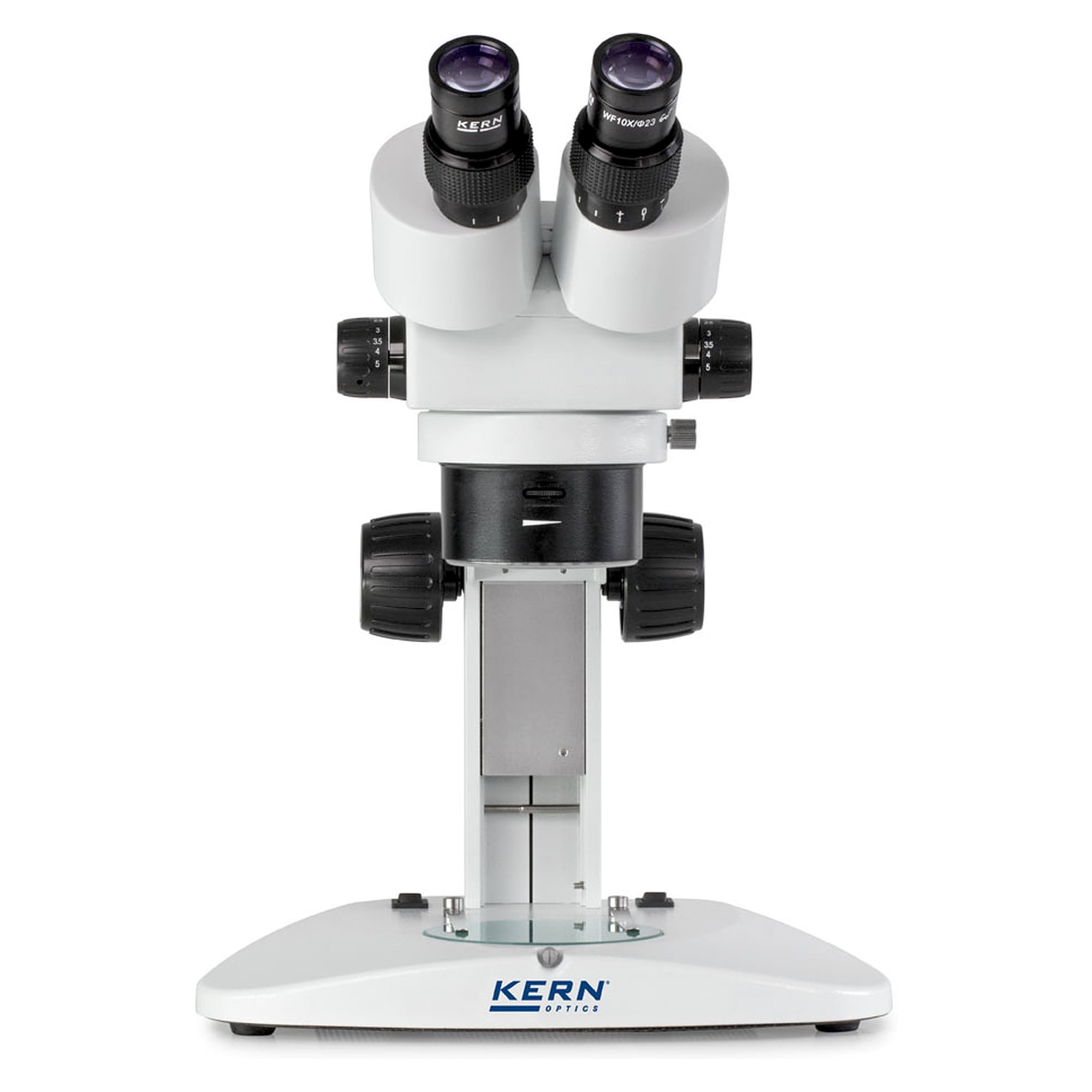

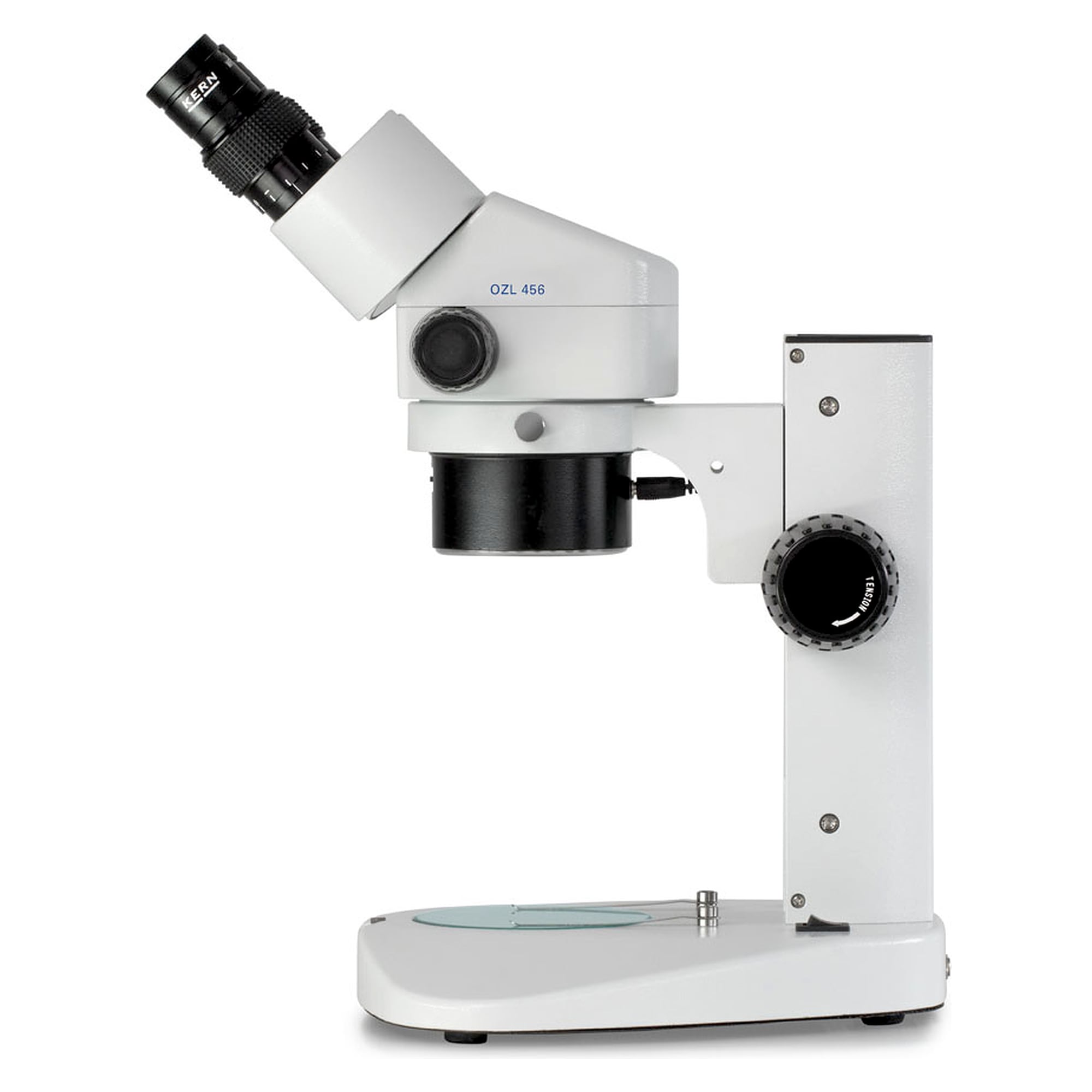

Stereo Zoom Microscope 75x-5x - KERN OZL 456
The KERN OZL 456 is a binocular stereo-zoom microscope with continuous total magnification from 7.5x to 50x and an integrated dimmable LED ring light. The ring light in the objective housing gives even, shadow-free illumination, complemented by an LED transmitted-light unit. An all-rounder for varied applications.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

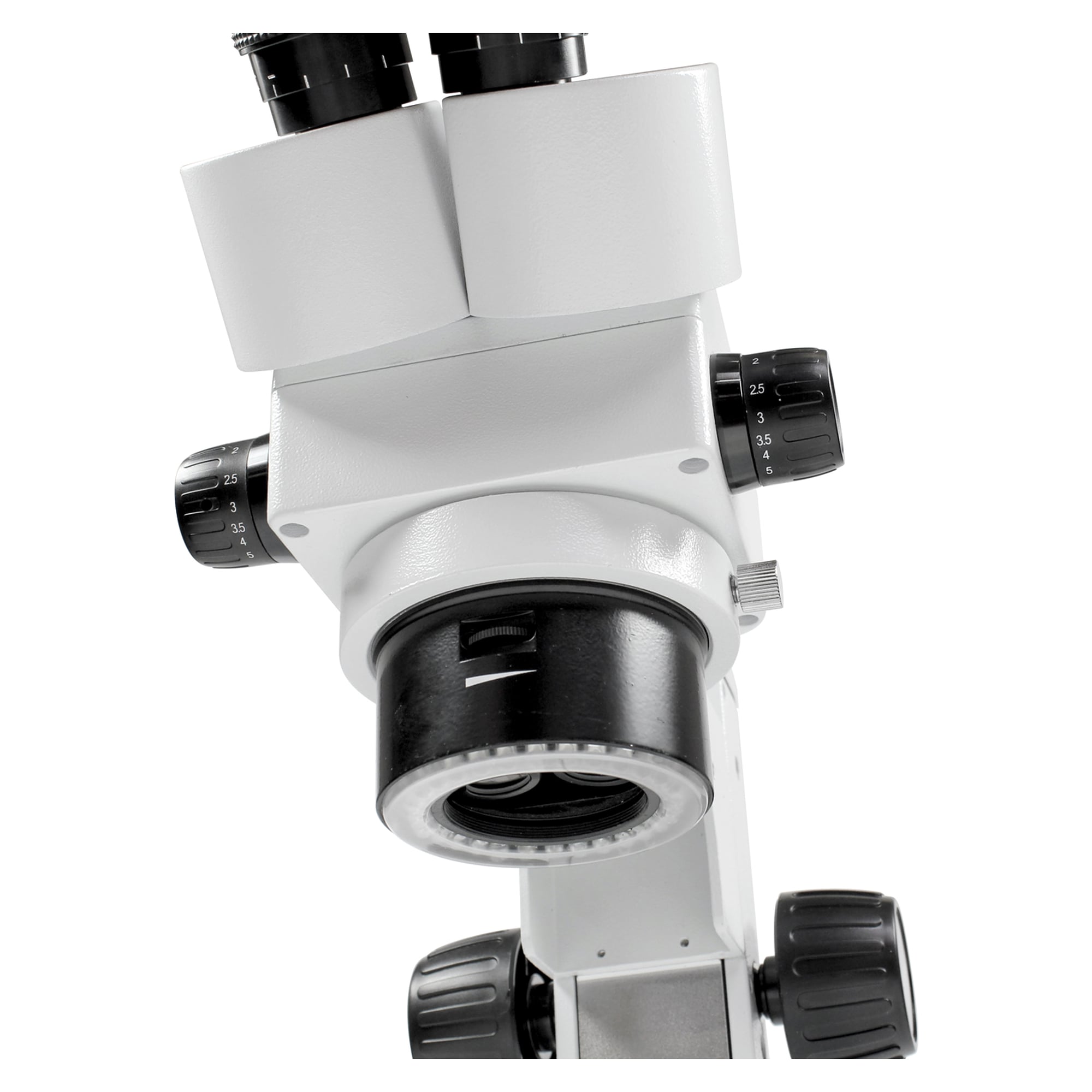

A ring light built into the objective housing saves external light sources and lights the sample shadow-free. The KERN OZL 456 combines this dimmable LED ring light with an LED transmitted-light unit and a continuous zoom from 7.5x to 50x.
Benefits
- Integrated LED ring light: steplessly dimmable, even and shadow-free illumination
- LED transmitted light: additional transmitted-light unit at 0,21 W
- Wide zoom range: total magnification 7.5x - 50x, zoom ratio 6.7:1
- Ergonomic viewing: binocular tube at 45 degrees, high-eye-point eyepieces with 23 mm field
Applications
Specimens where a three-dimensional impression matters, such as insects, seeds, circuit boards and components. Typical fields are zoology and botany, tissue preparation, dissection and quality control.
Compliance and origin
EAN 4045761170414, customs code 90111000, origin China.
Technical data
| Total magnification | 7.5x - 50x |
|---|---|
| Objective zoom range | 0,75x - 5x |
| Zoom ratio | 6.7:1 |
| Optical system | Greenough |
| Tube | binocular, 45 degree inclination |
| Eyepiece | HSWF 10x / 23 mm field, high eye point |
| Interpupillary distance | 55 - 75 mm |
| Incident light | integrated LED ring light 1 W, dimmable |
| Transmitted light | LED 0,21 W |
| Power supply | plug-in adapter 100 - 240 V |
| Stand | mechanical |
| Weight (net) | 4,6 kg |
| Weight | 6 kg |
| Manufacturer | Kern |
| EAN | 4045761170414 |
| HS-Code | 90111000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
