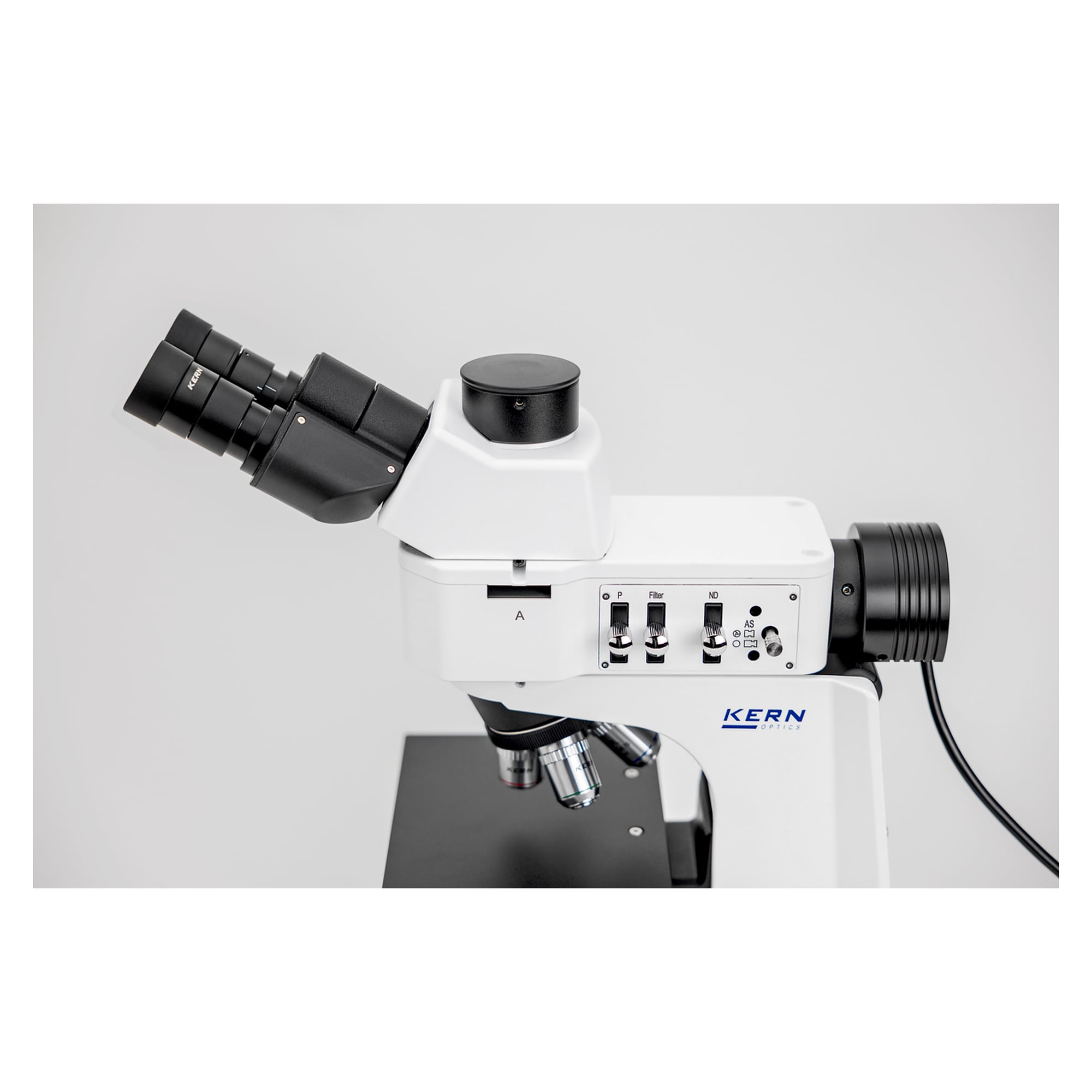

Metallurgical Microscope 5x - KERN OKM 173
The KERN OKM 173 is a metallurgical reflected-light microscope for material and surface inspection in industry. Its stepless 5W LED reflected light and integrated 5-position filter wheel produce high-contrast images, while the trinocular tube allows camera connection. Objectives from 5x to 50x cover the typical inspection range.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For surface quality inspection of raw materials and finished parts, the KERN OKM 173 metallurgical reflected-light microscope delivers high-contrast images of opaque workpieces at magnifications from 5x to 50x.
Benefits
- Strong, dimmable reflected light: stepless 5W LED for excellent, high-contrast images.
- 5-position filter wheel: blue, green, yellow, grey and empty for quick contrast changes.
- Trinocular tube: camera connection via C-mount adapter (accessory) for documentation.
- Large mechanical stage: coarse and fine focus on both sides for precise focusing.
- Polarisation unit included: analyser and polariser are part of the delivery.
Applications
Metallurgy, materials testing and quality assurance, particularly on opaque and thick specimens such as surfaces, fracture edges and coatings.
Compliance and origin
EAN 4045761490024, customs tariff code 90118000, country of origin China.
Technical data
| Optical system | infinity |
|---|---|
| Tube | trinocular, 30° inclination |
| Objective magnification | 5x / 10x / 20x / 50x |
| Nosepiece | 4 threaded positions |
| Eyepiece | HWF 10x, 20 mm field of view |
| Interpupillary distance | 50 mm - 75 mm |
| Illumination | LED reflected light, 5W |
| Beam split | 20:80 |
| Power supply | mains adapter 100 V - 240 V, 50 / 60 Hz |
| Net weight | 8 kg |
| Weight | 10 kg |
| Manufacturer | Kern |
| EAN | 4045761490024 |
| HS-Code | 90118000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
