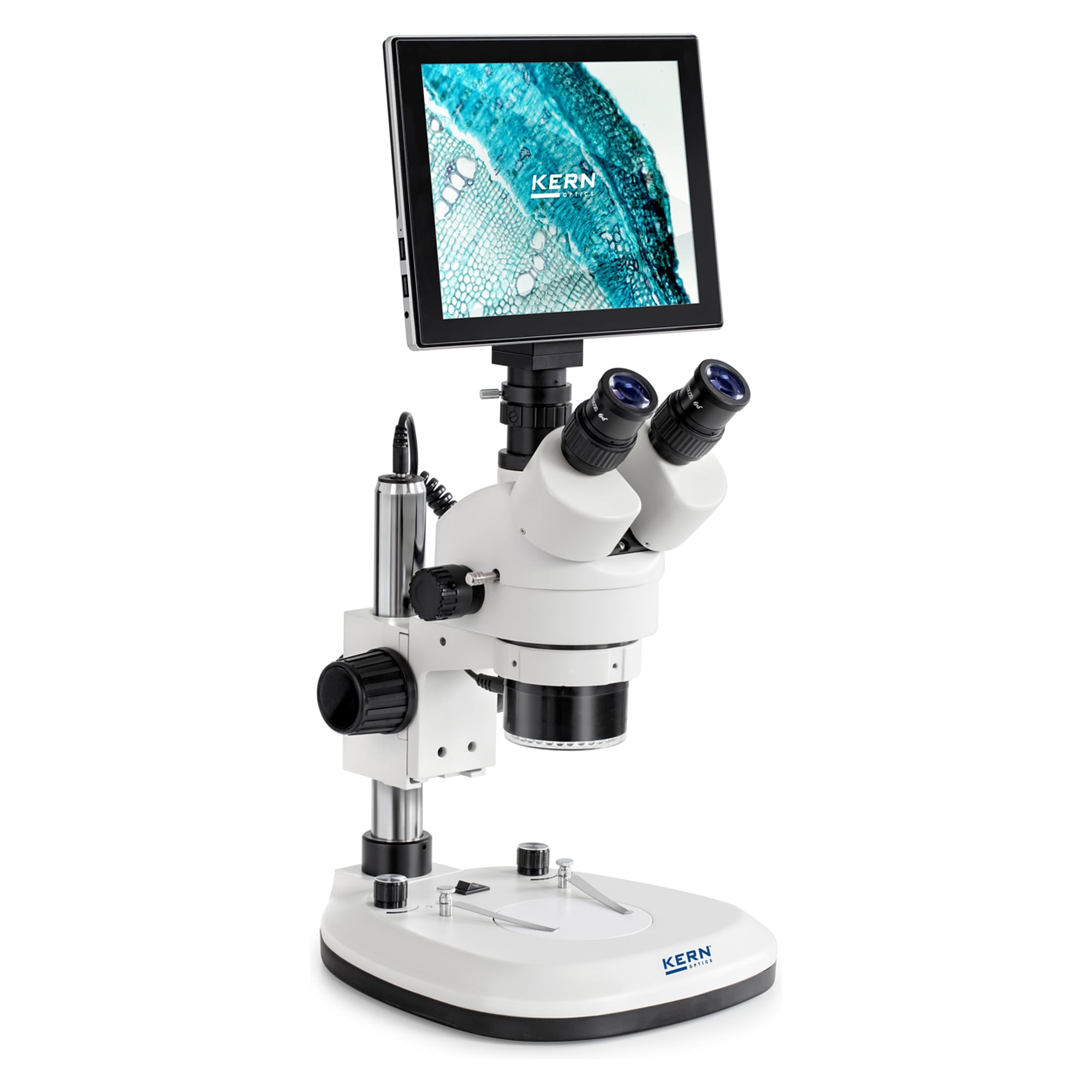

Digital Microscope Set 7x-4 - KERN OZL 466T241
The KERN OZL 466T241 is a digital stereo microscope with the ODC 241 tablet camera and a built-in LCD touchscreen: the trinocular OZL-46 zoom body (0.7x - 4.5x) with a 5 MP camera (Sony CMOS). Examine, document and measure right on the screen over WLAN, HDMI and MicroSD, with no PC.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The KERN OZL 466T241 combines the trinocular OZL-46 stereo microscope with the ODC 241 tablet camera: examine, document and measure the specimen right on the built-in LCD touchscreen, with no PC required. The 5 MP camera (Sony CMOS) delivers the live image.
Benefits
- Integrated dimmable LED ring light: even, shadow-free lighting in the objective housing, plus LED transmitted light
- Complete set from the factory: OZL-46 zoom body, adapted camera and C-mount adapter included
- Live image and documentation: camera 5 MP (Sony CMOS) over WLAN,USB 2.0,HDMI,MicroSD Kartenslot
- Continuous zoom 0.7x - 4.5x: Greenough optics, 6.4:1 zoom ratio
- Standalone tablet operation: LCD touch with WLAN, HDMI and MicroSD, plus length, area and angle measurement
Applications
The set suits teaching, demonstration and documentation in the laboratory. The tablet camera lets you view specimens live on the touchscreen, capture stills or video and measure length, area and angle directly.
Compliance and origin
EAN 4045761228559, customs tariff code 90118000, country of origin China.
Technical data
| Optical system | Greenough |
|---|---|
| Tube | trinocular, 45° inclination |
| Objective zoom | 0,7x - 4,5x |
| Zoom ratio | 6,4:1 |
| Eyepiece | HWF 10x / Ø 20 mm, 20 mm field of view |
| Interpupillary distance | 55 - 75 mm |
| Beam split | 0:100 |
| Incident light | LED, 3 W |
| Transmitted light | LED, 3 W |
| Stand design | column stand |
| Camera | 5 MP, Sony CMOS, Sensor size 1/2,8" |
| Interface | WLAN,USB 2.0,HDMI,MicroSD Kartenslot |
| Display | LCD touch |
| Power supply | Wide-range power supply 100 - 240 V |
| Weight | 6 kg |
| Manufacturer | Kern |
| EAN | 4045761228559 |
| HS-Code | 90118000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Display type | LCD touch |
