Inverted Microscope 5x - KERN OLM 171

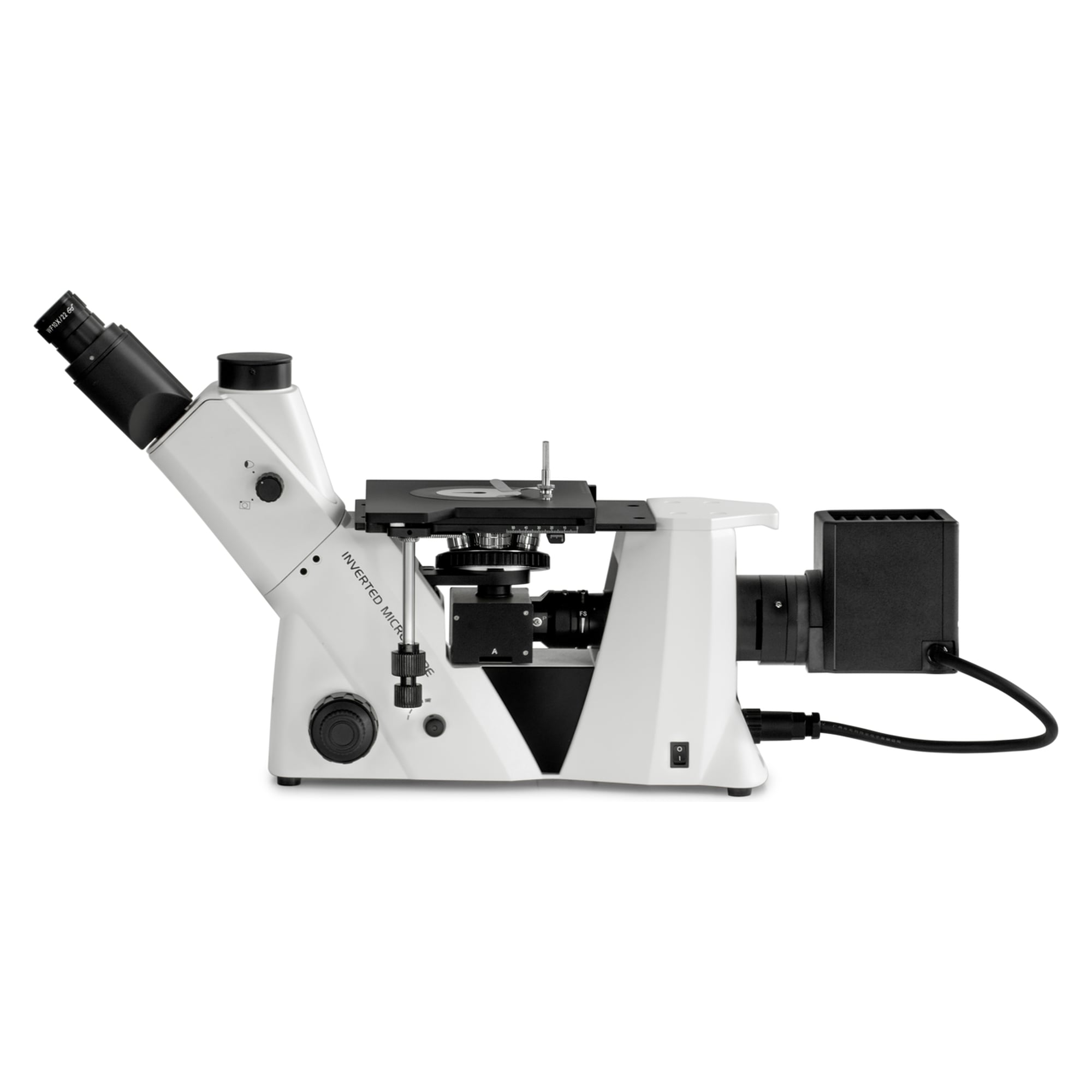

The KERN OLM 171 is an inverted metallurgical microscope with a very large working distance and a strong, stepless 50W halogen reflected light. The trinocular tube and built-in power supply make it a stable solution for material and surface inspection. Objectives from 5x to 50x cover the typical inspection range.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For surface quality inspection of raw materials and finished parts, the KERN OLM 171 is an inverted metallurgical microscope with a very large working distance and a powerful 50W halogen reflected light.
Benefits
- Powerful 50W halogen reflected light: stepless control for even illumination of the materials.
- Inverted design with large working distance: ergonomic and extra stable.

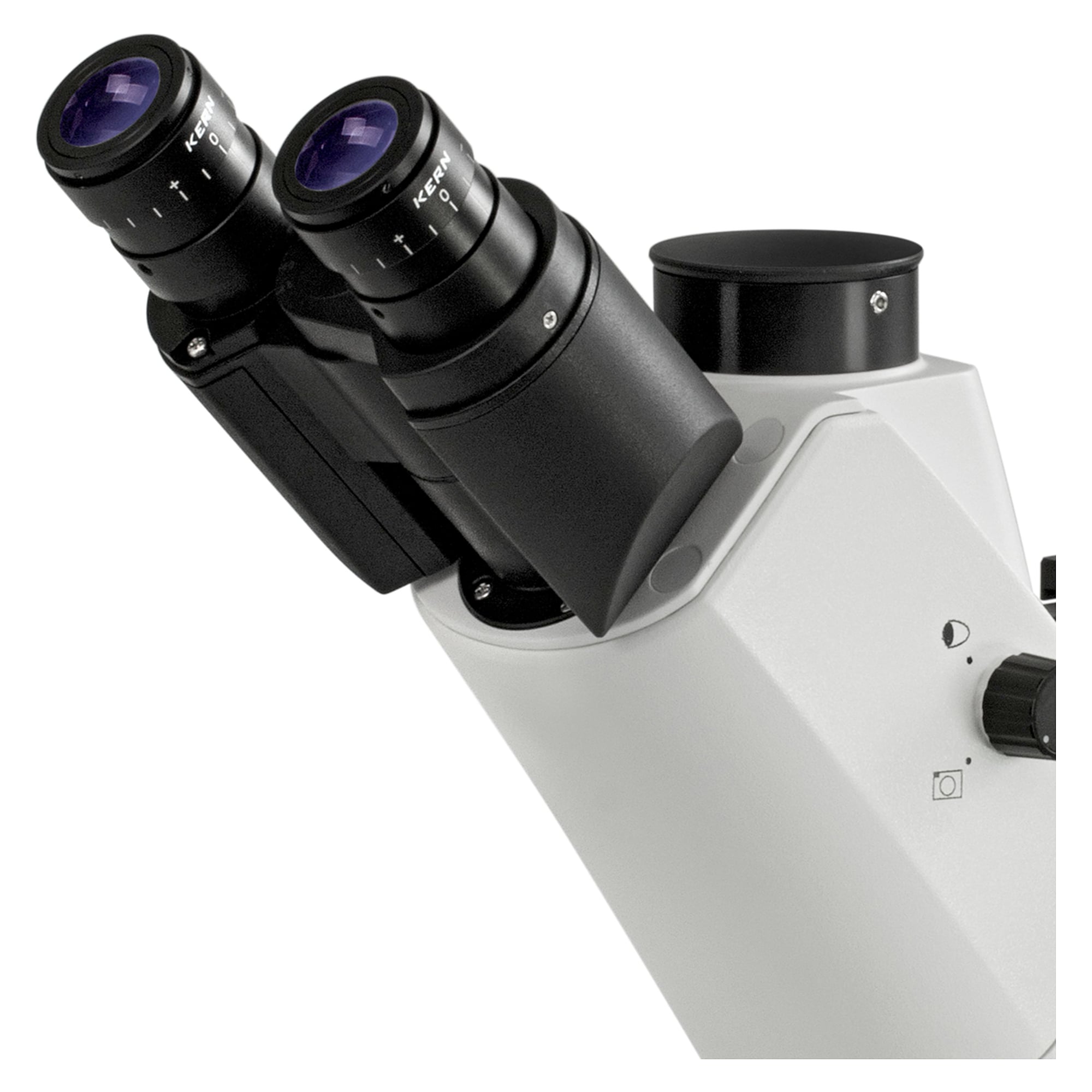

- Trinocular tube: camera connection for documentation and analysis.

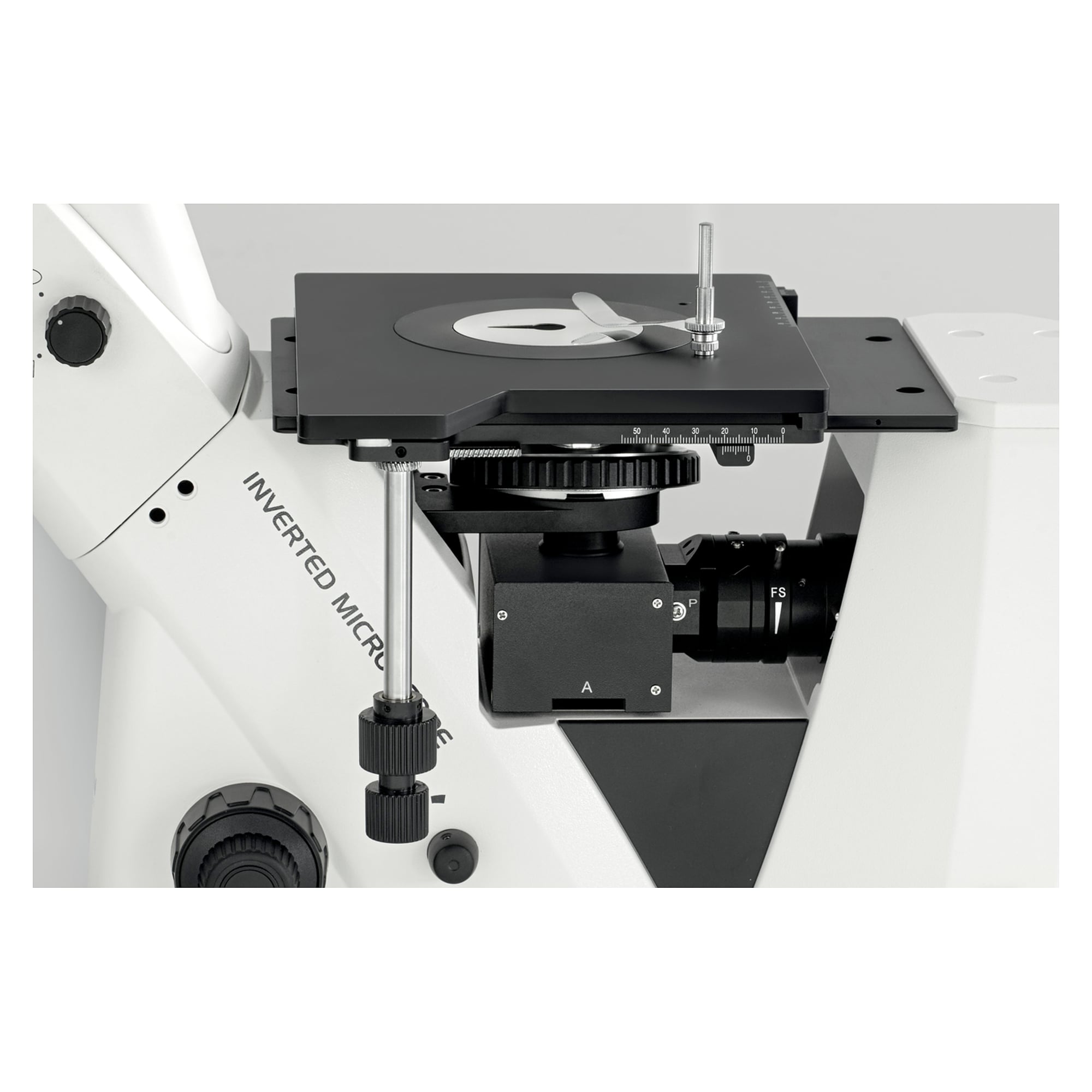

- Large mechanical stage: coarse and fine focus on both sides for precise focusing.

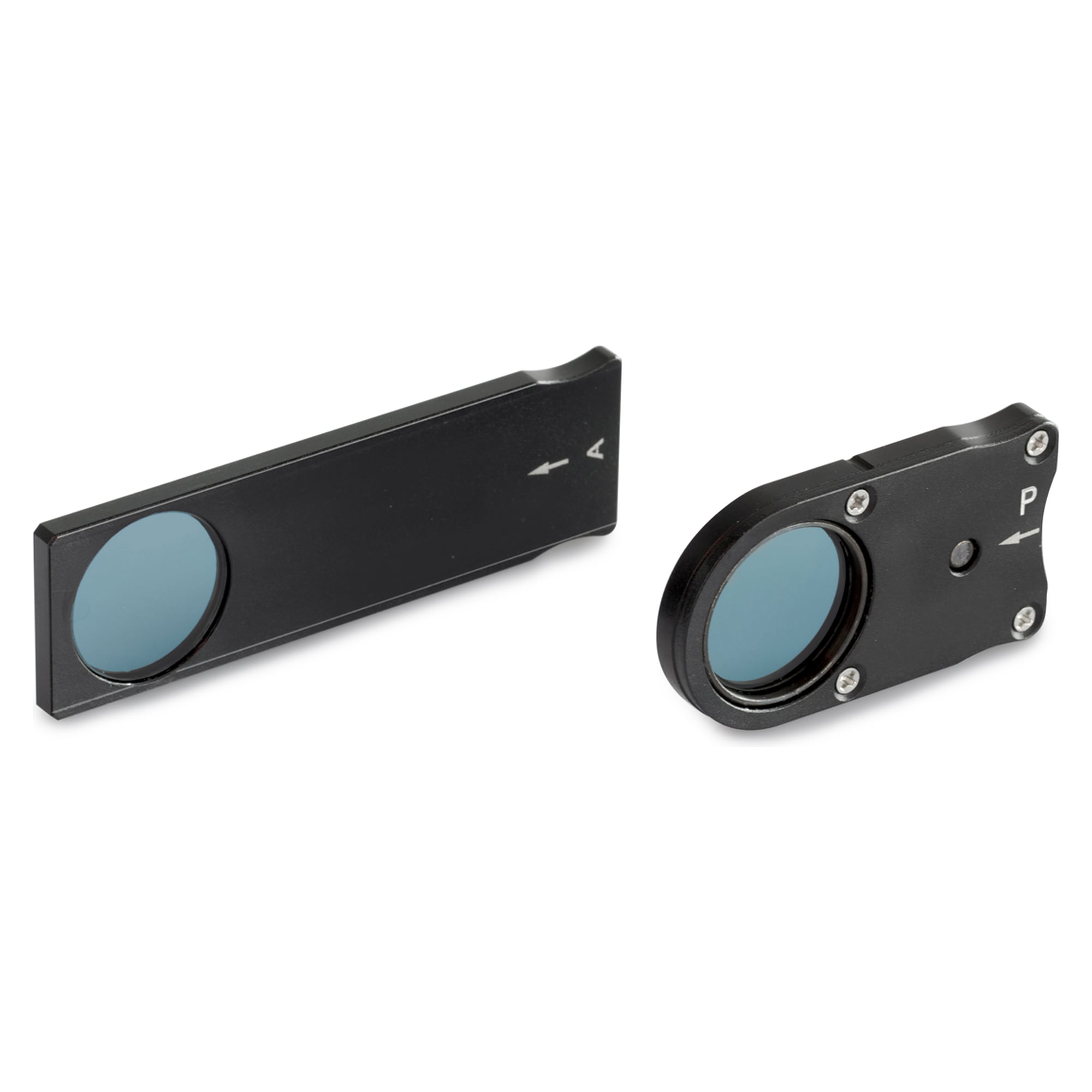

- Polarisation unit included: analyser and polariser are part of the delivery.
Applications
Metallurgy, materials testing and quality assurance on opaque and thick specimens such as surfaces, fracture edges and coatings.
Compliance and origin
EAN 4045761267602, customs tariff code 90118000, country of origin China.
Technical data
| Optical system | infinity |
|---|---|
| Tube | trinocular, 30° inclination |
| Objective magnification | 5x / 10x / 20x / 50x |
| Nosepiece | 5 threaded positions |
| Eyepiece | HWF 10x, 22 mm field of view |
| Interpupillary distance | 48 mm - 76 mm |
| Illumination | halogen reflected light, 50W |
| Beam split | 0:100 |
| Power supply | built-in, 100 - 240 V |
| Net weight | 13 kg |
| Weight | 17 kg |
| Manufacturer | Kern |
| EAN | 4045761267602 |
| HS-Code | 90118000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
