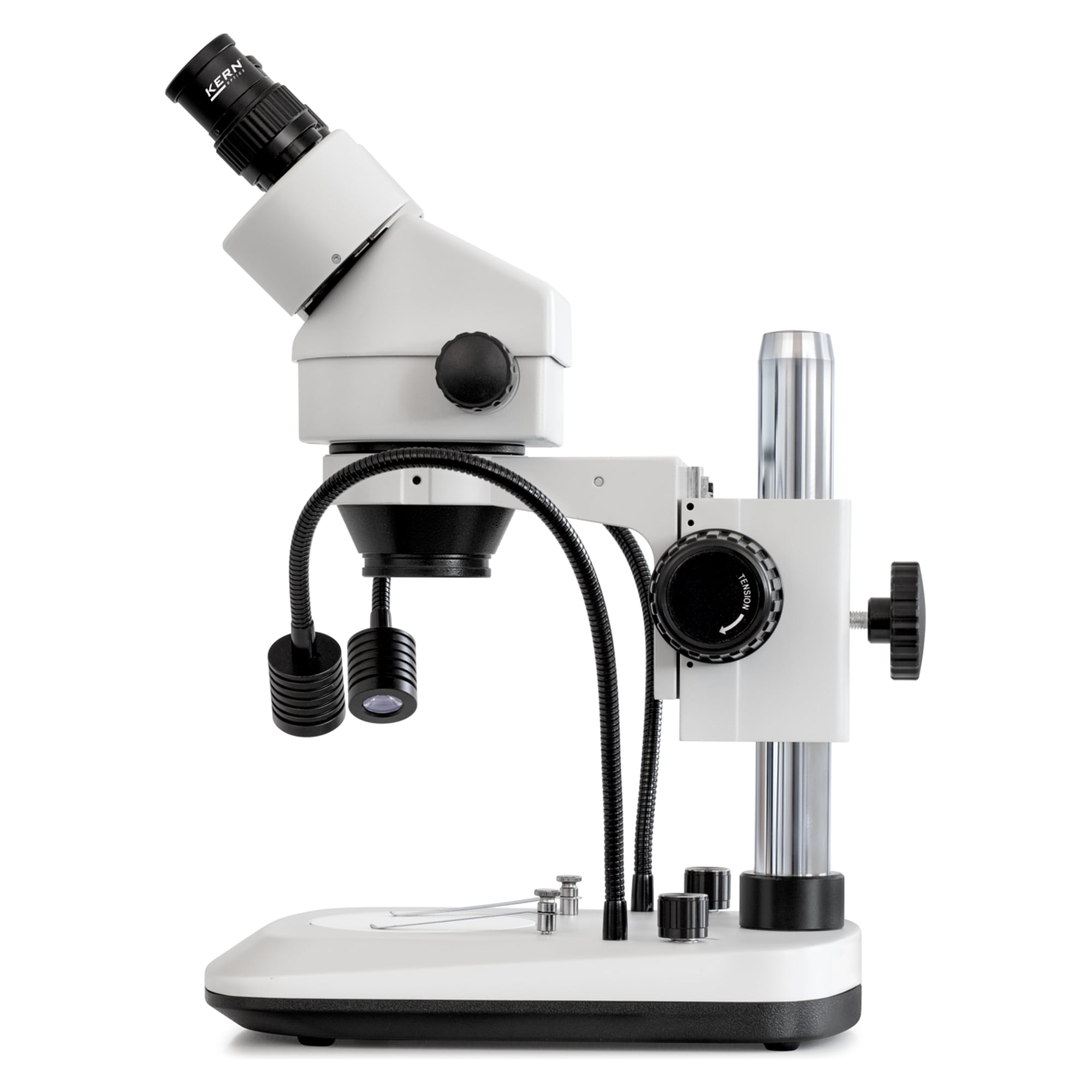

Stereo Zoom Microscope 7x-4 - KERN OZL 473
The KERN OZL 473 is a binocular stereo zoom microscope with 7x-45x magnification and an integrated, continuously dimmable LED double gooseneck light. Its column stand and large working area make it a flexible all-rounder for training, inspection and workshop use.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For three-dimensional viewing of components and specimens, the KERN OZL 473 delivers a binocular stereo image with continuous 7x-45x magnification. The highlight is the integrated LED double gooseneck light: continuously dimmable and freely positionable, so the illumination adapts quickly to every sample.
Benefits
- Freely aimed incident light: continuously dimmable LED double gooseneck light for tailored illumination
- Continuous zoom: 0,7x-4,5x objective, 7x-45x total magnification, 6,4:1 ratio
- Comfortable viewing: HWF 10x eyepiece with high eye point and 20 mm field of view
- Modular expandability: column stand lets you remove the head and integrate it into other build systems
- Ready to use: dust cover, eyecups and a multilingual manual included
Applications
In-vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, dissection and quality control. Particularly suited to samples with a three-dimensional impression such as insects, seeds, circuit boards and components.
Compliance
EAN 4045761356672, customs tariff number 90111000.
Technical data
| Total magnification | 7x-45x |
|---|---|
| Objective (zoom) | 0,7x-4,5x |
| Zoom ratio | 6,4:1 |
| Optical system | Greenough |
| Tube | binocular, 45° inclination |
| Eyepiece | HWF 10x, Ø 20 mm, high eye point |
| Field of view | 20 mm |
| Interpupillary distance | 55 - 75 mm |
| Illumination | LED incident light 3 W, double gooseneck |
| Stand | column |
| Net weight | 4,2 kg |
| Weight | 7 kg |
| Manufacturer | Kern |
| Manufacturer Nr. | OZL 473 |
| EAN | 4045761356672 |
| HS-Code | 90111000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
