Laser Distance Meter 250 m with Touchscreen and Pointfinder IP65 - Leica DISTO X6

Outdoor measuring costs time at the aiming stage. The Leica DISTO X6 answers that with a digital Pointfinder at 4-fold zoom while reaching 250 m at ±1.0 mm tolerance. It is operated through a 2.8 inch IPS touchscreen, the housing meets IP65 and passed the drop test from 2 m.

Benefits

• Measuring range 0.05 to 250 m with ±1.0 mm tolerance, range and accuracy verified according to ISO 16331-1.
• Digital Pointfinder with 4-fold zoom keeps the laser dot visible over long distances and in bright sunlight.

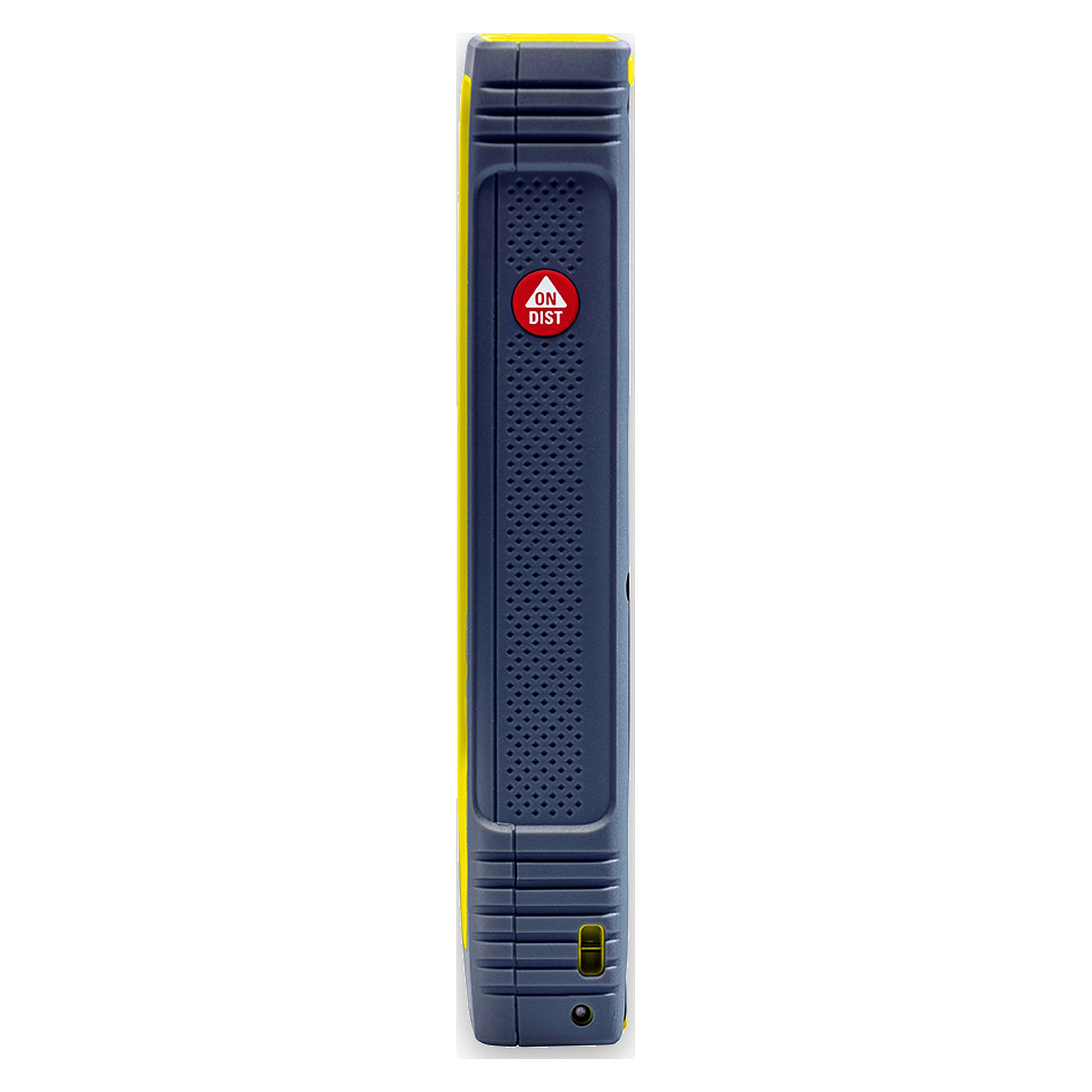

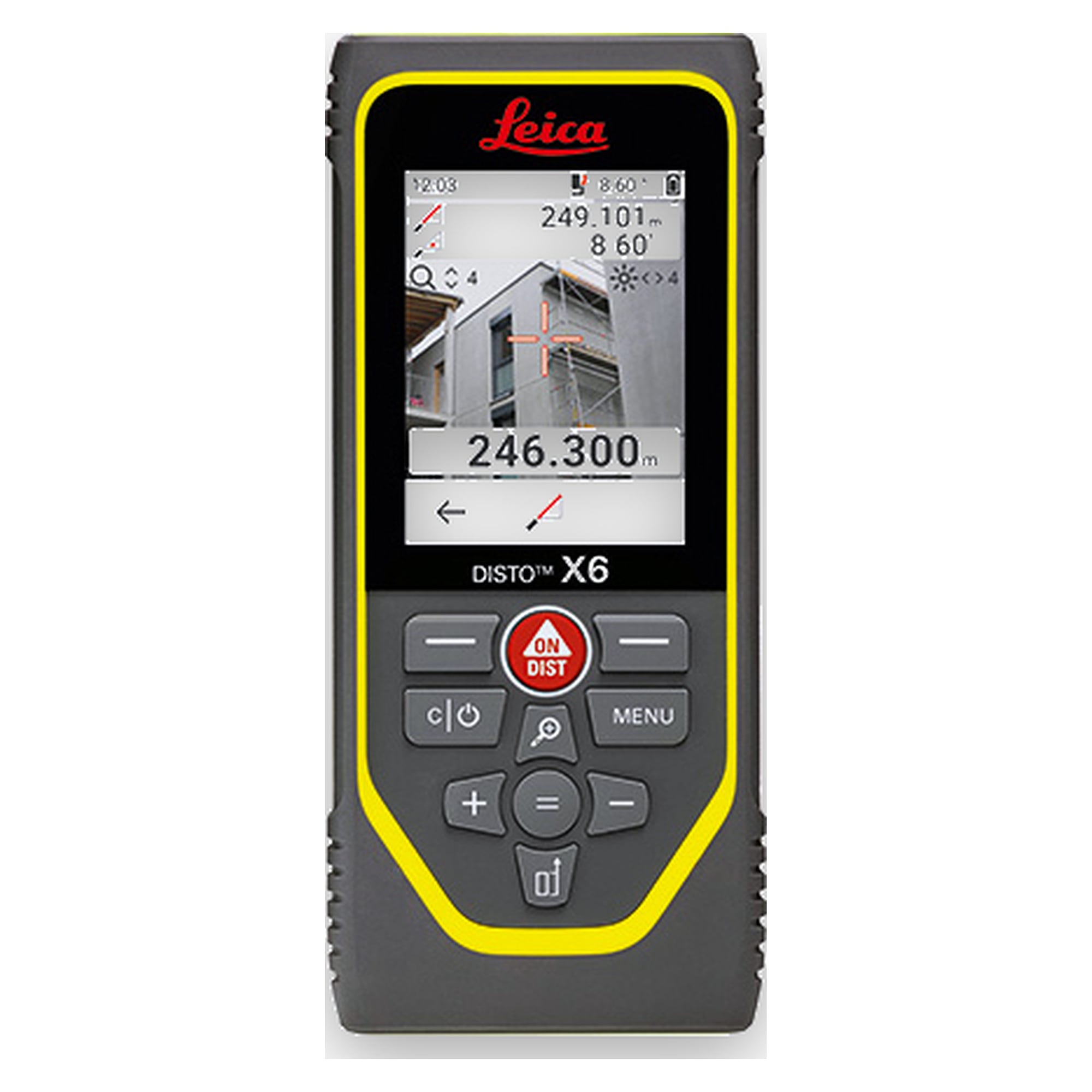

• 2.8 inch IPS touchscreen with scratch proof lens plus a side DIST key that triggers the measurement in working posture.
• IP65 dust tight and jet water protected, drop tested from 2 m, ready to measure in under 1 second.
• Memory for 1000 measurements, 300 reports and 1000 captured 3D points, downloaded over USB-C or Bluetooth 5.0.
• Li-Ion battery with 2000 mAh for up to 4000 measurements or 8 hours of operation, charged over USB-C.
• The Leica DST 360-X adapter adds P2P distance, Smart Area, Smart Angle and DXF data capturing.

Technical data

Functions

• Distance measuring, min and max measuring, permanent measuring, stake out, addition and subtraction.
• Area, volume, triangle area and room angle, painter function, measure in picture for width, diameter and area.
• Smart Horizontal Mode, indirect height tracking, profile measuring, sloped objects, level function.
• Gesture control, rotating display content, favourite keys, timer, beep, automatic multifunctional end piece.
• With the DST 360-X adapter also P2P distance, P2P Smart Area, P2P Smart Angle, 3D data capturing of 1000 points, DXF data capture with 300 reports and P2L distance.

Applications

Outdoor measuring on facades and open areas, surveys of large halls and interiors, take off for window, facade and metal construction, profile and height measurements on the shell and data capture for later CAD work.

Compatibility and scope of delivery

The Leica DST 360-X P2P adapter, article number 946095, extends the X6 with point to point measuring and DXF capture. Matching tripods are TRI 70, TRI 100 and TRI 120. Further accessories are the GZM 26 and GZM 30 target plates, the TPD 100 targeting pole kit and the USB-C caps, article number 969880. Data runs through the Leica DISTO Plan app for iOS and Android or DISTO transfer for Windows.

• Leica DISTO X6, 1 piece
• Pouch, 1 piece
• USB-C to USB-A cable, 1 piece
• Hand loop, 1 piece
• Quick start guide, warranty card and safety manual, 1 set
• Calibration Certificate Silver, 1 piece

Standards and marking

Laser class 2 in accordance with IEC 60825-1, range and accuracy tested to ISO 16331-1. Manufacturer article number 950909. Registering the unit within 8 weeks of purchase at disto.com/warranty gives 3 years of warranty on the instrument and 2 years on the Li-Ion battery.
