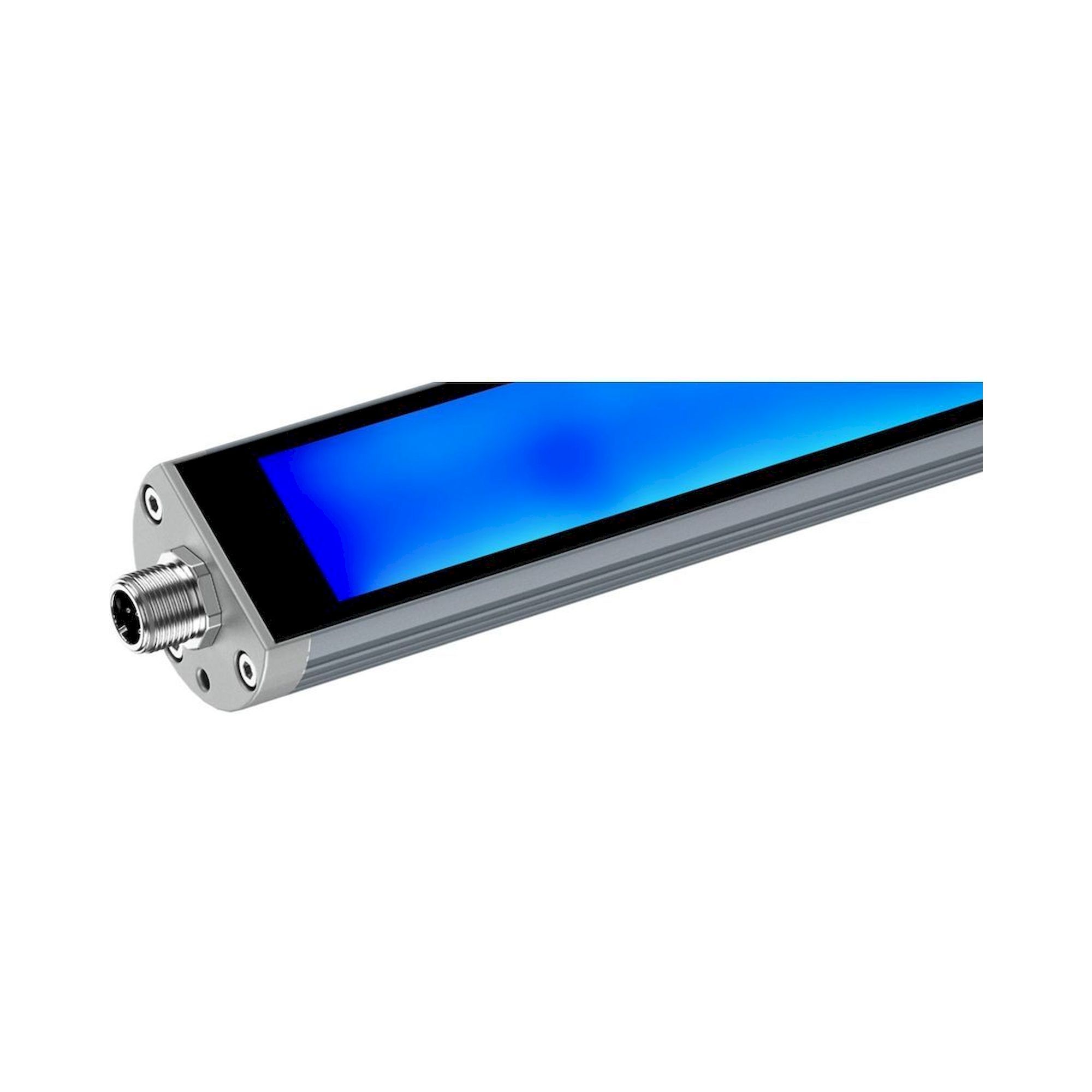

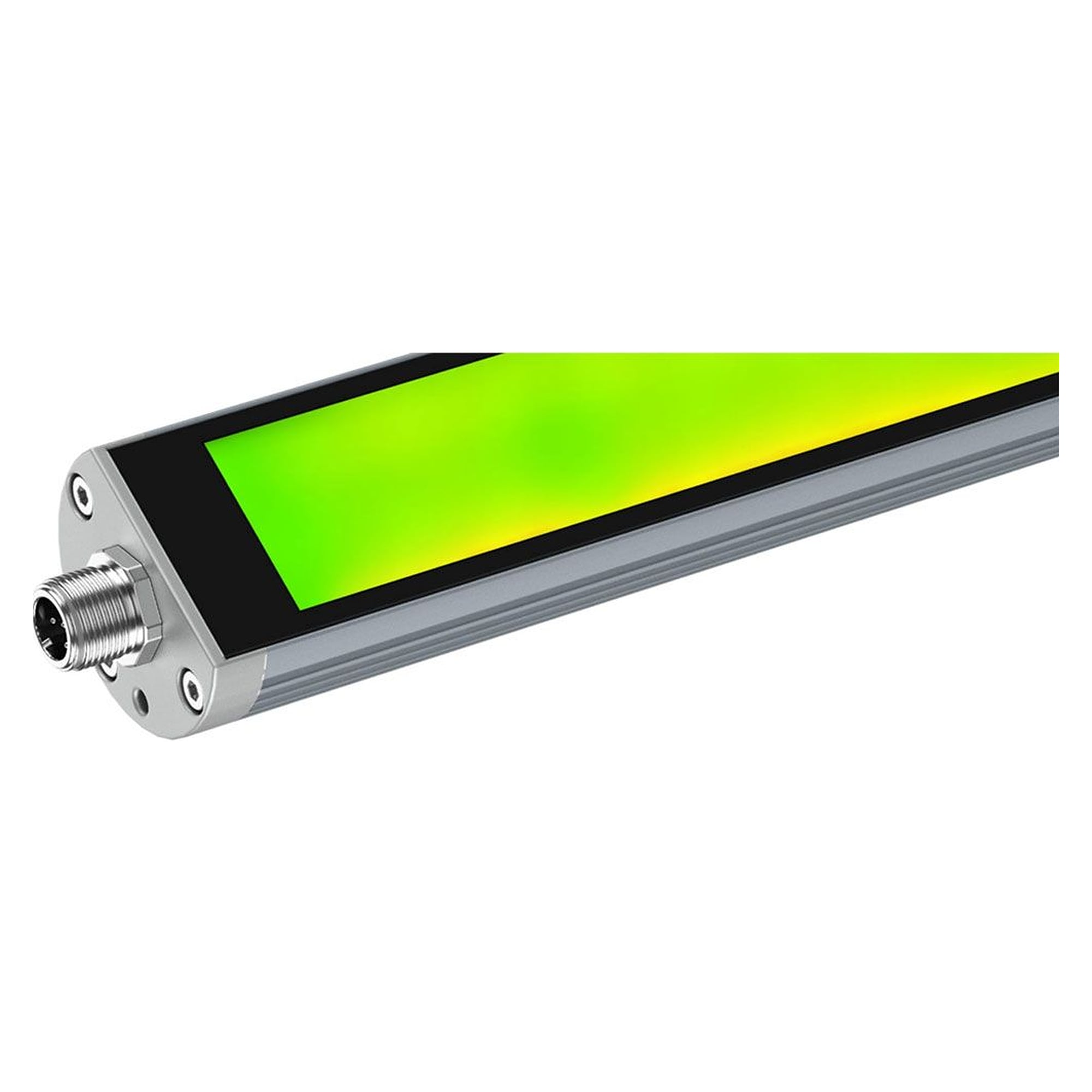

TUBELED_40 II Power Machine Light 540 mm, 24,5 W, 5700 K, 100° - LED2WORK 118310-01

For bright illumination of work areas inside machines, the TUBELED_40 II Power delivers 4258 lm at 24,5 W over a 540 mm length. The low-profile light is oil-resistant and chip-impact-proof, making it a first choice for both original equipment and retrofitting.

Your benefits

• Luminous efficacy of 173 lm/W lm/W for efficient operation
• IP67/IP69K protection, oil-resistant and resistant to coolants and lubricants
• Low-profile build at just 29 mm, 100% CNC-suitable
• Shatterproof safety glass with diffuser for low-glare light
• High shock and vibration resistance (up to 50 g)
• Long service life of more than 100,000 h (L80/B10)

Technical data

• Model: TUBELED_40 II Power
• Design: LED surface-mounted machine light
• Light source: SMD LED
• Power: ~24,5 W
• Luminous flux: 4258 lm
• Luminous efficacy: ~173 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): >85
• Beam angle: 100°
• Supply voltage: 24V DC ± 10%
• Connection: M12 A-kodiert
• Protection rating: IP67/IP69K
• Protection class: III
• Operating temperature: -30 °C to +60 °C
• Service life: > 100.000 h (L80/B10)
• Vibration resistance: Bei 10 bis 55 Hz (Amplitude 0,35 mm)
• Shock resistance: Bis 50 g
• Housing: aluminium
• Cover: Sicherheitsglas, 4 mm
• Dimensions: 540 mm x 40 mm x 29 mm
• Weight: 650 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529), D-Kennzeichnung
• Made in: Germany

Applications

For bright illumination of work areas in machine tools, CNC machining centres and equipment, as original equipment or for retrofitting.
