LENSLED II LED Magnifier Lamp Articulated Arm 3.5 dpt with 8 dpt Bifocal, Dimmable - LED2WORK 120810-12

The LENSLED II is a sturdily built LED magnifier lamp for inspection stations, quality control and assembly. The coated, scratch-resistant glass lens Ø160 mm at 3.5 dpt features an additional ground-in 8-dpt bifocal Ø31.5 mm for even stronger magnification of the finest detail.

Key benefits

• Scratch-resistant glass lens Ø160 mm (3.5 dpt) with a ground-in 8-dpt bifocal Ø31.5 mm
• Stepless dimming with memory function already built in

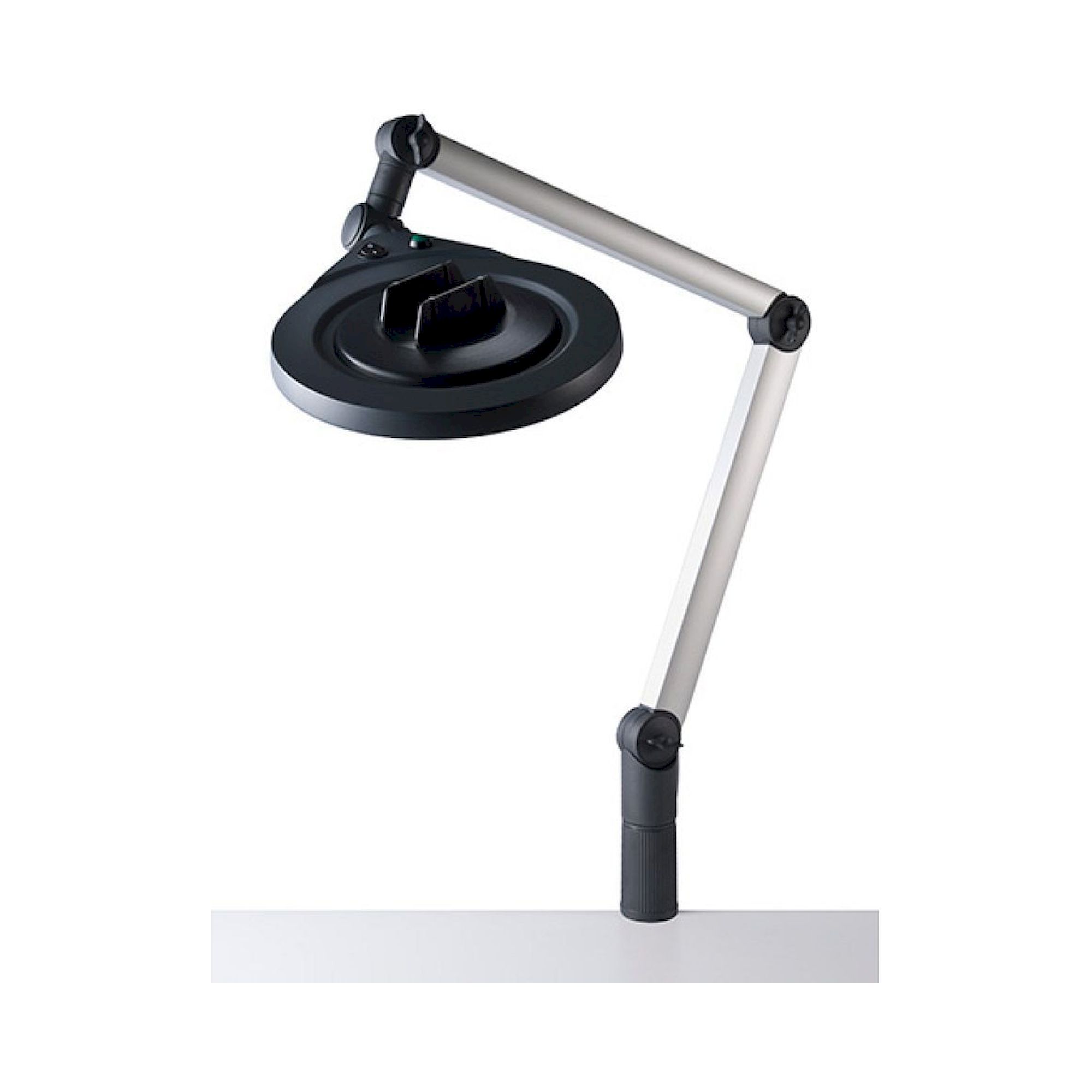

• Freely positioned via aluminium spring arms and a 3D head joint
• High colour fidelity of Ra >90 for accurate visual inspection
• Very long service life of more than 100,000 h (L80/B10)
• Supplied with table clamp, lens cover and power supply

Technical data

• Model: LENSLED II articulated arm
• Design: LED articulated-arm lamp
• Magnifying lens: biconvex Ø 160 mm (3.5 dpt) + bifocal Ø 31.5 mm (8 dpt)
• Light source: SMD LED
• Power: approx. 15 W
• Luminous flux: 1570 lm
• Luminous efficacy: approx. 105 lm/W
• Light colour: 5700K (3-step MacAdam)
• Colour rendering (Ra): >90
• Beam angle: 120 degrees
• Supply voltage: 24V DC ± 10%
• Power supply: 100-240V AC adapter included
• Connection: M12 A-coded
• Power supply connection: EURO plug to M12 connector
• Protection rating: IP40
• Protection class: III
• Operating temperature: -10 °C to +40 °C
• Service life: > 100,000 h (L80/B10)
• Lens material: glass
• Housing material: aluminium / plastic
• Arm length: 2x 400 mm
• Weight: 4000 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA
• Made in: Germany

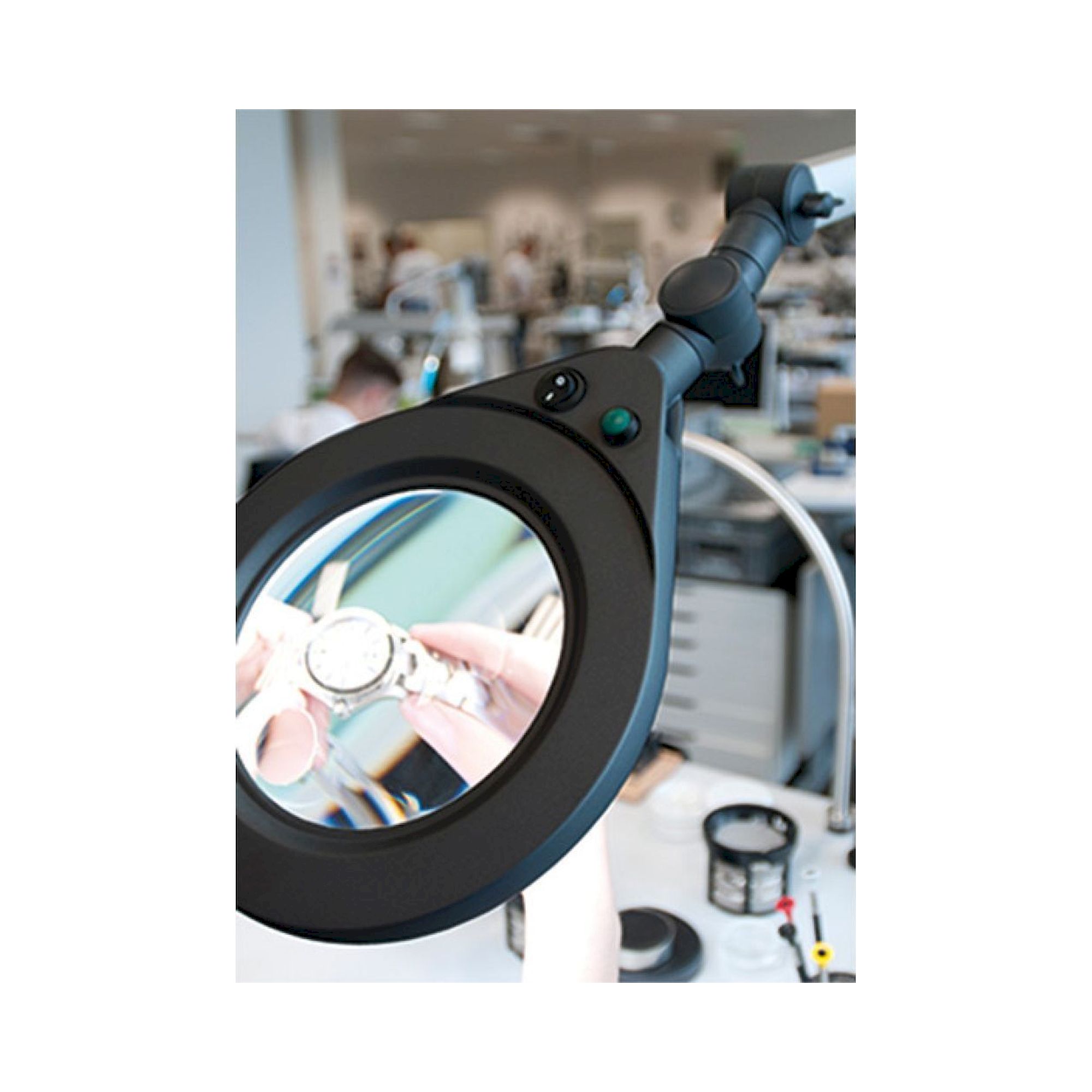

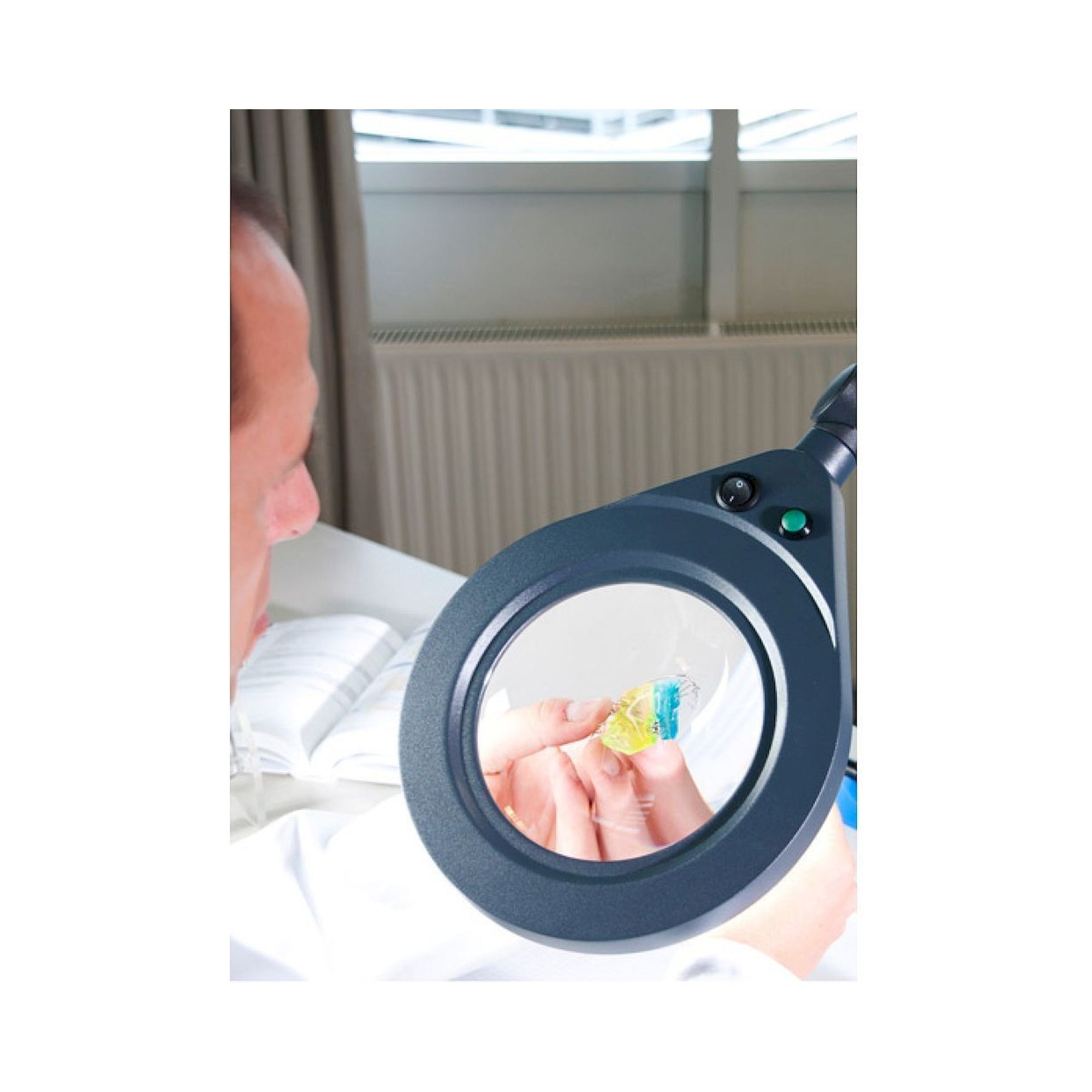

Applications

Ideal for inspection stations, quality control, assembly and the finest detail work where the additional bifocal calls for especially strong magnification. Supplied with table clamp, lens cover and a 100-240V AC power supply for a fixed 24V DC output.
