UNILED II Tunable White Watchmaker arm dimmable, 3000-6500K, width 380 mm - LED2WORK 120900-02
UNILED II TUNABLE WHITE Watchmaker articulated-arm LED light, luminaire width 380 mm, with steplessly adjustable colour 3000K to 6500K and colour rendering up to Ra >98. 1582 lm at 6500K from ~20 W, IP40 with internal dimmer and memory function. Incl. 110-240V power supply and table clamp.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The UNILED II TUNABLE WHITE Watchmaker articulated-arm LED light lets you adjust the light colour steplessly from warm white 3000 K to daylight white 6500 K via a membrane button on the head, reaching a colour rendering up to Ra >98, almost sunlight-like light for demanding visual tasks. Luminaire width 380 mm with internal dimmer and memory function.
Your benefits
- TUNABLE WHITE: steplessly adjustable colour temperature 3000 K to 6500 K for quality assessment under changing light.
- Very high colour rendering Ra >90 up to >98 with SUNlike LEDs for natural, sharp colour.
- 1582 lm at 6500 K or 1468 lm at 3000 K from ~20 W.
- Movable spring arms 1x 400 mm and 1x 250 mm of aluminium for ergonomic positioning with 3D joints.
- Supplied including 110-240V AC power supply and table clamp.
Applications
Ideal for demanding visual tasks where quality is assessed under different light colours, such as jewellery and watchmaking, the laboratory and quality assurance.
Technical data
| Model | UNILED II articulated arm TW |
|---|---|
| Light source | SUNlike LED |
| Power | ~20 W |
| Luminous flux | 1582 lm (6500 K) / 1468 lm (3000 K) |
| Light colour | warm white (3000 K) to daylight white (6500 K) |
| Colour rendering (Ra) | >90/98 |
| Beam angle | 100° |
| Supply voltage | 24V DC ± 10% |
| Power supply | 110-240V AC unit included |
| Connection | M12 A-coded |
| Protection rating (IP) | IP40 |
| Protection class | III |
| Operating temperature | -10 °C to +60 °C |
| Service life | >60,000 h (L80/B10) |
| Housing material | aluminium / plastic |
| Luminaire width | 380 mm |

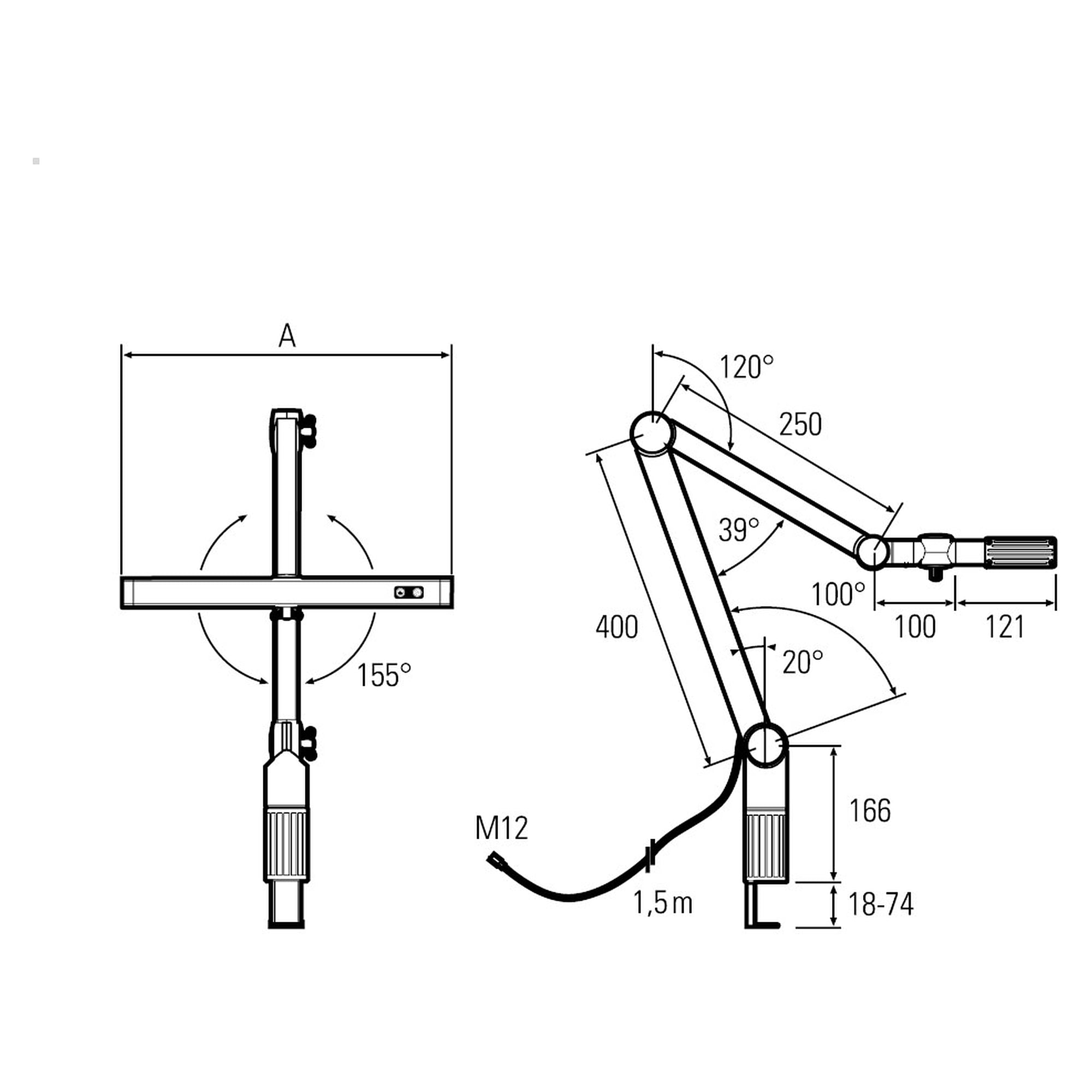

| Articulated arms | Movable spring arms 1x 400 mm and 1x 250 mm |
| Weight | 2900 g |
| Risk group (DIN EN 62471) | exempt group |
| Certifications | CE, UKCA |

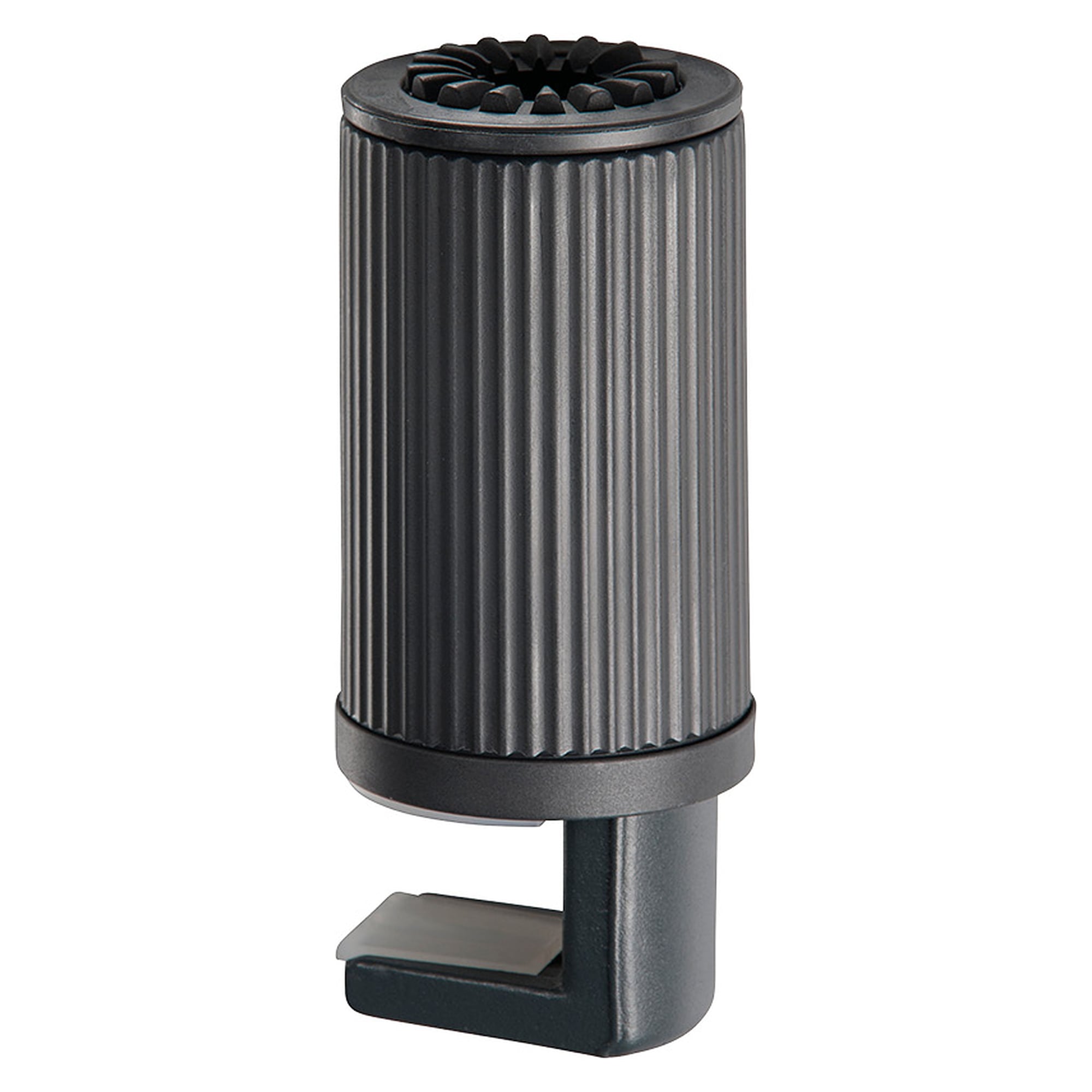

| Mounting accessory | table clamp included |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Manufacturer Nr. | 120900-02 |
| HS-Code | 94054239 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN EN 62471 |
| Control and dimming | Tunable White |
| Luminous flux (lumen) | 1582 lm |
| Power (W) | 20 W |
| Colour temperature | Tunable White |
| Mounting type | Articulated arm, Table clamp |
| Operating voltage | 110-240 V |
| Protection class (IP) | IP40 |
