FIELDLED EVO recessed 280x96 mm machine light 19W, 100°, M12 front, IP67/IP69K - LED2WORK 153010-11
High-output LED machine light as a recessed light with 3000 lm from 19 W for even, glare-free lighting of large machines. Safety glass, a metal housing and IP67/IP69K protect against chips and coolant.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For even, flicker- and glare-free lighting of large plant, the FIELDLED EVO recessed delivers 3000 lm from around 19 W with microprism glare control, ideally for harsh settings such as metal machining.
Key benefits
- High output of 3000 lm at around 19 W, 155 lm/W
- Microprism glare control for flicker- and glare-free light
- IP67/IP69K rating against chips, dust and coolant
- Aluminium metal housing with shatterproof toughened safety glass (ESG)
- Vibration-resistant at 10 to 55 Hz and shock-resistant up to 50 g
- M12 connection on the front, reverse-polarity-safe at 24V DC
Applications
Lighting of machine tools and large plant, ideally in metal machining. The recessed light retrofits into almost any machine tool.
Technical data
| Model | FIELDLED EVO recessed, M12 front |
|---|---|
| Design | recessed LED machine light |
| Light source | SMD LED |
| Power | ~19 W |
| Luminous flux | 3000 lm |
| Luminous efficacy | 155 lm/W |
| Light colour | 5700K 3-step MacAdam |
| Colour rendering (Ra) | >85 |
| Supply voltage | 24V DC ± 10% |

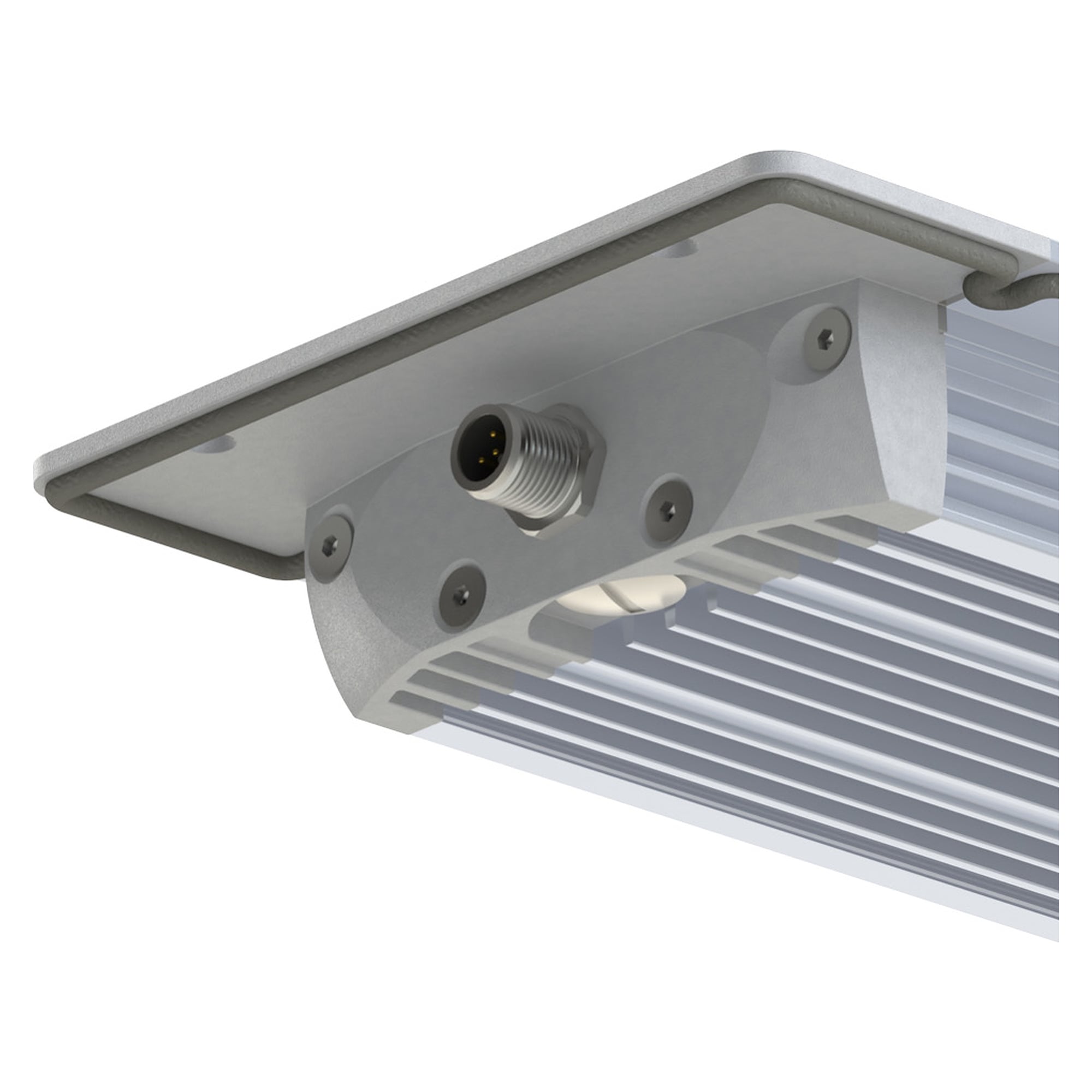

| Connection | M12 A-coded, front |
| Protection rating | IP67/IP69K |
| Protection class | III |

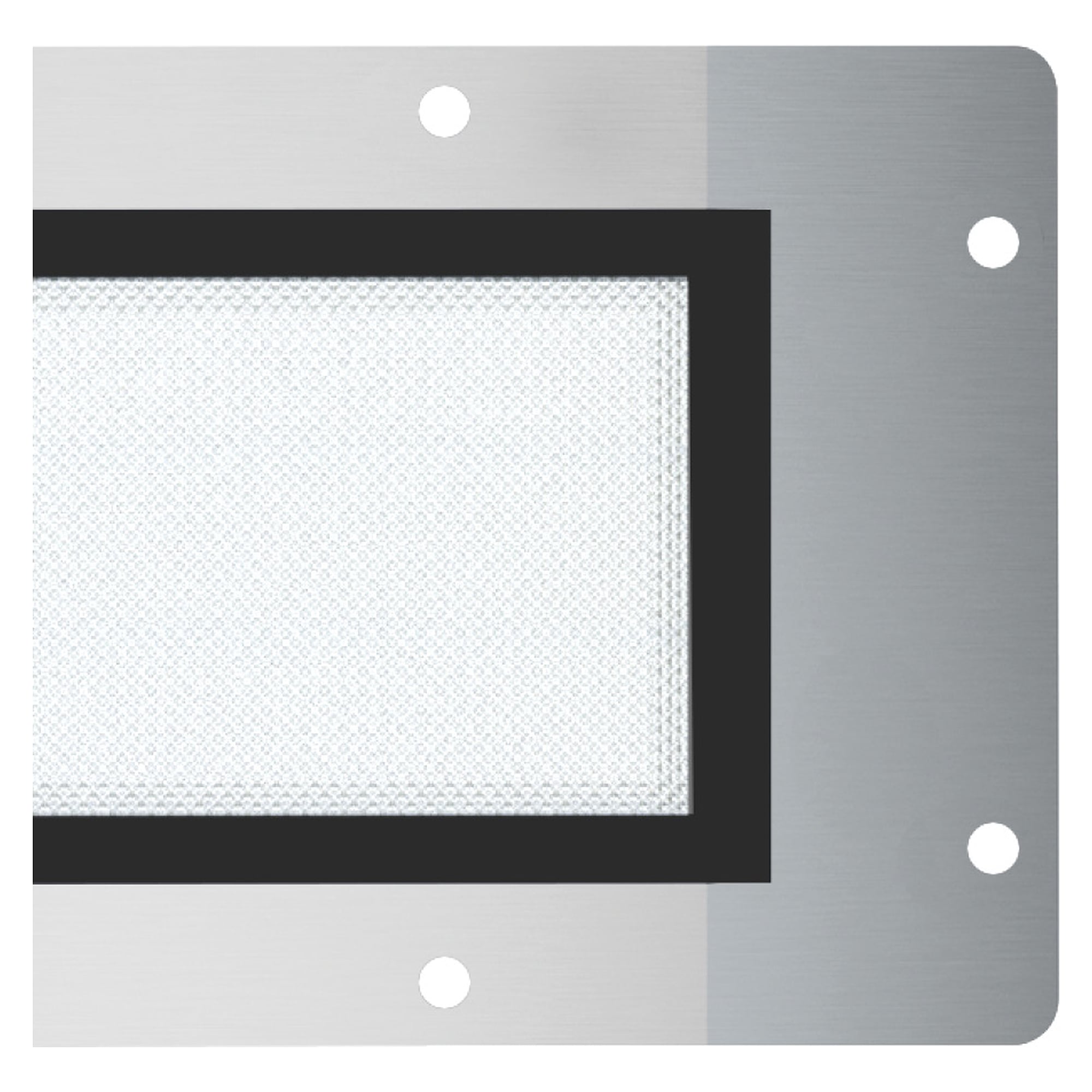

| Glare control | microprisms |

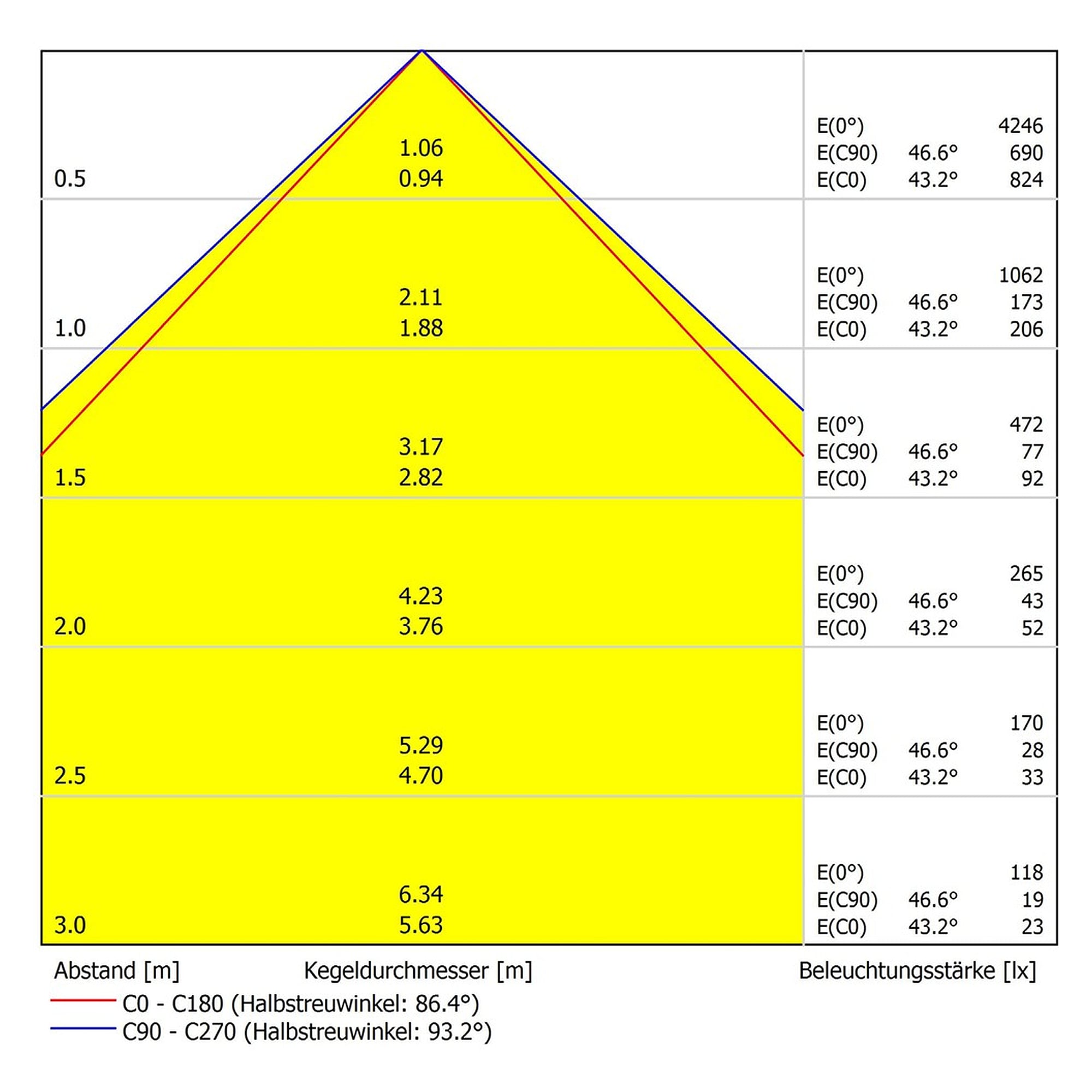

| Beam angle | 100° |
| Operating temperature | -30 °C to +60 °C |
| Service life | > 100,000 h (L80/B10) |
| Vibration resistance | 10 to 55 Hz (amplitude 0.35 mm) |
| Shock resistance | up to 50 g |
| Housing material | aluminium |
| Cover material | ESG (safety glass), shatterproof |

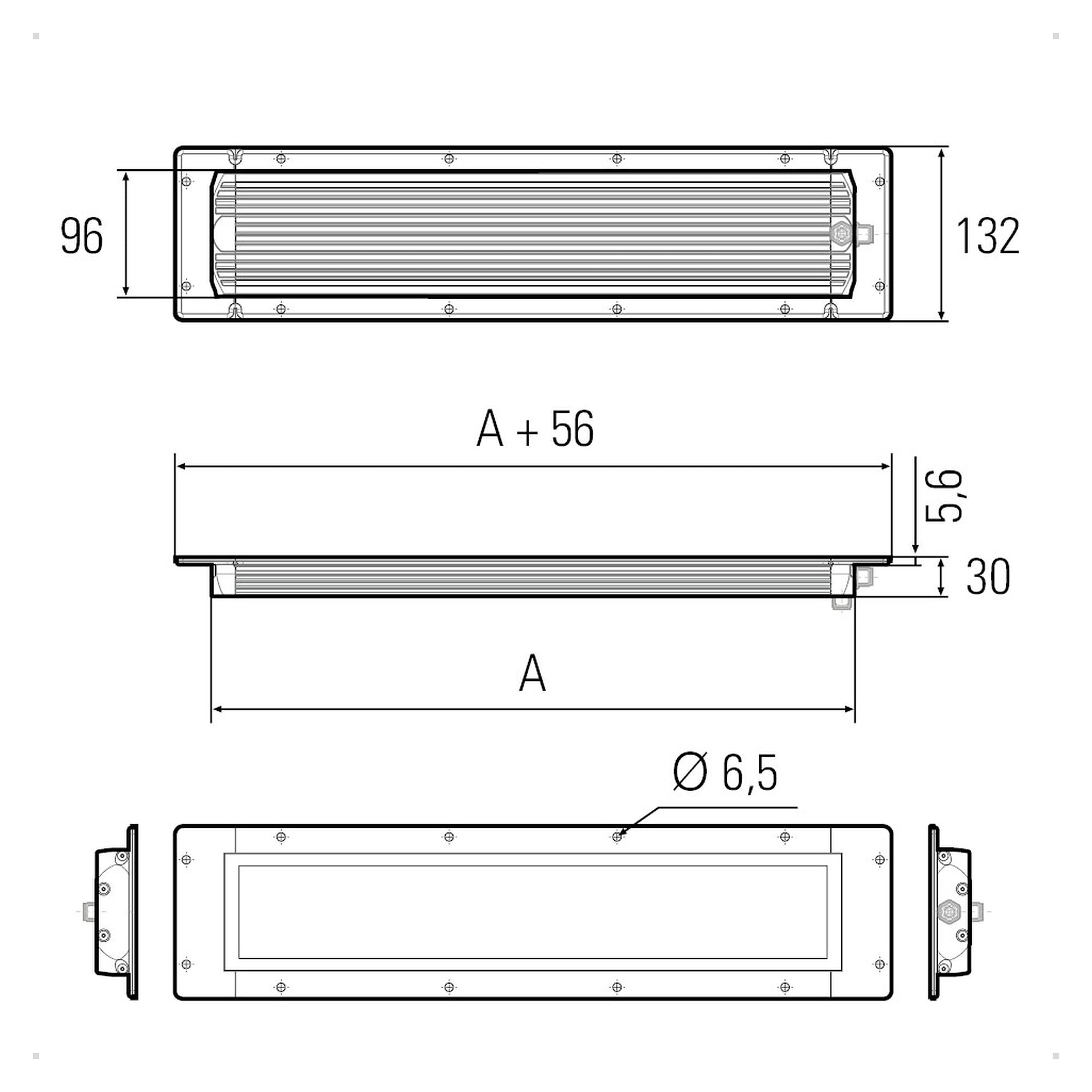

| Dimensions (H x W) | 30 mm x 96 mm, length: 280 mm |
| Weight | 1180 g |
| Risk group (DIN EN 62471) | exempt group |
| Dimmable | optional via accessory |
| Mounting | integrated frame with Ø 6.5 mm holes |
| Certifications | CE, UKCA, ETL Listed (5003529) |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Manufacturer Nr. | 153010-11 |
| HS-Code | 94054239 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN EN 62471 |
| Control and dimming | Dimmable |
| Luminous flux (lumen) | 3000 lm |
| Power (W) | 19 W |
| Colour temperature | 5700K |
| Mounting type | Recessed |
| Operating voltage | 24 V |
| Protection class (IP) | IP69K |
