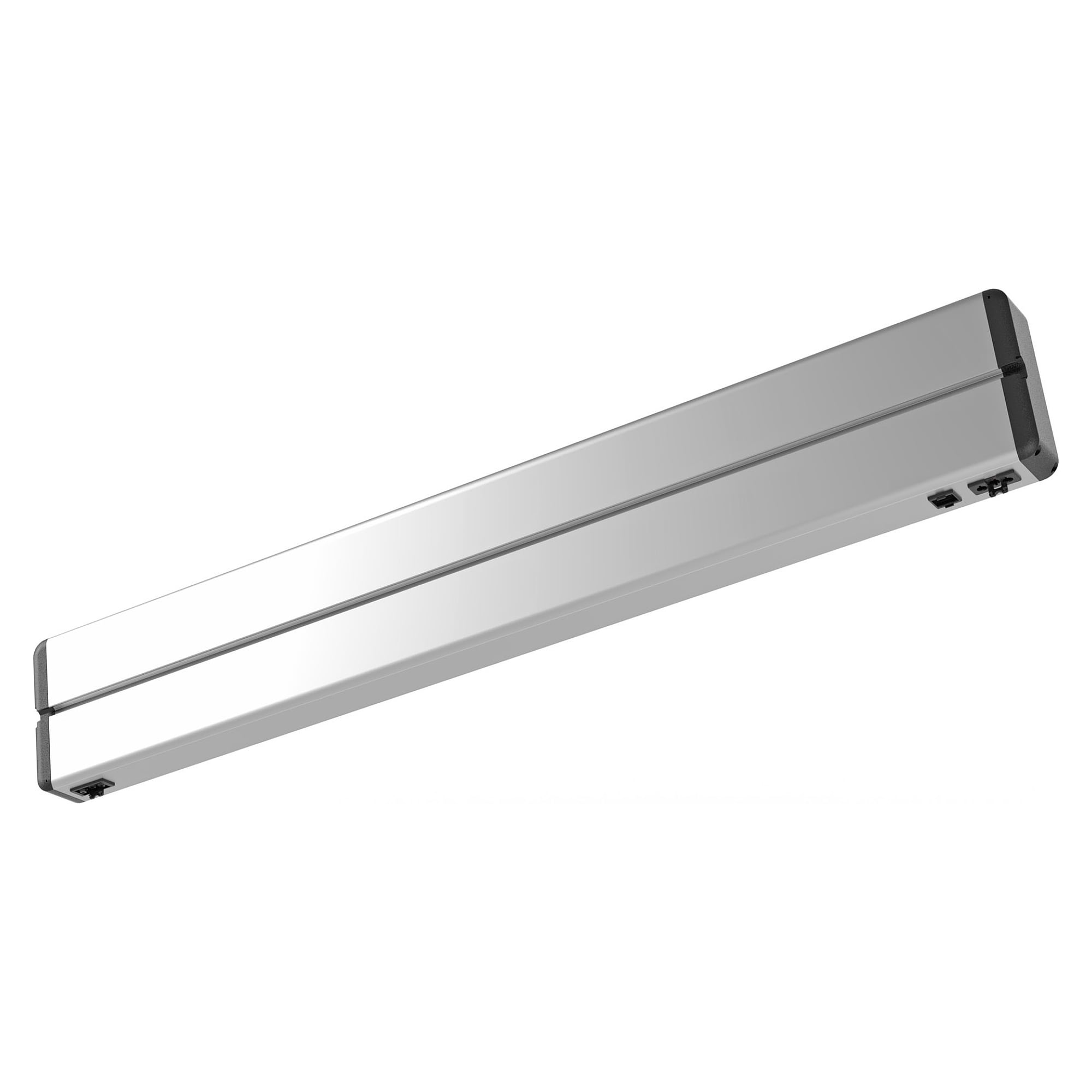

SYSTEMLED EVO PIR system light 1120mm 32W 4000K motion sensor - LED2WORK 155220-04

Images are examples, some edited with AI. The technical data are authoritative. AI notice

SYSTEMLED EVO PIR system light 1120mm 32W 4000K motion sensor - LED2WORK 155220-04

Name: SYSTEMLED EVO PIR system light 1120mm 32W 4000K motion sensor - LED2WORK 155220-04
Brand: LED2WORK
SKU: L2W-155220-04
Price: 321.64 EUR
Availability: InStock

LED2WORK ✓ Original product Brand new Made in Germany

LED system light with built-in PIR motion sensor for presence-based lighting control. Over 1120 mm it delivers 4975 lm of 4000K neutral white at around 32 W, IP40.

Net

€321.64

excl. VAT

Item L2W-155220-04

Manufacturer no. 155220-04

Question about this item

Datasheet (PDF) User manual 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The SYSTEMLED EVO PIR adds an integrated motion sensor to the proven system light: when the detection zone stays empty it switches off automatically after 5, 10, 15 or 30 minutes and reliably comes back on when a person returns. Over 1120 mm it delivers 4975 lm of neutral-white 4000K light.

Key benefits

Presence-based control via integrated PIR sensor, switch-off delay selectable in four steps (5, 10, 15, 30 min).

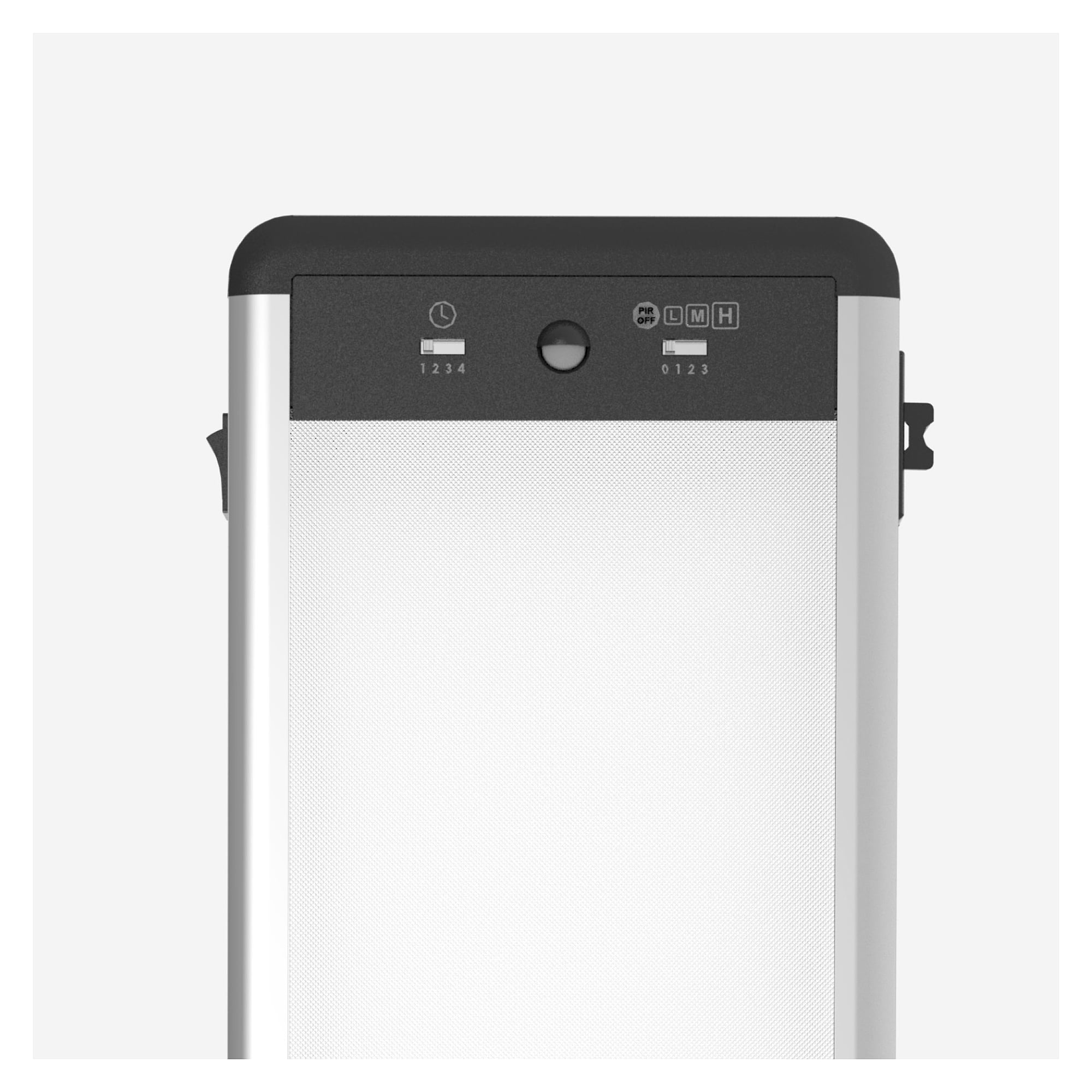

Adjustable sensitivity and run-on time for different work areas.
4975 lm at around 32 W, efficacy 173 lm/W.
Neutral-white 4000K light with colour rendering Ra >90 (typ. 95).
Microprism cover for low-glare work at a 90° beam angle.

Applications

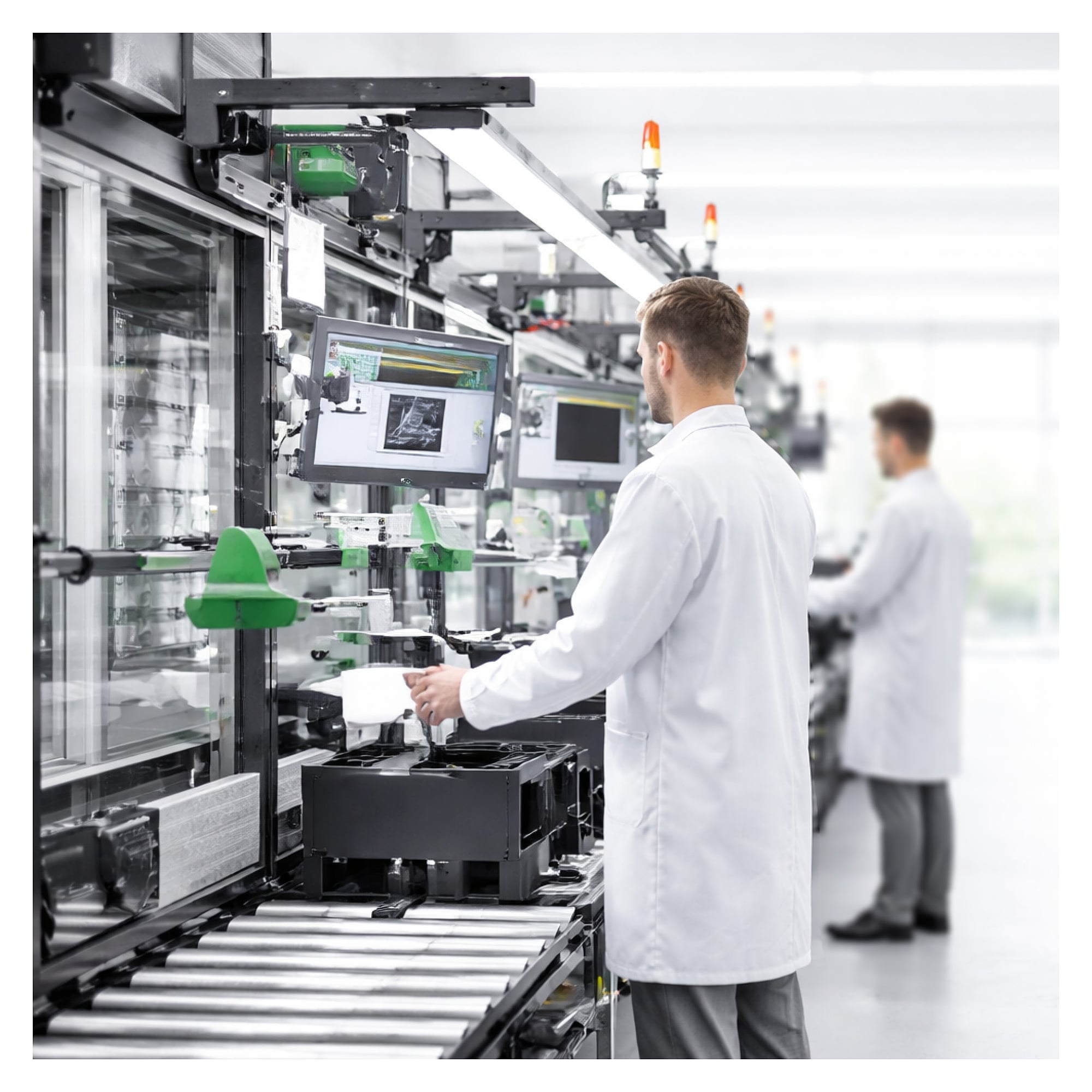

Suited to production lines, assembly stations and laboratories where light is only required on occupancy. Mounting is via the rear T-slot, with optional fixing accessories available. Dimming is optional via accessories.

Technical data

Model	SYSTEMLED EVO PIR - ECO neutral white
Design	LED system light, SMD LED
Total power incl. driver	~32 W (lamp power ~29 W)
Luminous flux	4975 lm, efficacy 173 lm/W
Light colour	4000K 3-step MacAdam
Colour rendering	Ra >90 (typ. 95)
Supply voltage	120-277V AC ± 10%, 50-60 Hz, integrated driver
Connection	Wieland GST18
Protection rating	IP40, protection class I

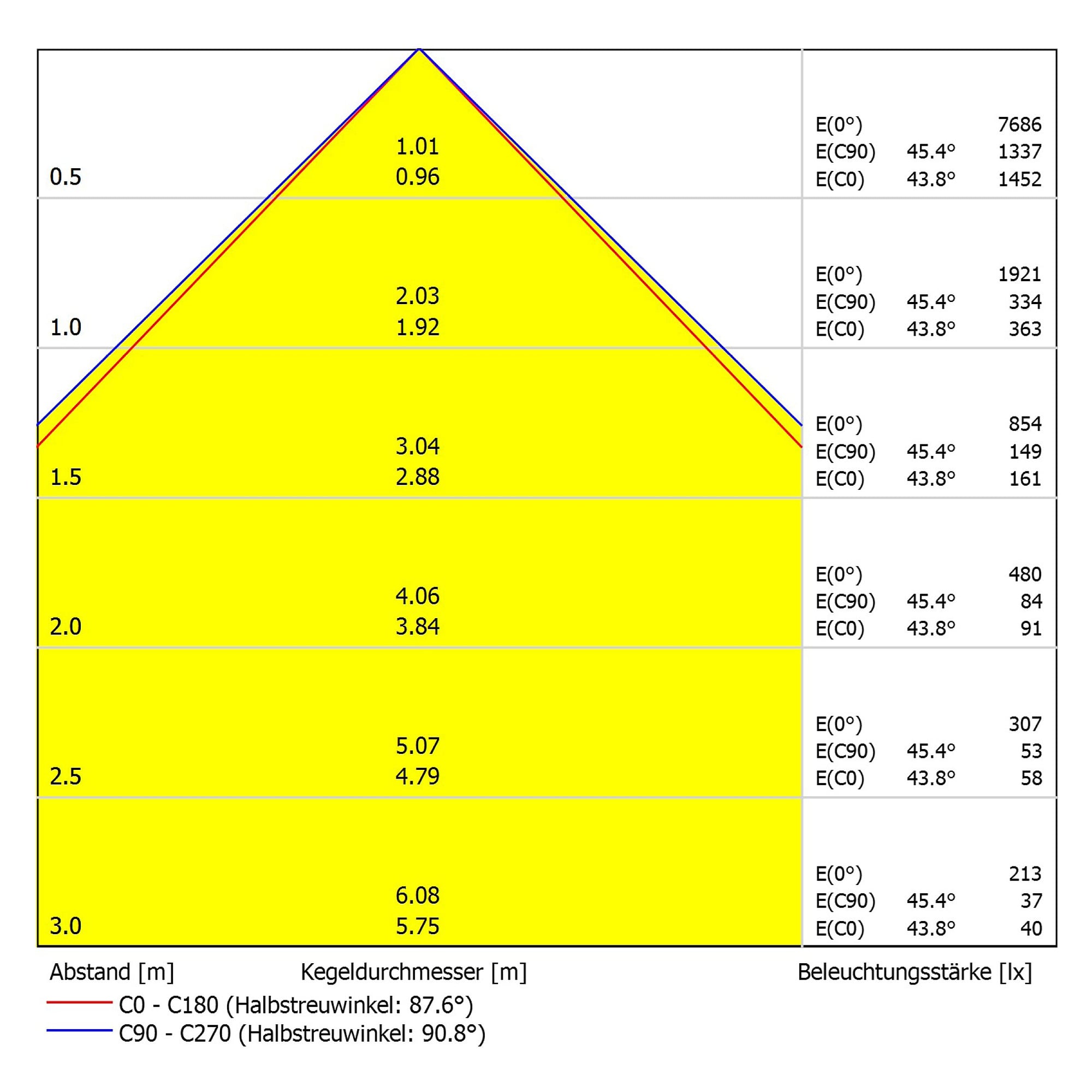

Beam angle	90°, glare control via microprisms
Operating temperature	-10 °C to +50 °C
Service life	> 100,000 h (L80/B10)
Material	aluminium and PMMA

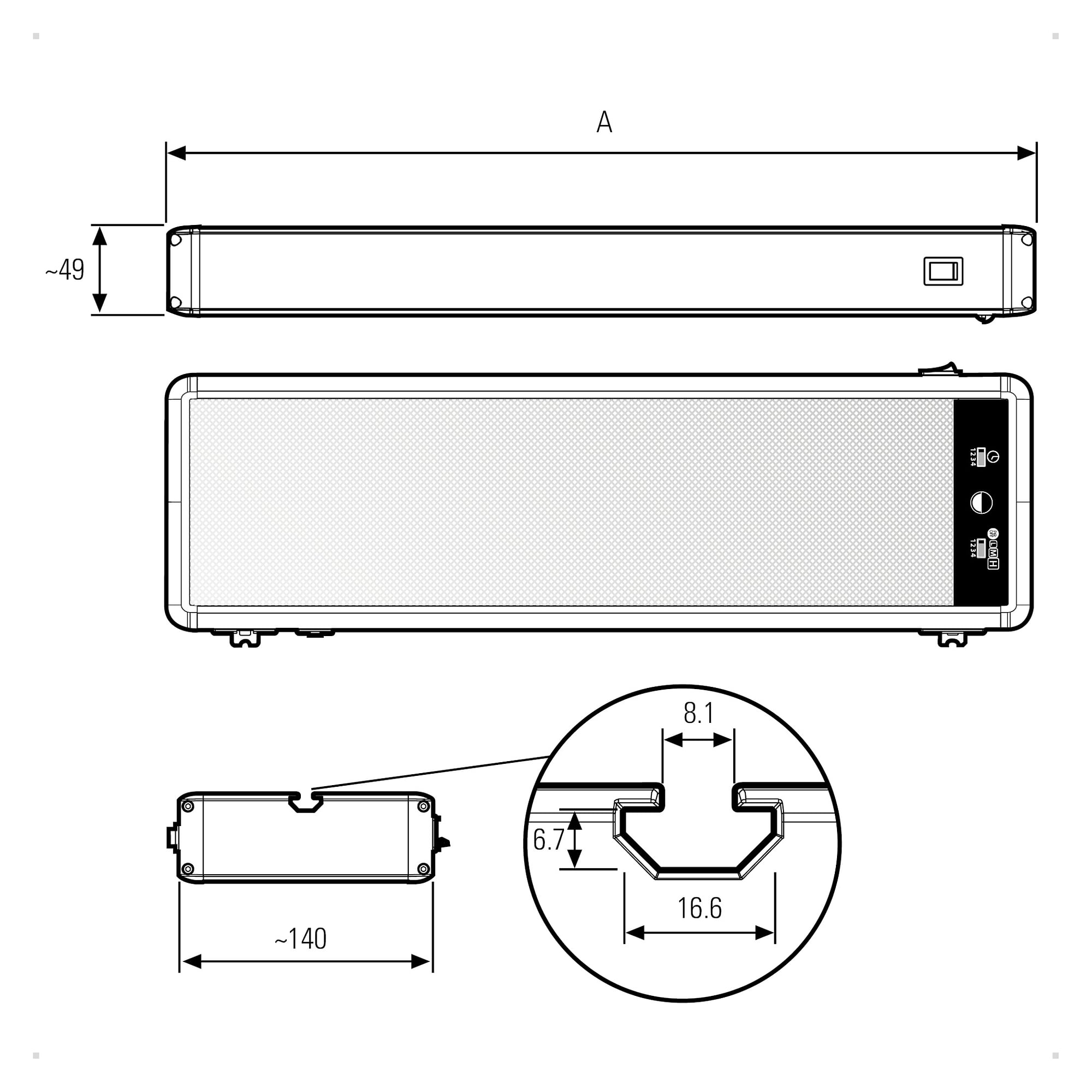

Dimensions	1120 mm x 139 mm x 48 mm (L x W x H), weight 3100 g
Risk group (DIN EN 62471)	exempt group
Certifications	CE, UKCA
Made in	Germany
Weight	3.1 kg
Manufacturer	LED2WORK
Manufacturer Nr.	155220-04
HS-Code	94054239
GPSR manufacturer information	LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Norm	DIN EN 62471
Luminous flux (lumen)	4975 lm
Power (W)	32 W
Colour temperature	4000K
Colour rendering (Ra)	Ra 90
Mounting type	T-slot / profile
Operating voltage	120-277 V
Protection class (IP)	IP40
