SYSTEMLED EVO PIR ECO LED system light 898mm 4000K, approx. 26W, IP40 - LED2WORK 155120-04

The SYSTEMLED EVO PIR ECO brings the German-made LED system light to assembly and production workstations and adds an integrated PIR motion sensor for presence-based lighting control. At 898mm long with 3980 lm of luminous flux in 4000K neutral white, it creates bright, glare-free working conditions yet switches off automatically when no one is present.

Key benefits

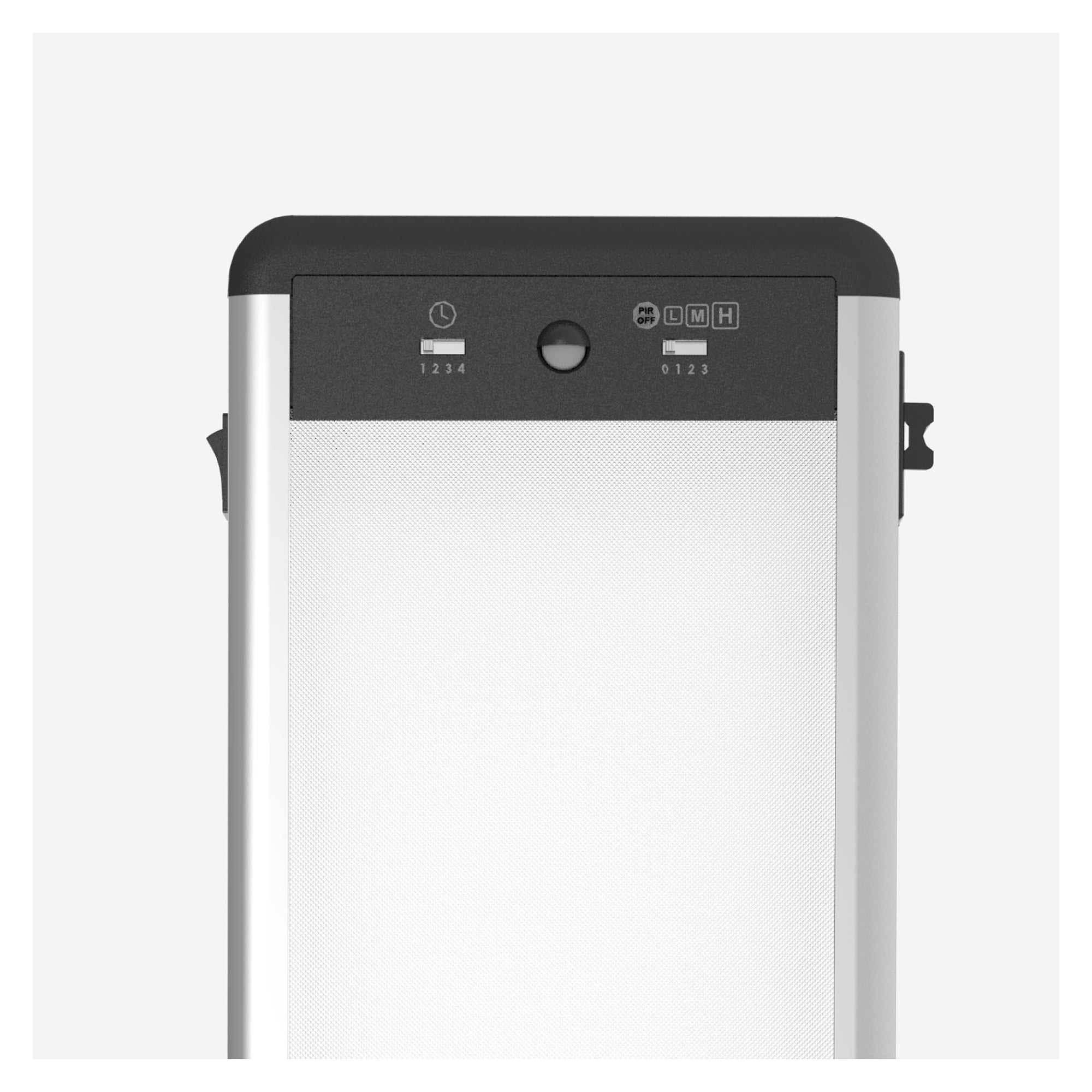

• Motion sensor: the integrated PIR sensor switches the light off after a selectable 5, 10, 15 or 30 minutes without movement and back on when someone approaches.
• Adjustable: sensitivity and follow-up time can be set in several steps to suit each work area.
• High light output: 3980 lm of luminous flux at 173 lm/W efficacy in 4000K neutral white.
• Glare-free: micro-prism glare control and a 90° beam angle for an even light distribution.
• High colour fidelity: colour rendering >90 (typ. 95) for precise work and reliable colour recognition.
• Durable: a service life of > 100.000 h (L80/B10) and German manufacture cut maintenance and operating costs.

Technical data

• Model: SYSTEMLED EVO PIR - ECO Neutralweiss
• Type: LED Systemleuchte
• Light source: SMD LED
• Total power incl. driver: ~26 W
• Lamp power: ~23 W
• Luminous flux: 3980 lm
• Luminous efficacy: 173 lm/W
• Light distribution: Direct
• Light colour: 4000K 3-step MacAdam
• Colour rendering (Ra): >90 (typ. 95)
• Supply voltage: 120-277V AC ± 10%, 50-60 Hz
• Connection: Wieland GST18
• Protection rating (IP): IP40
• Protection class: I
• Glare control: micro-prisms

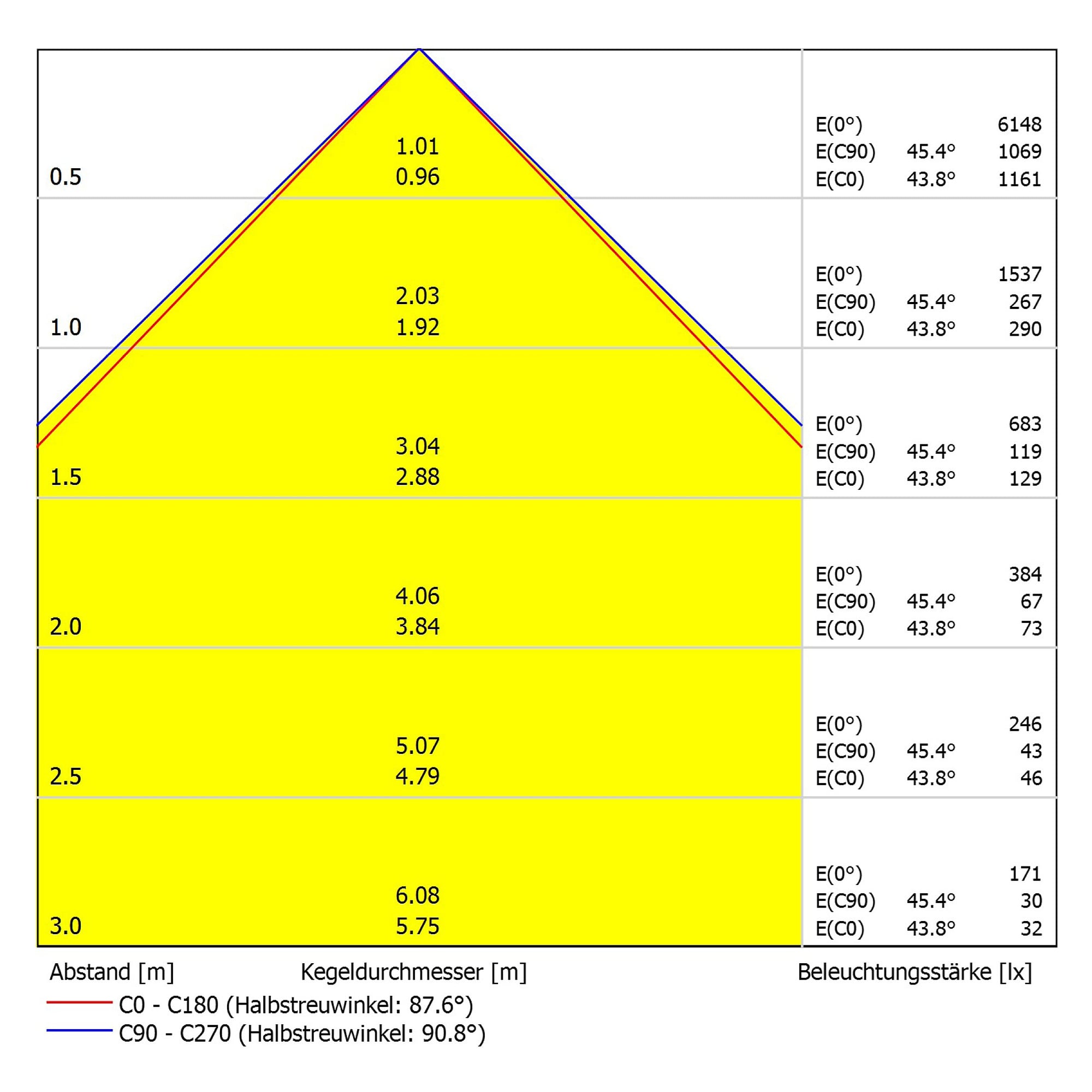

• Beam angle: 90°
• Operating temperature: -10 °C - +50 °C
• Service life: > 100.000 h (L80/B10)
• Housing material: aluminium and PMMA

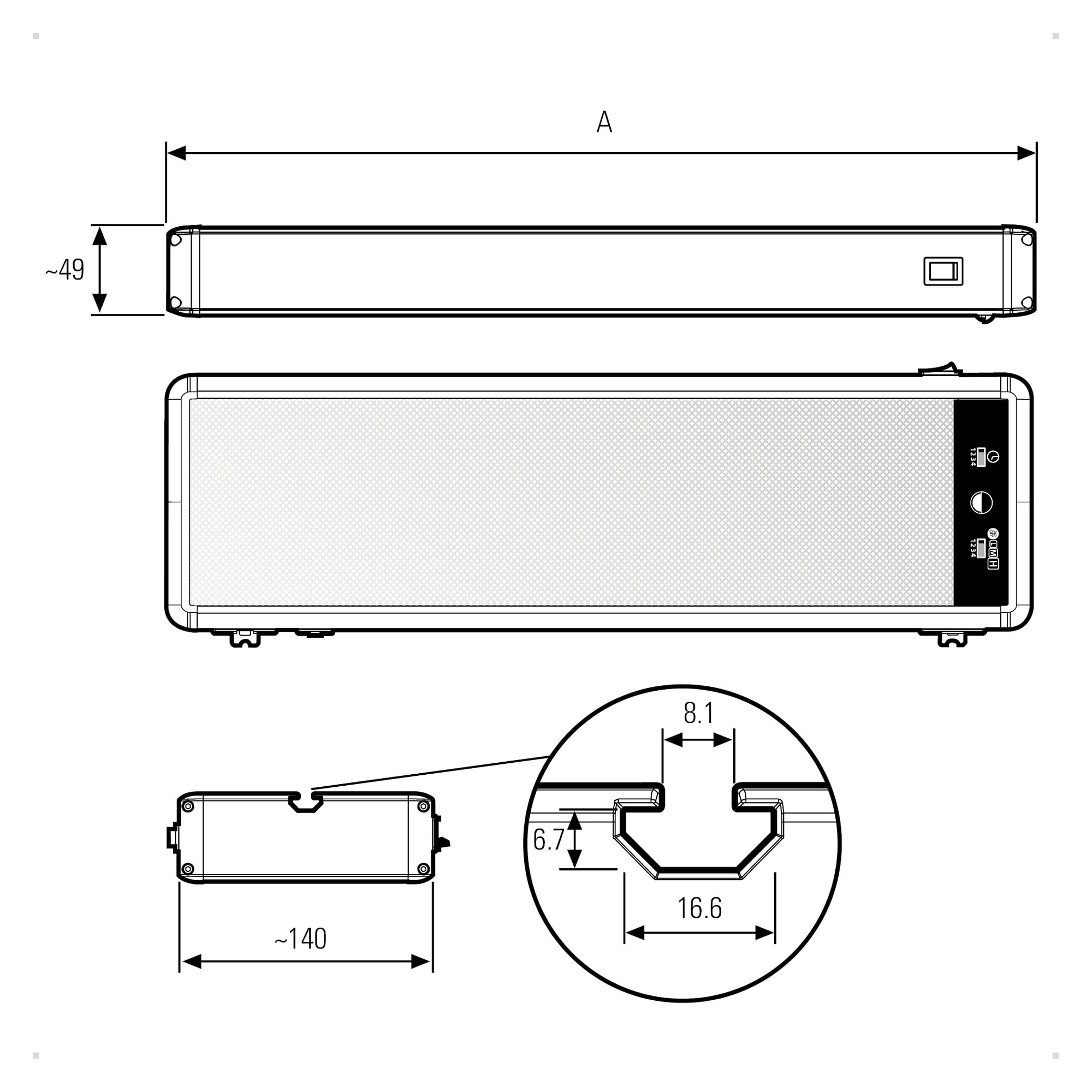

• Dimensions (L x H x W): 898 mm x 48 mm x 139 mm
• Weight: 2550 g
• Risk group (DIN EN 62471): Exempt group
• Certifications: CE, UKCA
• Dimmable: optional via accessory
• Made in: Germany

Applications

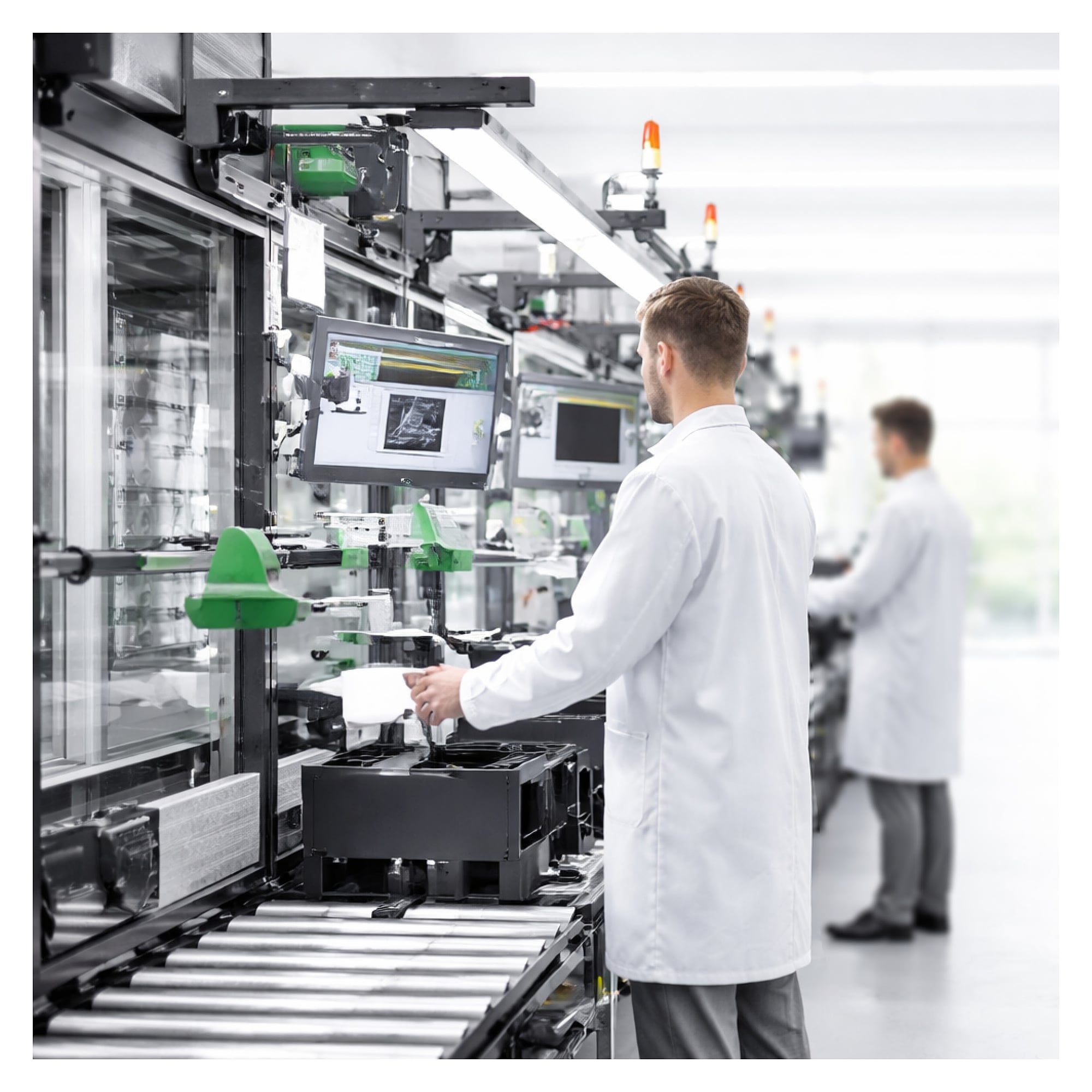

Suited to assembly stations, production lines, laboratories and workbenches where light is only needed when someone is present. It mounts on common profile and carrier systems via the rear T-slot (slot size 8).

Supply and standards

Connected via Wieland GST18 for safe, low-tool installation. Marked CE and UKCA, exempt group per DIN EN 62471. Made in Germany.
