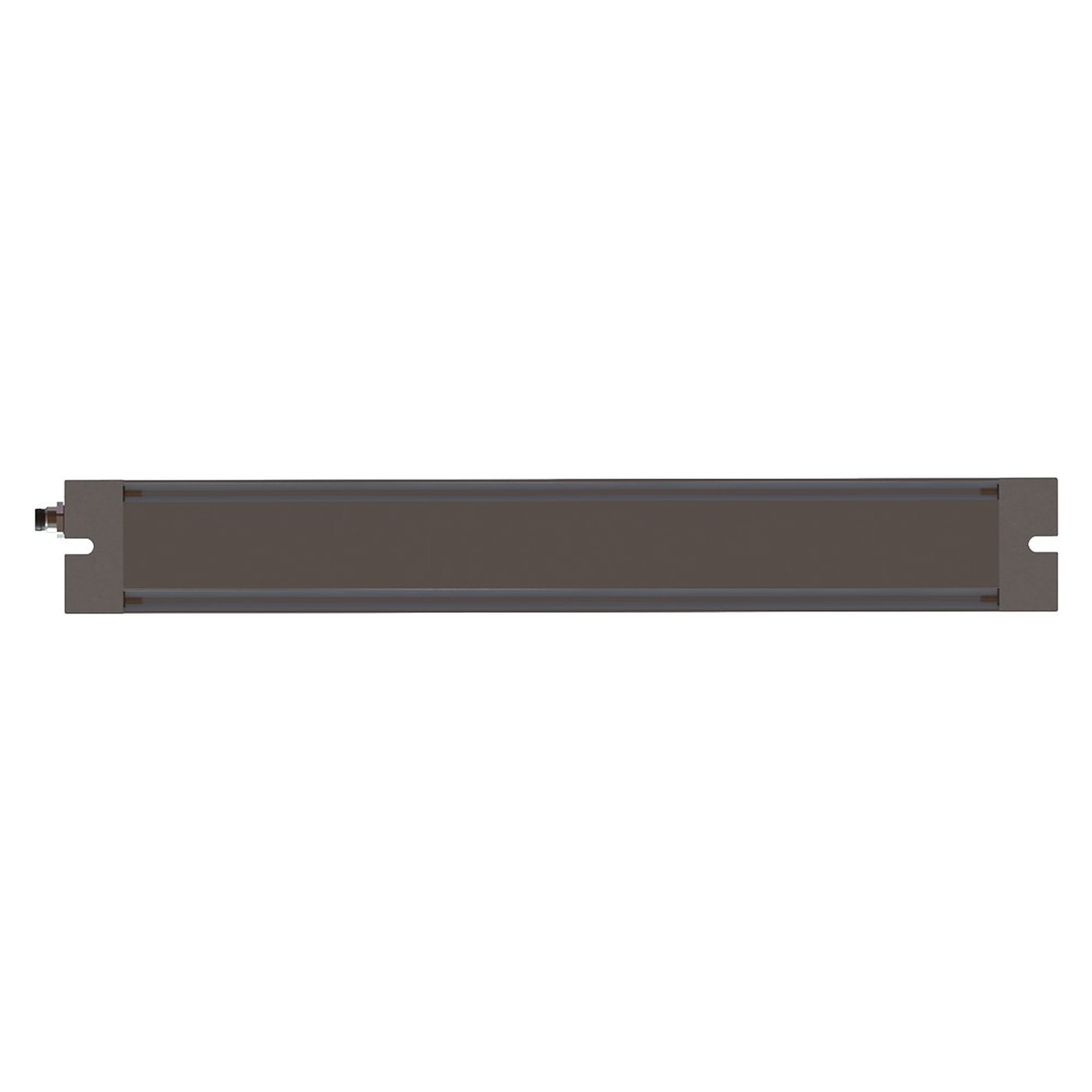

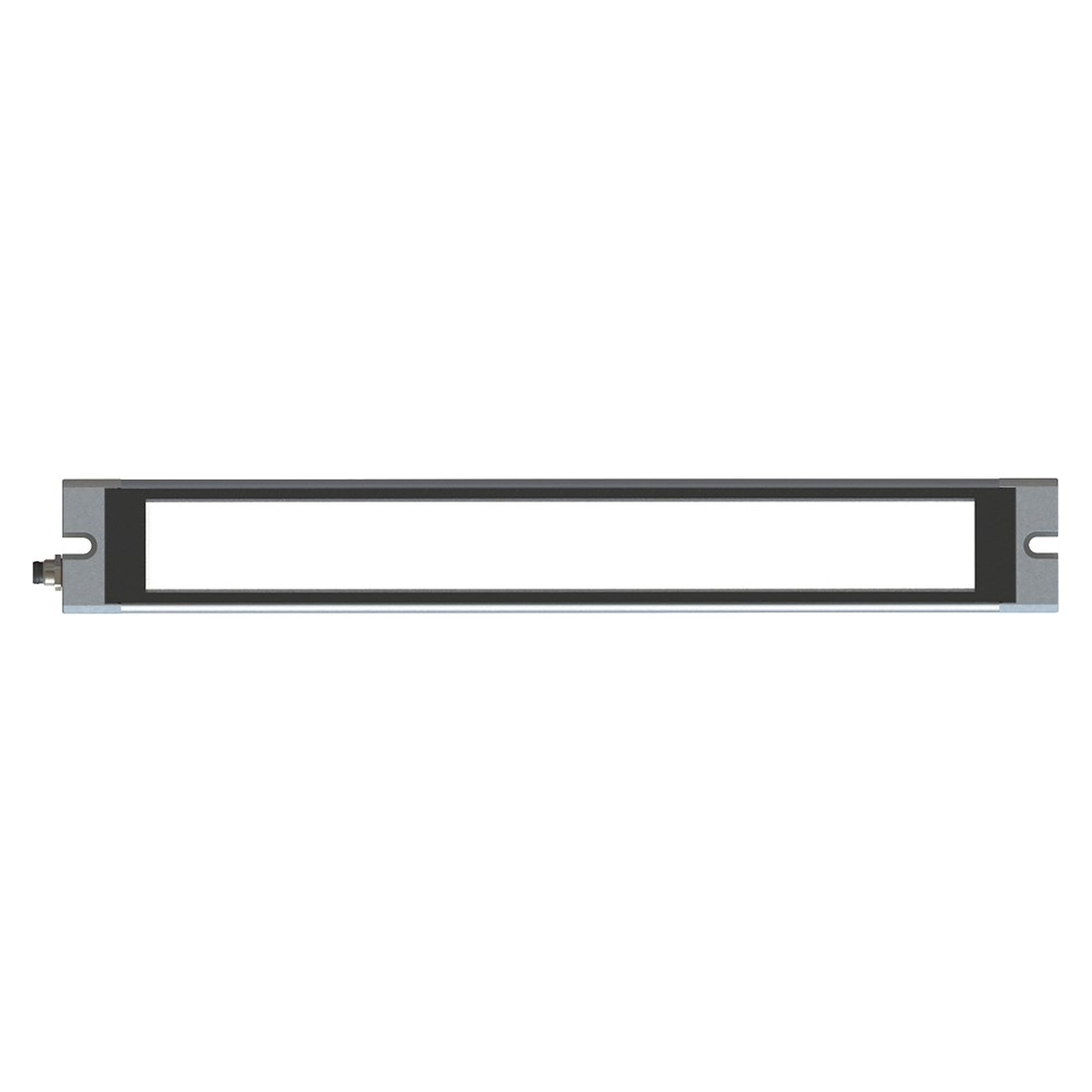

VARILED II Power LED surface-mounted machine light 298 mm, 12 W, IP67, 100°, 24V DC - LED2WORK 157210-01

The VARILED II Power is a slim LED surface-mounted light less than 15 mm high, for machines and systems with tight installation space. Over 298 mm it delivers 1899 lm at 12 W and a luminous efficacy of 155 lm/W, in daylight-white 5700K.

Key benefits

• Extremely low 13.7 mm height fits cramped machine installations
• High efficiency of 155 lm/W, 1899 lm from only 12 W
• Sturdy housing of aluminium and toughened safety glass, IP67 dust-tight and temporarily submersible
• High mechanical resilience: vibration-resistant (10 to 55 Hz, amplitude 0.35 mm) and shock-resistant up to 50 g
• Wide operating temperature range of -30 °C to +60 °C
• Long service life over 100,000 h (L80/B10), connection via M8 connector (A-coded), 24V DC

Technical data

• Model: VARILED II Power
• Light source: SMD LED
• Power: 12 W
• Luminous flux: 1899 lm
• Luminous efficacy: 155 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): >85
• Supply voltage: 24V DC ± 10%
• Control gear: external

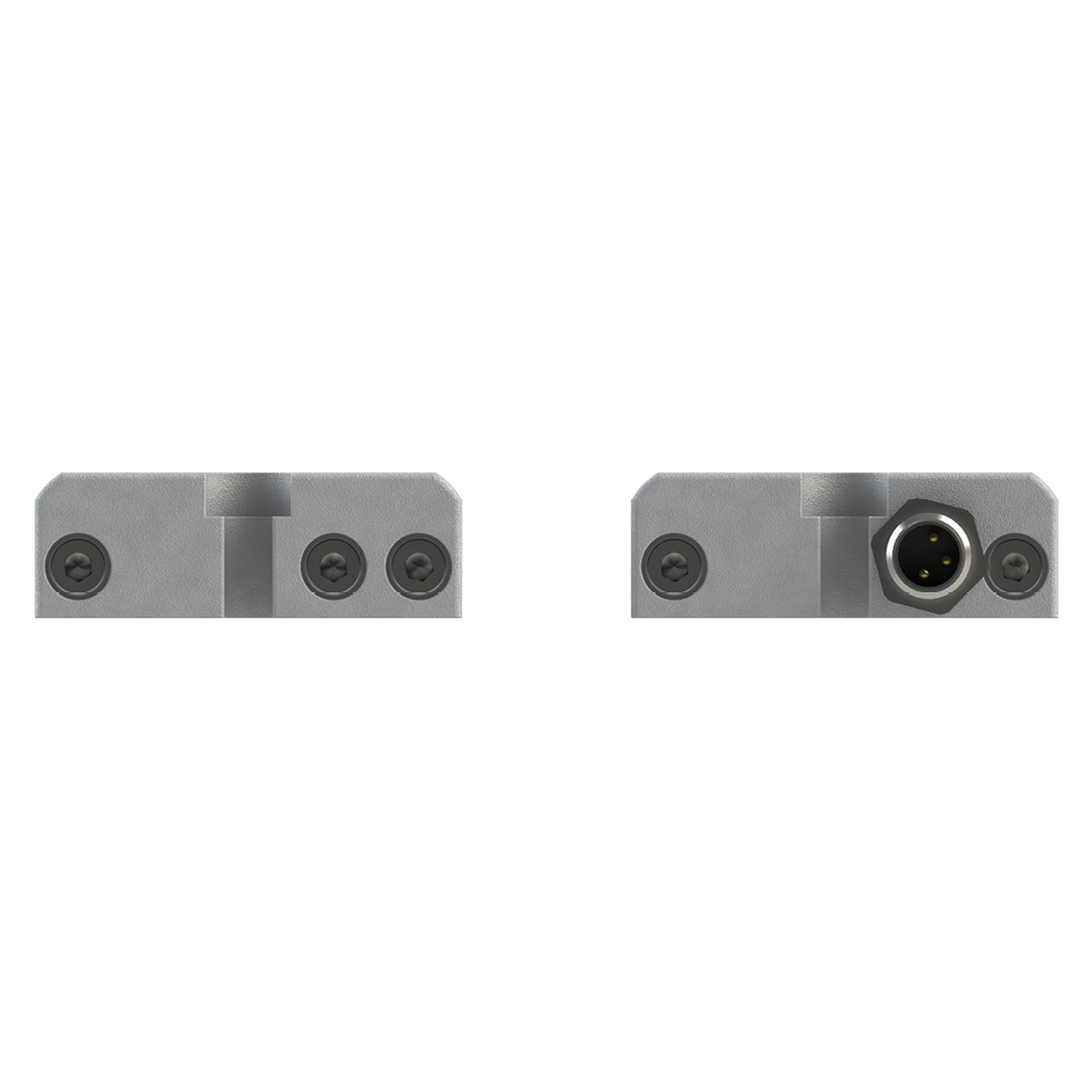

• Connection: M8 A-coded, 3-pin
• Protection rating: IP67
• Protection class: III
• Operating temperature: -30 °C to +60 °C
• Storage temperature: -30 °C to +80 °C
• Service life: > 100,000 h (L80/B10)
• Vibration resistance: 10 to 55 Hz (amplitude 0.35 mm)
• Shock resistance: up to 50 g
• Housing: aluminium and glass

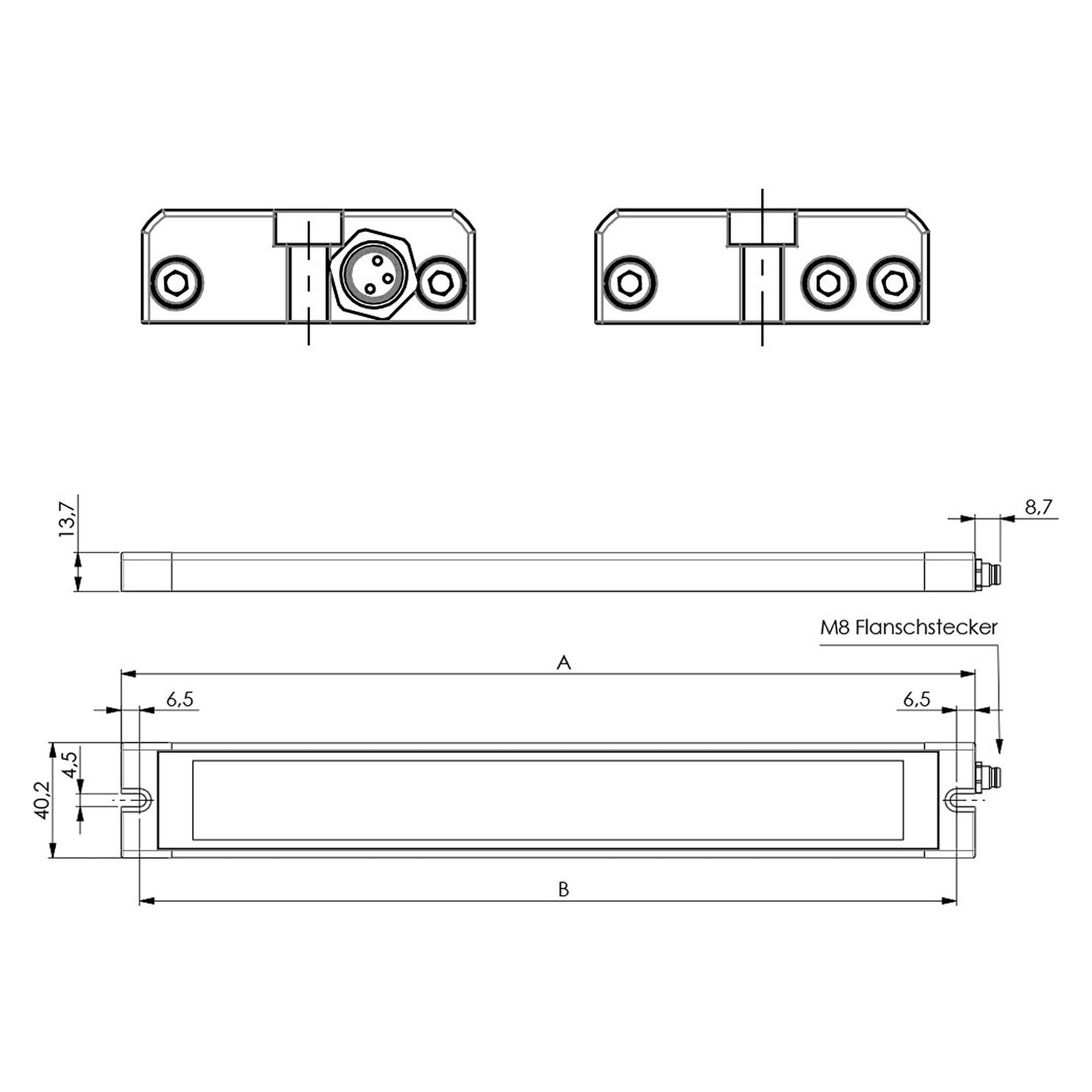

• Dimensions (H x W): 13.7 mm x 40.2 mm
• Length: 298 mm
• Weight: 300 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Dimmable: optional via accessory and M12/M8 adapter 200200-25
• Made in: Germany

Applications

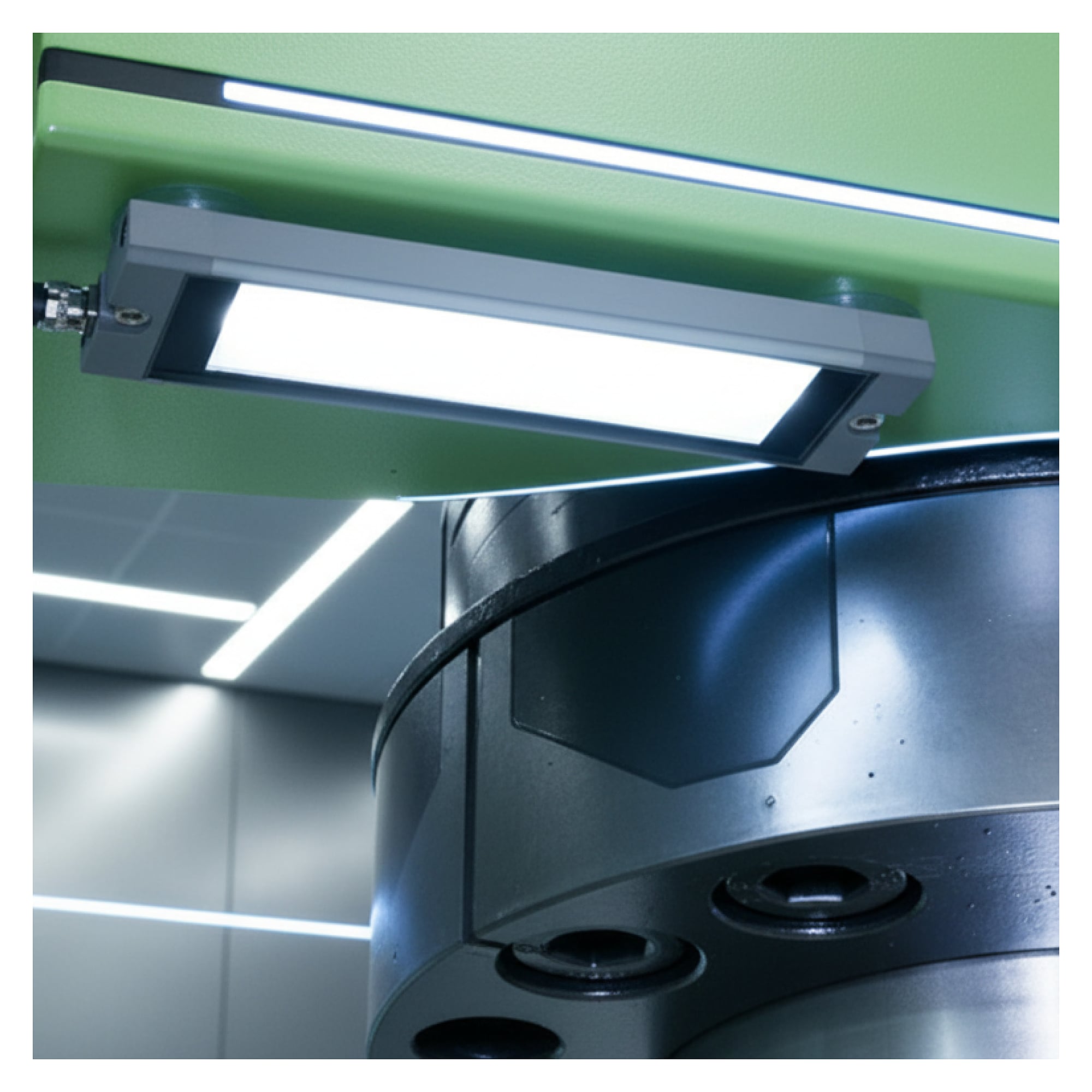

Machine interior lighting, machine tools, packaging and special-purpose machines and any industrial environment with limited space that needs dust-, splash- and vibration-resistant illumination.
