Brushless ESD Electric Screwdriver 0.3-1.47 Nm - Sehan NFT150-A

The Sehan NFT150-A is a brushless electric screwdriver in dissipative ESD design for torques of 0.3-1.47 Nm at 800-1,700 rpm. It is operated with the Sehan FT-40D controller.

Features

• Brushless motor for low-maintenance continuous operation
• ESD-safe dissipative design for electronics manufacturing
• Integrated sequence control with angle-controlled driving and loosening
• Tightening to torque with angle-controlled loosening and vice versa
• Lever start with shut-off clutch
• Repeat accuracy of ±3 %

Technical data

Application

For screw assembly on electronic components where electrostatic discharge has to be reliably avoided. Typical uses are PCB assembly, device assembly and repair work inside the ESD protected area.

Compatibility

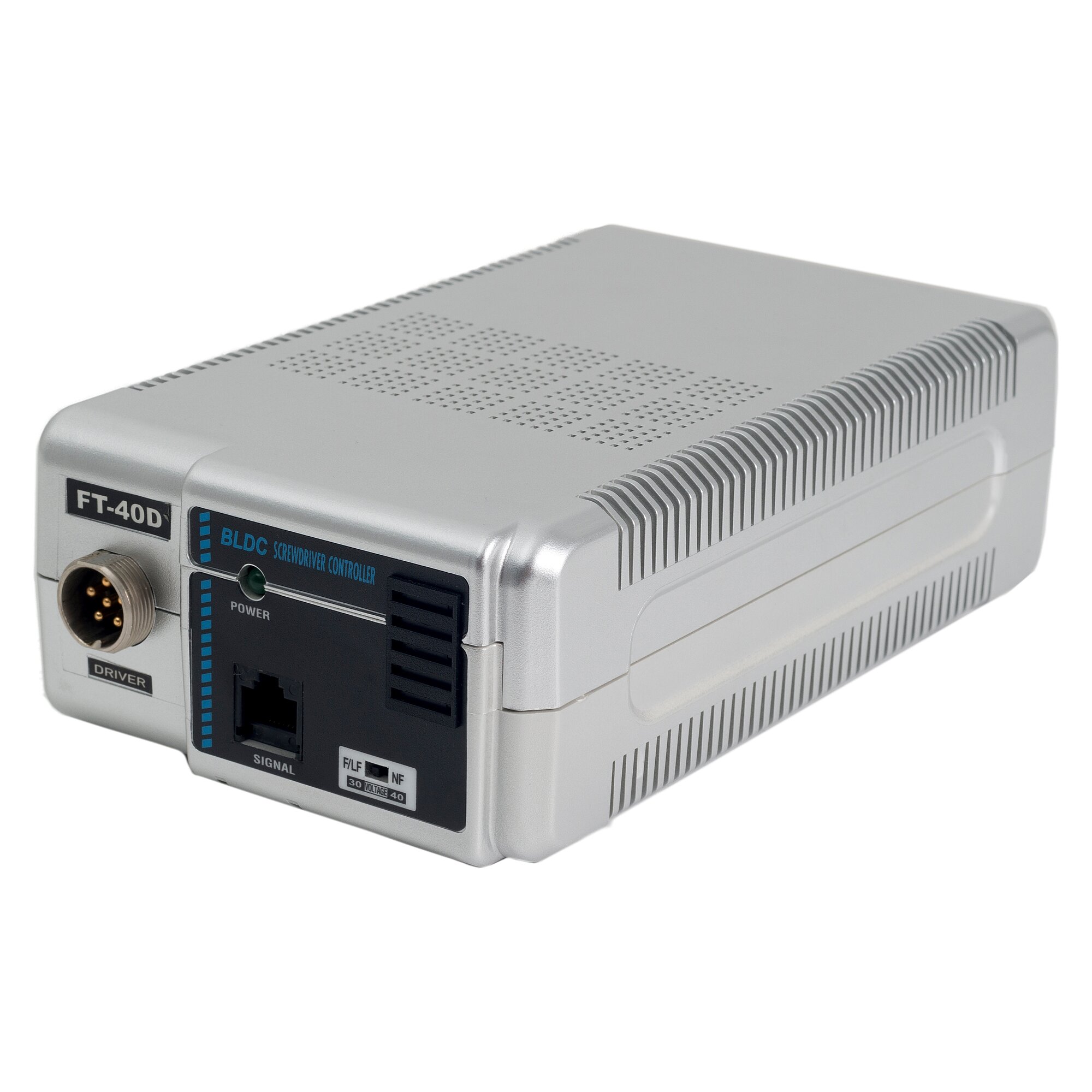

The screwdriver runs on the Sehan FT-40D controller (230 VAC, 30/40 VDC output), which also supplies the F, NF, LF, FA and NFA series. The Sehan SCOUT II screw counting unit counts and monitors the fastening operations.
