ThermoTweez PLCC-44/PQFP-84 Removal Tip 14.5 mm for TT-65 - PACE 1121-0318
Removal tip for PLCC-44 and PQFP-84 packages, 14.5 x 14.5 mm, for the PACE TT-65 ThermoTweez. One tip size covers both package types and melts all lead rows together.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
PLCC-44 and PQFP-84 share the same footprint but differ in lead form. The 14.5 x 14.5 mm ThermoTweez tip fits both packages and heats the leads on all four sides evenly. The thermal tweezer then lifts the device off without mechanical stress on the pads.
Benefits
- One tip for two packages: PLCC-44 and PQFP-84
- 14.5 x 14.5 mm geometry encloses all four lead rows
- Even heating prevents one-sided lifting and torn pads
- For the TT-65 ThermoTweez, IntelliHeat version
Specifications
Applications
- Removing socketed PLCC-44 devices and microcontrollers
- Removal of PQFP-84 ICs
- Repair and component replacement on control electronics
Compatibility
- PACE TT-65 ThermoTweez Thermal Tweezer (IntelliHeat, 6010-0151)
Technical data
| Part number | 1121-0318 |
|---|---|
| Type | PLCC/PQFP removal tip for thermal tweezer |
| Package | PLCC-44, PQFP-84 |
| Tip size A x B | 14.5 x 14.5 mm |
| Handpiece | TT-65 ThermoTweez |
| Sales unit | 1 piece |
| Weight | 0.01 kg |
| Manufacturer | PACE |
| Manufacturer Nr. | 1121-0318 |
| HS-Code | 85159080 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | United States |
| Tip diameter/width [mm] | 14.5 |
| Soldering tip shape | Pinzettenspitze |
Downloads
Datasheet
Catalogue
Accessories
PACE
PS-90 Universal Soldering Iron SensaTemp, Black Connector - PACE 6010-0131
Item PC-6010-0131
€162.51
PACE
PS-90 Universal Soldering Iron Kit IntelliHeat with Tool Stand - PACE 6993-0267
Item PC-6993-0267
€213.07
PACE
Replacement Sponge for Tip and Tool Stand (SX, PS, SP), Package of 3 - PACE 4021-0008-P3
Item PC-4021-0008-P3
€17.91
PACE
ThermoTweez PLCC-52/PQFP-100 Removal Tip 17.0 mm for TT-65 - PACE 1121-0319
Item PC-1121-0319
€116.78
Show 5 more items
PACE
ThermoTweez PLCC-20 Removal Tip 6.86 x 6.86 mm for TT-65 - PACE 1121-0316
Item PC-1121-0316
€139.37
PACE

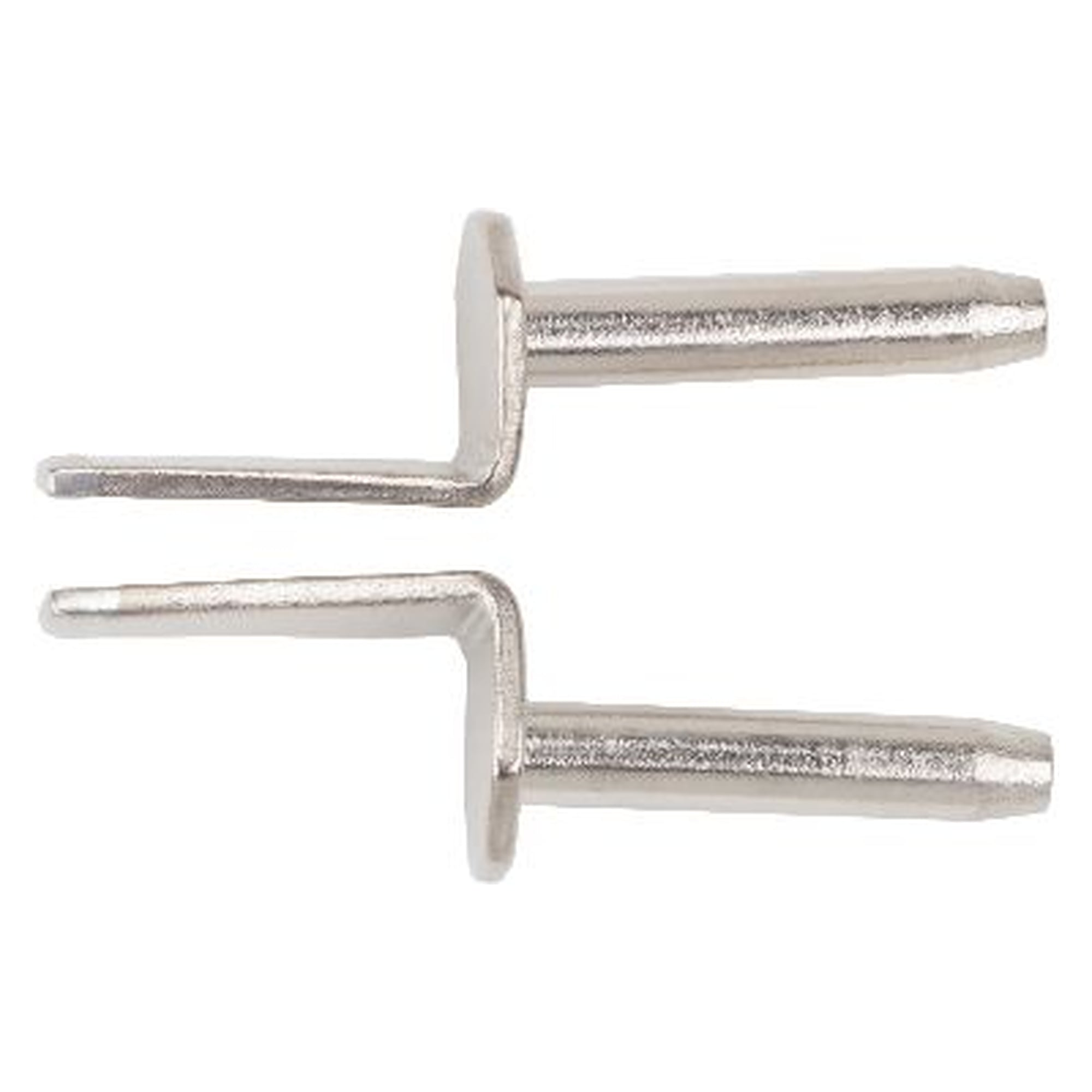

ThermoTweez Chip Component Removal Tip 4.1 mm for TT-65 - PACE 1121-0399
