What are pneumatic manometers and where are they used in industrial applications?

Pneumatic manometers are precision pressure measurement instruments specifically designed for compressed air systems and pneumatic circuits. These devices provide critical pressure monitoring in manufacturing automation, process control systems, quality assurance testing, and maintenance operations across automotive, packaging, pharmaceutical, and general industrial sectors. The Aventics PG1 series manometers offer measurement ranges from vacuum (-1 bar) to 16 bar positive pressure with dial sizes of 40mm, 50mm, and 63mm to suit different installation requirements and viewing distances.

What are the key technical criteria for selecting pneumatic manometers?

Critical selection parameters include pressure range compatibility with your system operating pressure, connection thread size typically G1/8 or G1/4 for pneumatic applications, and dial diameter for readability requirements. The Aventics PG1-SNL series provides ranges from 0-2.5 bar for low-pressure applications up to 0-16 bar for standard industrial pneumatics, while vacuum models like PG1-PAN-G018-SNL-D40P(-1-0) handle negative pressure measurement. Connection compatibility with existing system fittings and mounting orientation (bottom or back connection) determine proper integration into pneumatic control panels and manifold assemblies.

Which international standards apply to pneumatic pressure gauges?

Pneumatic manometers must comply with EN 837-1 for pressure gauge accuracy classes and safety requirements, ISO 5171 for connection threads, and DIN 16005 for nominal pressure ratings in compressed air applications. ATEX certification becomes mandatory for pneumatic systems in potentially explosive atmospheres according to Directive 2014/34/EU, while IP protection ratings per IEC 60529 ensure proper environmental sealing. The Aventics PG1 series manometers meet these European standards with accuracy class 2.5 or better and are designed for continuous operation in industrial pneumatic environments up to 60°C ambient temperature.

What are the differences between Aventics PG1-SNL and PG1-SFB manometer series?

The PG1-SNL series features analog dial indicators with clear numerical scales optimized for direct pressure reading in bar units, available in 40mm, 50mm, and 63mm dial sizes with bottom or back connection options. The PG1-SFB series incorporates digital display technology with enhanced accuracy and programmable alarm functions for automated monitoring applications. Both series use G1/8 or G1/4 threaded connections, but the SFB models require 12V DC power supply for digital operation while SNL models operate purely mechanically without external power requirements.

What are the installation requirements and system compatibility for pneumatic manometers?

Pneumatic manometers require G1/8 or G1/4 BSP threaded connections with proper thread sealing using PTFE tape or suitable sealant rated for compressed air service up to 16 bar working pressure. Installation positioning should allow clear dial visibility while avoiding vibration sources and maintaining ambient temperature below 60°C for accurate operation. The Aventics PG1 series accepts standard compressed air media including filtered shop air, instrument air per ISO 8573-1 quality class, and inert gases, with wetted parts constructed from brass and steel components compatible with pneumatic system lubricants and moisture levels.

What safety ratings and environmental specifications apply to these pressure gauges?

Aventics PG1 manometers are rated for continuous operation at ambient temperatures from -20°C to +60°C with maximum working pressure up to 16 bar depending on model selection and safety factor requirements per EN 837-1. The robust metal case construction provides mechanical protection equivalent to IP54 rating against dust ingress and water splash in typical industrial environments. Pressure relief mechanisms prevent case rupture under overpressure conditions exceeding 25% of full scale range, ensuring operator safety during system pressure excursions or component failures in pneumatic circuits.

What maintenance intervals and service life can be expected from pneumatic manometers?

Pneumatic manometers require calibration verification every 12 months in critical applications or every 24 months for general industrial use according to ISO 17025 measurement traceability requirements. Visual inspection for dial clarity, case integrity, and zero point accuracy should occur during quarterly pneumatic system maintenance cycles. The Aventics PG1 series typically provides 5-7 years service life under normal industrial conditions with proper filtration upstream, though replacement becomes necessary when accuracy drift exceeds ±3% of full scale or mechanical damage compromises pressure boundary integrity.

Manometer

Accessories for valve terminals

Festo PAGN pressure gauges are designed for direct installation on valve islands and pneumatic control circuits. The range covers 26 mm (PAGN-26) and 40 mm (PAGN-40) housing sizes with measuring ranges of 1, 1.6, 10 and 16 bar as well as PSI and MPa scales. Precision gauges (PAGN-40-10-R18-1.6, PAGN-40-1M-R18-1.6) with accuracy class 1.6 extend the standard series for demanding measurement tasks. Red-pointer versions (RG) simplify visual monitoring of limit pressures.

⚙ Housing widths 26 and 40 mm - PAGN-26 for confined spaces, PAGN-40 for better readability

✓ Measuring ranges 1-16 bar (and MPa/PSI) - matched to typical compressed air supply 1-10 bar in pneumatic systems

✦ Precision version class 1.6 - R18 port, for system checks with documented pressure

⬡ Red limit pointer (RG) - PAGN-26-10-P10-RG, simplifies visual pressure monitoring without additional sensor

⚡ Plastic housing P10 - lightweight, corrosion resistant, direct connection to valve island supply port

Item	Housing	Range	Feature
PAGN-26-10-P10	26 mm	0-10 bar	Standard

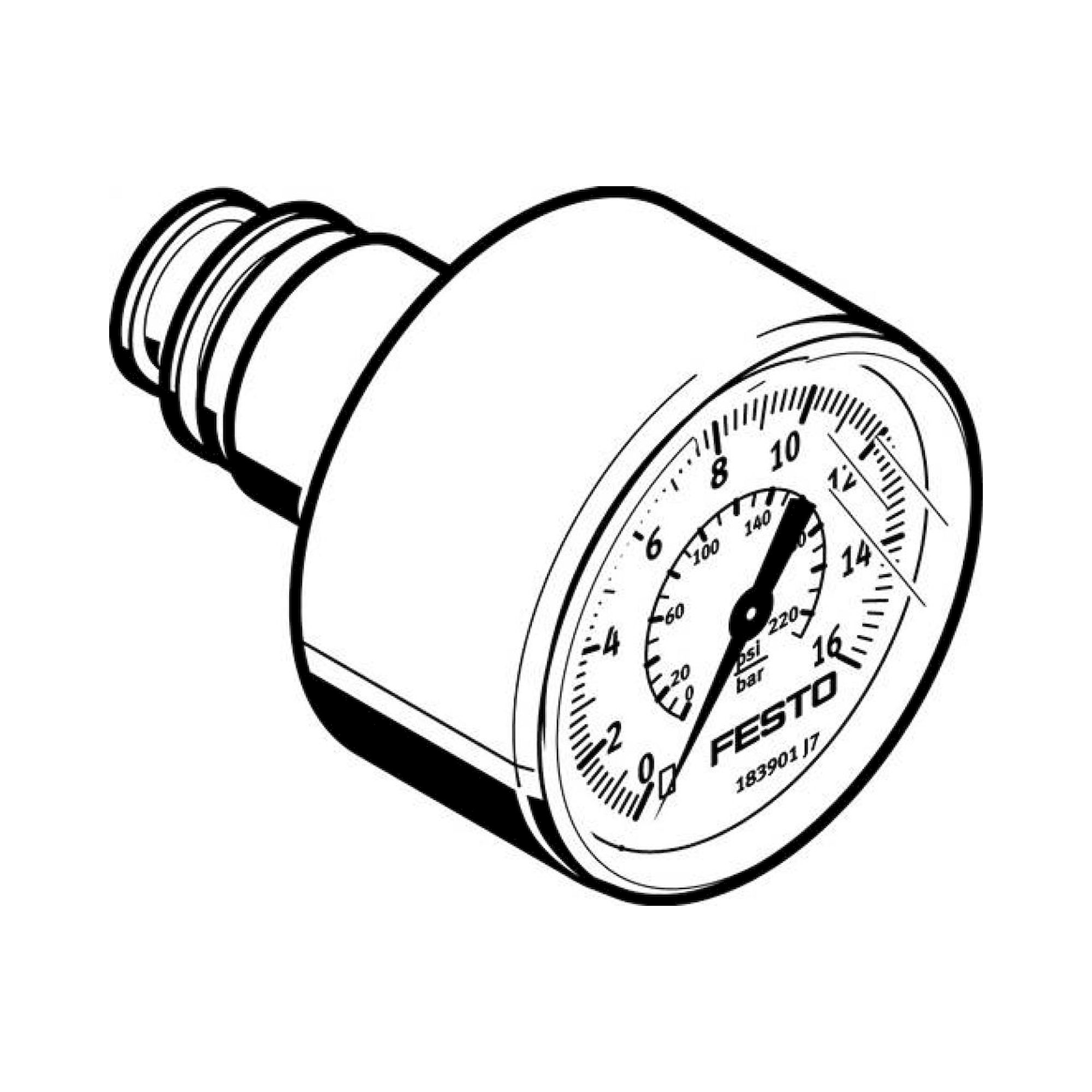

PAGN-26-16-P10	26 mm	0-16 bar	Standard

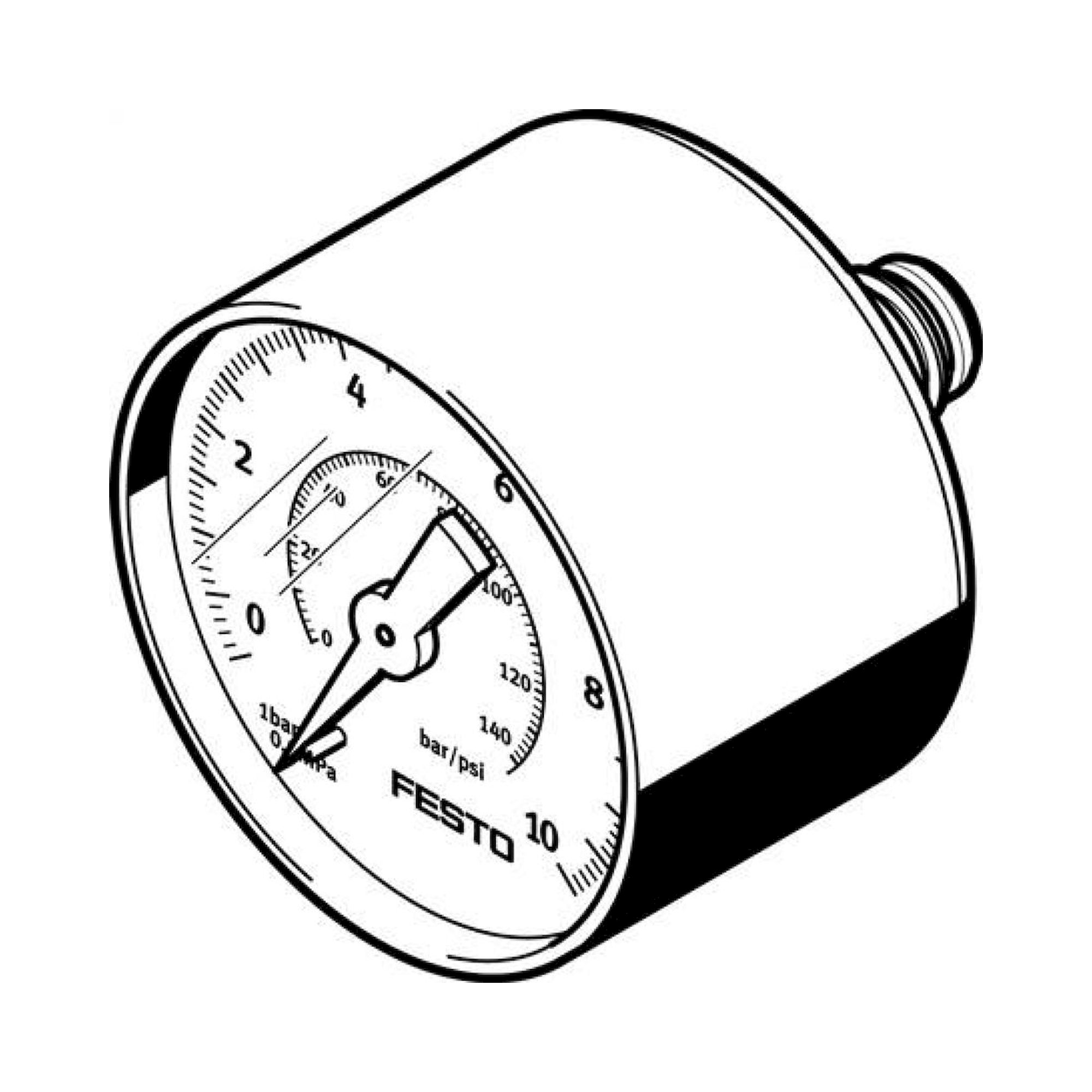

PAGN-40-10-P10	40 mm	0-10 bar	Standard
PAGN-40-16-P10	40 mm	0-16 bar	Standard
PAGN-26-1.6M-P10	26 mm	0-1.6 MPa	MPa scale
PAGN-40-10-R18-1.6	40 mm	0-10 bar	Precision class 1.6

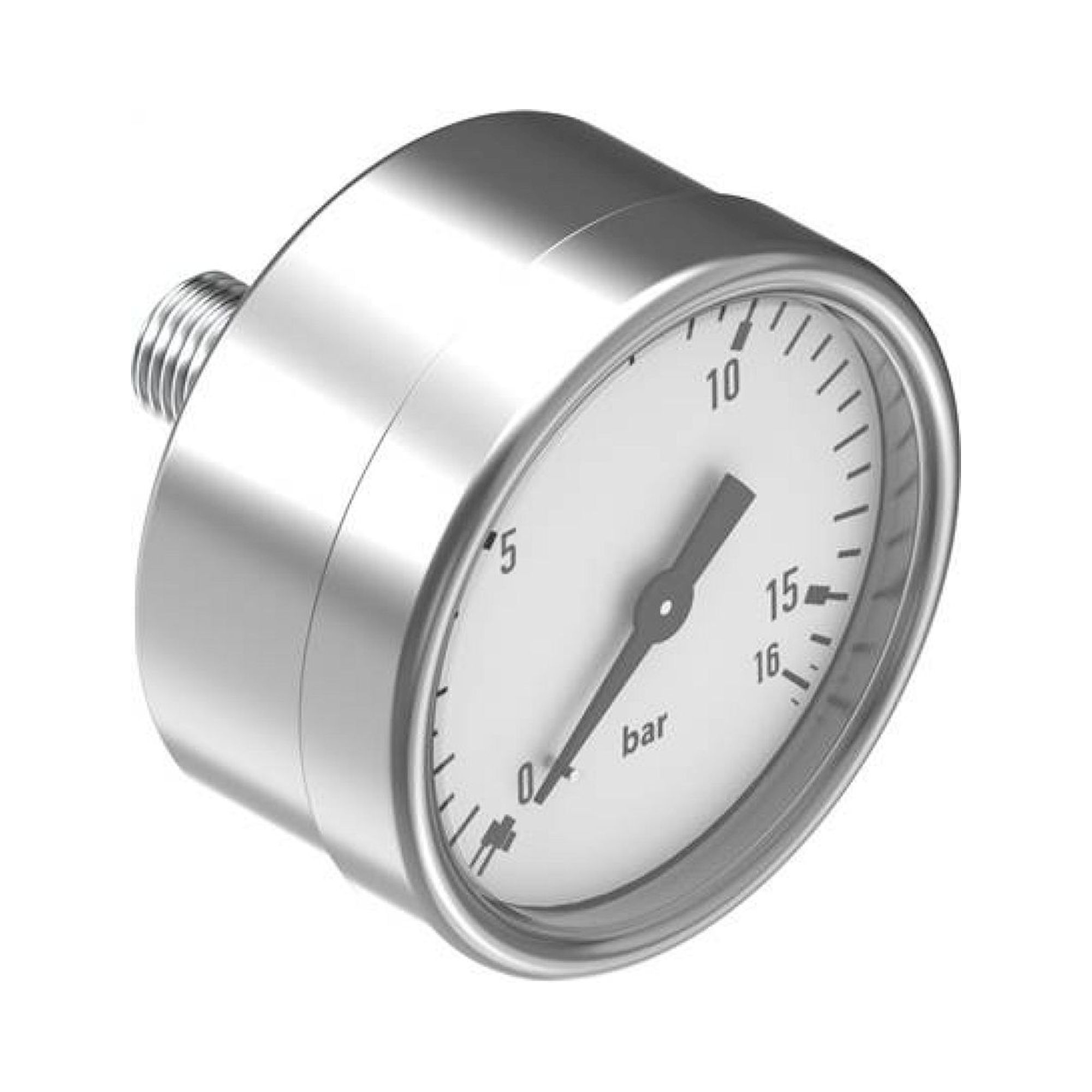

PAGN-63-16-G14-R1-1.6-0.5-V2	63 mm	0-16 bar	G1/4, class 0.5/1.6

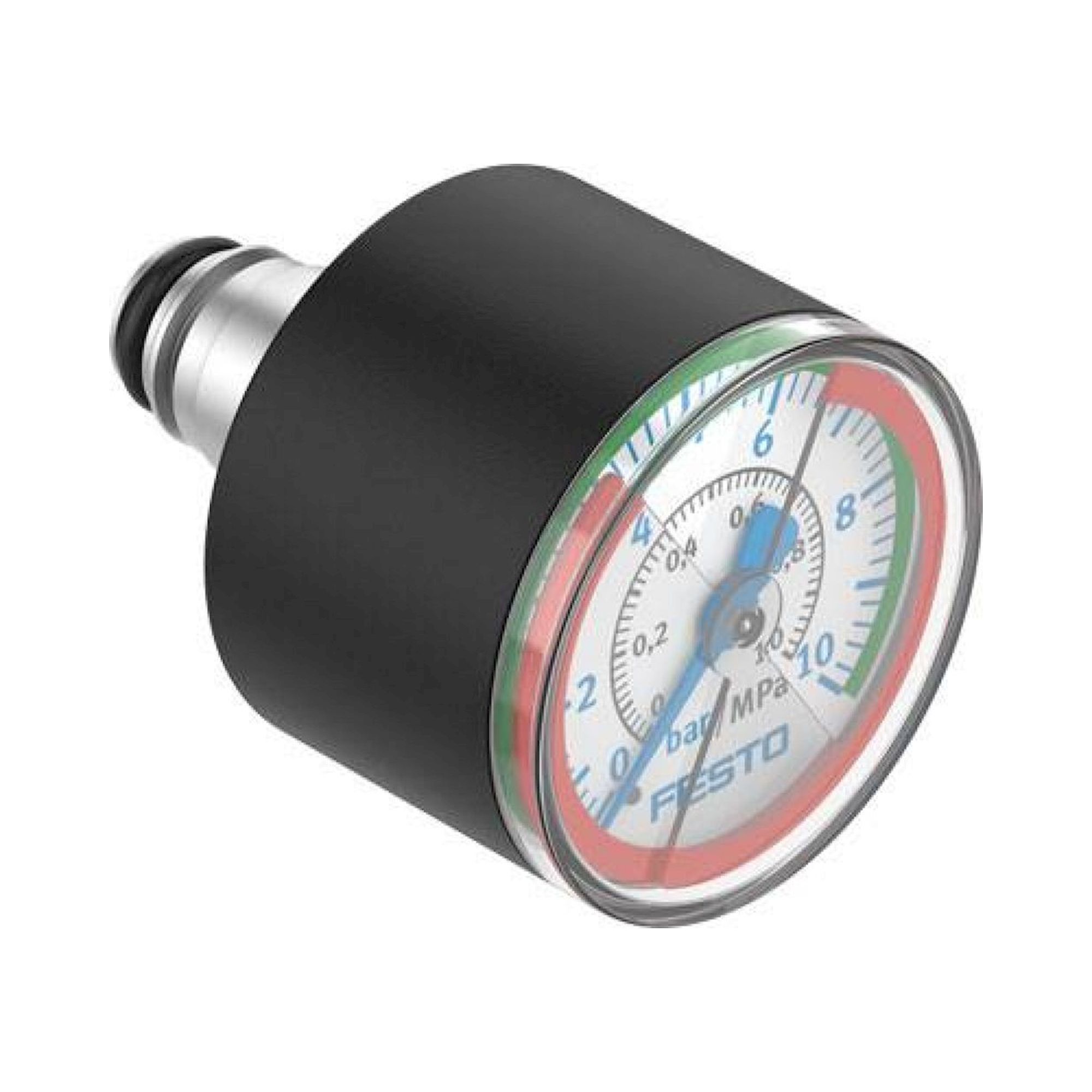

PAGN-26-10-P10-RG	26 mm	0-10 bar	Red limit pointer

Typical applications: pressure monitoring at the supply port of VMPA and CPV valve islands, system pressure monitoring in compressed air networks with 1-10 bar operating pressure, verification of pressure regulators with precision gauges of class 1.6, visual limit pressure monitoring with red-pointer versions, and pressure indication on maintenance units in repair and maintenance areas.
