Assembly tool

Accessories for valve terminals

The Festo assembly tool range for valve islands comprises the release tool VMPAL-LW, a purpose-designed tool for removing valve modules from VMPAL valve islands. The release tool allows controlled unclipping of valve modules from the island holder without damaging plastic retaining tabs or sensitive sealing faces that would be at risk from improvised tools such as screwdrivers.

⚙ VMPAL-LW release tool - assembly-specific tool for VMPAL valve island disassembly
✓ Damage-free removal - protects plastic retaining tabs and sealing faces of the valve module
✦ Controlled unclipping - form-fitting geometry matched to VMPAL locking profile
⬡ Workshop equipment - recommended for service technicians and maintenance staff
🛡 Preserves spare part quality - allows reuse of removed modules after cleaning and inspection

The VMPAL-LW release tool is applied at the snap connection between the valve module and the island base. A steady lever action releases the snap connection without applying lateral force to the module housing. This is particularly relevant in confined installations where modules cannot be pulled out directly by hand. The release tool is a single item; for complete service kits it is recommended to combine it with the fixed restrictors (VMPA1-FT) and channel seals (VABD) from the broader accessories range.

Typical applications: field replacement of defective valve modules on VMPAL islands in assembly and handling systems, reconfiguration of existing valve islands with new switching functions, cleaning and maintenance of valve island sealing faces, and equipping maintenance workshops that service VMPAL-based pneumatic systems.

View as Grid view List view

1 Item

Set Descending Direction
per page

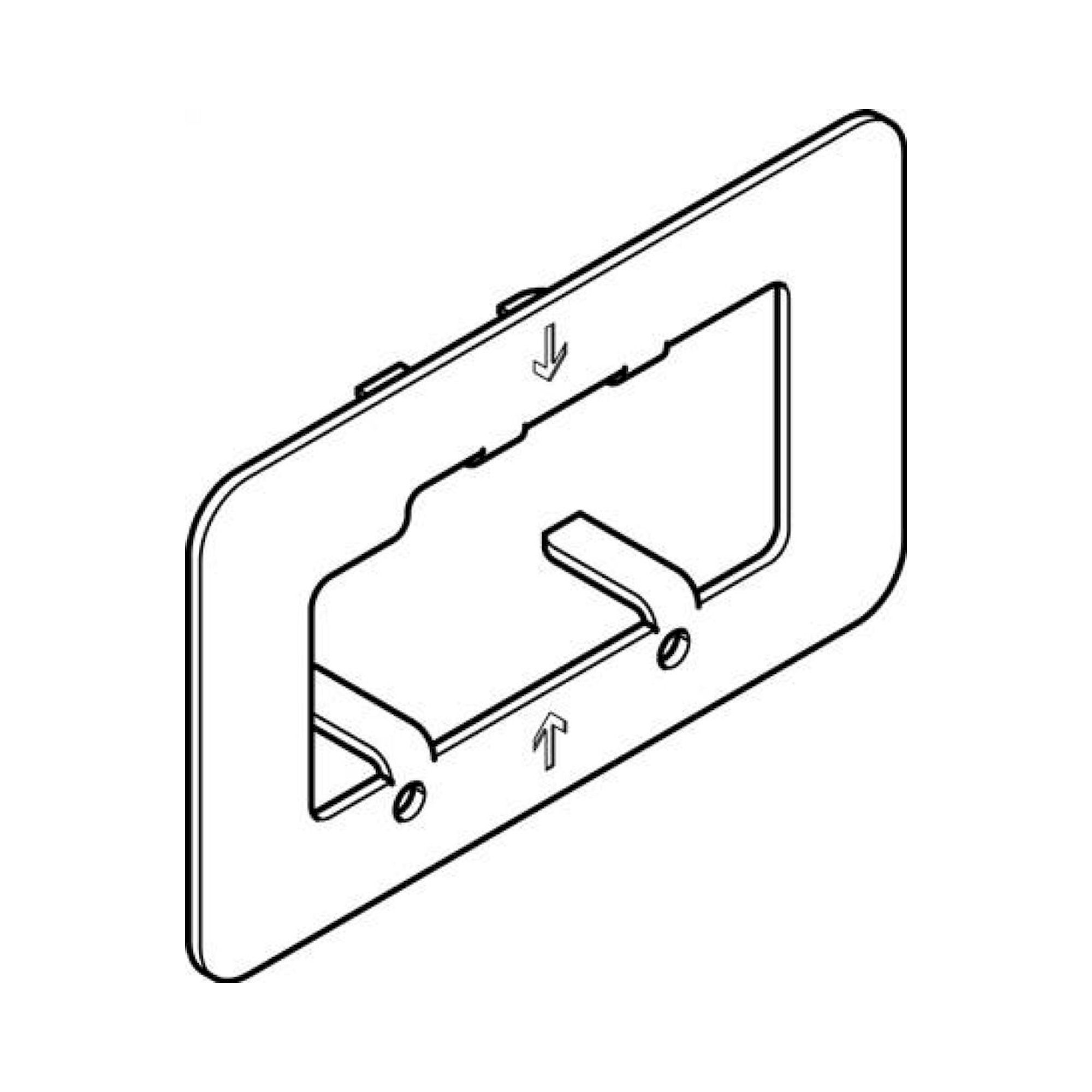

  1. Releasing Tool VMPAL-LW - Festo 572017
    Add to Wish List Add to Compare
    Releasing Tool VMPAL-LW - Festo 572017
    €24.18
What is Festo assembly tooling for valve islands and what industries use this pneumatic equipment?
Festo assembly tooling for valve islands comprises specialized instruments designed for installing, maintaining, and servicing pneumatic valve manifold systems in industrial automation applications. The Festo VMPAL-LW release tool exemplifies this category, providing precise engagement mechanisms for valve island components that operate at standard pneumatic pressures from 2 to 10 bar. Manufacturing facilities, automotive production lines, packaging machinery, and process automation systems rely on this tooling to ensure reliable valve island operation. Industrial technicians use these tools to maintain system uptime in applications where compressed air control is critical for production efficiency.
