Sealing and separating elements
Accessories for valve terminals
Sealing and separating elements for Festo valve terminals serve two distinct purposes: channel seals (VABD) seal the pneumatic connections between valve modules and the island body; separating elements (VMPAC-TE, VABD-S6) divide a VMPA valve island into multiple independent pressure circuits with different supply pressures. The range covers 13 items for M3 to G1/4 ports as well as channel separation for VAEM-S6 islands with 6, 7 or 8 channel groups.
| Item | Type | Port | Function |
|---|---|---|---|

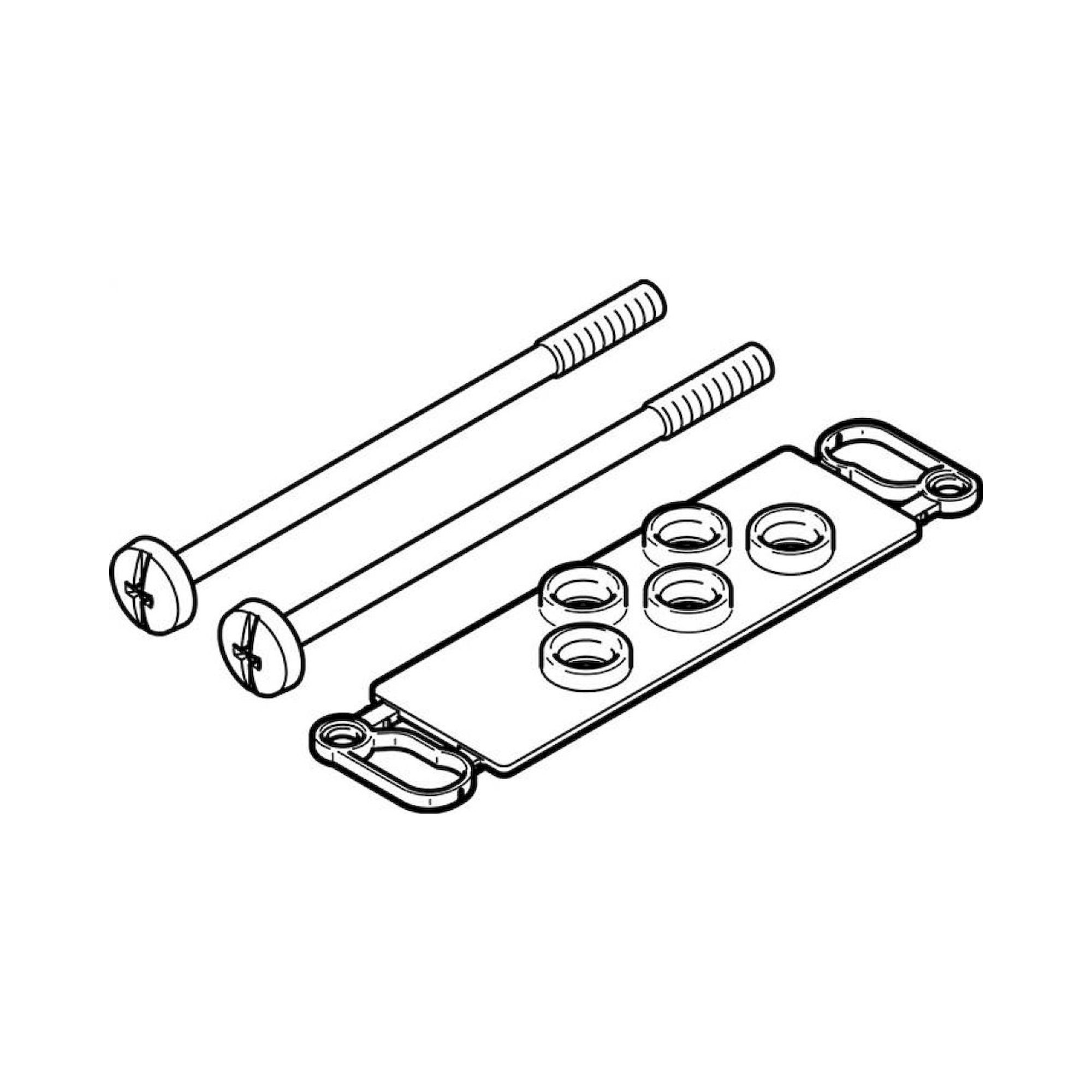

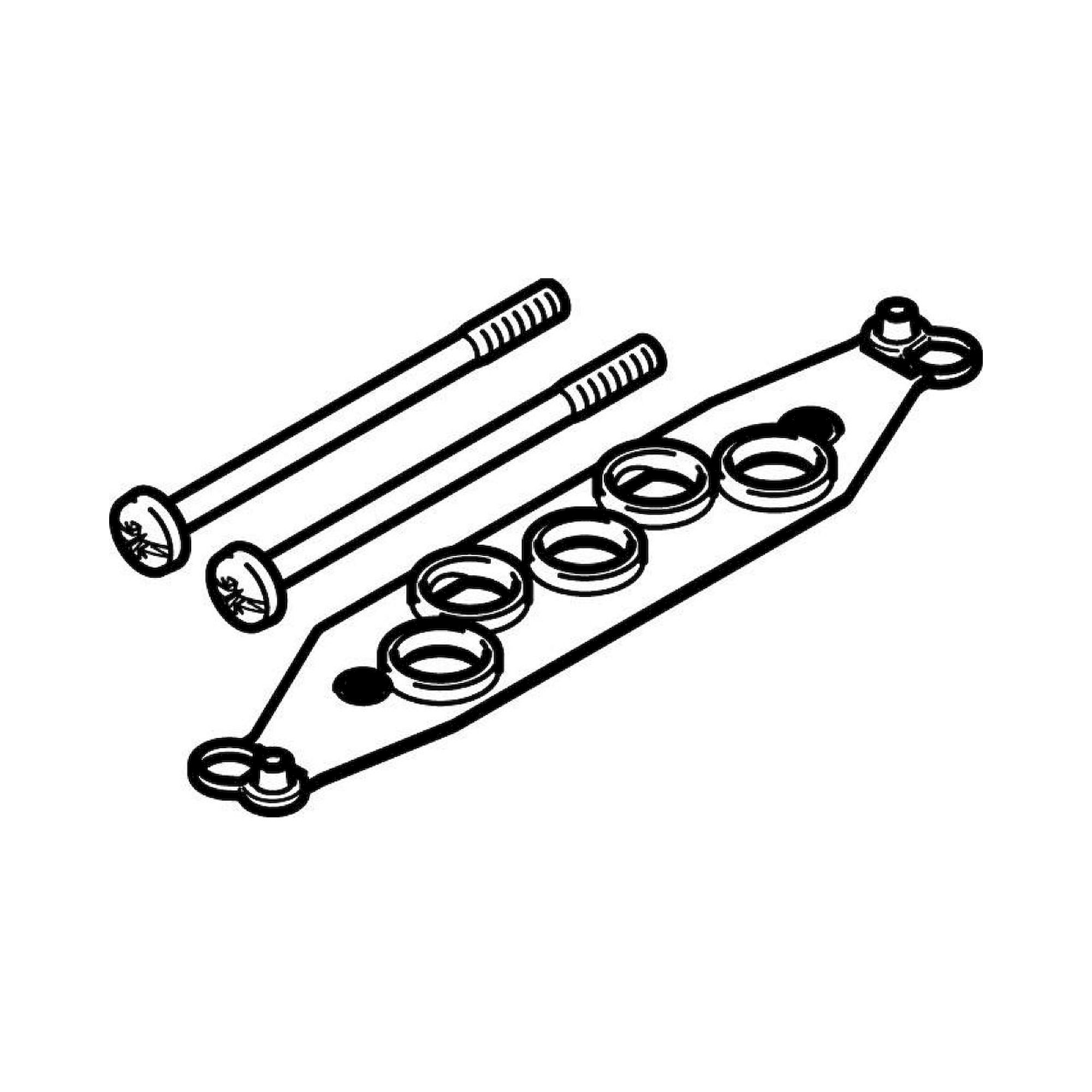

| VABD-L1-10AB-S-M3 | Seal | M3 | Channel seal VMPA, 10 AB one-sided |

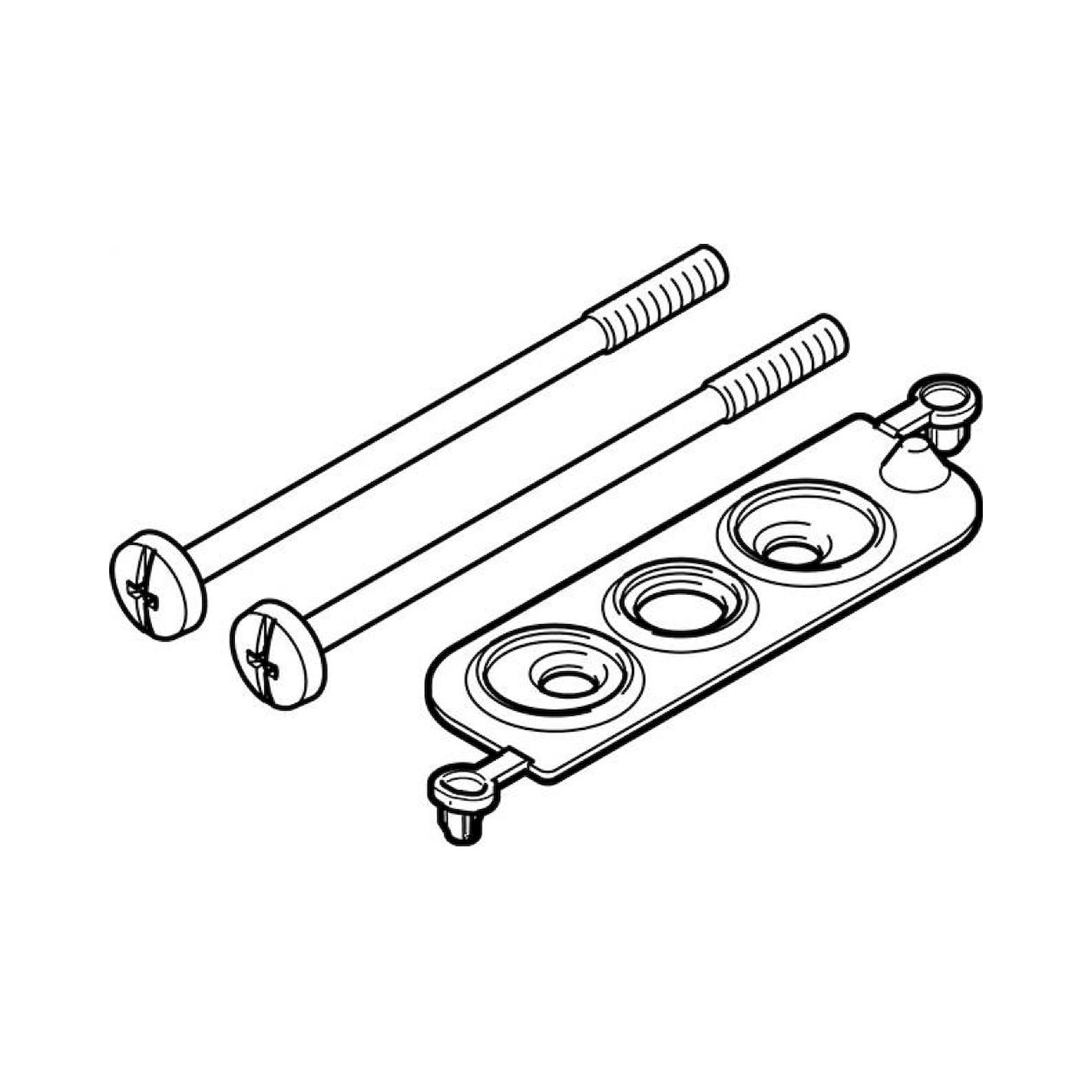

| VABD-L1-10AX-S-M3 | Seal | M3 | Channel seal VMPA, 10 AX both sides |
| VABD-L1-10X-S-M5 | Seal | M5 | Channel seal both sides |

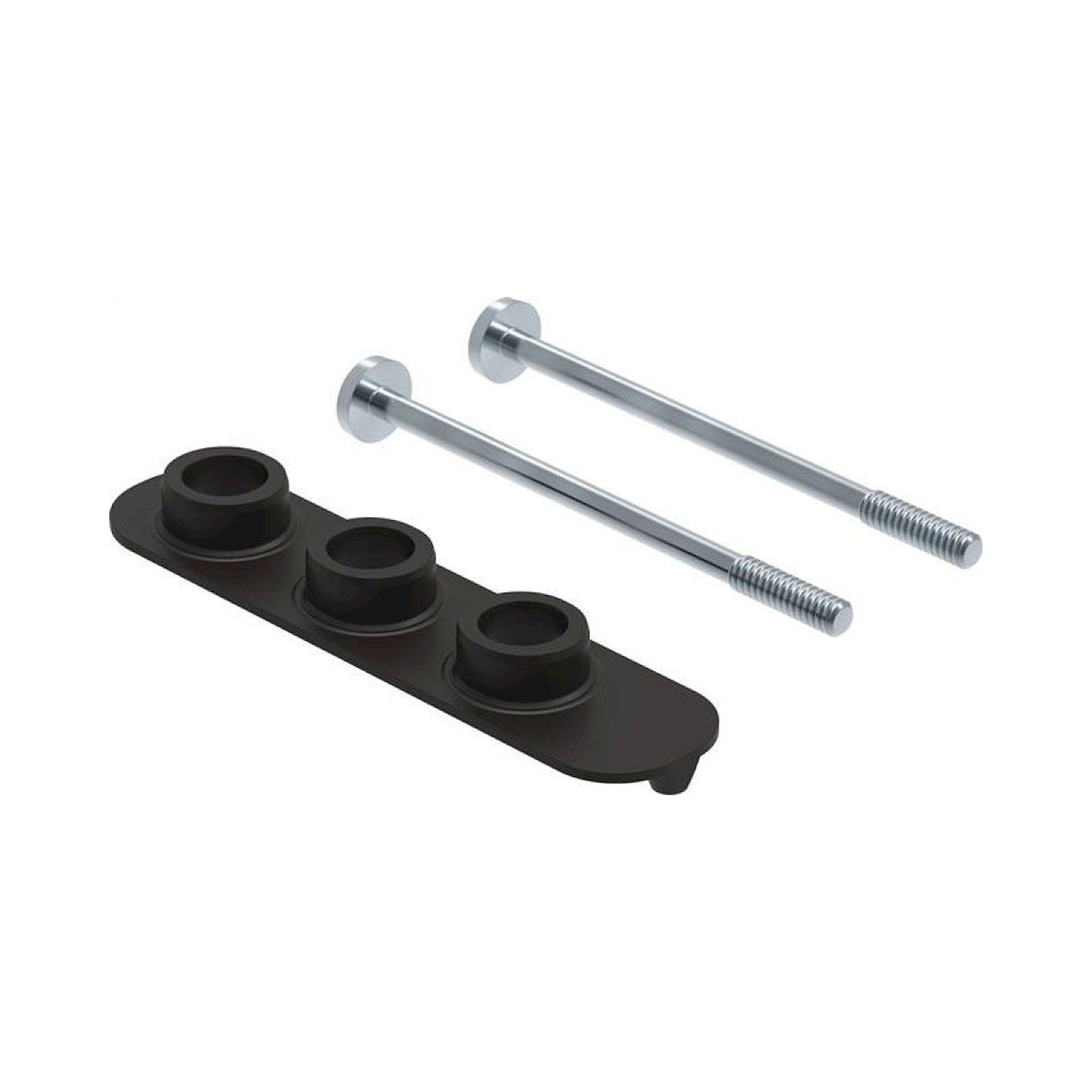

| VABD-L1-10X-S-M7 | Seal | M7 | Channel seal both sides |

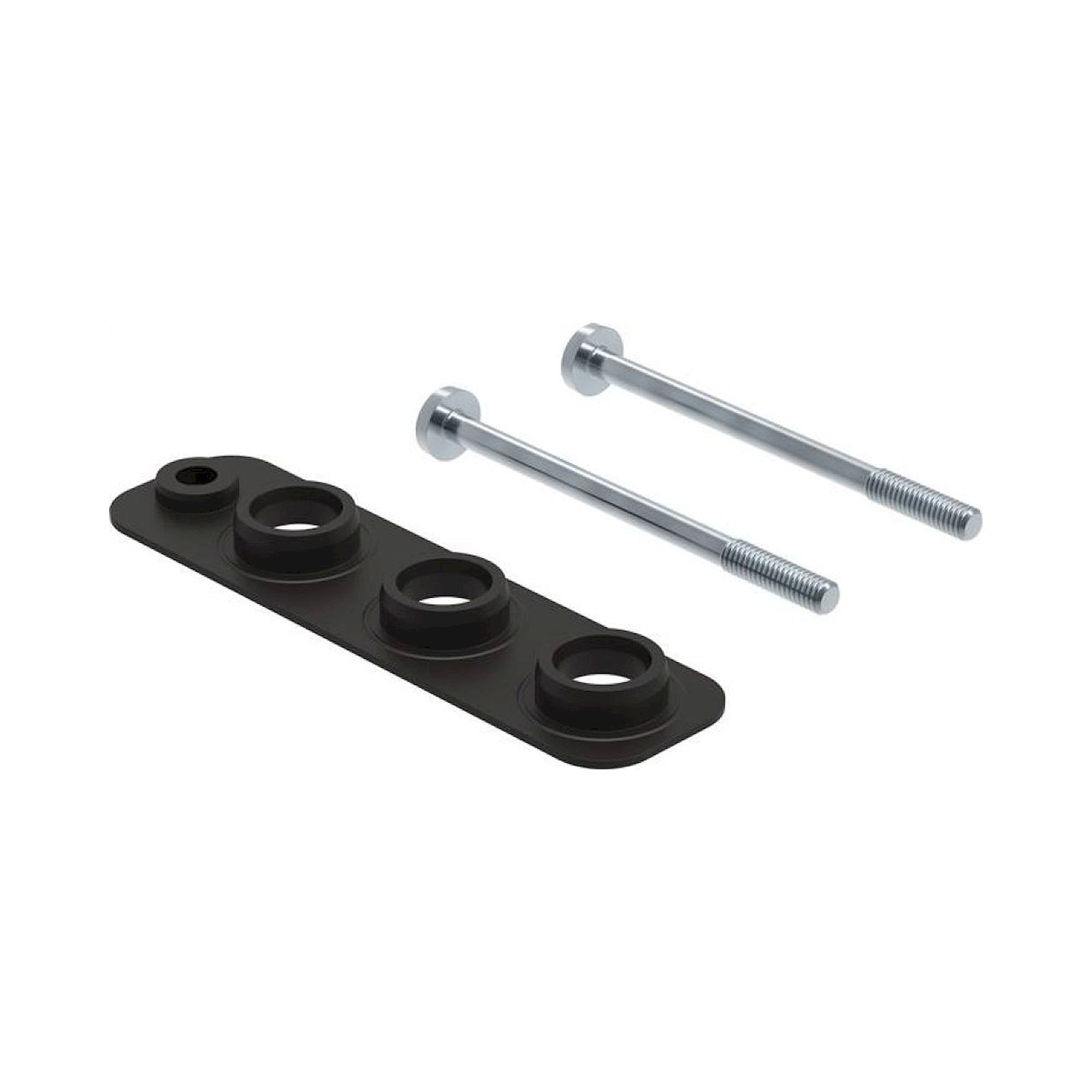

| VABD-L1-14X-S-G18 | Seal | G1/8 | Channel seal VMPA, size 14 |

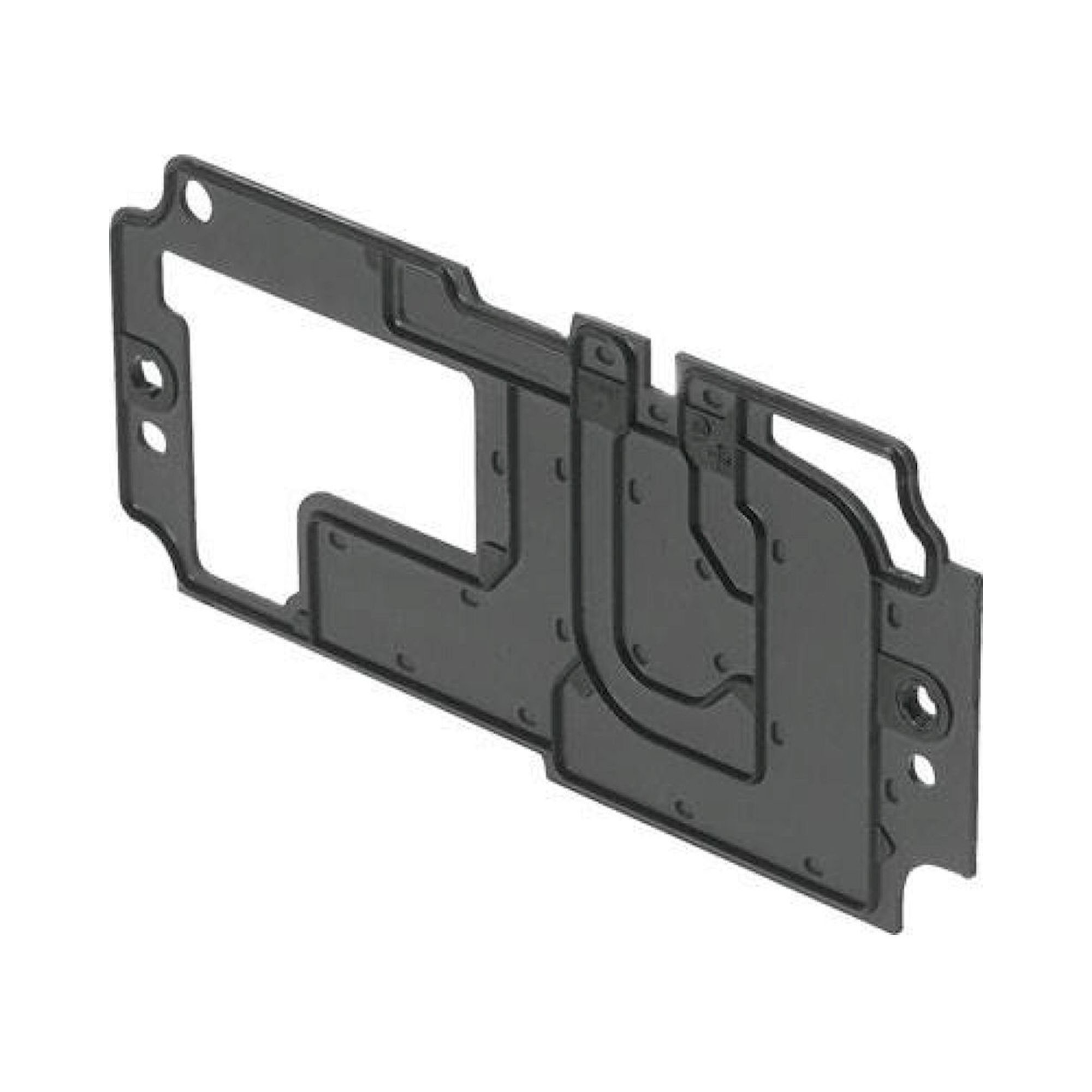

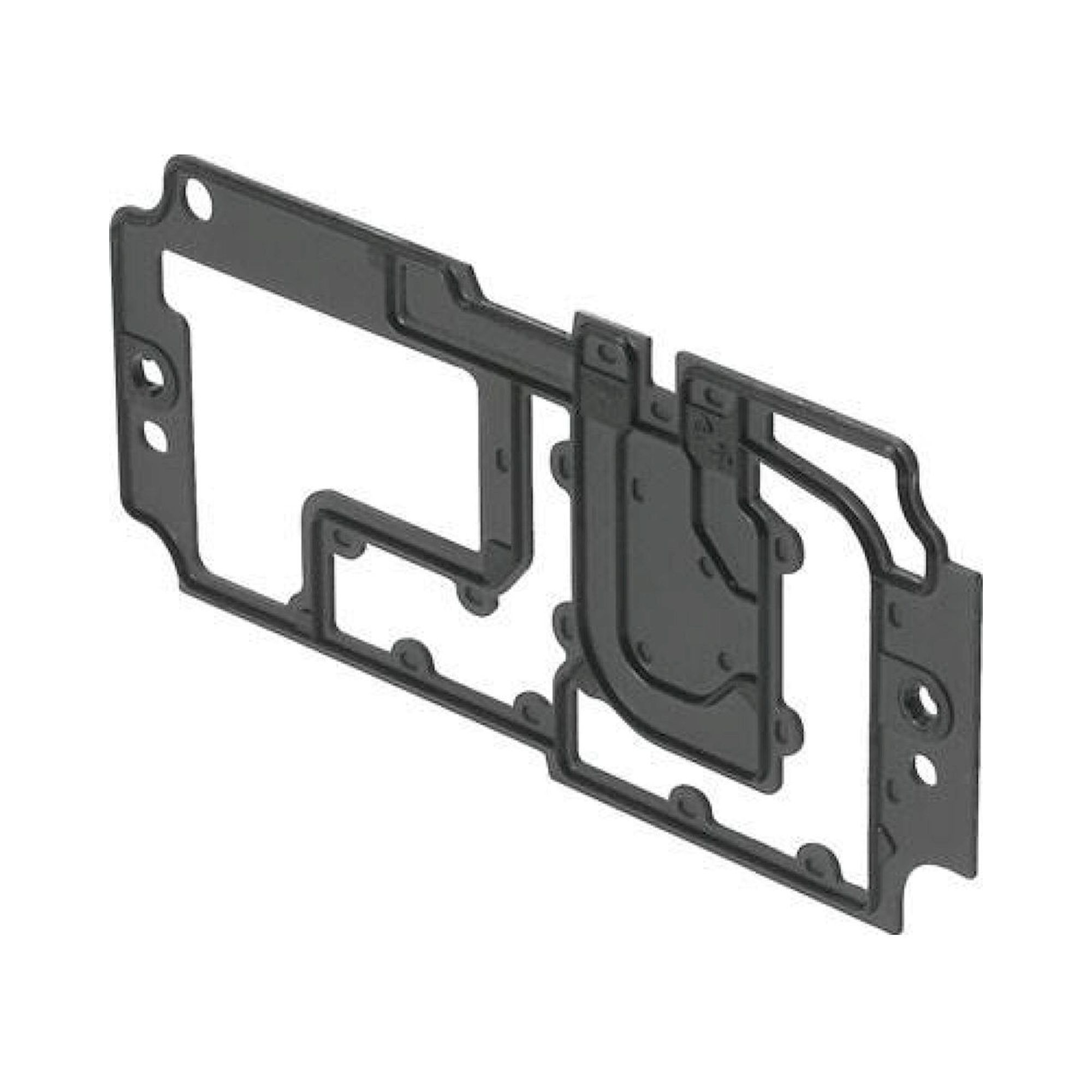

| VABD-S6-1-P6/P7/P8-C | Channel separator | - | Pressure zone separation VAEM-S6 |

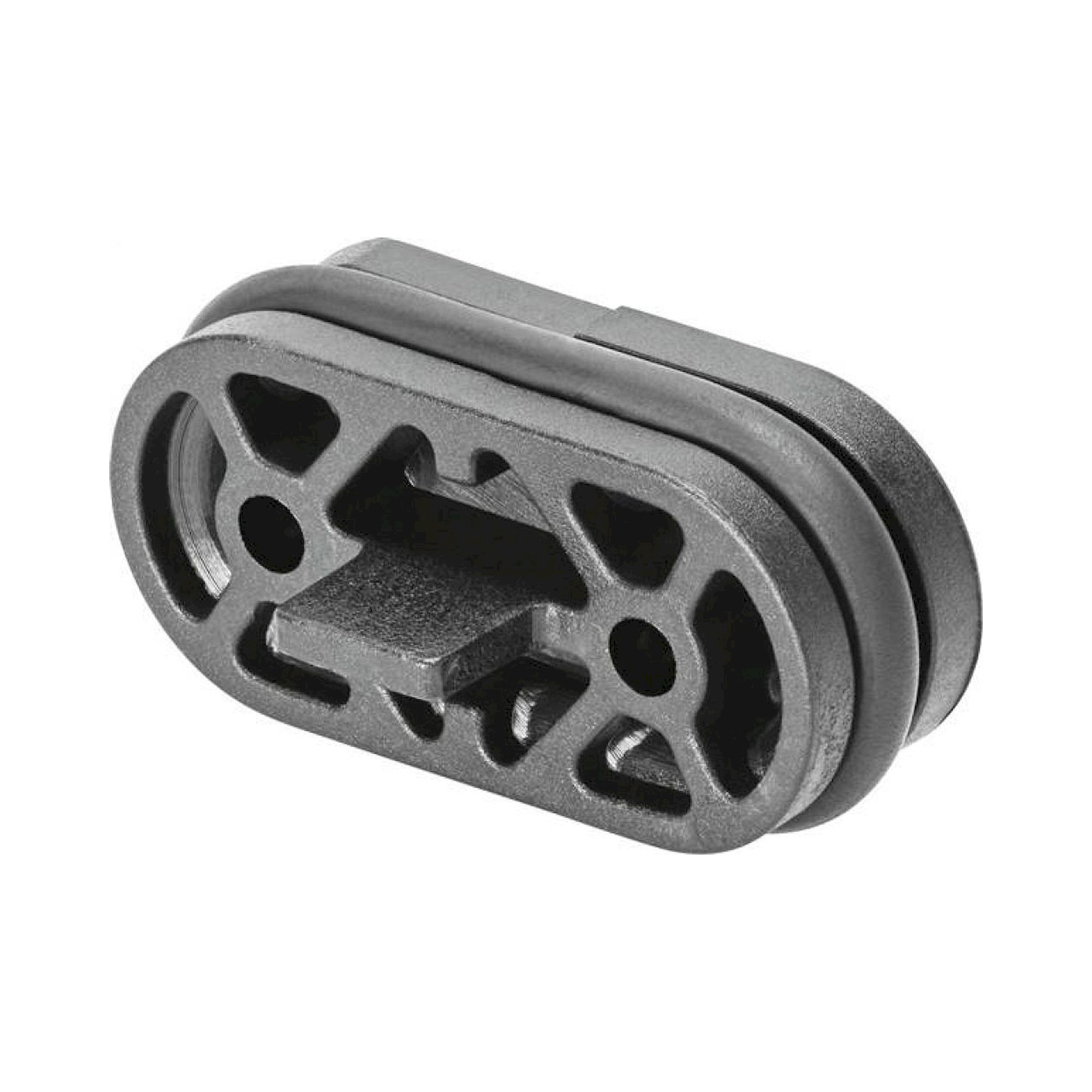

| VMPAC-TE-1-3-5 | Separating element | - | Group separation VMPA Classic |
Typical applications: sealing of valve modules after replacement or initial assembly in VMPA1/2 valve islands, pressure zone separation in valve islands operating at mixed pressures (e.g. different supply pressure for grippers and clamping cylinders), maintenance replacement of channel seals on leaking module ports, and configuration expansion of existing VAEM-S6 islands by retrofitting channel separators.
