What are Festo functional elements for valve islands and which industries use them?

Festo functional elements are specialized pneumatic components designed to optimize valve island performance through precise flow control, pressure regulation, and media distribution. These components include fixed throttle sets like the VMPA1-FT-NW0.3-1.7 for flow restriction, vertical supply modules such as VMPA2-VSP series for pneumatic media distribution, and feed modules like VMPAL-SP variants for system supply integration. Manufacturing industries including automotive assembly, packaging machinery, process automation, and material handling systems rely on these elements to enhance pneumatic system efficiency and ensure reliable operation of complex valve island configurations.

What are the key technical selection criteria for Festo valve island functional elements?

Selection of Festo valve island functional elements depends on port size compatibility, operating pressure requirements, and media type specifications. The VMPA2-VSP series offers port sizes from QS5/16 to QS12 connections, while VMPAL-SP modules provide options ranging from QS10 to QS1/2 inch threading for different flow requirements. Fixed throttle sets like VFFG-T-F4-A-V1 and VFFG-T-F6-A-V1 feature specific orifice diameters for precise flow control applications. Operating pressure typically ranges from 2 to 10 bar depending on the specific element type, with media compatibility covering compressed air according to ISO 8573-1 quality standards.

Which international standards apply to Festo pneumatic functional elements?

Festo pneumatic functional elements comply with ISO 5599 for valve interface standards, ensuring interchangeability and mounting compatibility across valve island systems. The compressed air quality requirements follow ISO 8573-1 Class 7:4:4 specifications for particle size, pressure dew point, and oil content limitations. Electrical connections where applicable meet IEC 61131-2 standards for industrial automation systems, while mechanical construction adheres to DIN EN 60529 for ingress protection ratings. ATEX certification applies to specific variants designed for potentially explosive atmospheres in chemical and pharmaceutical applications, ensuring compliance with European Directive 2014/34/EU for equipment operation in hazardous zones.

What are the differences between VMPA1, VMPA2, and VMPAL functional element series?

The VMPA1 series represents compact fixed throttle solutions like the VMPA1-FT-NW0.3-1.7 designed for basic flow restriction applications with limited adjustment capabilities. VMPA2 functional elements such as the VSP vertical supply modules offer enhanced modularity with QS quick-connect fittings ranging from QS5/16 to QS12 sizes for flexible pneumatic distribution. VMPAL series components including the SP feed modules feature larger port sizes up to QS1/2 inch and higher flow capacities, making them suitable for main supply applications requiring substantial air volume delivery. The VMPAL variants typically handle operating pressures up to 10 bar compared to 8 bar maximum for standard VMPA series elements.

What are the installation requirements and system compatibility for Festo valve island functional elements?

Festo valve island functional elements require mounting on standardized valve island bases compatible with ISO 5599 interface specifications, ensuring proper pneumatic and electrical connections. Installation involves securing elements to the valve island assembly using M5 mounting screws with 8 Nm torque specification, while pneumatic connections utilize push-in QS fittings for tool-free tube installation. System compatibility extends to Festo CPX and MPA valve island platforms, with vertical supply modules like VMPA2-VSP-QS10 requiring minimum 6mm tube outer diameter for optimal flow characteristics. The feed modules such as VMPAL-SP variants need connection to compressed air supply systems maintaining 2-10 bar operating pressure with filtration according to ISO 8573-1 standards.

What are the safety ratings and operating conditions for Festo pneumatic functional elements?

Festo pneumatic functional elements typically feature IP65 ingress protection rating according to DIN EN 60529, providing dust-tight sealing and protection against water jets from any direction. Operating temperature range spans from -10°C to +60°C for standard applications, with extended temperature variants available for harsh industrial environments reaching +80°C maximum. Working pressure specifications range from 2 to 10 bar depending on the element type, with proof pressure testing conducted at 15 bar to ensure safety margins. The throttle sets and supply modules maintain leak rates below 1×10⁻⁶ mbar·l/s helium equivalent, meeting stringent industrial pneumatic system requirements for operational reliability and energy efficiency.

What are the maintenance schedules and service life expectations for Festo valve island functional elements?

Festo valve island functional elements require quarterly visual inspection of pneumatic connections and annual replacement of sealing elements to maintain optimal performance throughout their 5-year design service life. Preventive maintenance includes checking compressed air quality according to ISO 8573-1 standards every 6 months, ensuring oil content remains below 1 mg/m³ and particle filtration maintains Class 4 specifications. Fixed throttle elements like the VMPA1-FT and VFFG-T series typically operate maintenance-free for 2-3 years under normal conditions, while supply modules require annual lubrication of moving parts where applicable. Complete functional testing should occur every 12 months, verifying flow rates, pressure drop characteristics, and leak tightness to prevent system inefficiencies and ensure continued compliance with safety standards.

Functional elements

Accessories for valve terminals

Functional elements for Festo valve islands allow the pneumatic behaviour of individual valve channels to be adjusted directly at the island body. The range includes fixed restrictors of the VMPA1-FT series with orifice sizes from 0.3 to 1.7 mm, supply modules VMPAL-SP for compressed air feed to the VMPAL island (connections QS8, QS10, QS12 and inch variants 3/8" and 1/2"), VFFG-T-M5 direct restrictors (orifice sizes 5-15 mm) and vertical supply modules VMPA2-VSP-0.

⚙ Fixed restrictors VMPA1-FT - orifice sizes 0.3 / 0.5 / 0.7 / 1.0 / 1.2 / 1.5 / 1.7 mm, as kit or individual items

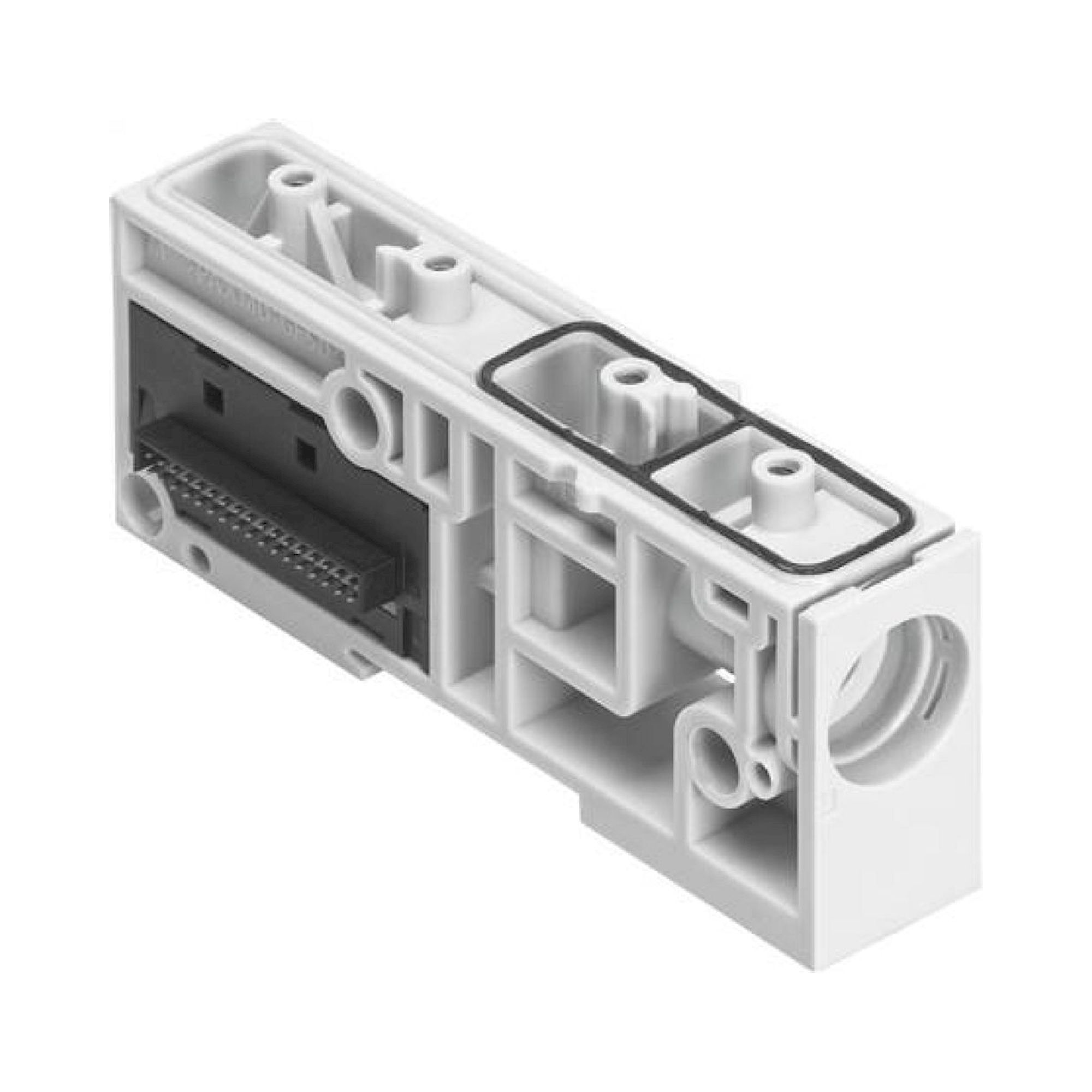

✓ Supply modules VMPAL-SP - QS8, QS10, QS12, QS5/16", QS3/8", QS1/2" - direct compressed air supply to VMPAL channel

✦ Direct restrictors VFFG-T-M5 - orifice sizes 5-15 mm, M5 port, retrofittable without disassembly

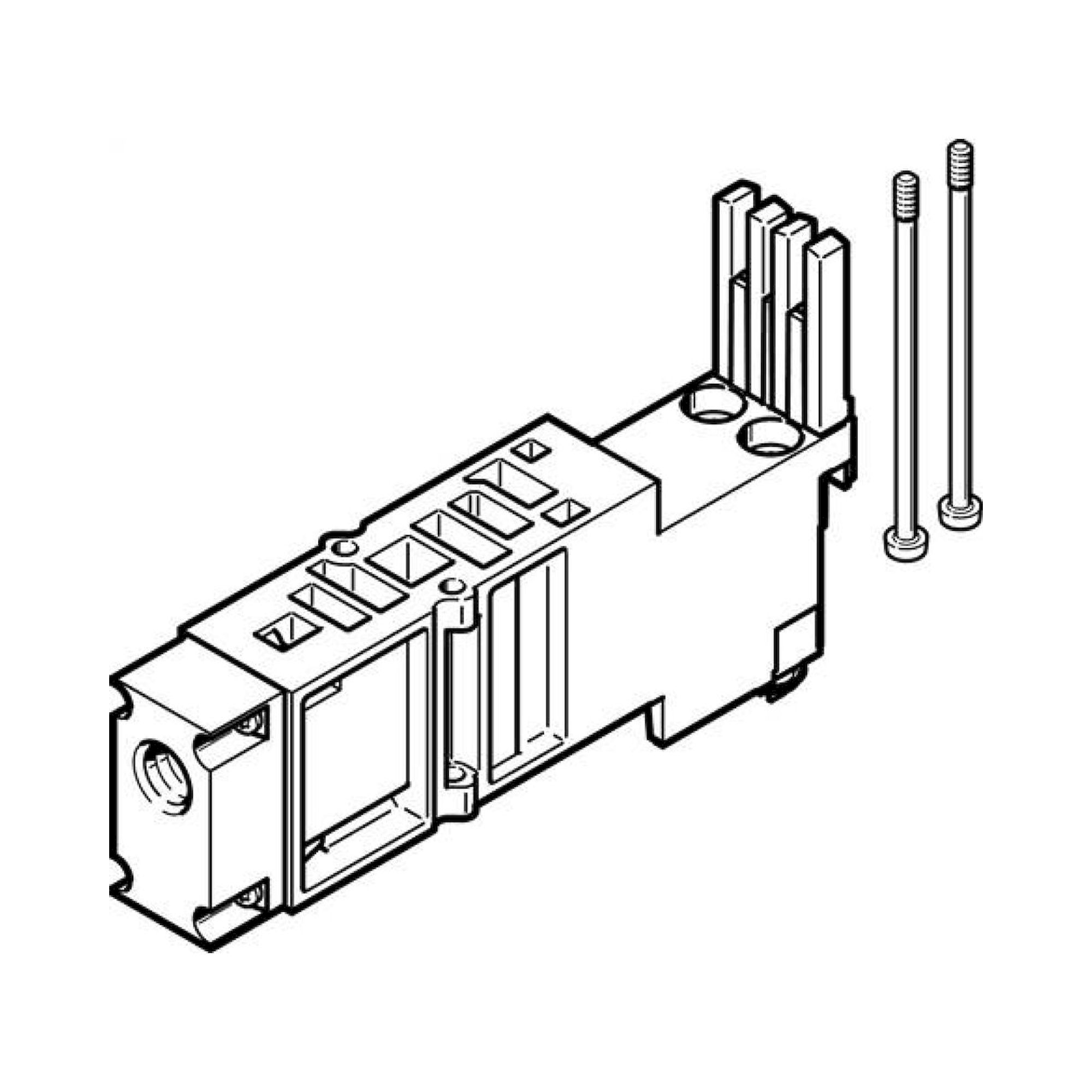

⬡ Vertical supply VMPA2-VSP-0 - top-entry compressed air supply where side access is restricted

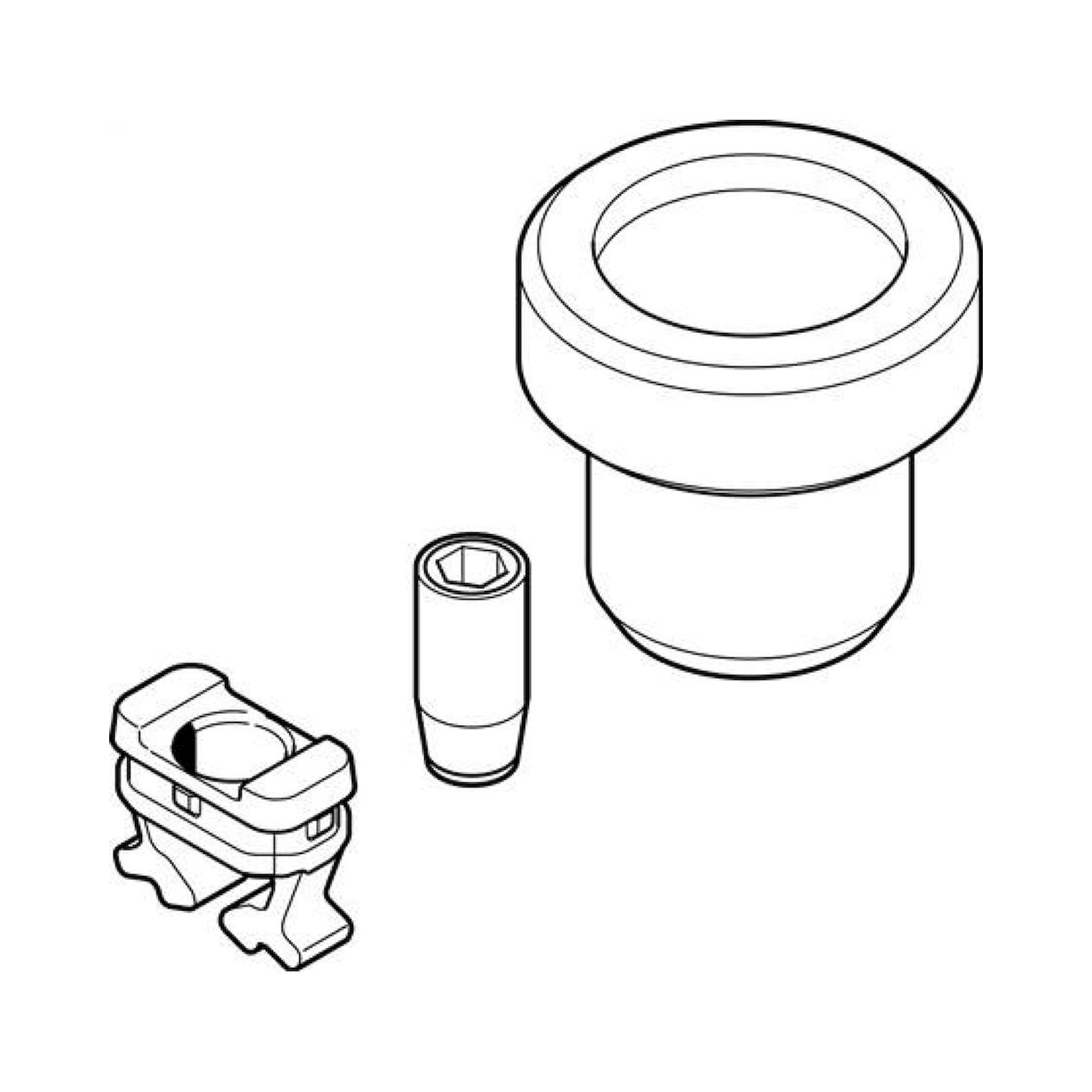

⚡ Fixed restrictor set VMPA1-FT-NW0.3-1.7 - complete set of all orifice sizes for initial and service use

Item group	Orifice / port	Function
VMPA1-FT-NW0.3-10 to NW1.7-10	0.3-1.7 mm	Fixed restrictor for single-channel flow control
VMPA1-FT-NW0.3-1.7 (set)	all sizes	Set of all orifice sizes, 10 pcs each
VMPAL-SP, VMPAL-SP-0	no connector / standard	Basic supply for VMPAL island
VMPAL-SP-QS8 to QS12	QS8, QS10, QS12	Push-in tube supply, metric
VMPAL-SP-QS3/8", 1/2"	Inch	Push-in tube supply, inch
VFFG-T-M5-5 to M5-15	M5, orifice 5-15 mm	Direct M5 restrictor
VMPA2-VSP-0	-	Vertical supply VMPA2

Typical applications: flow limitation of individual valve channels for defined cylinder movements (VMPA1-FT fixed restrictors), compressed air supply to VMPAL islands via push-in connectors of the preferred orifice size, direct restriction at M5 ports on existing valve islands without disassembly, vertical supply where side-entry is blocked, and workshop service kit supply with the complete fixed restrictor set.
