Connection plates, connection strips

Accessories for valve terminals

Connection plates and connection strips for Festo valve terminals form the pneumatic interface between the valve island and connected actuators. The range covers multipole connection plates (CPV10-VI-P2-M7 through CPV18-VI-P8-1/4-B) with 2, 4, 6 or 8 working line connections, reserve plates (CPV10/14/18-RZP) for bridging unused positions, and flow control check valve kits (CPV10/14-BS) that integrate exhaust throttling directly into the connection plate.

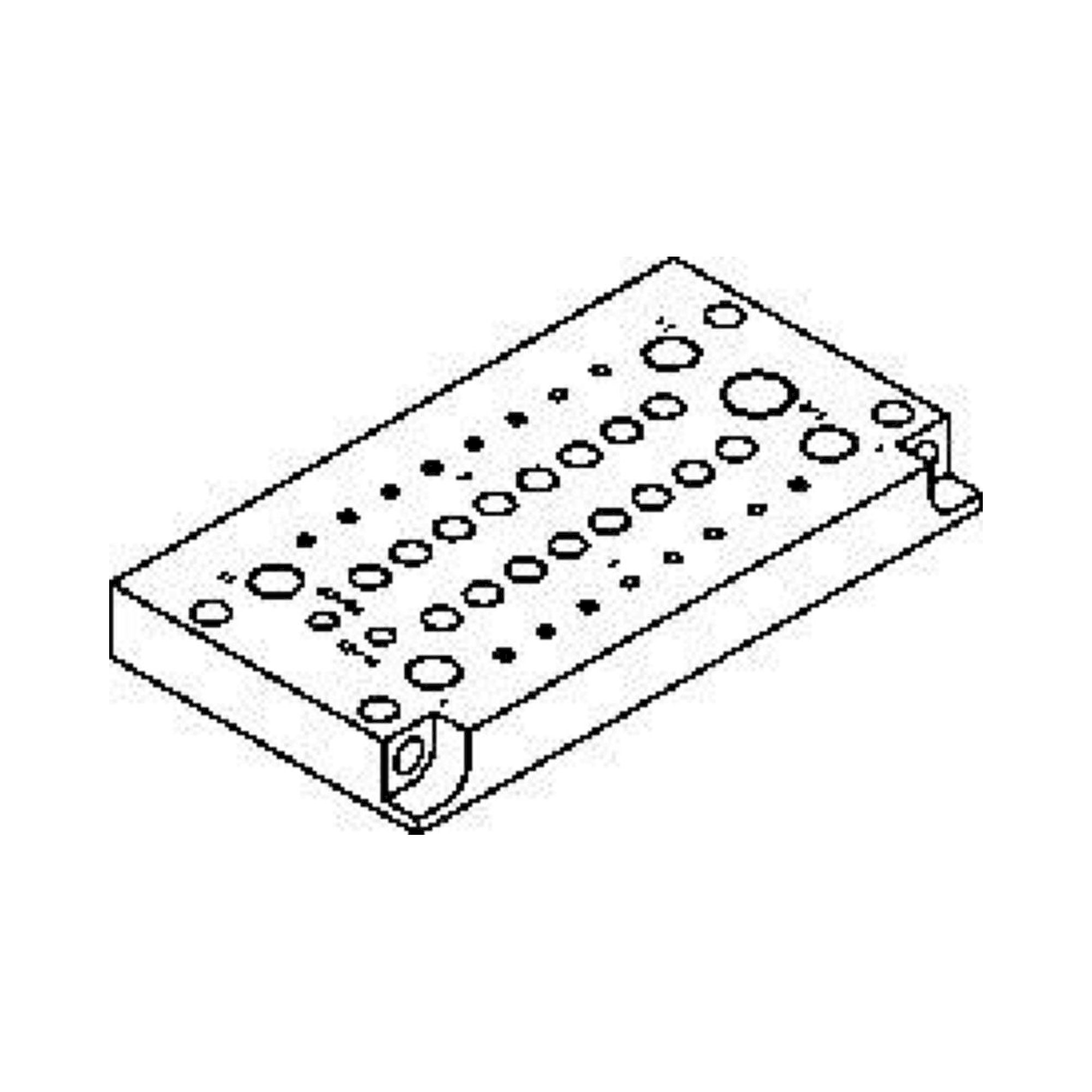

⬡ Multipole connection plates M7 - 2/4/6/8 working line connections, versions B (pre-assembled) and standard

⚙ Size grading CPV10 / CPV14 / CPV18 - port sizes M7, G1/8, G1/4 depending on body size

✓ Reserve plates RZP - bridge unoccupied valve positions, keeping the pneumatic circuit closed

✦ Integrated flow control check valves BS - GRZ (single throttle port) and GRAZ/GRZZ (dual throttle ports) for individual exhaust throttling

⚡ Direct plug-in mounting - plugs directly into valve island body, no additional wiring

Body size	Port	Multipole variants	Throttle BS variants
CPV10	M7	P2, P4, P6, P8 (M7 / M7-B)	BS-GRZ-V, BS-2XGRAZ, BS-2XGRZZ
CPV14	G1/8	P2, P4, P6, P8 (1/8-B)	BS-GRZ-V, BS-2XGRAZ, BS-2XGRZZ
CPV18	G1/4	P2, P4, P6, P8 (1/4-B)	-

Typical applications: collective pneumatic cabling of cylinders and rotary actuators via multipole connection plates, selective exhaust throttling of individual valve channels for cylinder speed control, bridging unused positions with reserve plates, and retrofitting existing valve islands with flow control check valve kits without full disassembly.
