Center pivot mounts (XL)

Center pivot mounts for ISO 15552 pneumatic cylinders are specialized mounting accessories that enable rotational movement around a central pivot point while maintaining cylinder alignment during operation. These XL-series mounting solutions like the Airtec TJX series accommodate bore sizes from 32mm to 125mm and are extensively used in automated manufacturing lines, packaging machinery, material handling systems, and robotics applications. The center pivot design allows cylinders to swing through controlled arcs while transferring linear force, making them essential for gate actuators, conveyor positioning systems, and pick-and-place mechanisms in automotive, food processing, and pharmaceutical industries.

Selection of ISO 15552 center pivot mounts depends primarily on cylinder bore diameter, operating pressure range, and load capacity requirements. The Airtec TJX series offers bore compatibility from 32mm up to 125mm with standard operating pressures between 1.5 to 10 bar for most industrial pneumatic applications. Critical selection factors include pivot bearing load rating, mounting thread specifications, and angular deflection limits which typically range from ±15 to ±30 degrees depending on the specific mount design. Material grade selection between standard steel, stainless steel, or aluminum construction determines corrosion resistance and weight characteristics for the specific operating environment.

ISO 15552 center pivot mounts must comply with the international ISO 15552 standard which defines dimensional, performance, and safety requirements for pneumatic cylinders and their mounting accessories. Additional applicable standards include ISO 4762 for socket head cap screws used in mounting hardware, DIN 6912 for internal hexagon screws, and EN 983 for safety requirements of fluid power systems and their components. Quality pneumatic mounts also conform to ISO 9001 manufacturing standards and may carry CE marking under the Machinery Directive 2006/42/EC when integrated into complete pneumatic systems operating within EU industrial facilities.

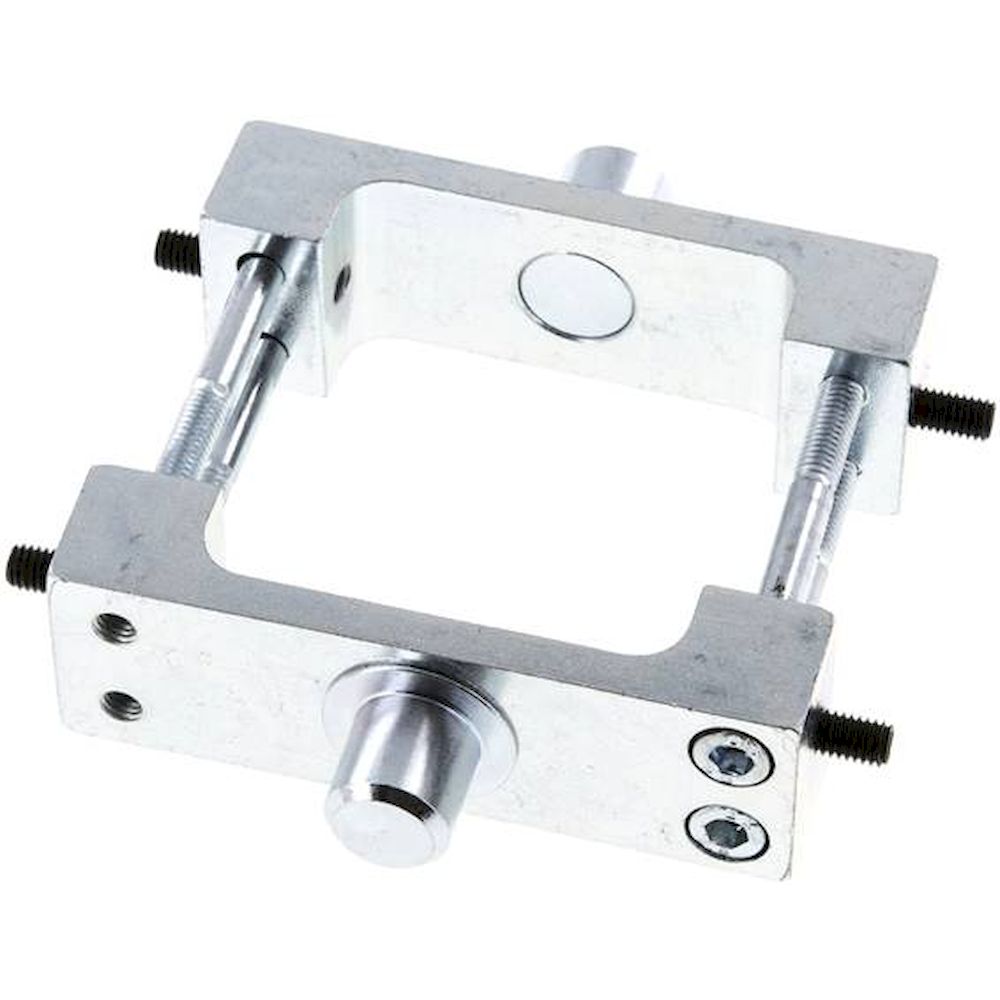

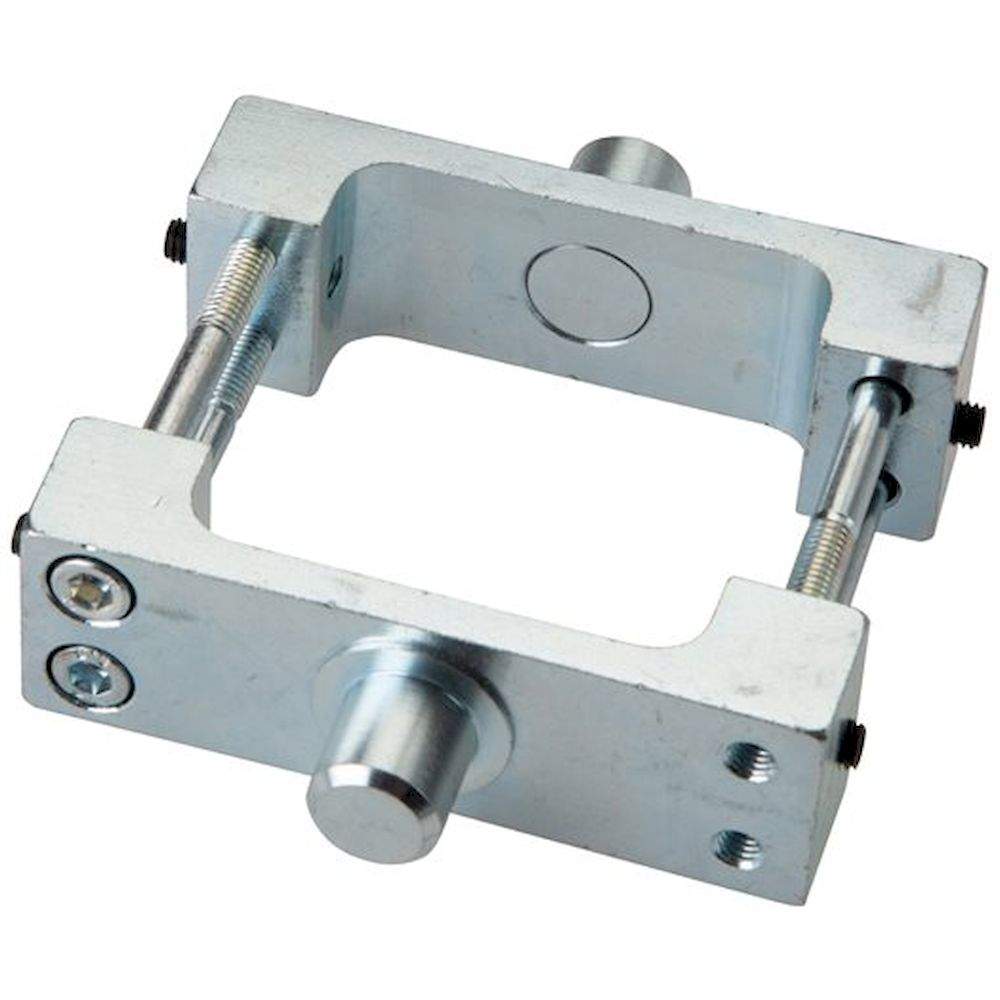

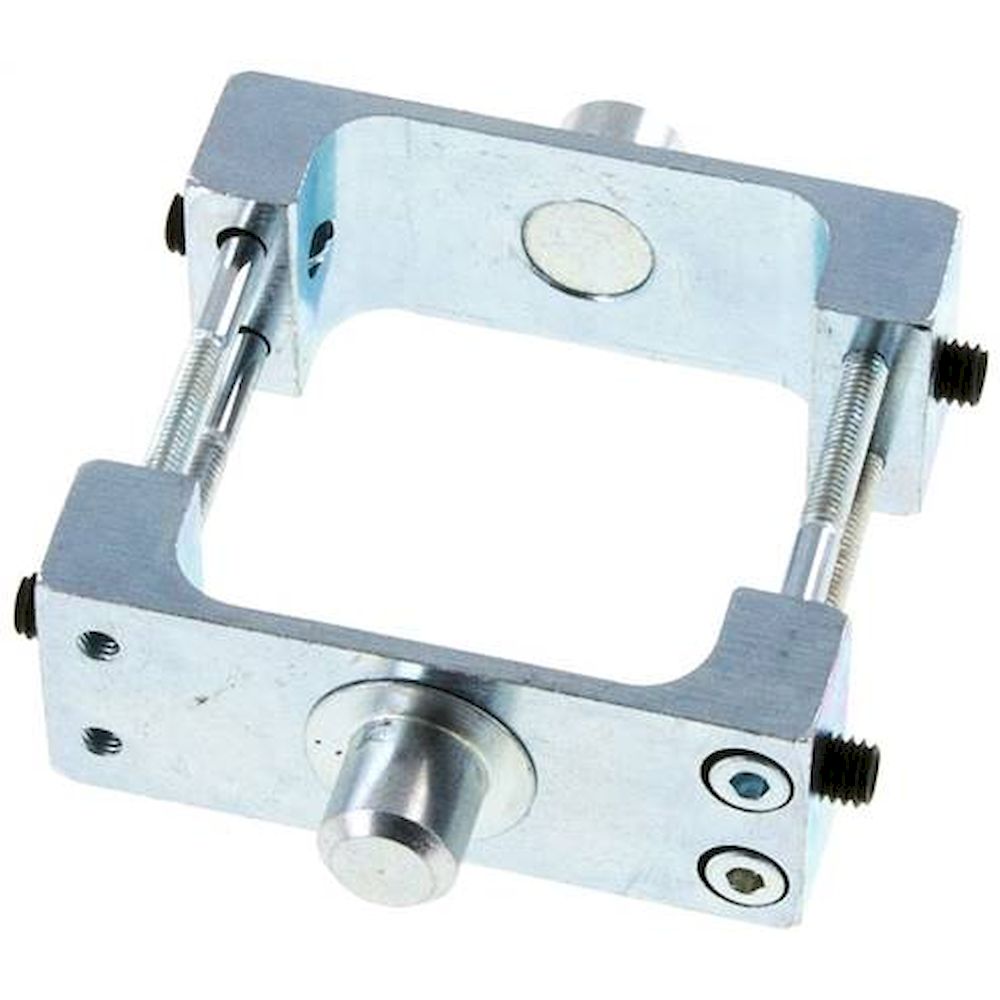

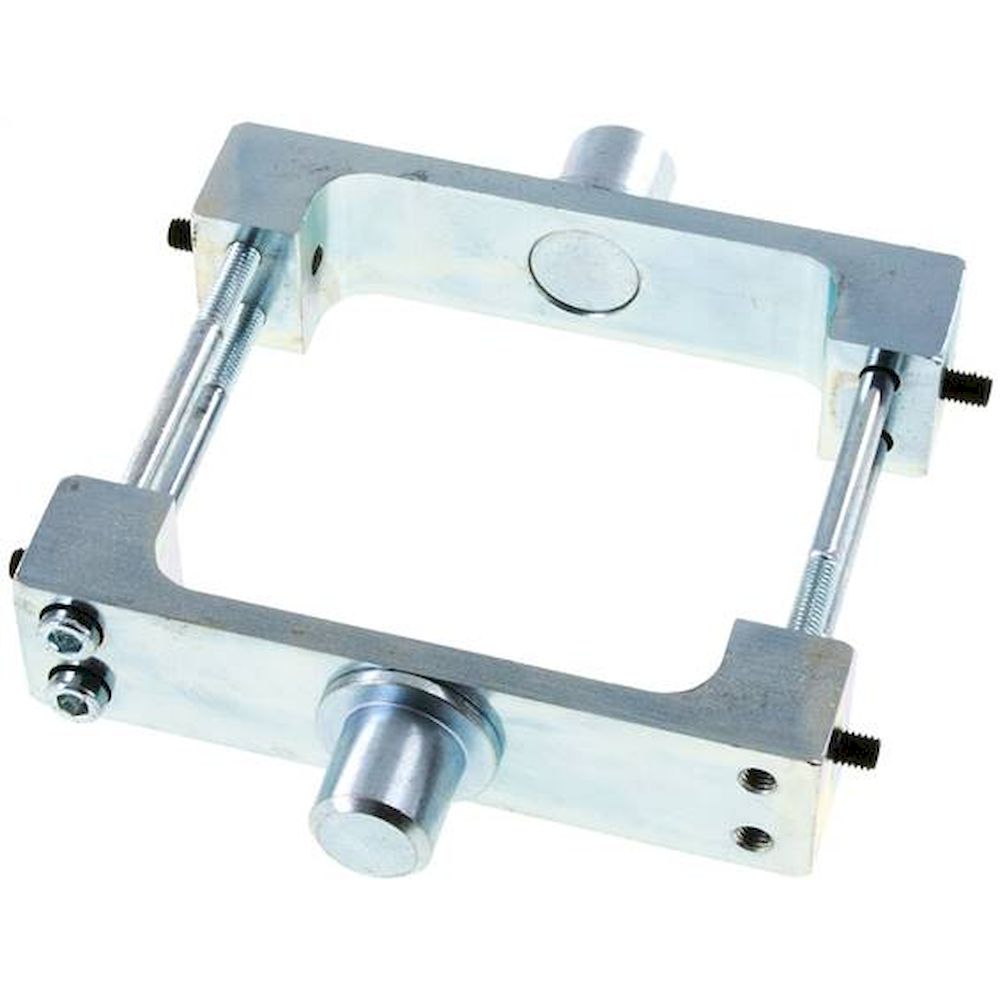

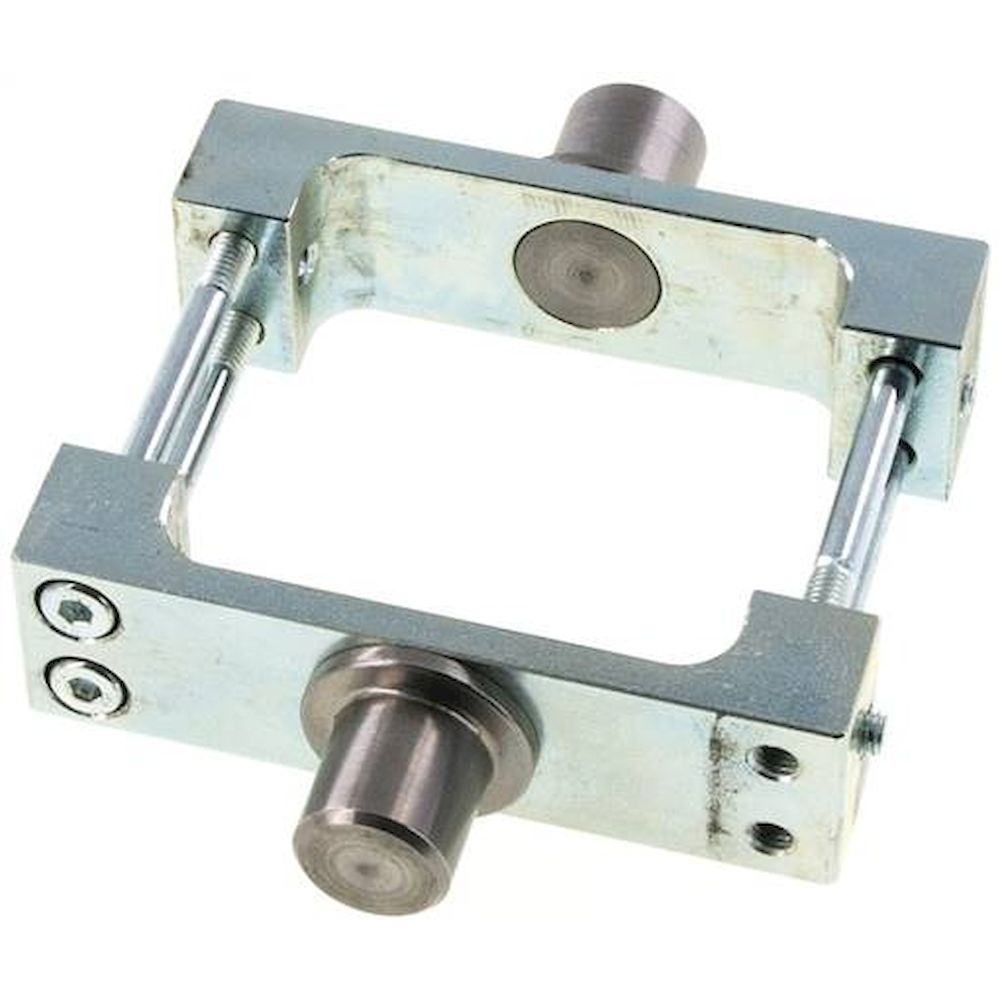

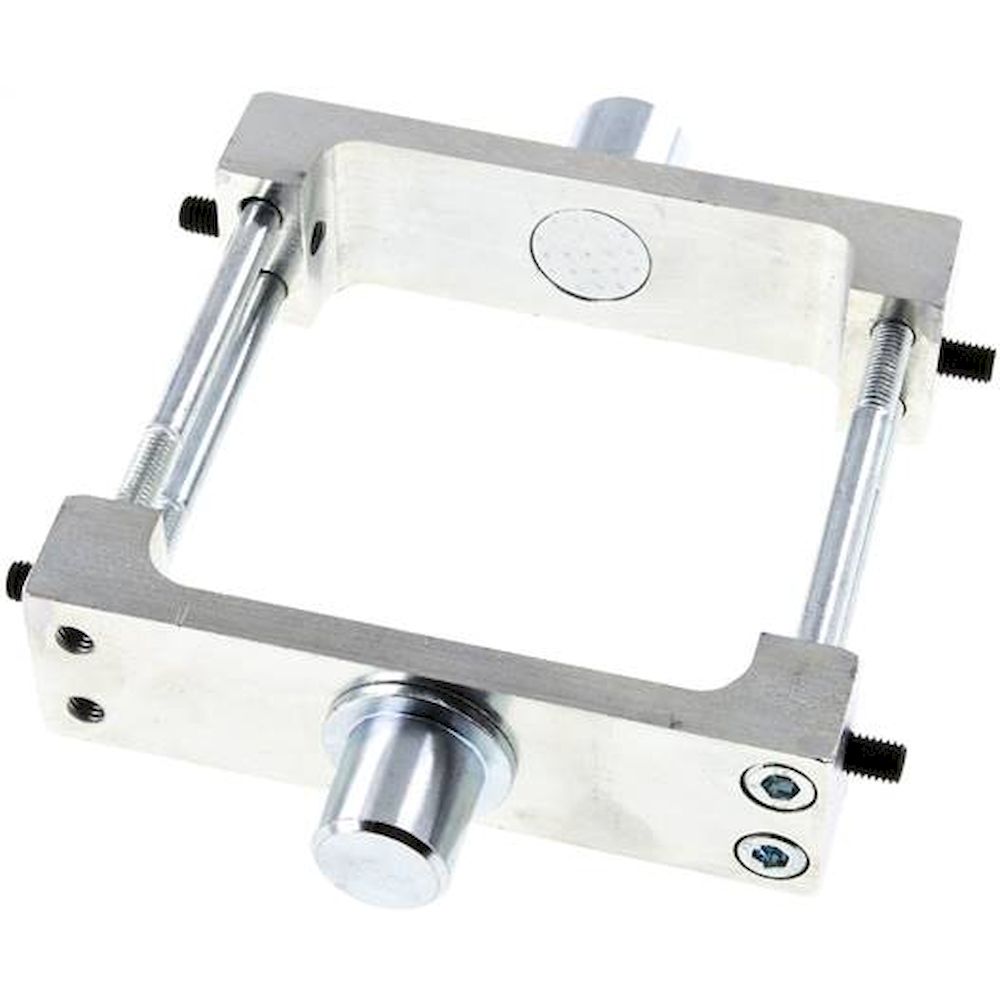

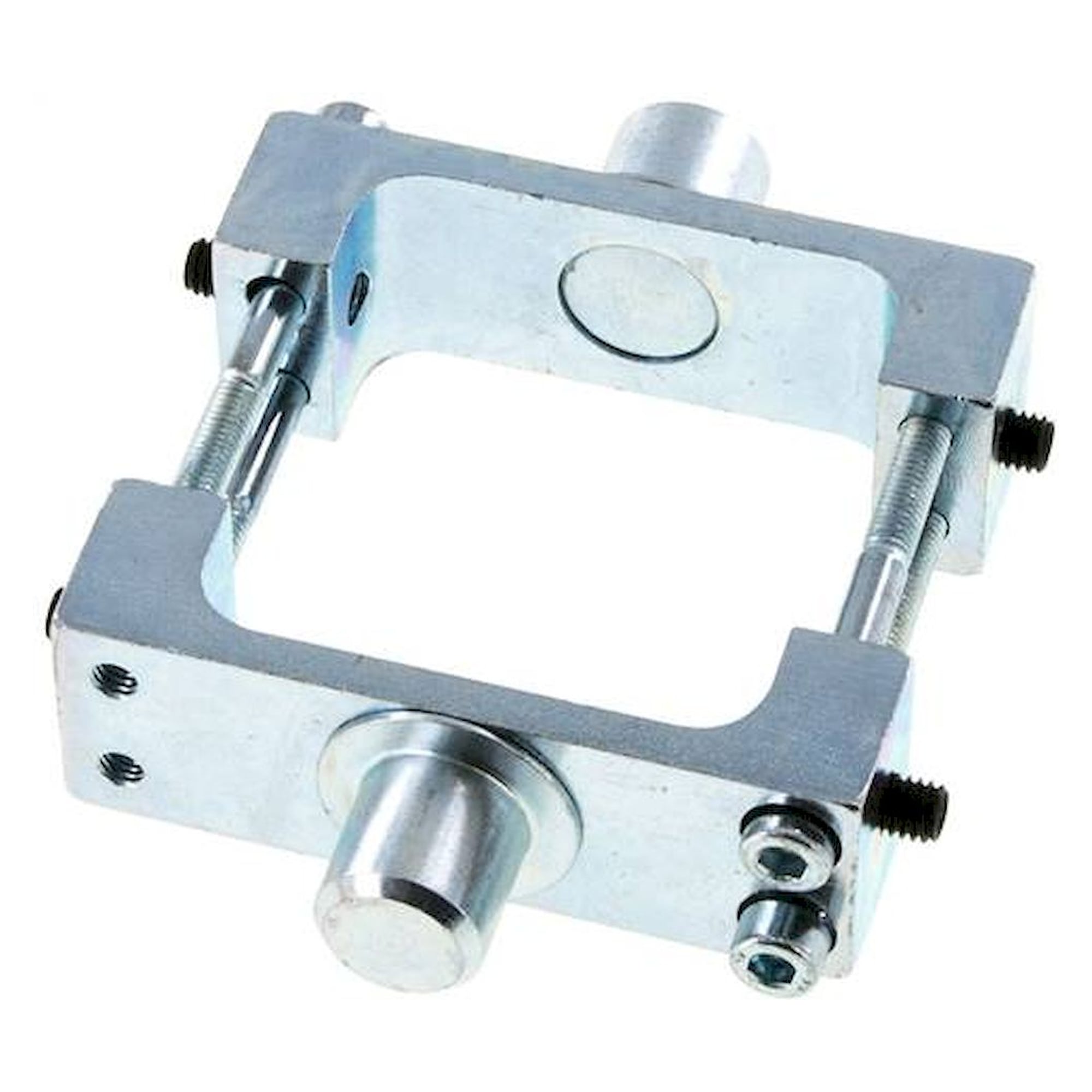

The Airtec TJX series center pivot mounts differ primarily in their bore diameter compatibility ranging from TJX 32 for 32mm cylinders up to TJX 125 for 125mm bore cylinders, with intermediate sizes of 40mm, 50mm, 63mm, 80mm, and 100mm available. Each size variant maintains the same XL mounting pattern and pivot geometry but scales the bearing surface area, thread specifications, and overall mounting dimensions proportionally to handle the increased forces from larger cylinder bores. The load capacity increases significantly with bore size, with larger variants like TJX 125 capable of handling substantially higher side loads and moment forces compared to smaller TJX 32 units while maintaining the same angular deflection range.

ISO 15552 center pivot mounts require precise alignment during installation with mounting surfaces machined to DIN 6 tolerance class and perpendicularity within 0.05mm per 100mm length to prevent binding and premature wear. The mounts connect to standard pneumatic cylinders through ISO 15552 tie rod patterns and require G1/8 or G1/4 compressed air connections depending on cylinder size, with working media of filtered compressed air at dew point minimum 15°C below ambient temperature. System compatibility extends to all major pneumatic brands following ISO 15552 specifications including Festo, SMC, and Parker cylinders, with mounting hardware typically requiring M8 to M12 socket head cap screws torqued to manufacturer specifications between 25 to 85 Nm depending on mount size.

Center pivot mounts for ISO 15552 cylinders typically operate within pressure ranges of 1.5 to 10 bar (22 to 145 psi) with proof pressure ratings up to 15 bar for safety margin compliance. Operating temperature ranges span from -20°C to +80°C for standard steel construction, with extended ranges from -40°C to +150°C available for stainless steel variants used in extreme environments. Most industrial center pivot mounts carry IP54 protection rating as standard, providing adequate protection against dust ingress and water splashing, though IP65 or IP67 ratings are available for food processing or washdown applications where higher environmental protection is required.

ISO 15552 center pivot mounts require visual inspection every 250,000 cycles or 6 months of continuous operation, whichever occurs first, to check for bearing wear, mounting bolt torque, and pivot point lubrication levels. Preventive maintenance includes regreasing pivot bearings every 500,000 cycles using lithium-based grease meeting DIN 51502 specifications and checking mounting bolt torque annually or after 1 million cycles. Under normal industrial conditions with filtered compressed air and proper installation, quality center pivot mounts typically achieve service life exceeding 5 million cycles, with bearing replacement recommended at 10 million cycles or when radial play exceeds 0.2mm to maintain precision positioning accuracy.
