Complete swivel mountings 90° bracket
Pneumatic cylinders ISO 15552

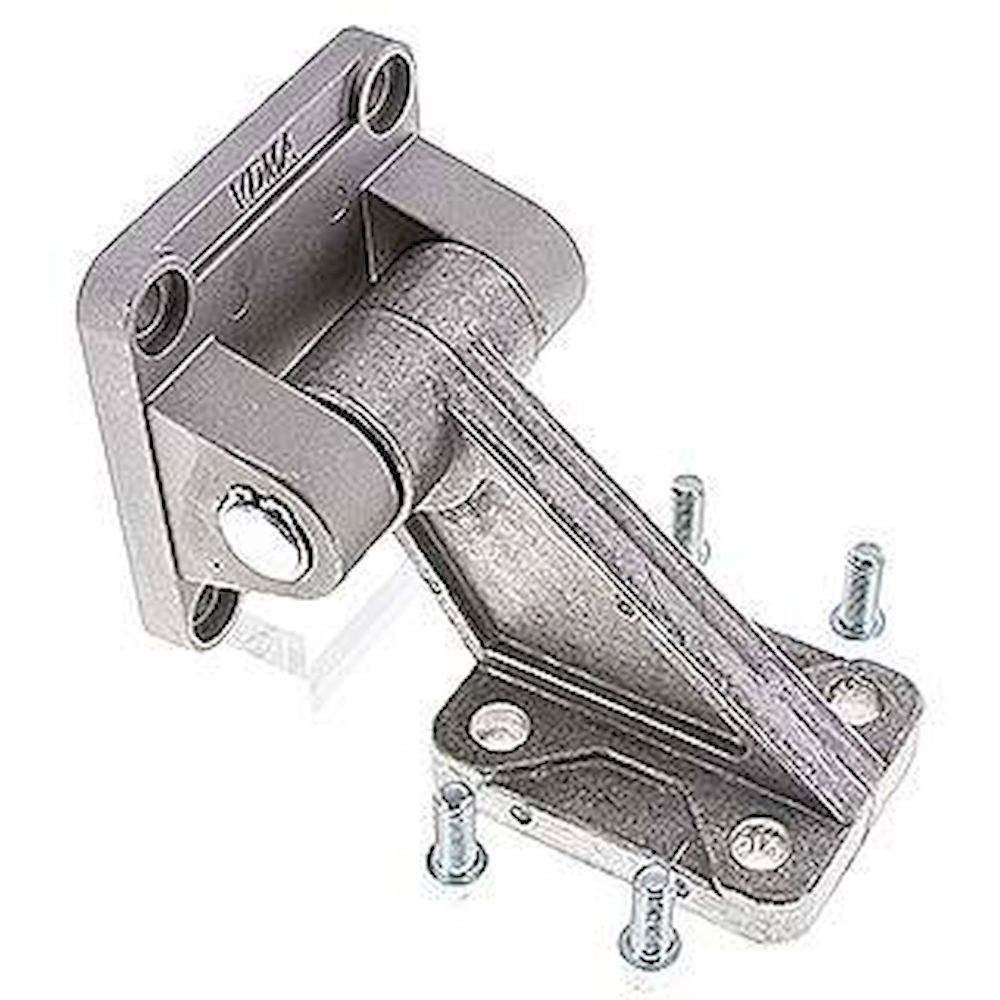

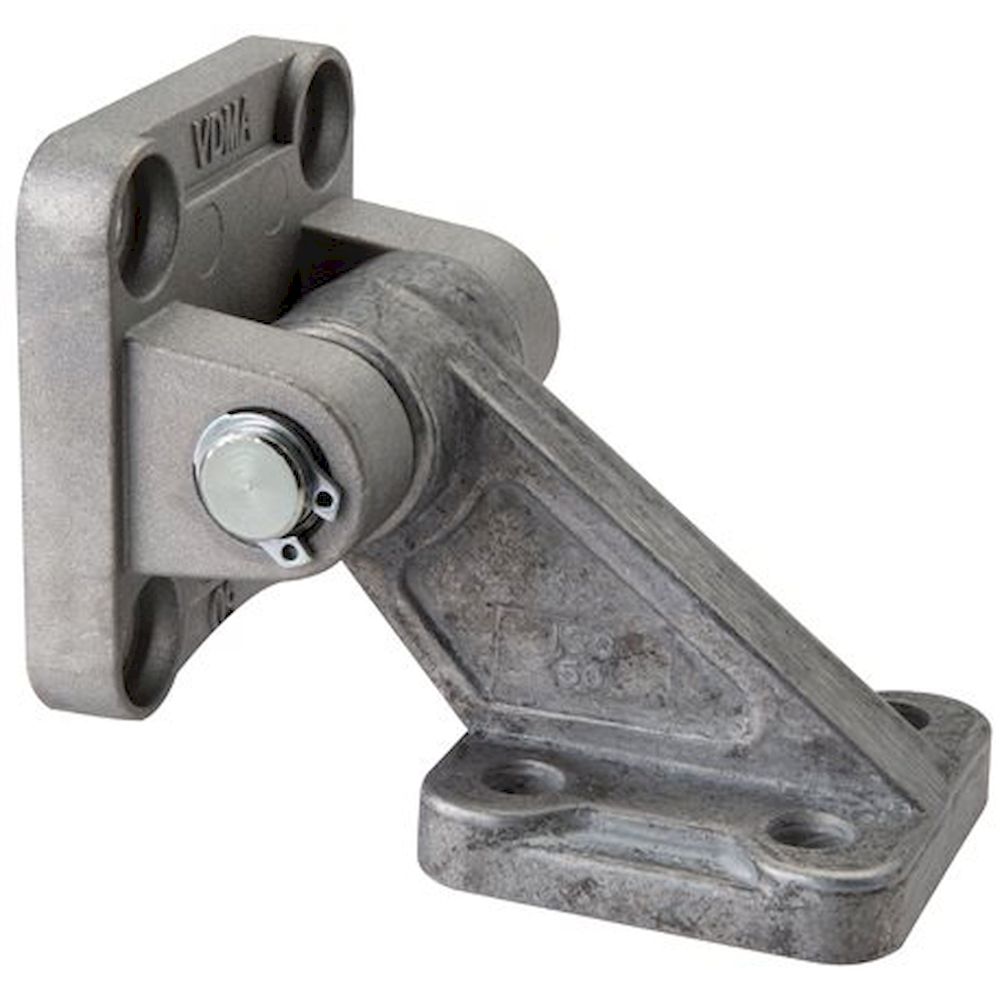

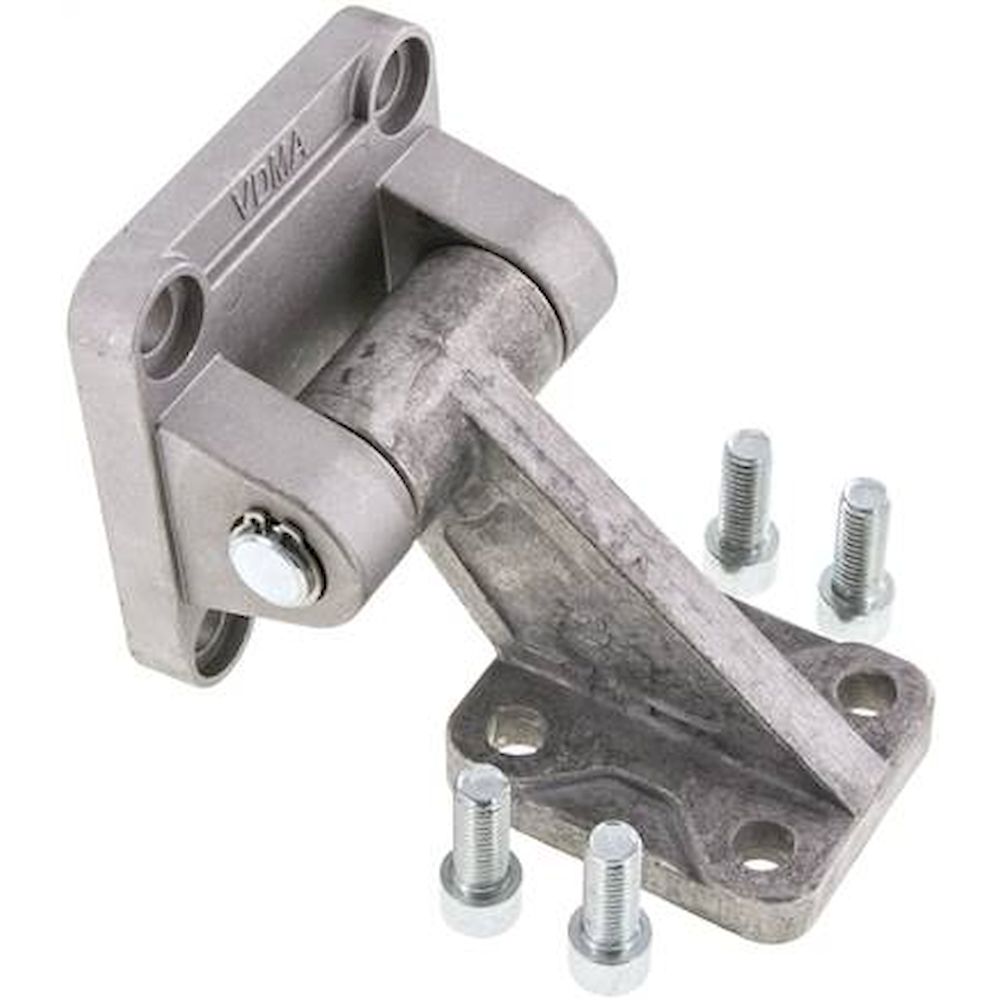

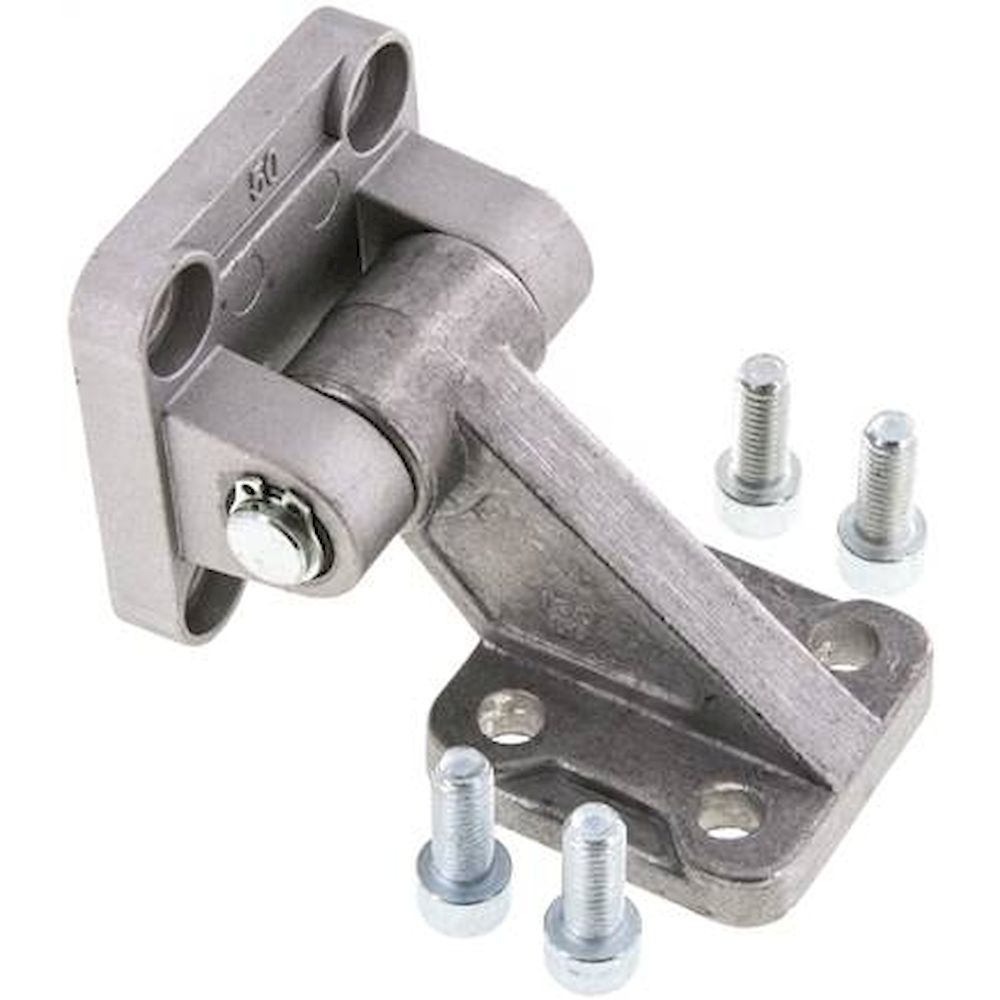

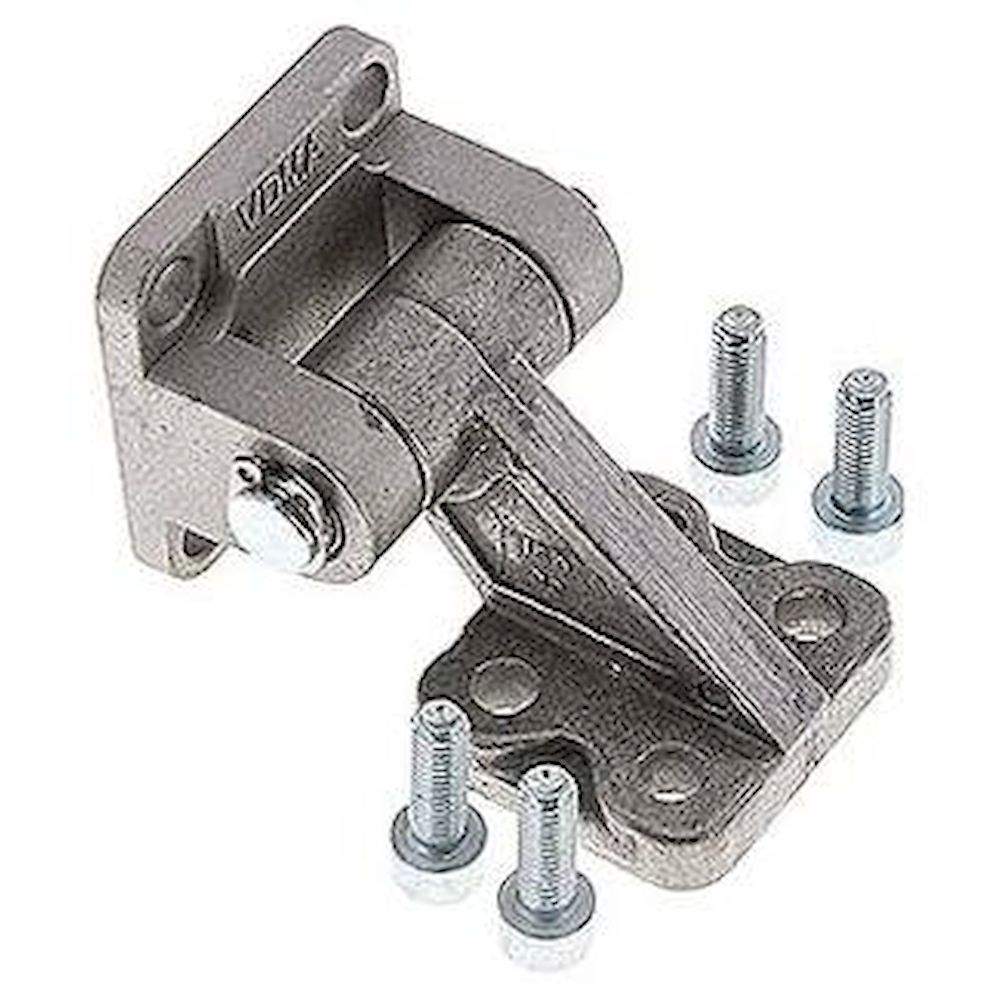

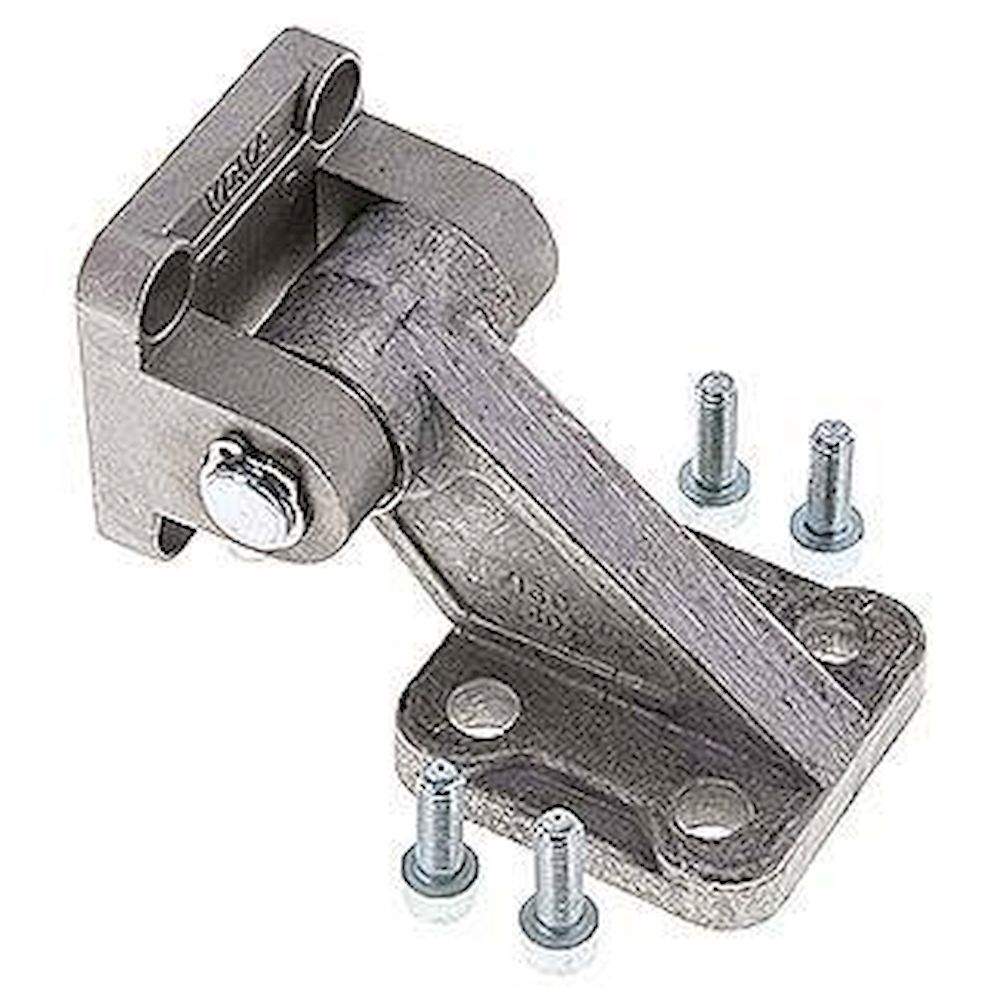

Complete swivel mountings with 90° bracket (TH series) deliver the pivot support for ISO 15552 cylinders as a ready-to-install unit: the aluminium bearing block and pivot pins are already integrated, so no separate bearing blocks need to be ordered. The series covers bore diameters from 32 to 200 mm. The 90° alignment positions the pivot axis perpendicular to the cylinder axis, suited wherever the cylinder must swing in a fixed angular plane.
| Feature | TH (complete) | TD + TL (separate) |
|---|---|---|
| Scope of supply | Bracket and bearing blocks as set | Bracket and bearing blocks ordered separately |
| Assembly effort | Lower | Higher (2 positions) |
| Material | Aluminium | Aluminium, steel, stainless steel |
| Corrosion resistance | Standard | Stainless steel variants available |
Typical applications: Standard mechanical engineering projects where assembly time is a priority, series production lines with many identical cylinder mounts, and special machine construction where the designer prefers a complete swivel unit without having to select individual accessories.
