Foot fixings

ISO 15552 pneumatic cylinder foot mountings are standardized bracket assemblies that secure pneumatic cylinders to machine frames and mounting surfaces at the base position. These essential components enable stable installation of pneumatic actuators in industrial automation systems, packaging machinery, material handling equipment, and assembly line robotics. The foot mounting configuration provides optimal stability for horizontal cylinder orientations while maintaining compliance with international pneumatic interface standards. Industries including automotive manufacturing, food processing, and pharmaceutical production rely on these mountings for precise cylinder positioning in automated production environments.

Selection of ISO 15552 foot mountings depends on cylinder bore diameter, material requirements, and operating environment conditions. Available sizes range from 32mm to 250mm bore compatibility, with material options including galvanized steel for standard applications and 1.4401 stainless steel for corrosive environments. The TA series foot mountings accommodate standard ISO 15552 cylinder interfaces while providing mounting hole patterns optimized for machine frame integration. Critical selection factors include cylinder thrust loads, mounting surface material compatibility, and chemical resistance requirements for specific industrial processes.

ISO 15552 pneumatic cylinder foot mountings comply with the international standard ISO 15552 which defines dimensional specifications, interface requirements, and mounting configurations for pneumatic cylinders. These components meet DIN standards for mechanical fastening systems and material specifications for industrial pneumatic applications. The mounting brackets conform to European machinery safety directives and pressure equipment standards when integrated into complete pneumatic systems. Quality certifications ensure dimensional accuracy within ISO tolerances and material traceability for both galvanized steel and stainless steel variants used in critical manufacturing applications.

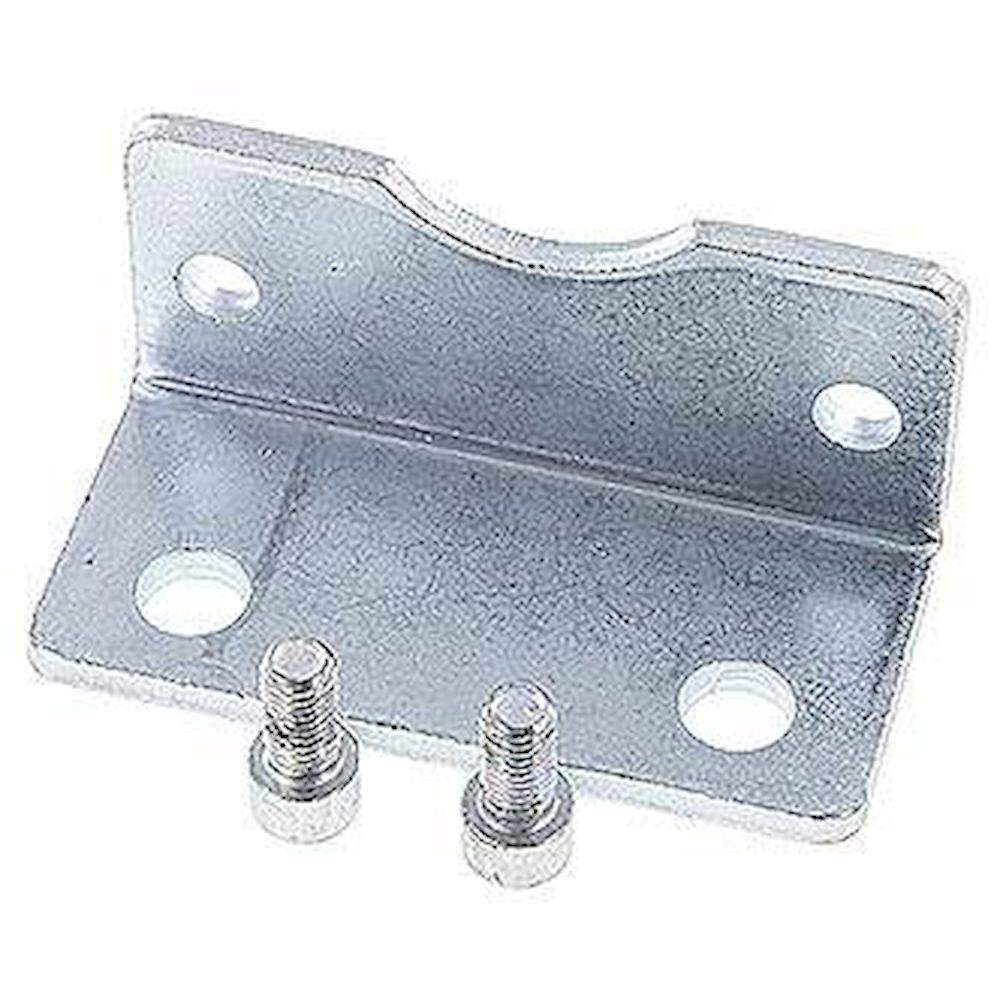

Galvanized steel foot mountings like the TA 100 provide cost-effective solutions for standard industrial environments with moderate corrosion protection through zinc coating. Stainless steel 1.4401 variants such as the TA 100 ES offer superior corrosion resistance for food processing, pharmaceutical, and chemical applications where hygiene and chemical compatibility are critical. The 1.4401 grade stainless steel provides enhanced durability in wash-down environments and maintains structural integrity under temperature cycling. Both material variants maintain identical ISO 15552 dimensional specifications while the stainless steel option commands premium pricing for specialized applications requiring extended service life in aggressive environments.

ISO 15552 foot mountings require precise alignment with cylinder centerlines and adequate mounting surface flatness to prevent binding during operation. Installation utilizes standard metric fasteners with torque specifications matching the mounting surface material and expected dynamic loads. These mountings integrate seamlessly with ISO 15552 compliant pneumatic cylinders and provide standardized bolt hole patterns for machine frame attachment. Proper installation ensures perpendicular mounting surface contact while accommodating thermal expansion in systems operating across wide temperature ranges, maintaining cylinder alignment throughout the complete stroke cycle.

ISO 15552 foot mountings operate safely within standard pneumatic system pressure ranges up to 10 bar with burst pressure safety factors exceeding 4:1 for proper material selection. Operating temperature ranges extend from -20°C to +80°C for galvanized steel variants while stainless steel 1.4401 mountings handle temperatures from -40°C to +150°C in specialized applications. These components maintain structural integrity under dynamic loading conditions typical of pneumatic cylinder operation including side loads and moment forces. Safety considerations include proper fastener grade selection and periodic inspection of mounting bolt torque to prevent loosening under vibration conditions common in industrial automation systems.

ISO 15552 foot mountings require annual inspection of mounting bolt torque and visual examination for wear, corrosion, or deformation under normal operating conditions. Service life typically exceeds 10 years for galvanized steel mountings in standard industrial environments while stainless steel 1.4401 variants provide 15-20 year service life in corrosive applications. Maintenance procedures include checking mounting surface integrity, verifying proper cylinder alignment, and replacing fasteners showing signs of corrosion or thread damage. Preventive maintenance schedules should align with overall pneumatic system service intervals to ensure continued mounting stability and prevent premature cylinder wear due to misalignment issues.
