Swivel mounts fork
Pneumatic cylinders ISO 15552
Fork swivel mountings (TC) are cylinder articulation fittings for ISO 15552 profile cylinders that allow the cylinder to pivot in one plane using a forked construction. The range includes Airtec TC fork swivel mountings in sizes 100 to 250 mm in aluminium with bush, plus stainless-steel versions TC ES (grade 1.4401) for 100 and 125 mm, and burnished steel versions TC ST for 100 and 125 mm, providing the right material for each application.
| Type | Bore diameter | Material |
|---|---|---|

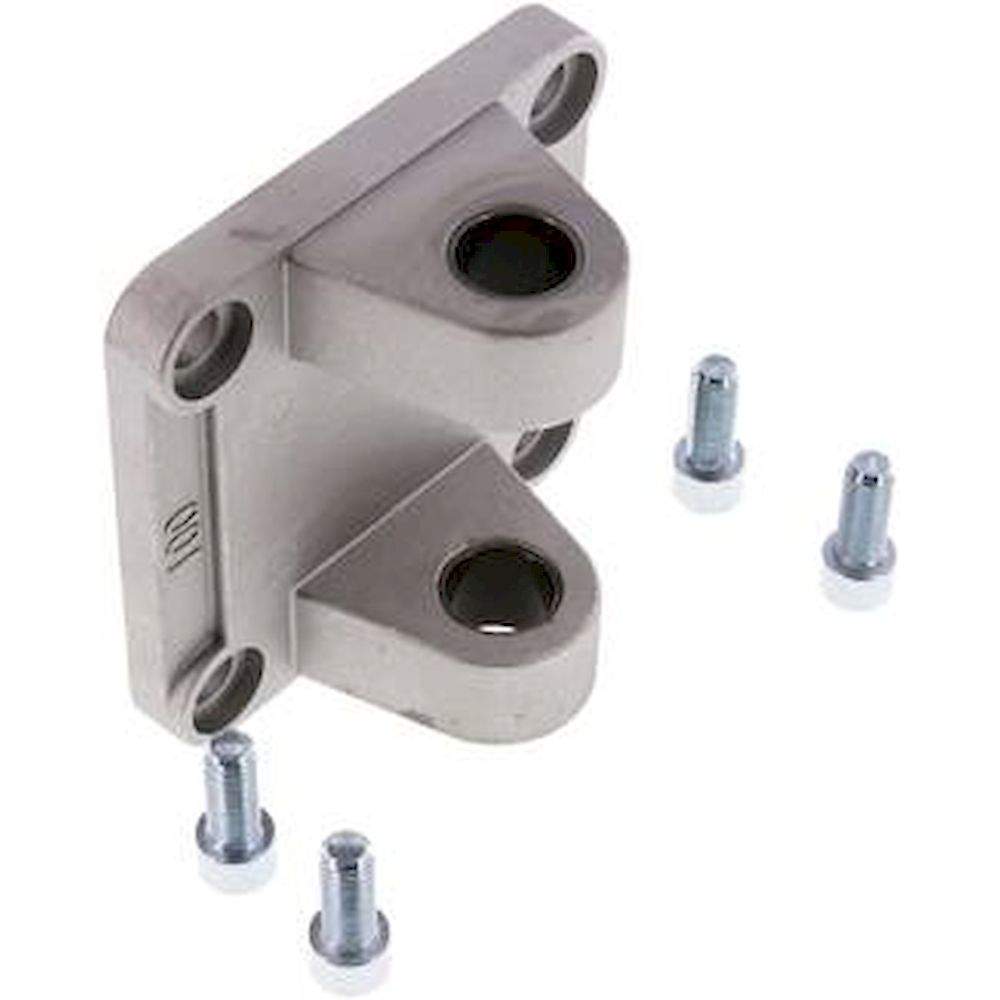

| TC 100 | 100 mm | Aluminium with bush |

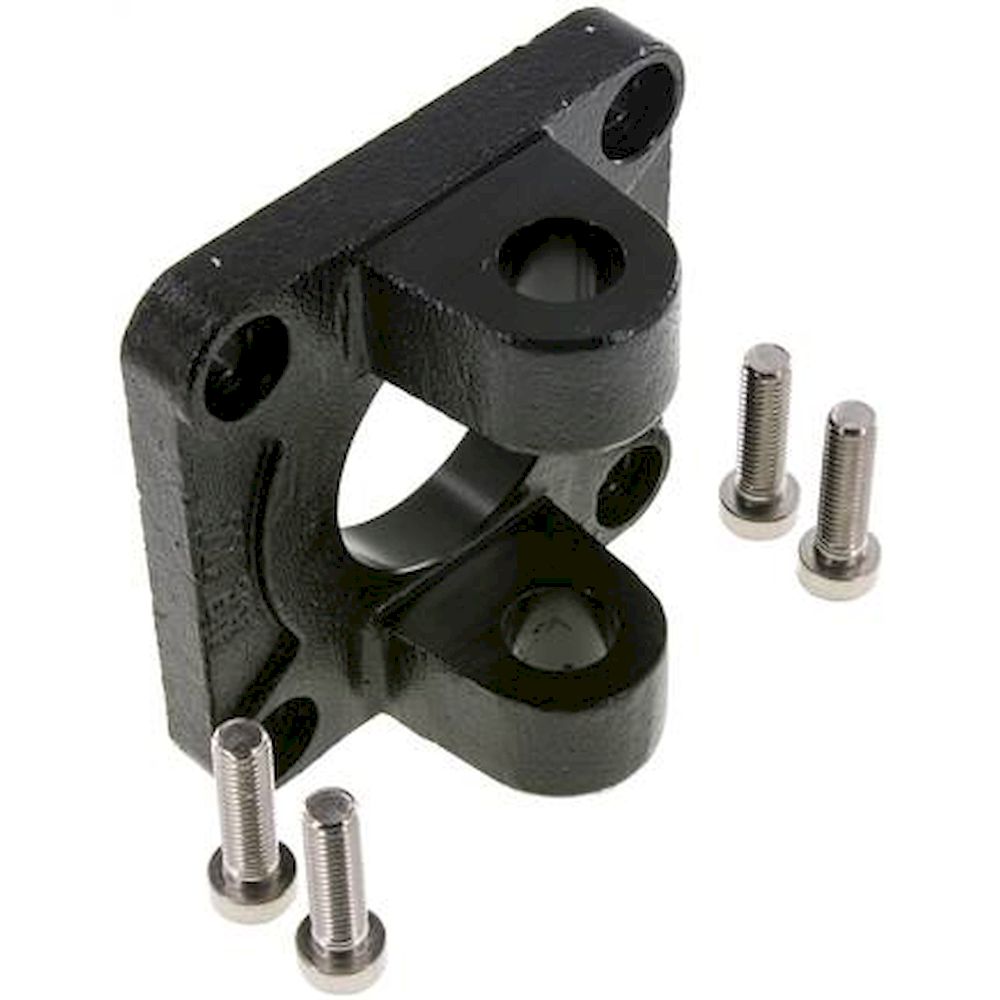

| TC 100 ST | 100 mm | Burnished steel |

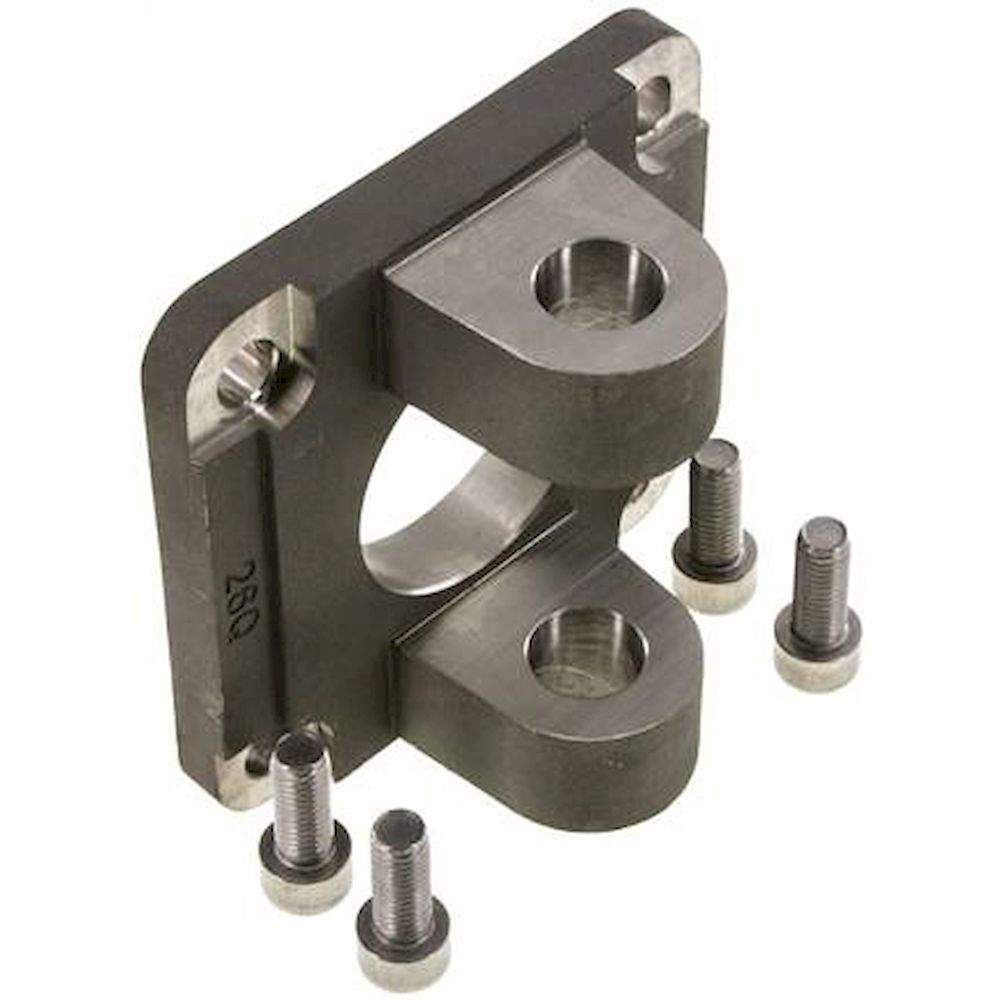

| TC 100 ES | 100 mm | 1.4401 |
| TC 125 ST | 125 mm | Burnished steel |
| Airtec TC 125 ES | 125 mm | 1.4401 |

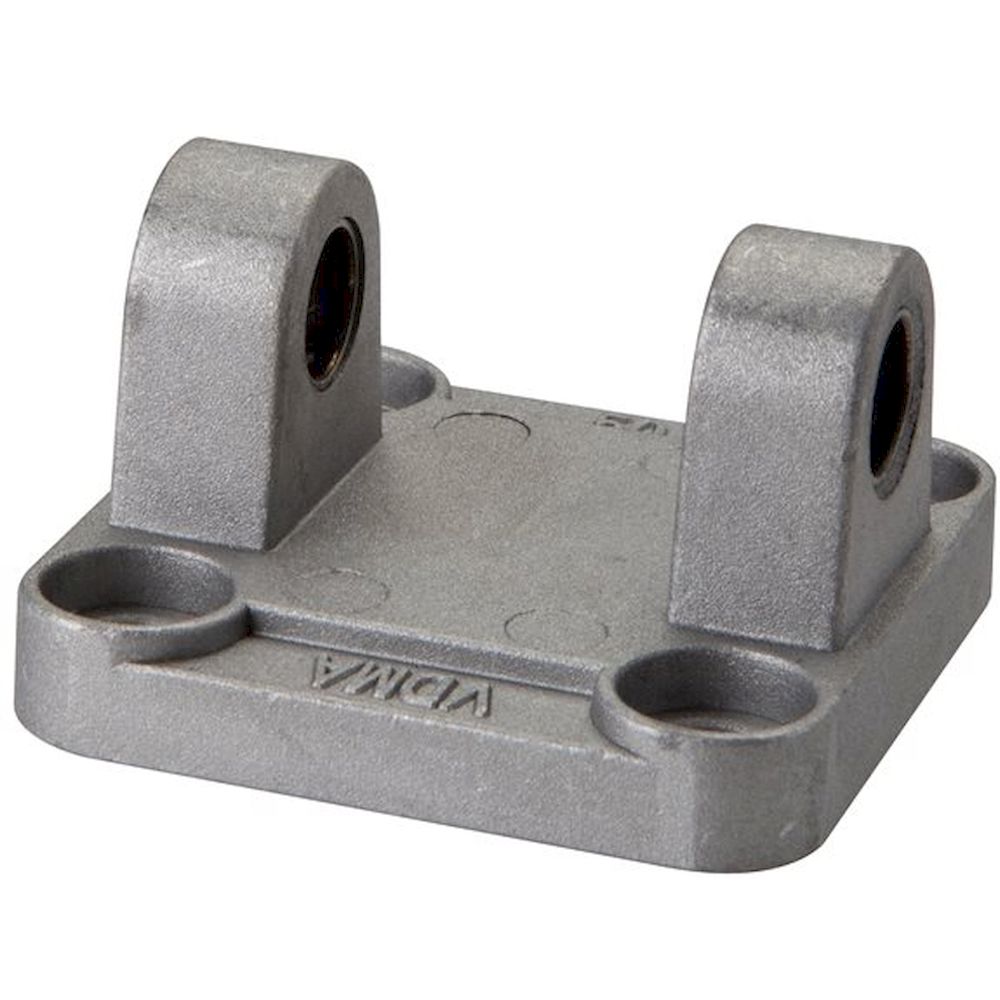

| Airtec TC 160 | 160 mm | Aluminium with bush |
| Airtec TC 200 | 200 mm | Aluminium with bush |
| Airtec TC 250 | 250 mm | Aluminium with bush |
Typical applications: Swivel cylinder articulation in fixtures, tilting structures and lift tables, machine assemblies with a single swivel axis without spatial degrees of freedom, and special machine construction requiring lightweight (aluminium fork) or corrosion resistance (stainless TC ES).
