Connectors

ISO 15552 pneumatic cylinder connecting pieces are standardized mechanical coupling components that enable the modular connection of pneumatic cylinders in automated manufacturing systems. These connecting pieces serve as critical interface elements in automotive assembly lines, packaging machinery, material handling equipment, and industrial robotics where precise linear motion control is required. The ISO 15552 standard ensures dimensional compatibility across different manufacturers, allowing engineers to create flexible pneumatic systems using cylinders from various suppliers. Available in bore sizes ranging from 32mm to 125mm, these connecting pieces facilitate quick cylinder replacement and system reconfiguration without requiring custom mounting solutions.

The primary technical selection criteria for ISO 15552 cylinder connecting pieces include bore diameter compatibility, operating pressure rating, and mounting configuration requirements. Available bore sizes include 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, and 125mm variants to match specific cylinder requirements, with each size designed to handle operating pressures typically ranging from 2 to 10 bar depending on the application. Material construction typically features anodized aluminum housings with integrated sealing systems rated for compressed air and inert gas media. The connecting piece must match both the cylinder bore diameter and the mounting pattern of the existing pneumatic system to ensure proper force transmission and alignment accuracy.

ISO 15552 pneumatic cylinder connecting pieces must comply with the fundamental ISO 15552 standard which defines dimensional requirements, mounting interfaces, and performance specifications for pneumatic cylinders and their accessories. Additional applicable standards include EN ISO 4414 for general pneumatic system safety requirements and DIN EN 983 for safety requirements specifically related to fluid power systems and components. For applications in potentially explosive atmospheres, ATEX Directive 2014/34/EU compliance may be required depending on the installation environment. The connecting pieces typically meet IP54 or IP65 ingress protection ratings according to IEC 60529, ensuring adequate protection against dust and moisture ingress in industrial environments.

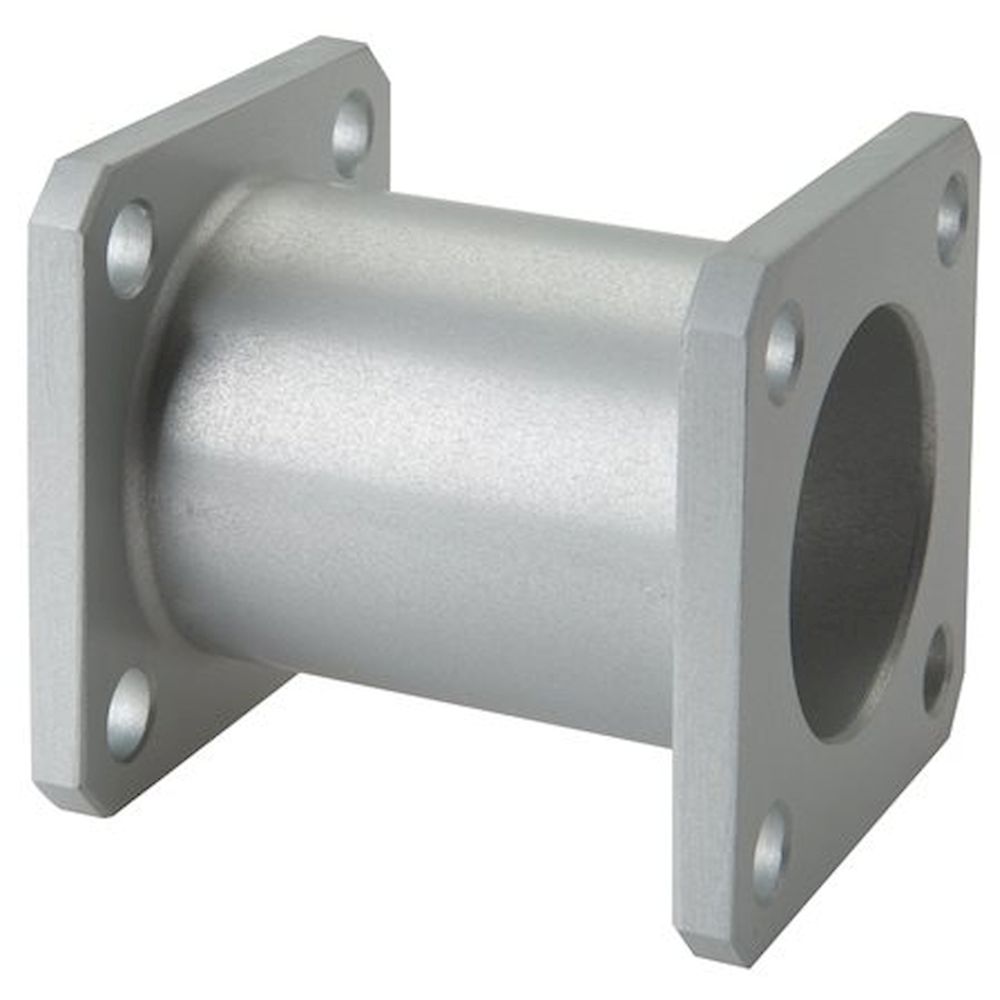

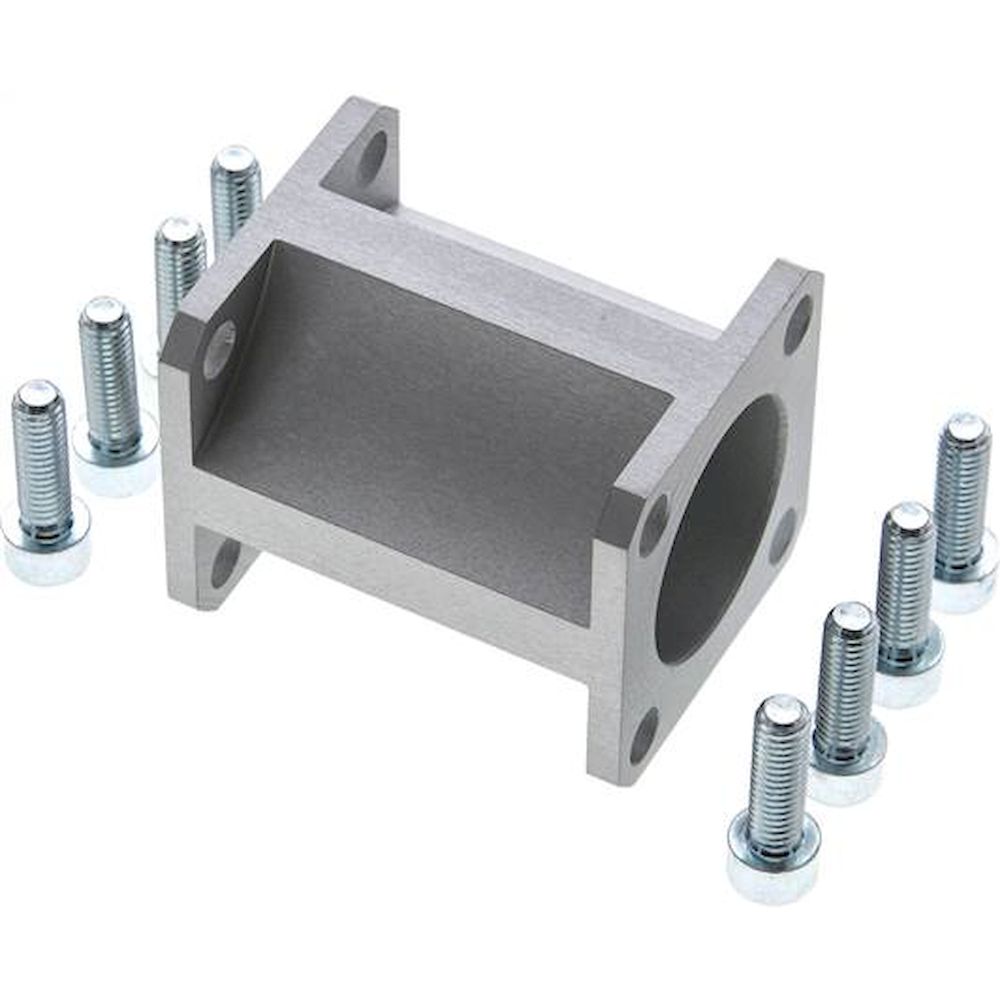

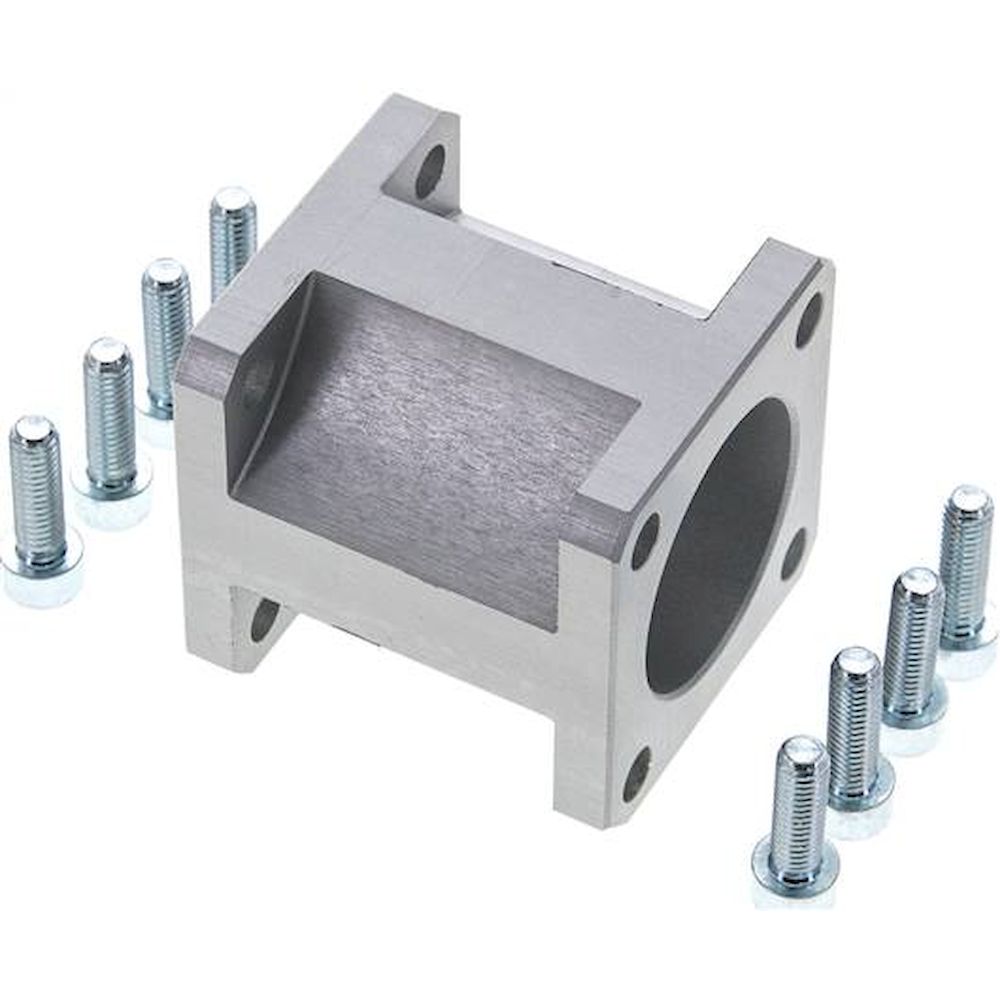

The primary differences between ISO 15552 connecting piece variants relate to bore diameter, force transmission capacity, and overall dimensional envelope requirements. Smaller bore sizes like TN 32 and TN 40 are designed for applications requiring forces up to 1000N, while larger variants such as TN 100 and TN 125 can handle forces exceeding 5000N at 6 bar operating pressure. The mounting bolt patterns scale proportionally with bore size, with smaller diameters using M5 or M6 fasteners and larger sizes requiring M8 or M10 mounting bolts for adequate clamping force. Each size maintains the standardized ISO 15552 interface geometry while providing optimized material thickness and reinforcement structures appropriate for the expected load requirements.

ISO 15552 connecting pieces require precise alignment during installation to prevent binding and premature wear, with typical mounting surface flatness tolerances of 0.05mm and perpendicularity within 0.1mm. The connecting pieces feature standardized mounting bolt patterns and port locations that ensure direct compatibility with ISO 15552 compliant cylinders from manufacturers including Festo, SMC, and Aventics. Installation typically requires applying thread-locking compound to mounting bolts and torquing to manufacturer specifications, generally 8-12 Nm for M6 bolts and 15-25 Nm for M8 bolts depending on the connecting piece size. Proper installation includes verification of port thread engagement depth and application of appropriate thread sealant rated for the operating pressure and media compatibility requirements.

ISO 15552 connecting pieces typically operate within a temperature range of -20°C to +80°C for standard applications, with extended temperature variants available for specific industrial requirements reaching +150°C. Standard operating pressure ratings range from 2 to 10 bar maximum working pressure, with proof pressure testing conducted at 1.5 times the maximum working pressure according to ISO 15552 specifications. Most connecting pieces achieve IP54 or IP65 ingress protection ratings, providing adequate sealing against industrial dust and moisture while maintaining reliable operation in typical factory environments. The safety factor for mechanical loading is typically 4:1 based on ultimate tensile strength of the aluminum housing material, ensuring reliable operation under dynamic loading conditions common in automated machinery applications.

ISO 15552 connecting pieces require visual inspection every 500,000 cycles or annually, whichever occurs first, to check for signs of wear, corrosion, or mechanical damage that could compromise system performance. Critical inspection points include mounting bolt torque verification, seal integrity assessment, and alignment verification using precision measuring instruments to ensure dimensional accuracy within ISO 15552 tolerances. Service life typically exceeds 10 million cycles when operated within specified pressure and temperature limits, with replacement recommended when dimensional wear exceeds 0.1mm or when visible seal deterioration occurs. Preventive maintenance includes annual lubrication of threaded connections with appropriate anti-seize compound and replacement of O-ring seals every 24 months or following any system disassembly to maintain optimal sealing performance and prevent contamination ingress.
