Flange mountings
Pneumatic cylinders ISO 15552

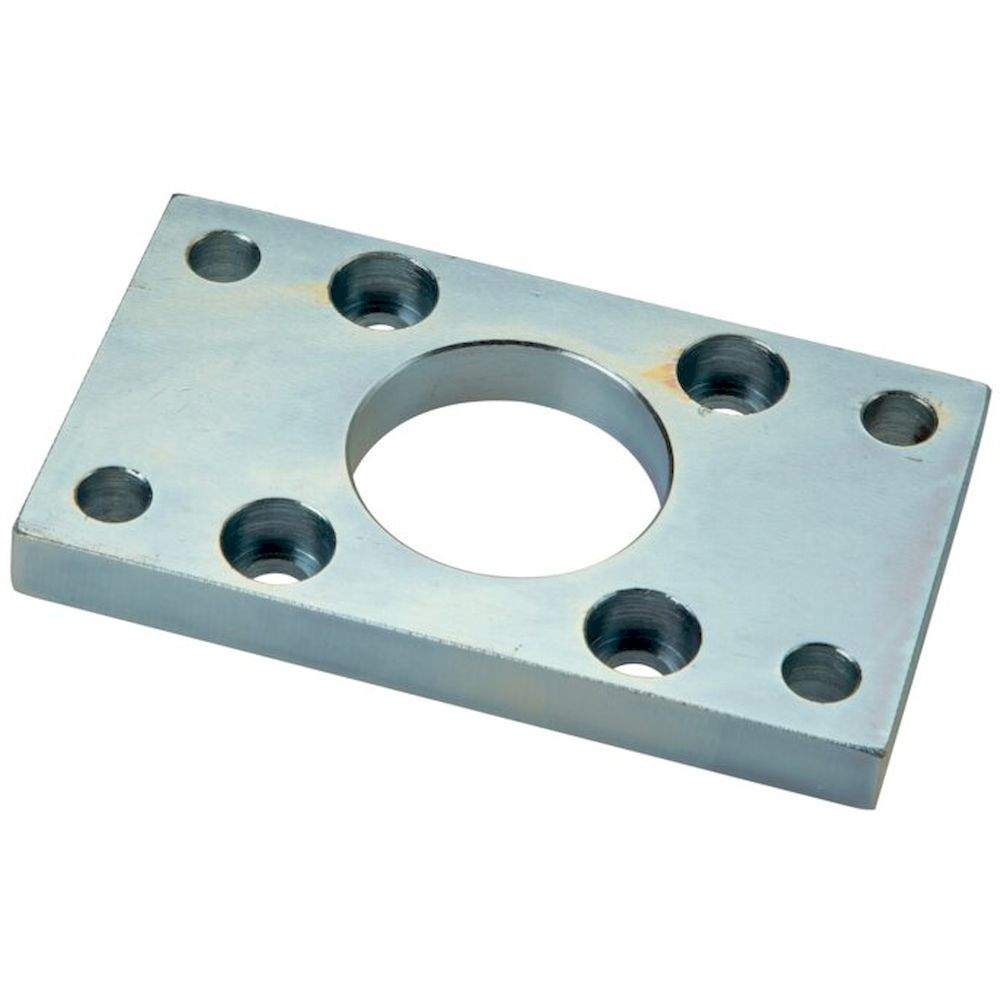

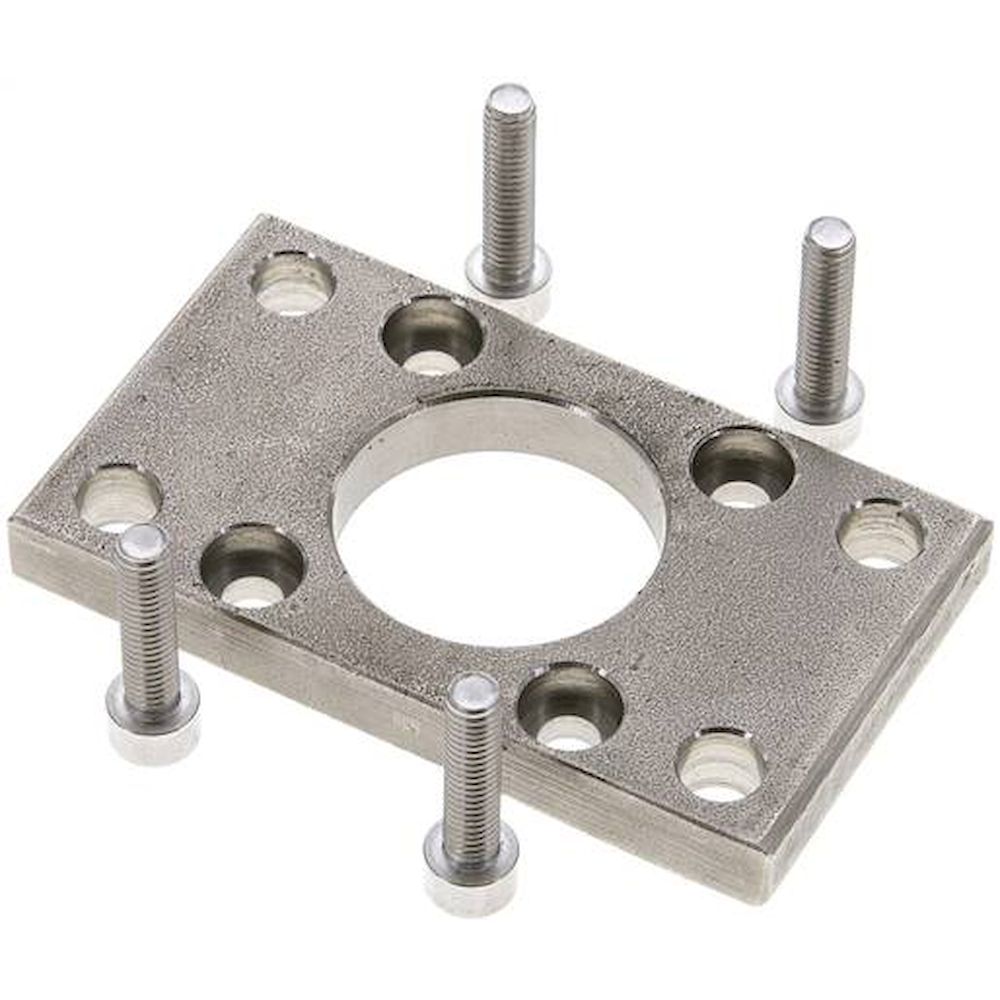

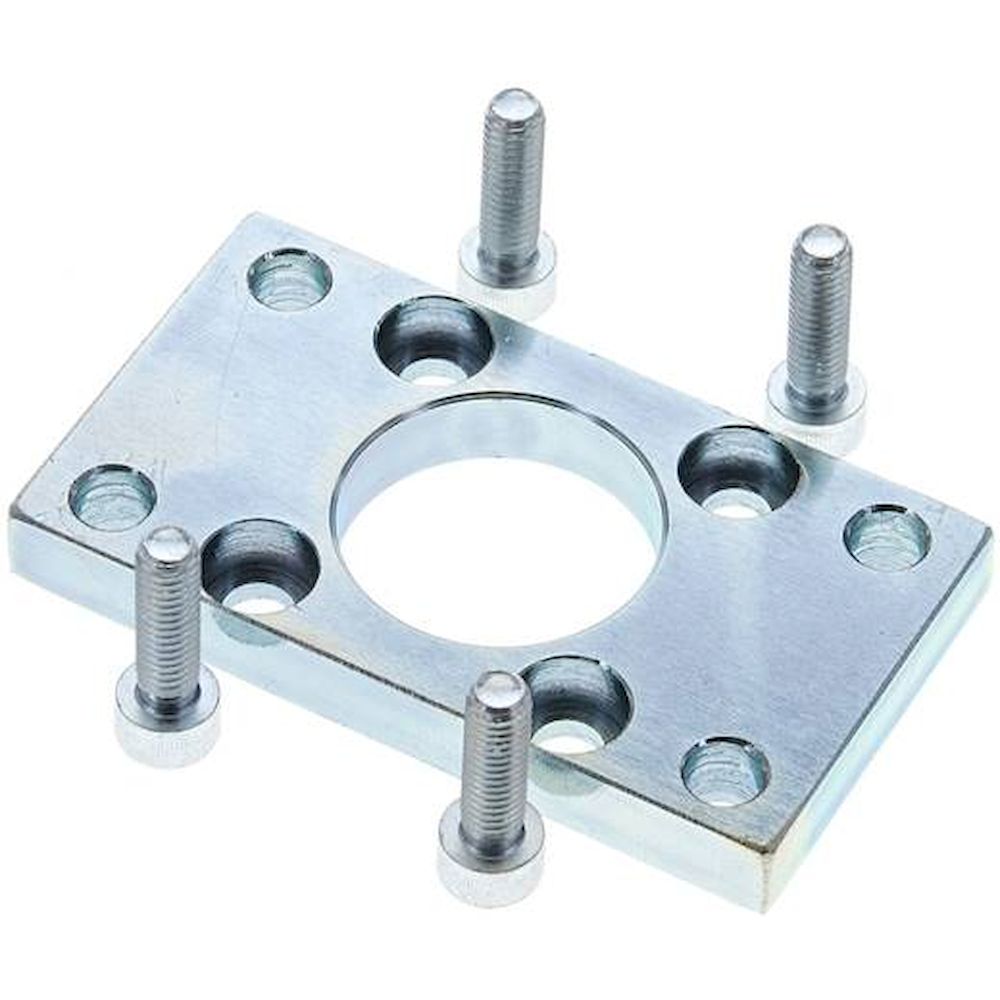

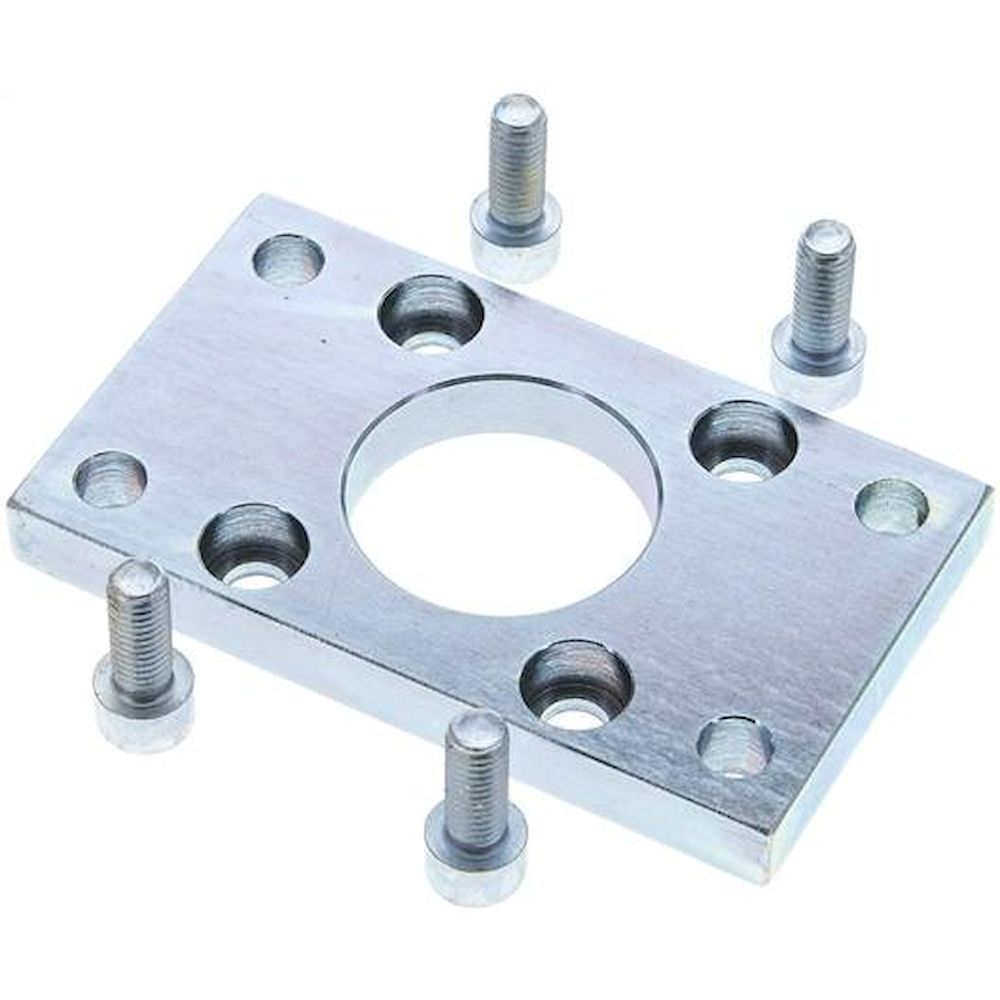

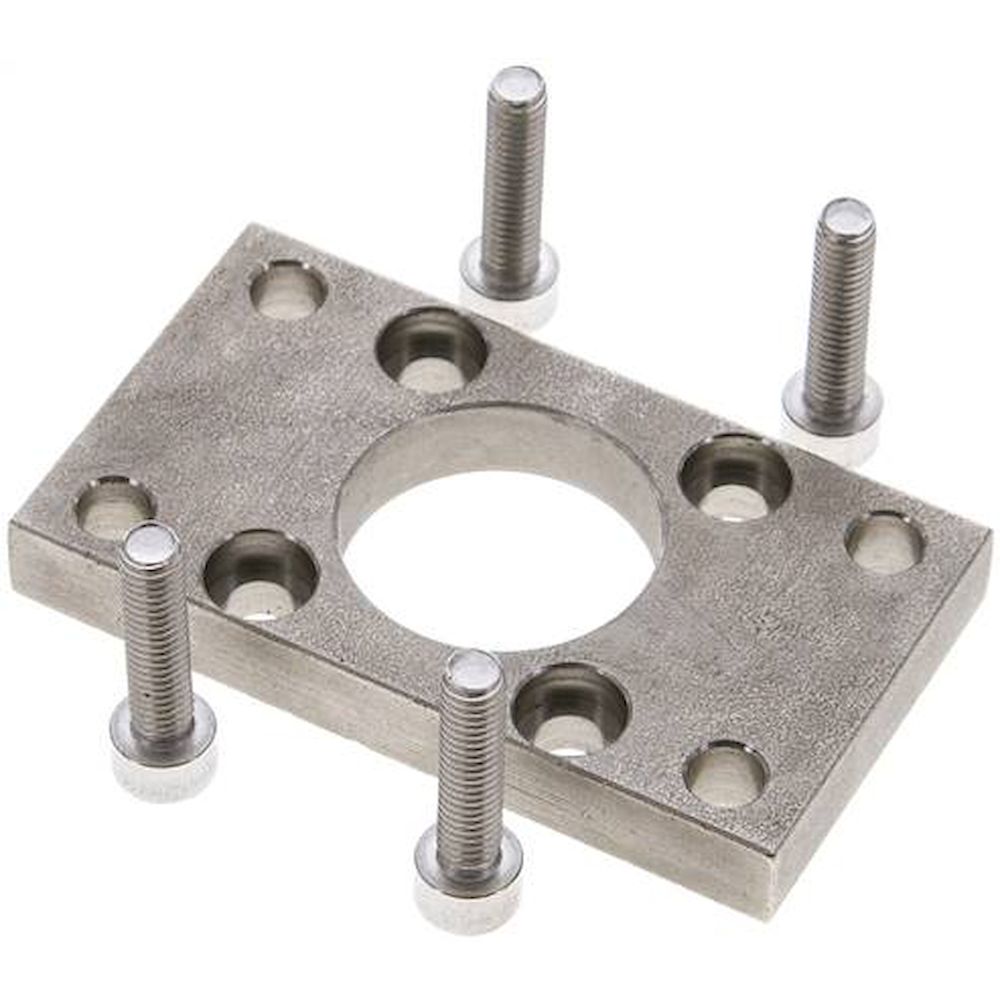

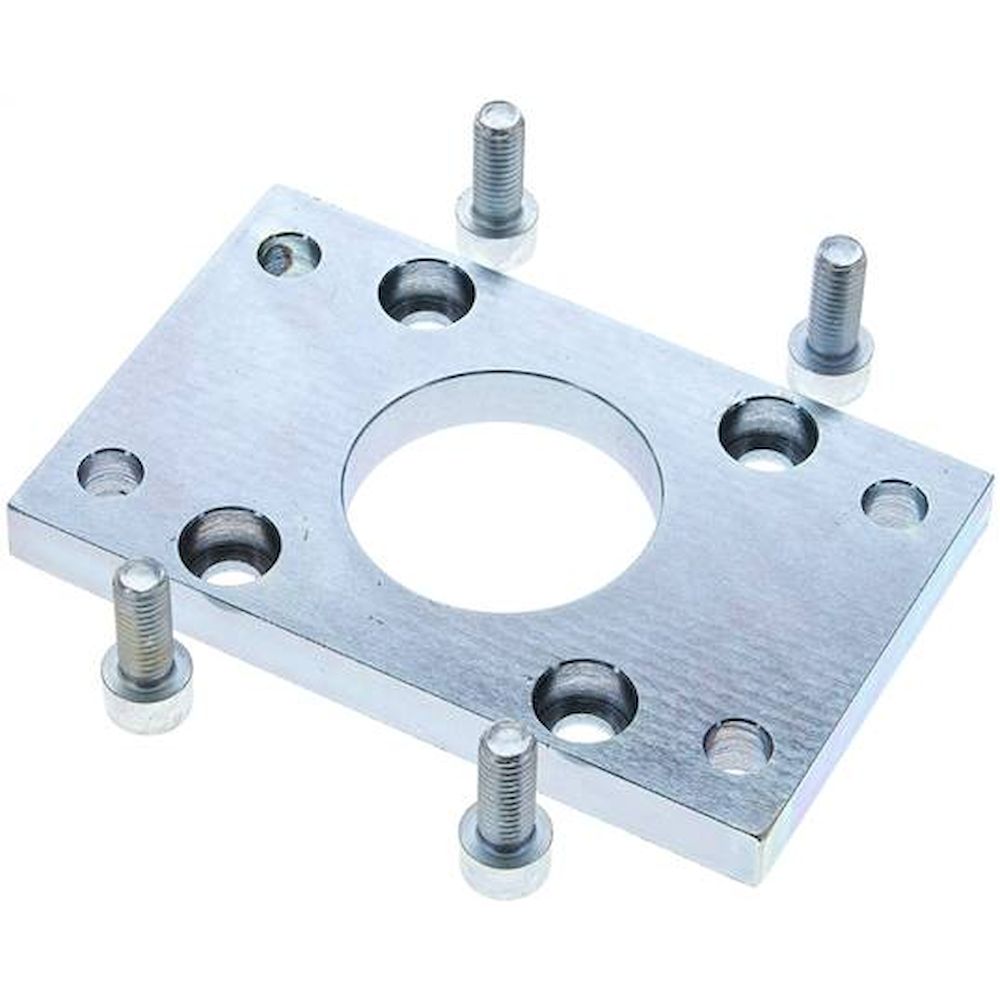

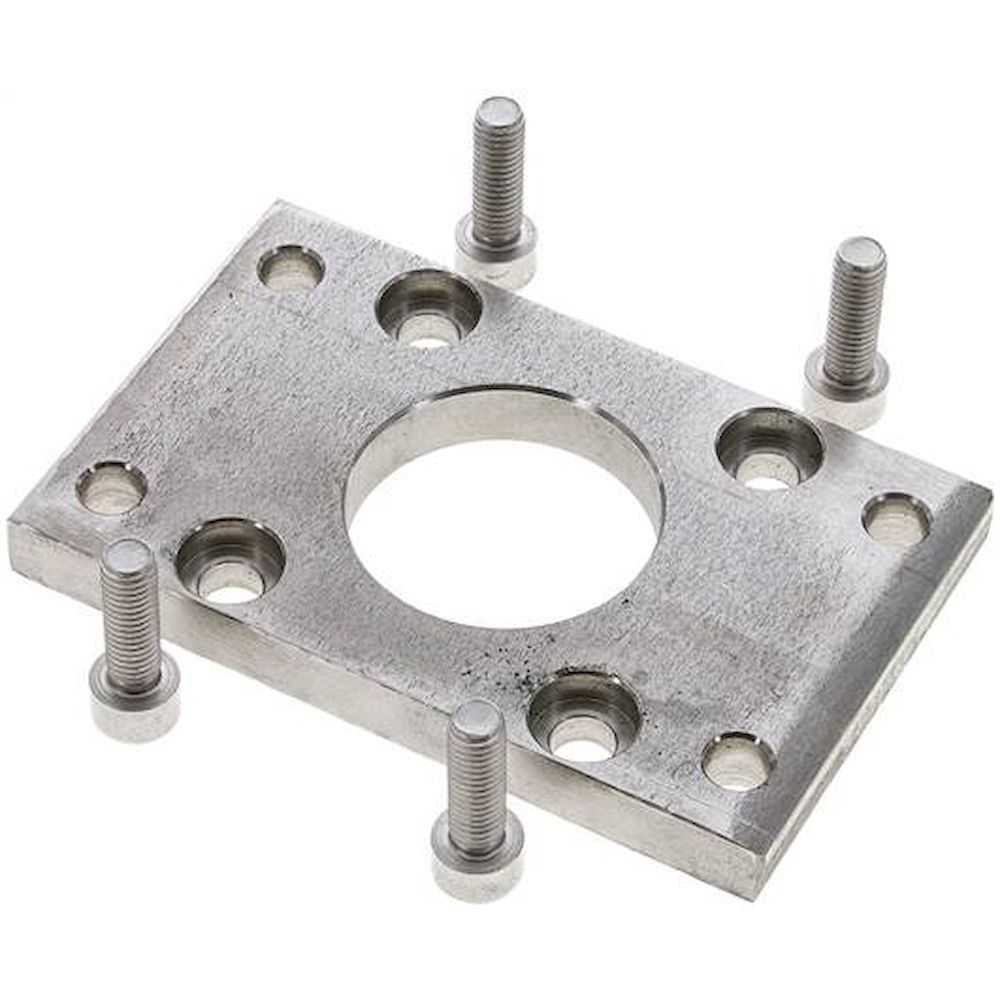

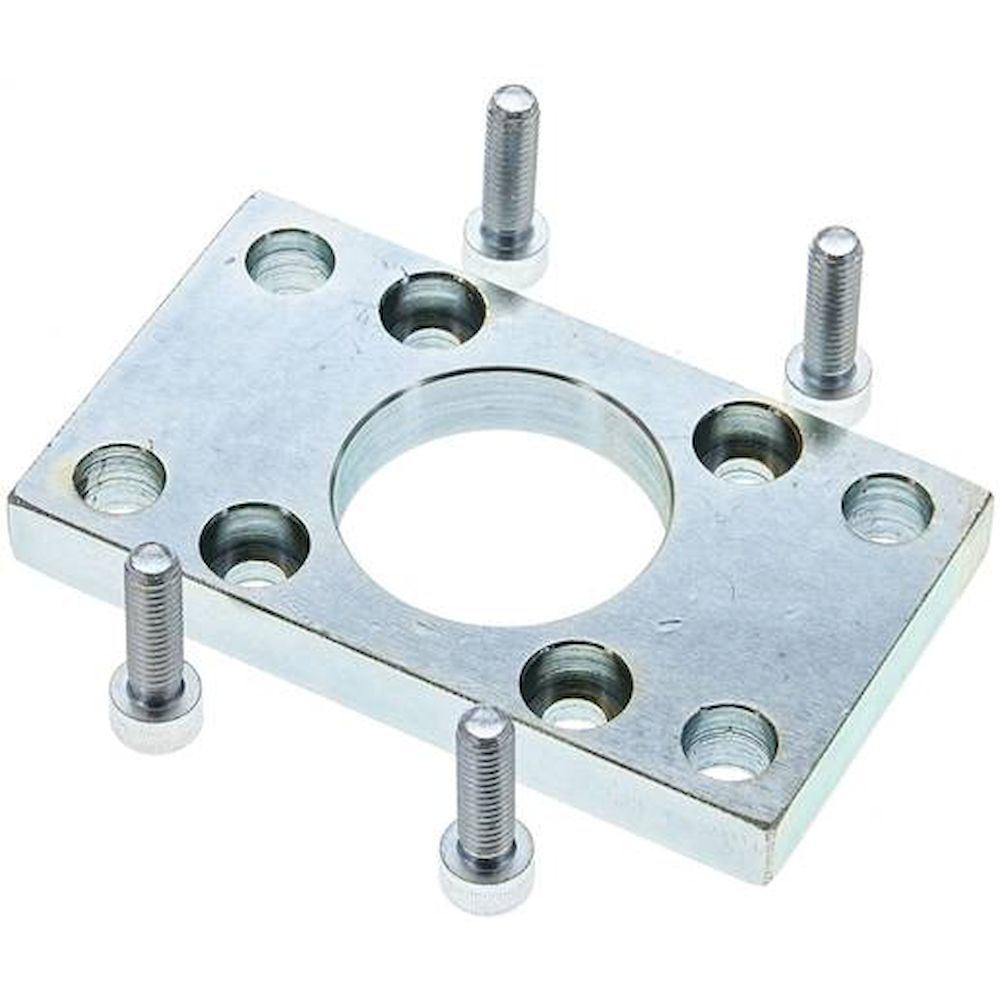

Flange mountings for ISO 15552 profile cylinders allow end-face mounting of the cylinder on a support or front plate. The range includes Airtec TB flange mountings in sizes 32 to 250 mm in zinc-plated steel, as well as stainless-steel versions TB ES in grade 1.4401 for sizes 32 and 100 mm. ISO 15552 flange mounting ensures compatibility between cylinders from different manufacturers on the same mounting plate.

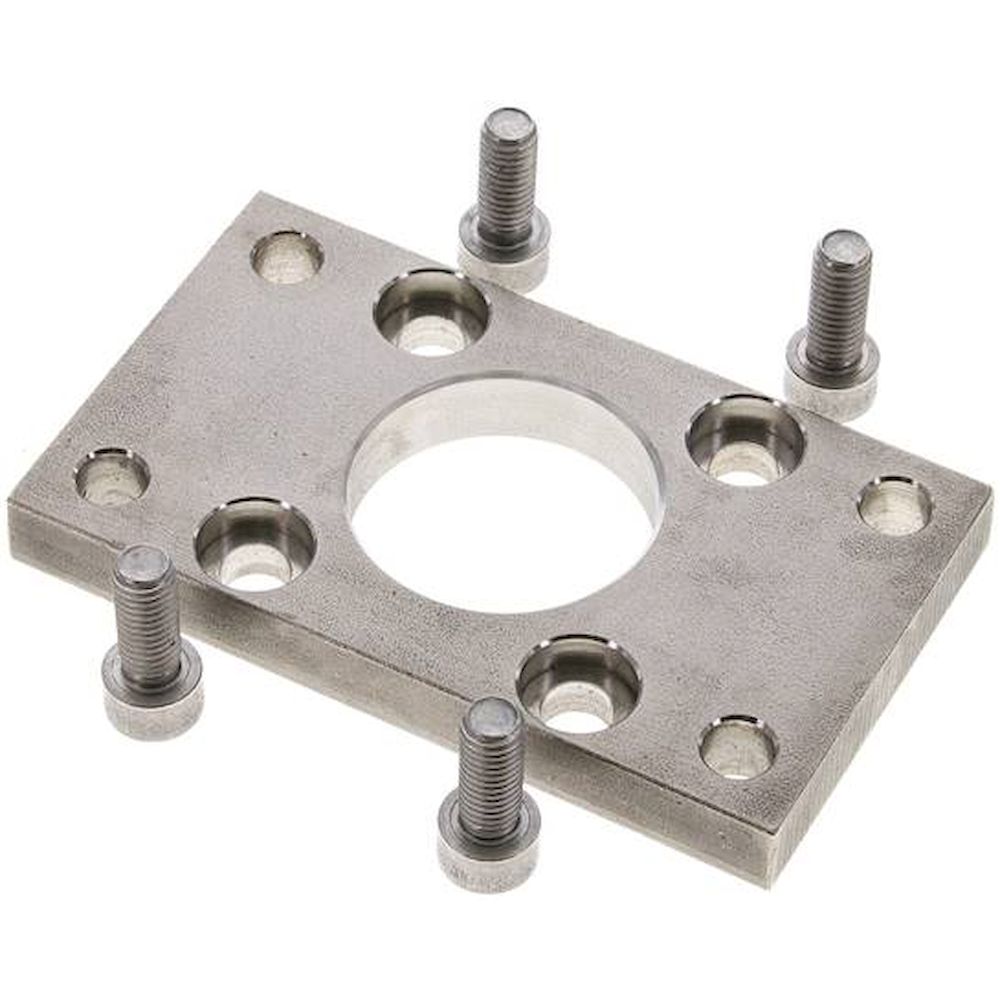

End-face flange mounting - TB flange plates for axial installation of ISO 15552 cylinders
Sizes 32-250 mm - complete range matching all ISO 15552 bore diameters
Zinc-plated steel and stainless 1.4401 - TB ES version for food, pharma and wet environments
16 items in range - Airtec and compatible, ISO 15552-standardised
| Type | Bore diameter | Material |
|---|---|---|
| TB 32 / TB 32 ES | 32 mm | Zinc-plated / 1.4401 |
| Airtec TB 160 | 160 mm | Zinc-plated steel |
| TB 100 / TB 100 ES | 100 mm | Zinc-plated / 1.4401 |
| TB 125 | 125 mm | Zinc-plated steel |
| TB 200 | 200 mm | Zinc-plated steel |
| TB 250 | 250 mm | Zinc-plated steel |
Typical applications: End-face cylinder mounting in front and partition plates of machines, space-saving integration of ISO 15552 cylinders into closed machine assemblies, and food and pharmaceutical installations (stainless TB ES) with requirements for hygienic surfaces.
