Swivel mountings Bracket

ISO 15552 pneumatic cylinder pivot mounting brackets are mechanical accessories that enable pneumatic cylinders to rotate around a fixed pivot point during operation, providing angular movement capability for automated positioning systems. These brackets comply with ISO 15552 international standard dimensions, ensuring compatibility across different cylinder manufacturers and applications. Primary industrial users include automotive assembly lines for door and hood positioning, packaging machinery for product orientation, material handling systems requiring multi-axis movement, and general manufacturing automation where cylinders need to follow curved motion paths rather than purely linear strokes.

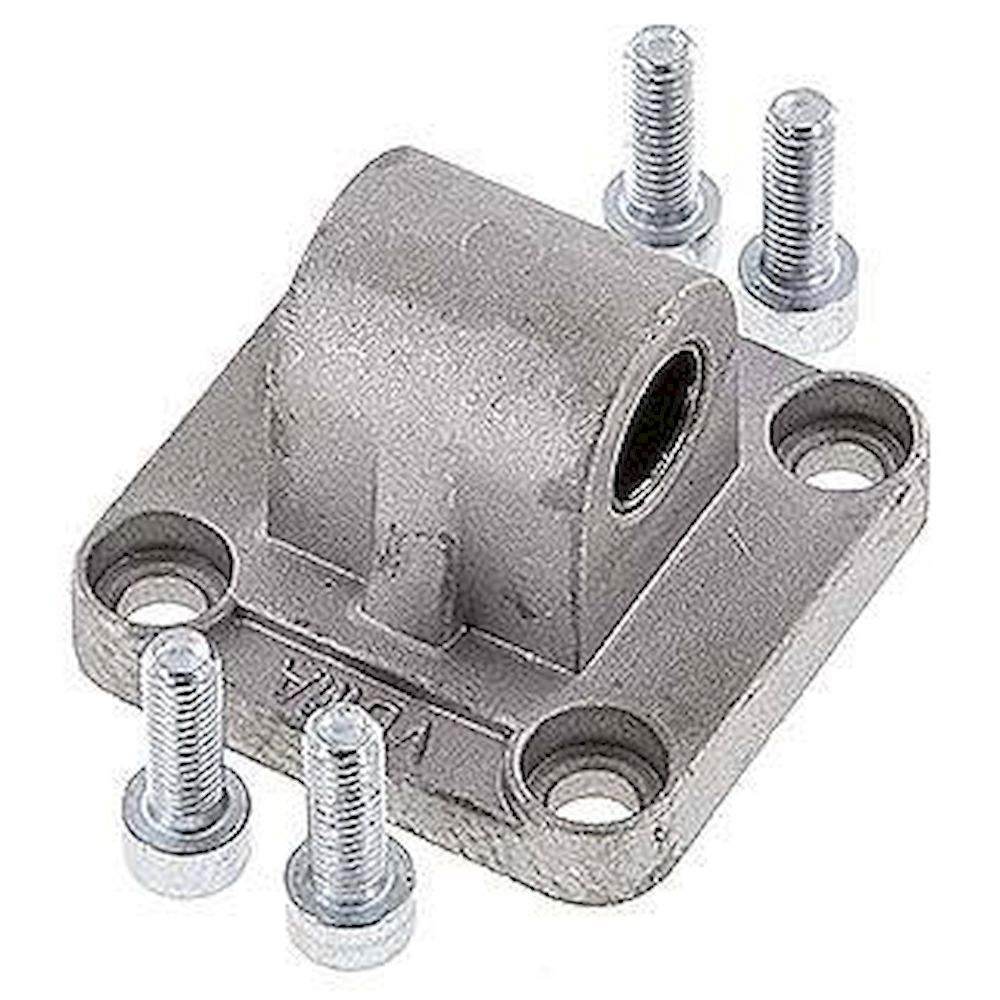

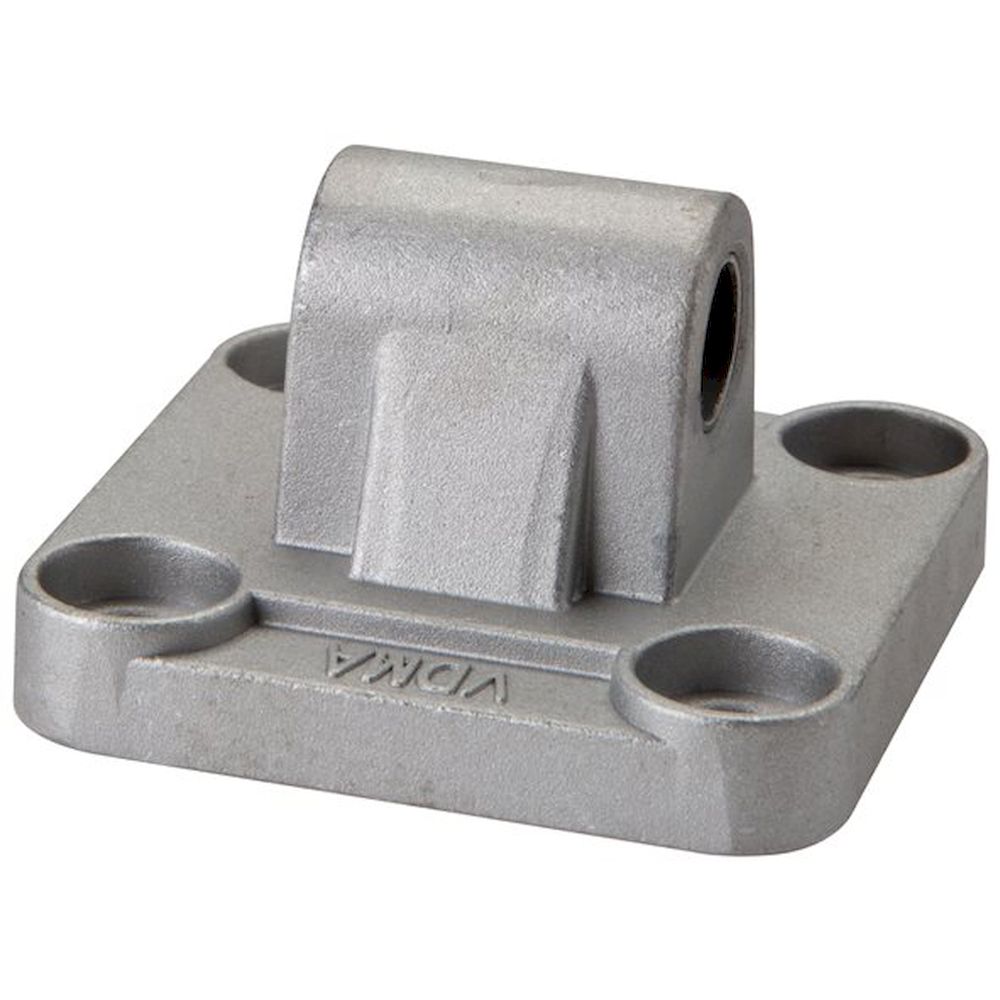

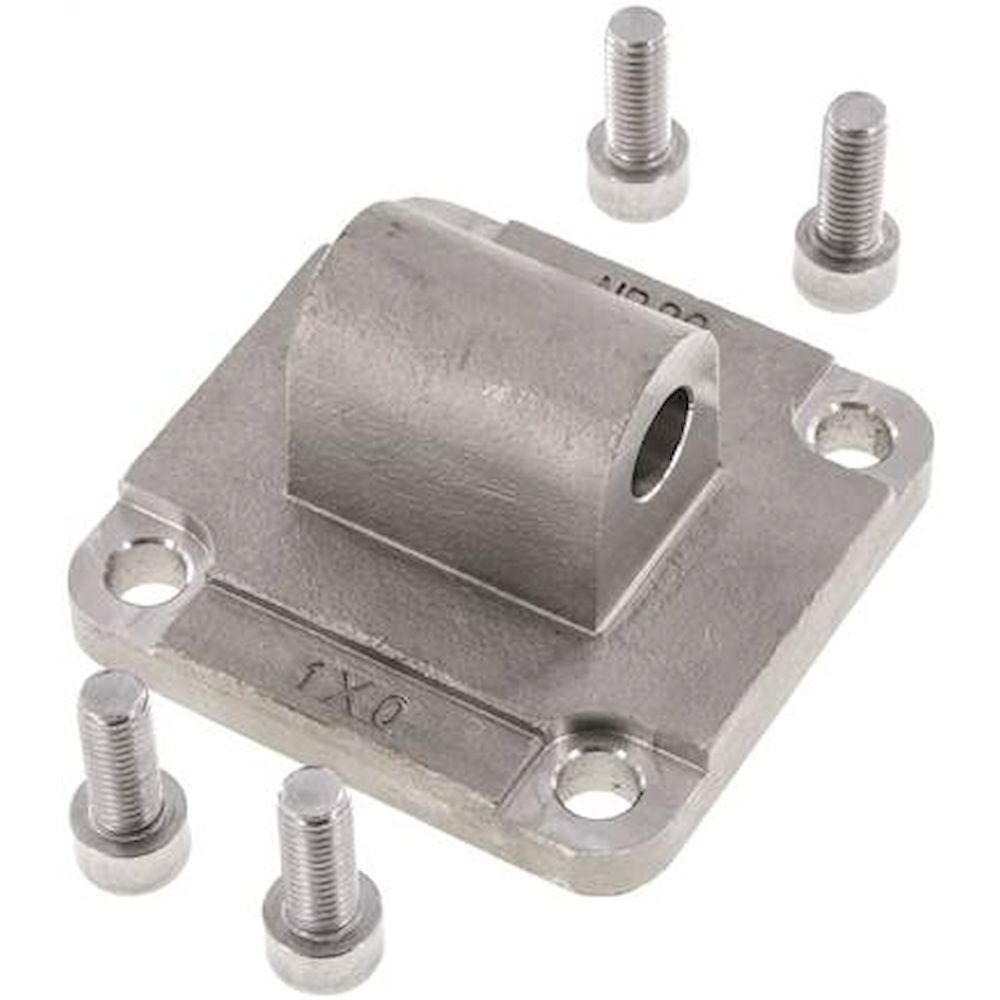

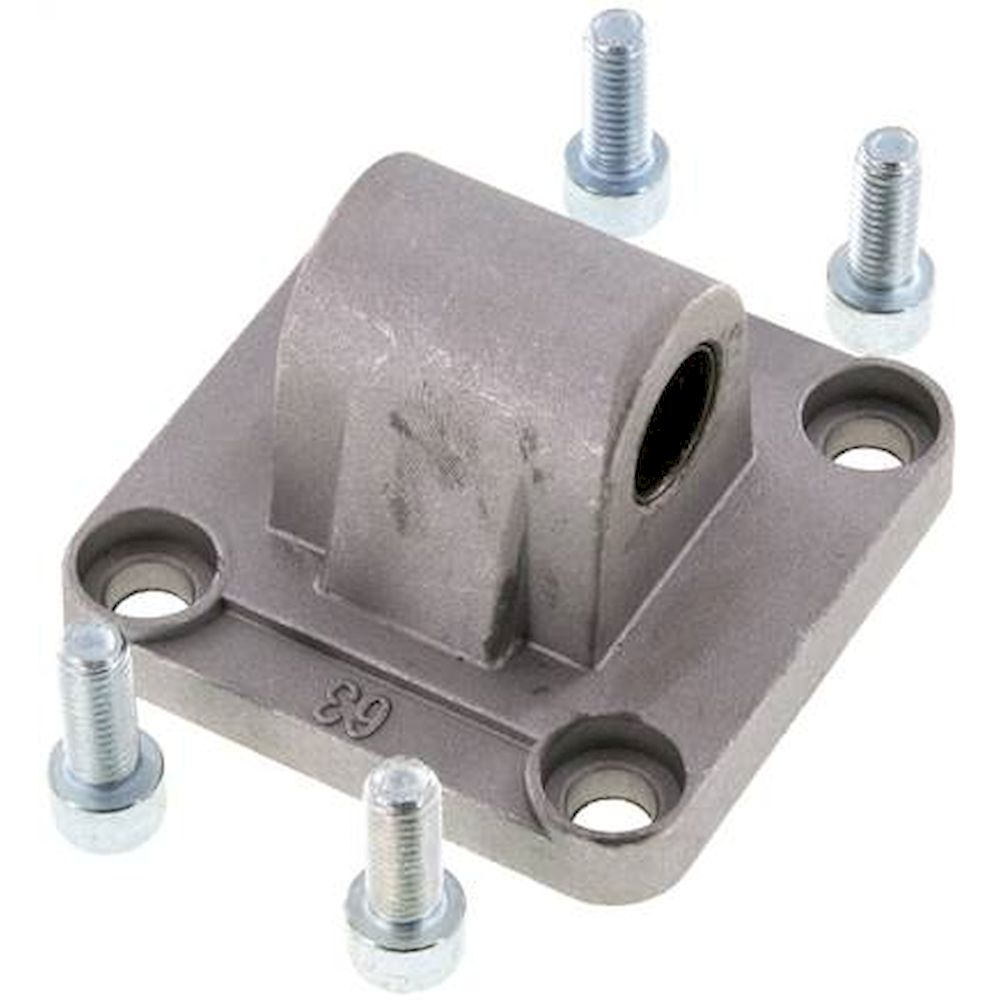

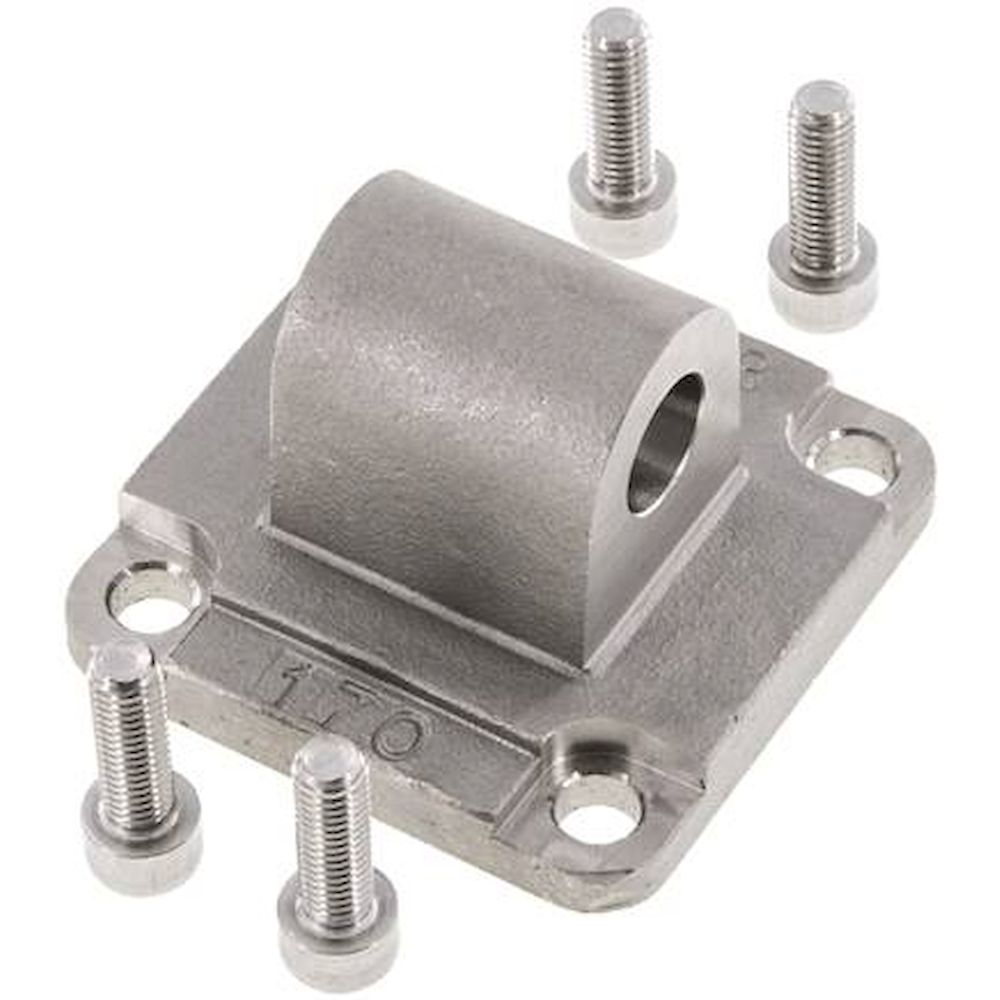

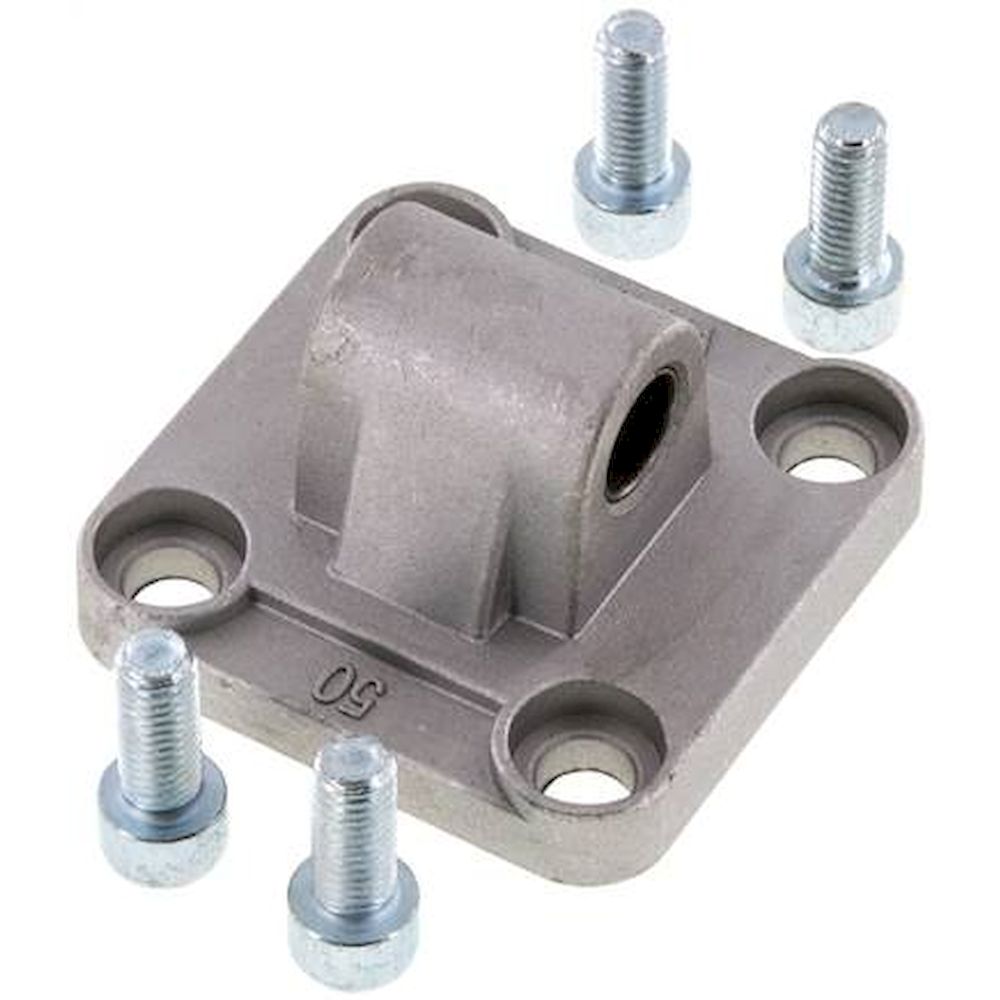

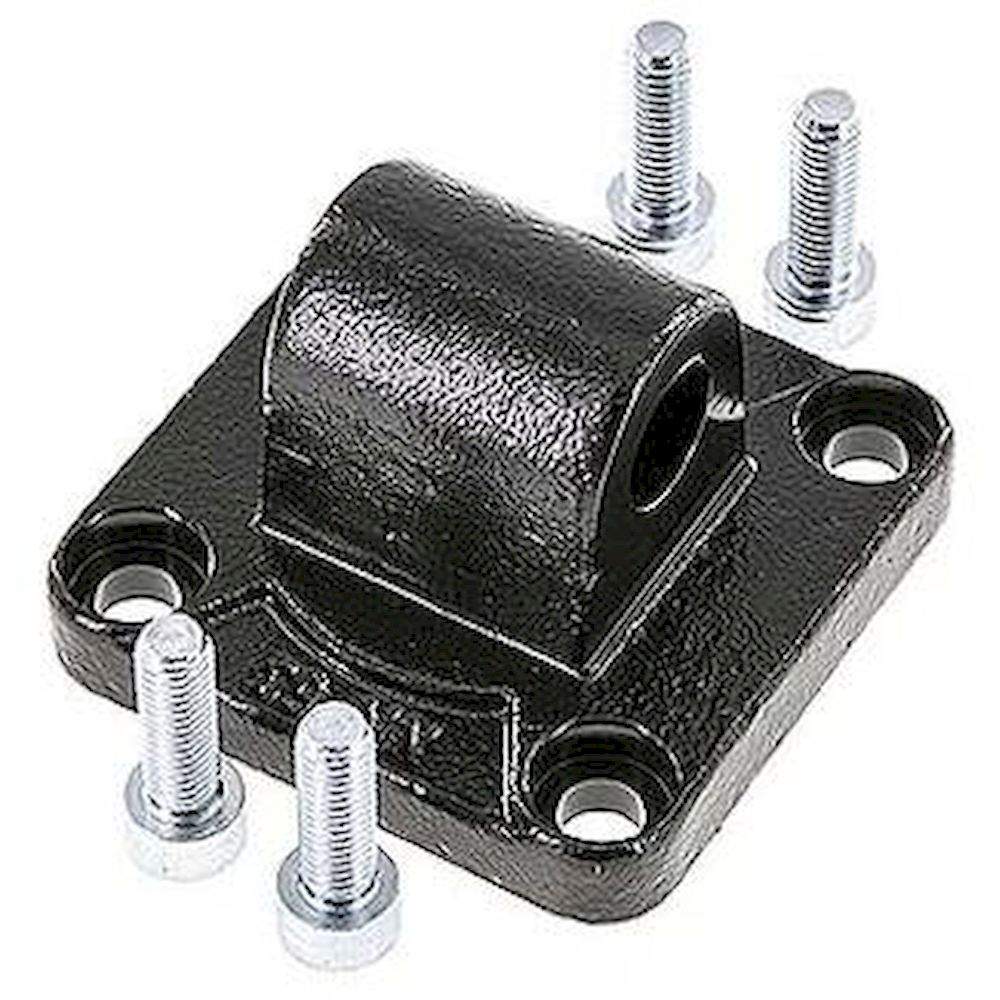

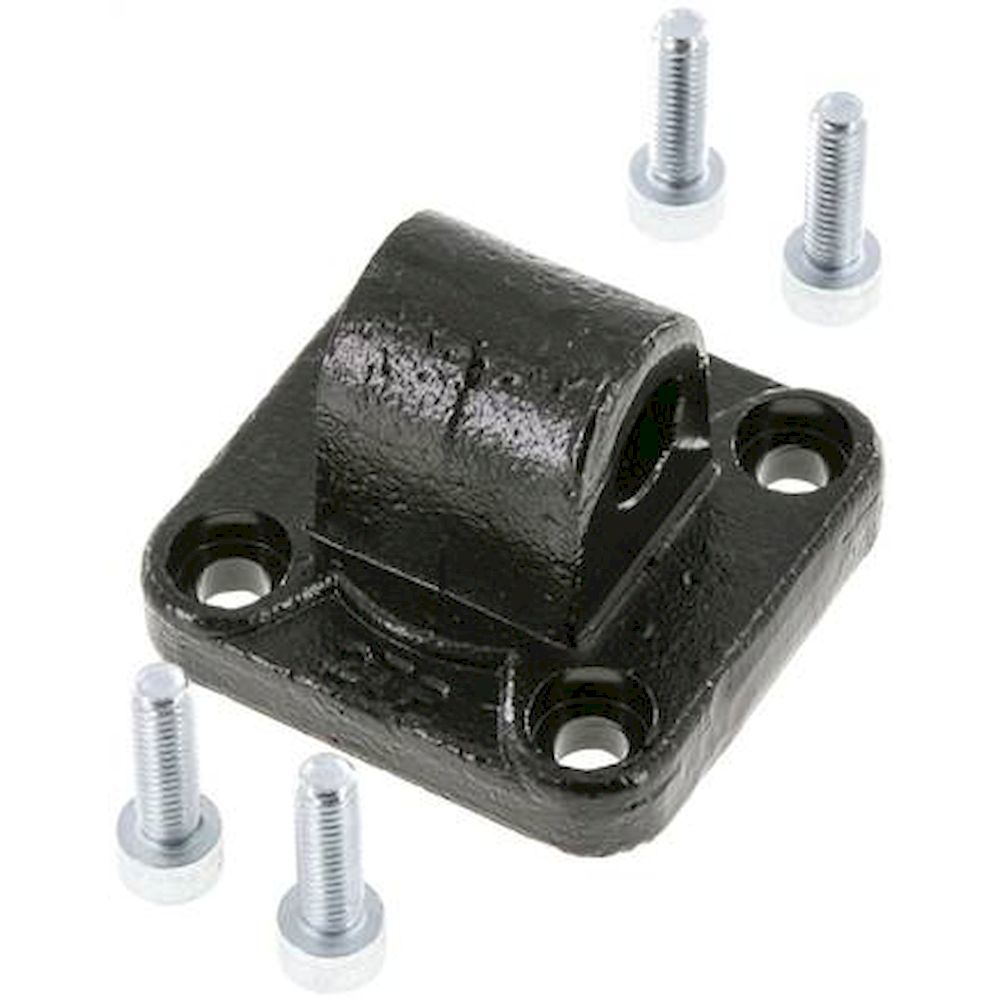

Critical selection criteria for ISO 15552 pivot mounting brackets include cylinder bore diameter compatibility ranging from 32mm to 250mm as shown in available TG series models, material construction with options including aluminum for standard applications, stainless steel 1.4401 for corrosive environments, and steel with burnished finish for heavy-duty applications. Operating pressure capability typically ranges from 0 to 10 bar for standard pneumatic applications, while material selection directly impacts chemical resistance and temperature performance. The bracket must match your specific cylinder bore size exactly, with common sizes including 40mm, 50mm, 63mm, 80mm, 100mm, 125mm, 160mm, 200mm, and 250mm variants available in the TG series product line.

ISO 15552 is the primary international standard governing pneumatic cylinder pivot mounting brackets, defining dimensional specifications, mounting hole patterns, and mechanical interface requirements for interchangeable compatibility. This standard replaced the earlier ISO 6432 for smaller bore cylinders and ensures global standardization across pneumatic component manufacturers. Additional relevant standards include EN 983 for safety requirements of fluid power systems, ISO 4762 for socket head cap screws used in mounting applications, and DIN 24562 for compressed air quality specifications when these brackets are used in pneumatic systems requiring clean, dry air at specified pressure levels.

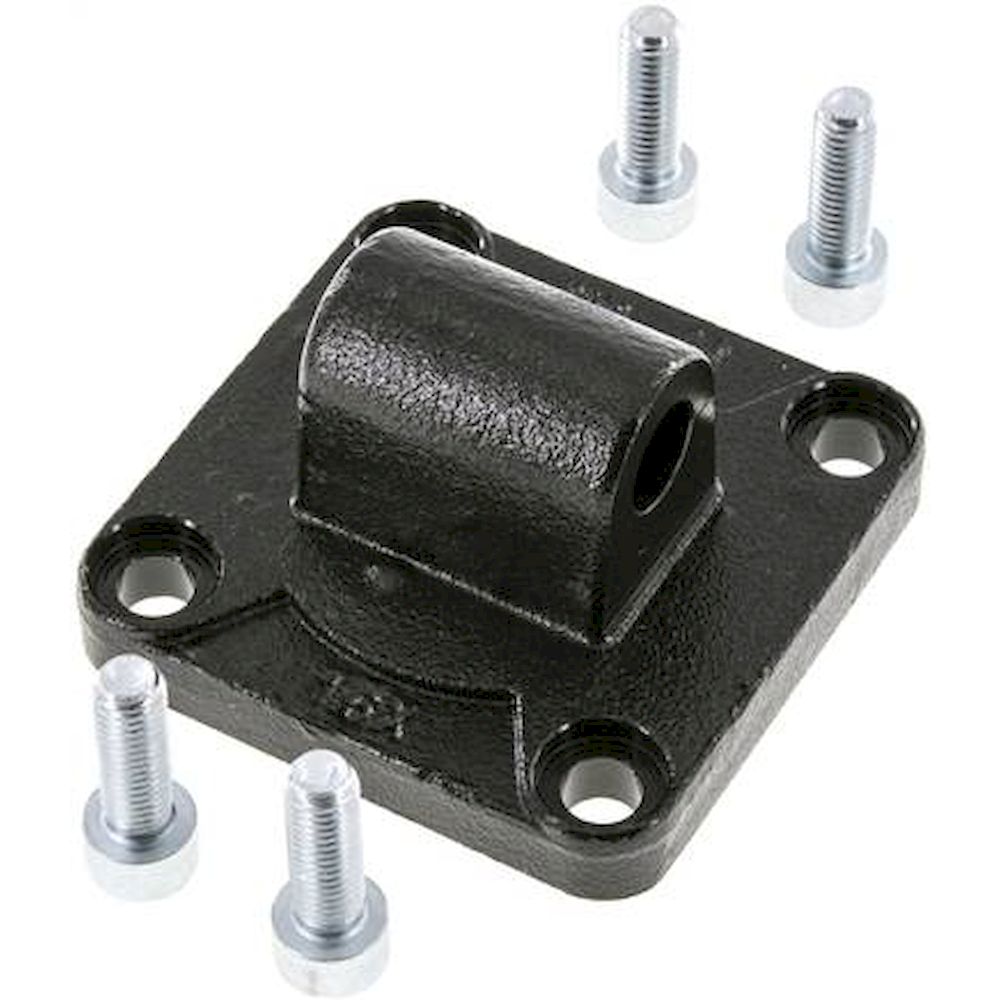

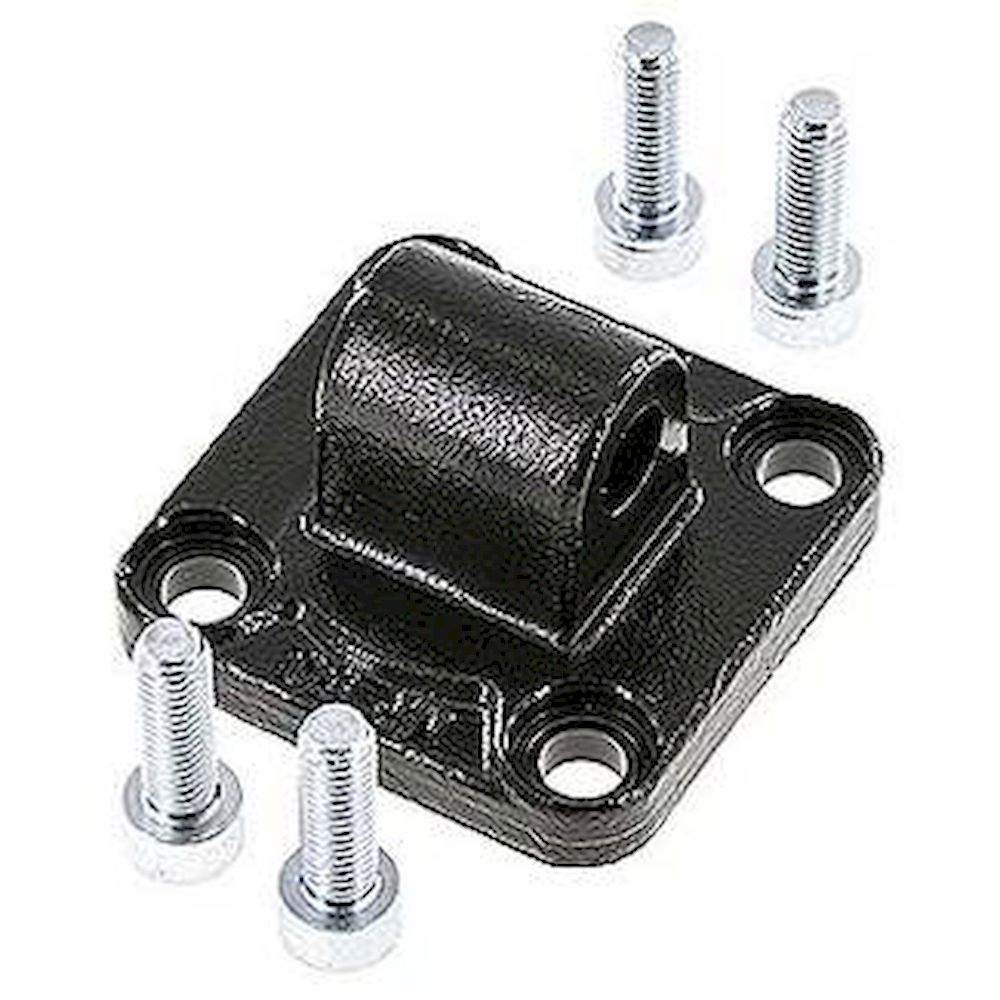

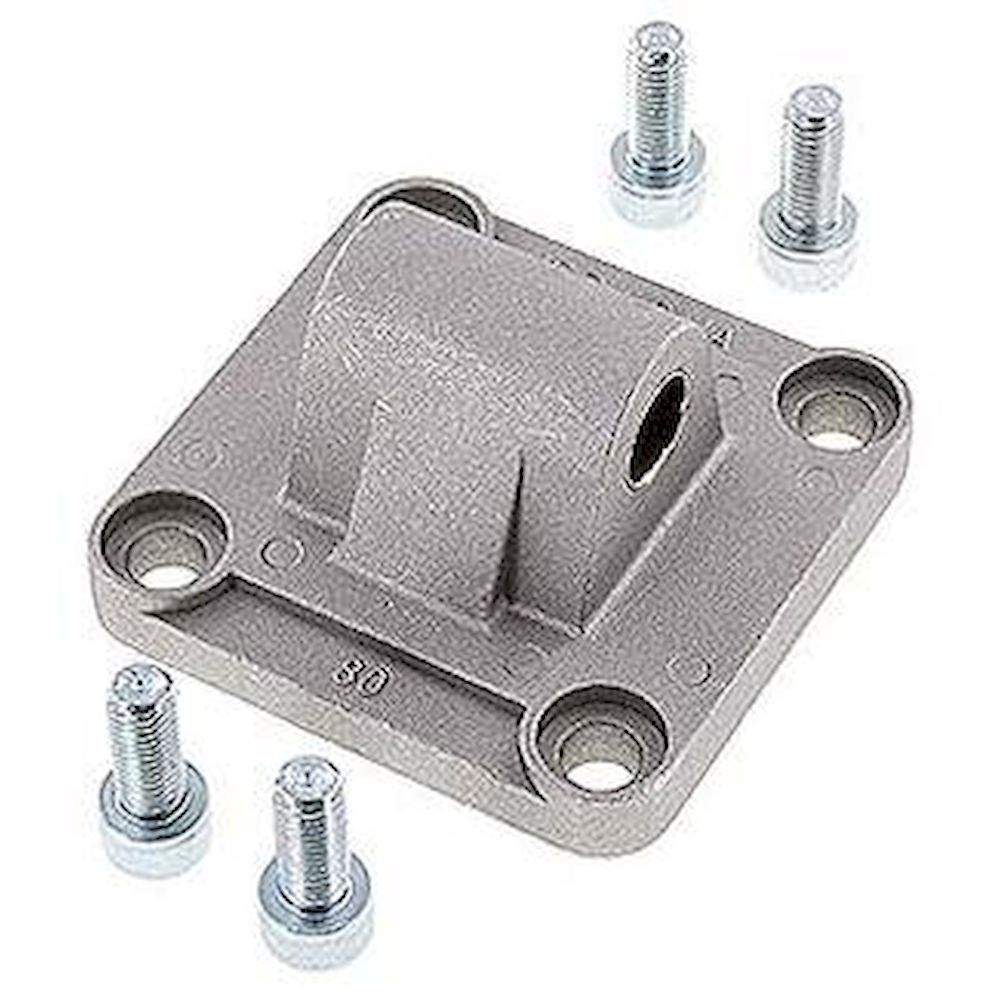

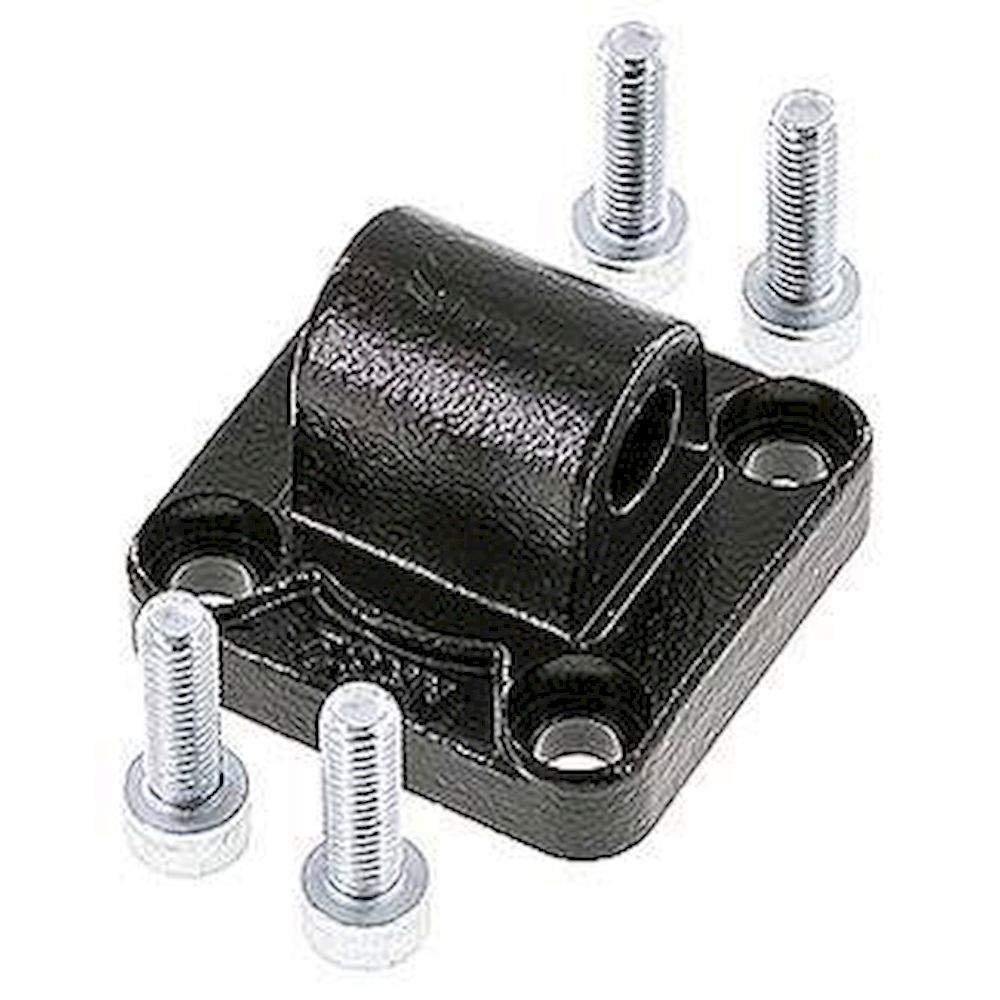

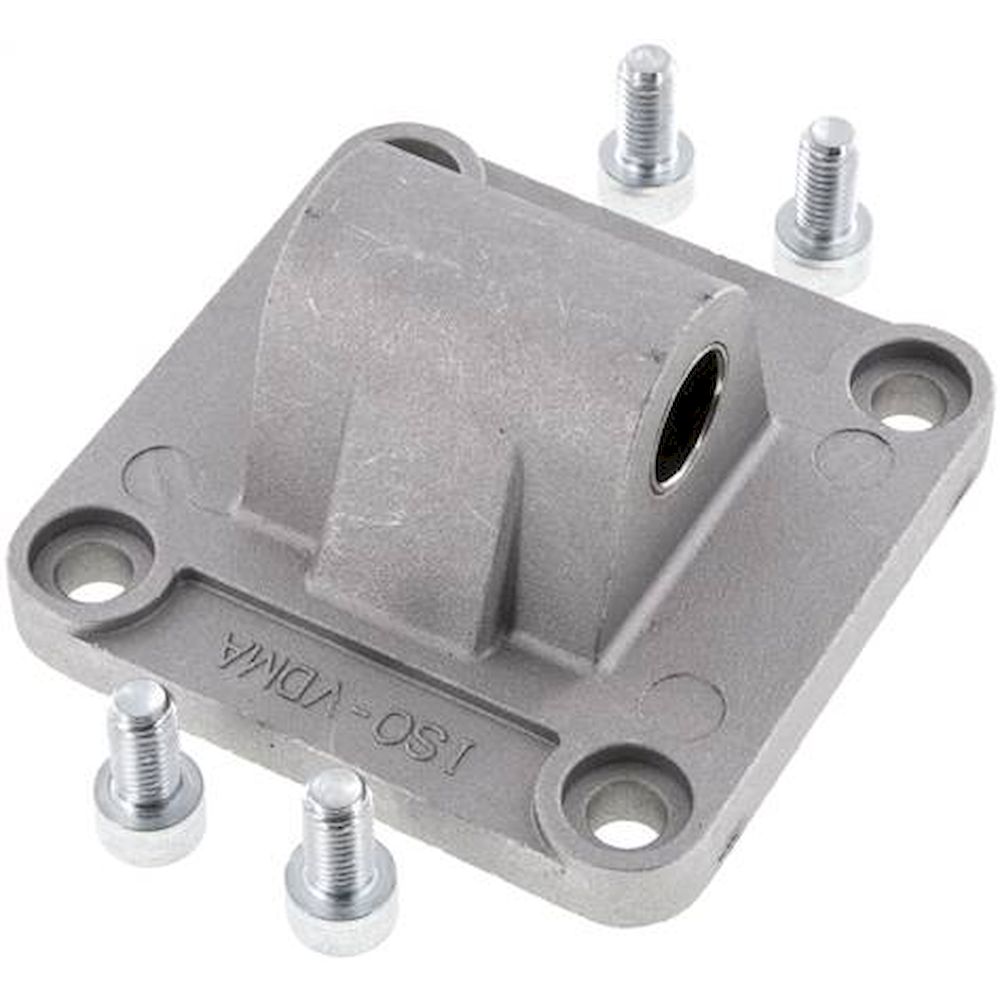

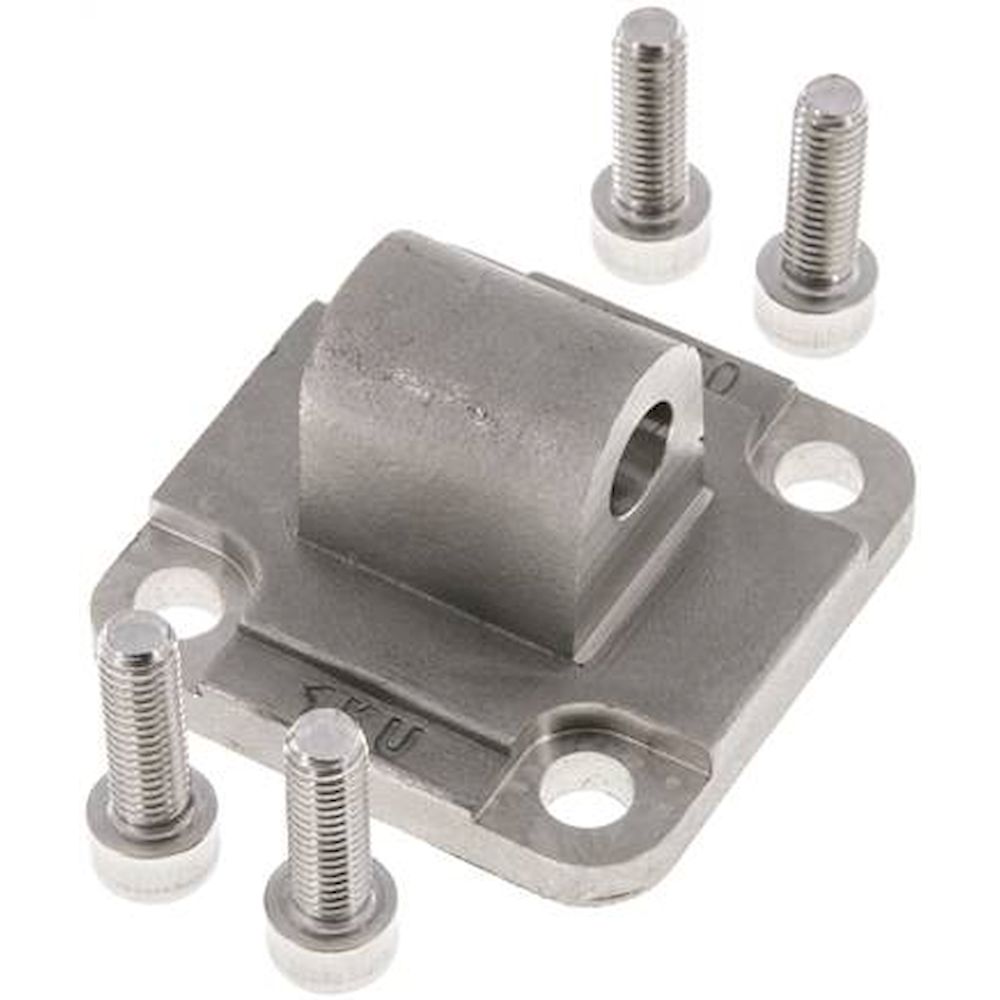

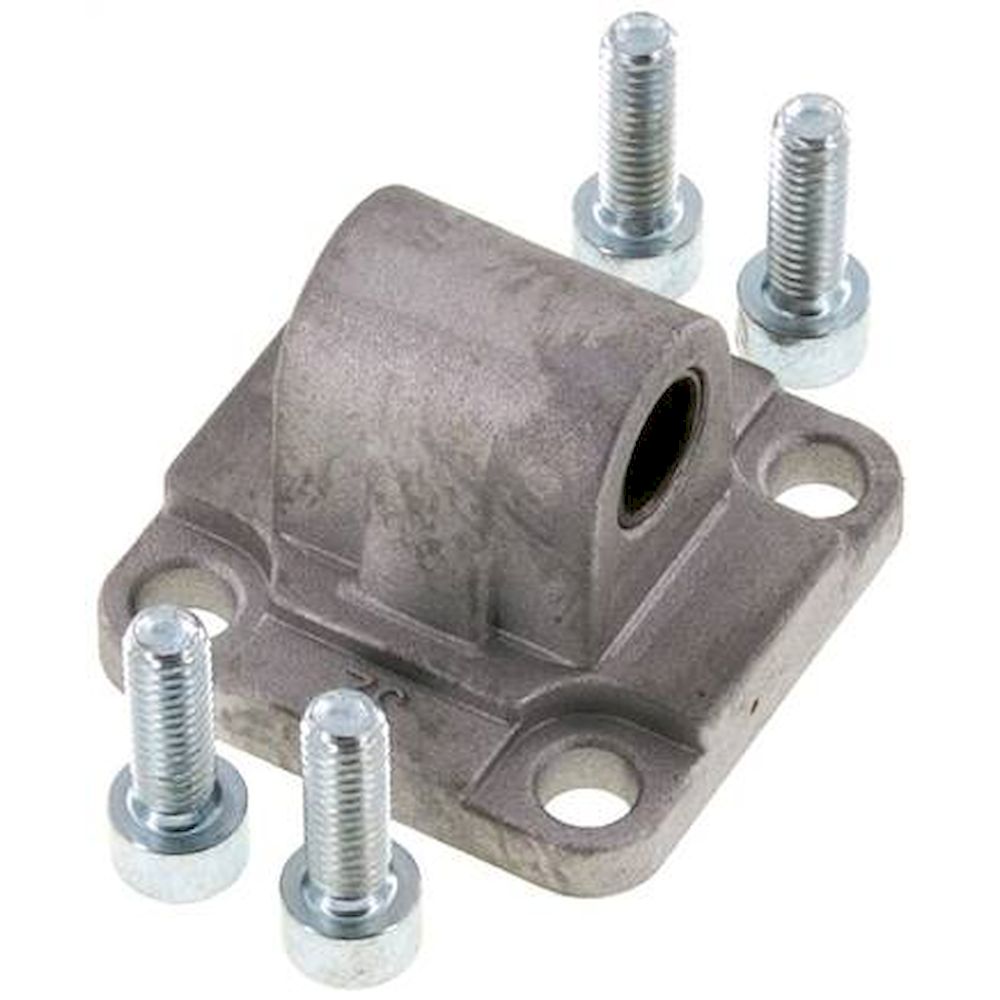

Aluminum pivot mounting brackets offer lightweight construction and excellent corrosion resistance for standard industrial environments, typically used where weight reduction is critical and operating temperatures remain between -20°C to +80°C. Stainless steel 1.4401 variants provide superior chemical resistance and can operate in temperatures up to 200°C, making them ideal for food processing, pharmaceutical, and marine applications where hygiene and corrosion resistance are paramount. Steel brackets with burnished finish deliver maximum mechanical strength and load-bearing capacity for heavy-duty applications, though they require additional corrosion protection in humid or chemical environments and are typically 40% heavier than equivalent aluminum versions.

ISO 15552 pivot mounting brackets install directly onto the cylinder head using standardized mounting bolt patterns defined by the ISO 15552 specification, with M6 to M12 socket head cap screws depending on cylinder bore size. The brackets feature precision-machined pivot pins that allow 360-degree rotation with sealed bearings rated for continuous operation at system pressures up to 10 bar. Installation requires proper thread engagement depth according to ISO 4762 specifications, typically 1.5 times the bolt diameter, and pivot pins must be lubricated with pneumatic system oil during assembly to ensure smooth operation and prevent premature bearing wear in high-cycle applications.

Standard ISO 15552 pivot mounting brackets operate safely at pneumatic system pressures from 0 to 10 bar with aluminum and steel variants, while stainless steel 1.4401 versions can handle pressures up to 16 bar due to superior material properties. Operating temperature ranges vary by material construction, with aluminum brackets functioning from -20°C to +80°C, standard steel versions operating from -10°C to +90°C, and stainless steel 1.4401 variants capable of continuous operation from -40°C to +200°C. These brackets typically carry no specific IP protection rating as they are mechanical components, though the integrated bearing seals provide protection against standard industrial contaminants when properly maintained with appropriate pneumatic system filtration.

ISO 15552 pivot mounting brackets require lubrication of pivot bearings every 100,000 cycles or annually, whichever occurs first, using pneumatic system oil with viscosity grade ISO VG 32 to ensure smooth rotation and prevent premature wear. Visual inspection should occur monthly to check for mounting bolt torque retention, bearing play, and signs of contamination or corrosion, particularly in harsh environments. Properly maintained brackets typically achieve 2-5 million operating cycles depending on load conditions and material selection, with stainless steel versions offering the longest service life in corrosive environments, while aluminum brackets excel in high-frequency applications where weight reduction extends overall system component life through reduced inertial loads.
