Flange swivel mountings

ISO 15552 flange swivel mounts are precision-engineered mounting accessories that provide rotational freedom for pneumatic cylinders while maintaining secure flange attachment to machine frames or mounting surfaces. These components enable angular positioning adjustments typically within ±15 degrees, making them essential in automotive assembly lines, packaging machinery, and material handling systems where cylinder orientation must accommodate varying workpiece positions. The swivel mechanism incorporates sealed ball bearings or bronze bushings to ensure smooth rotation under operational loads while maintaining ISO 15552 dimensional compliance for universal cylinder compatibility.

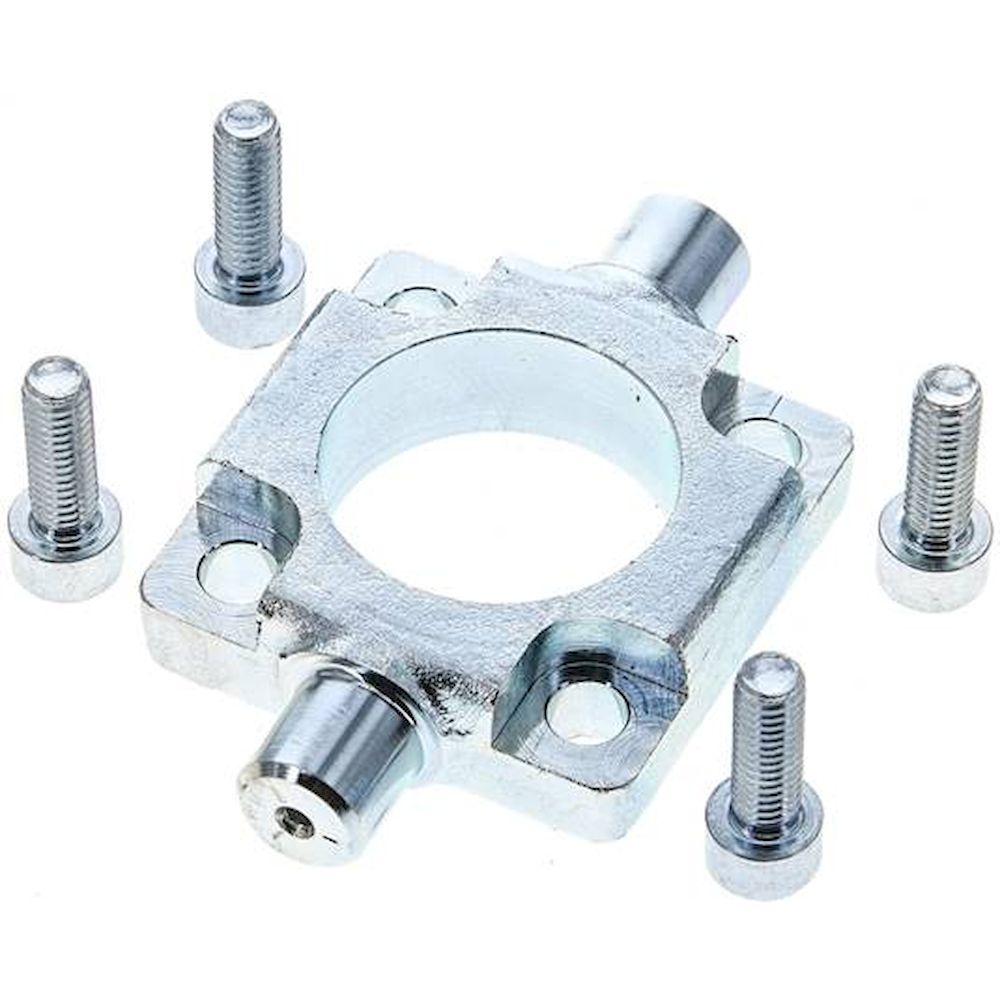

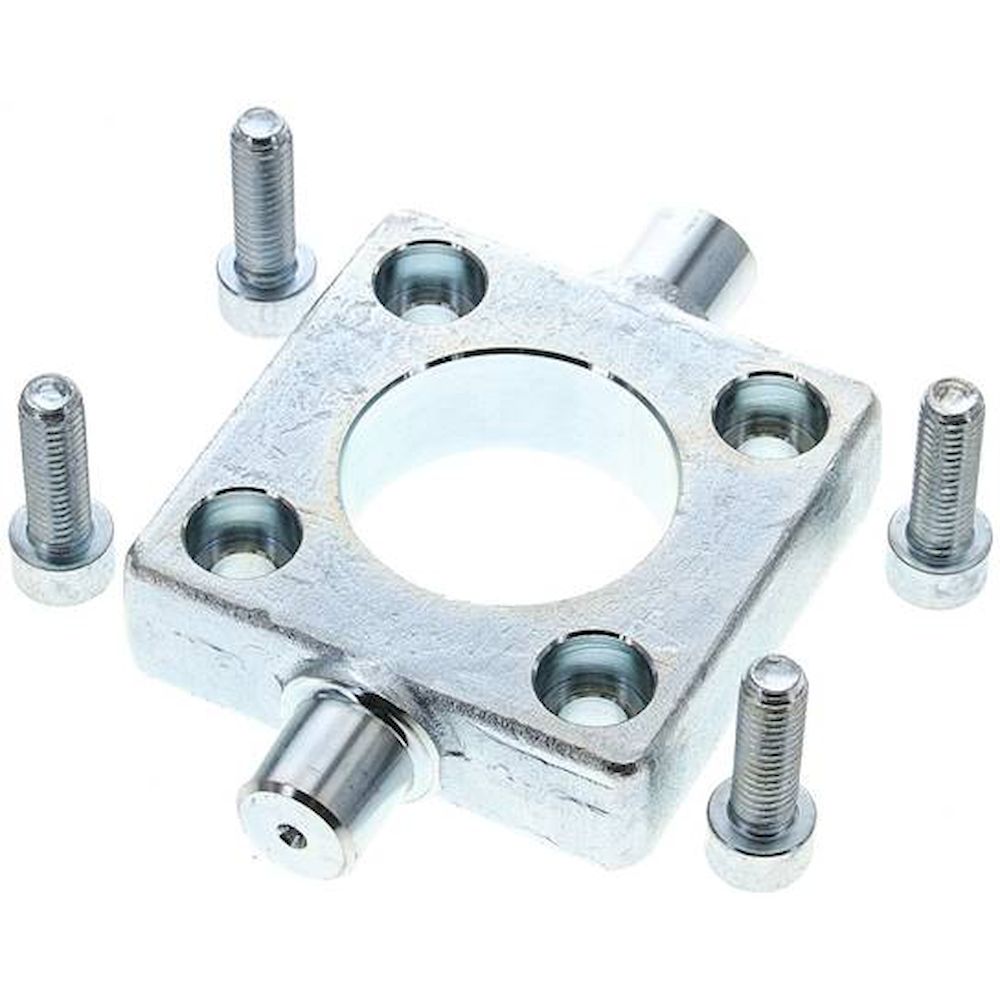

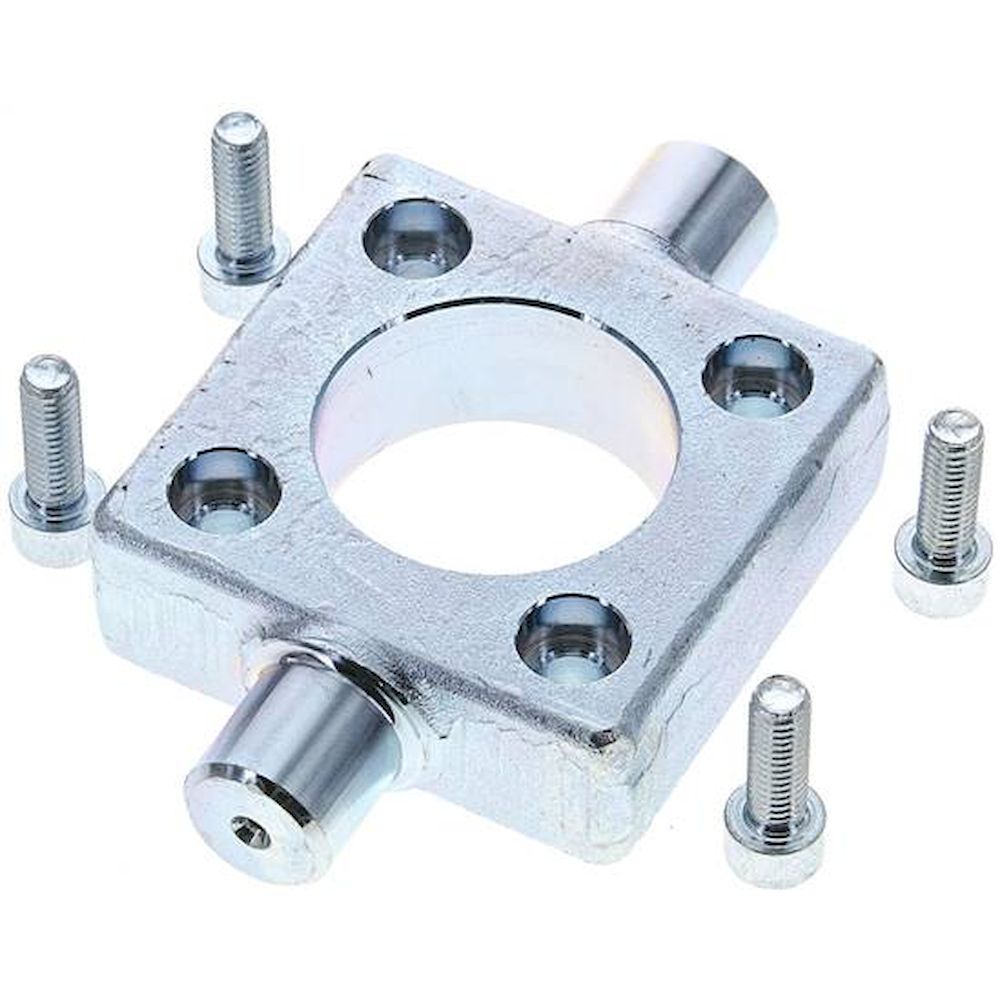

Selection of ISO 15552 flange swivel mounts requires matching the bore diameter to your cylinder specification, with standard sizes including 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm as shown in the TJF series. Material selection depends on environmental conditions, with zinc-plated steel versions suitable for standard industrial atmospheres and 1.4571 stainless steel (AISI 316Ti) variants required for food processing, pharmaceutical, or corrosive environments where chemical resistance is critical. The mounting flange thickness and bolt pattern must align with ISO 15552 specifications to ensure proper load distribution and prevent stress concentration at attachment points.

ISO 15552 flange swivel mounts must comply with the dimensional and performance requirements specified in ISO 15552 (Pneumatic fluid power - Cylinders with detachable mountings for linear actuators), which superseded the previous ISO 6431 standard. Additional applicable standards include ISO 8573 for compressed air quality requirements and EN 61010-1 for electrical safety where integrated position sensing is employed. In ATEX-designated areas, these mounts require additional certification under Directive 2014/34/EU with appropriate equipment protection levels, while food-grade applications mandate compliance with FDA 21 CFR 177 or EU Regulation 10/2011 for material contact safety.

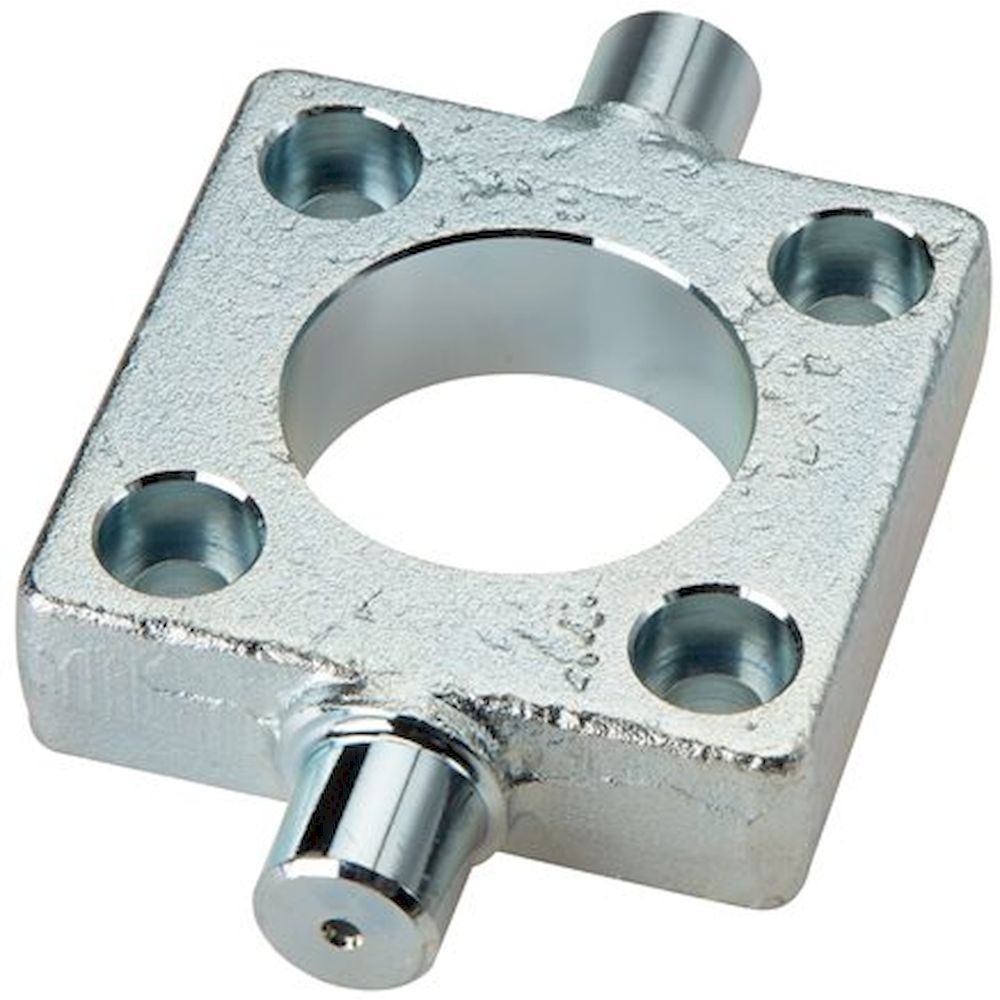

Zinc-plated steel flange swivel mounts (TJF series standard versions) provide cost-effective corrosion protection suitable for dry compressed air systems operating at temperatures from -20°C to +80°C, with zinc coating thickness typically 8-12 micrometers per DIN EN 12329. The stainless steel 1.4571 variants (TJF ES series) offer superior corrosion resistance in humid, chemical, or washdown environments, operating reliably from -40°C to +200°C with inherent resistance to chloride stress corrosion cracking. While zinc-plated versions suffice for standard pneumatic applications, the 1.4571 material grade becomes essential in pharmaceutical clean rooms, food processing, or marine environments where surface contamination and corrosion present operational risks.

ISO 15552 flange swivel mounts require mounting surface flatness within 0.05mm deviation and bolt torque specifications typically ranging from 25-45 Nm depending on bore size, with M8 or M10 mounting bolts per ISO 4762. System pressure compatibility extends up to 10 bar for standard pneumatic applications, while the swivel bearing must accommodate side loads without exceeding 25% of the cylinder's rated axial force to prevent premature wear. Port connections maintain standard G1/8, G1/4, or G3/8 threading per ISO 228-1, ensuring compatibility with existing compressed air distribution systems and standard pneumatic fittings from manufacturers like Festo, SMC, or Parker.

ISO 15552 flange swivel mounts typically operate within pressure ranges up to 10 bar (145 psi) with safety factors of 4:1 against ultimate tensile strength, while temperature ratings span -20°C to +80°C for zinc-plated variants and -40°C to +200°C for stainless steel 1.4571 versions. Protection class ratings reach IP65 for sealed bearing designs when properly installed, preventing ingress of dust and water jets from any direction. The swivel mechanism must not exceed angular displacement limits of ±15 degrees to maintain bearing integrity, while dynamic load calculations must consider both axial cylinder forces and lateral moment loads to prevent fatigue failure of the mounting interface.

ISO 15552 flange swivel mounts require visual inspection every 500,000 cycles or six months of operation, whichever occurs first, checking for bearing play, seal integrity, and mounting bolt torque retention within specified values. Lubrication intervals depend on bearing type, with sealed ball bearing units typically maintenance-free for 2-3 million cycles, while bronze bushing variants may require annual regreasing with lithium-based pneumatic grease per DIN 51825. Service life expectancy ranges from 5-10 million cycles under normal loading conditions, with replacement indicated when swivel play exceeds 0.5mm radial clearance or when visible wear, corrosion, or seal damage compromises operational reliability and safety standards.
