Fräsmotor BFW 40/E mit Steuergerät 900 bis 6.000/min - Proxxon 20165

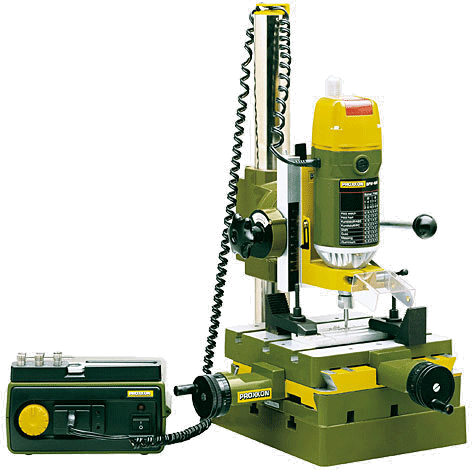

The mill/drill motor BFW 40/E drives drilling and milling tools at infinitely variable speed. The continuous triple ball bearing armature provides direct drive without gearing, and operation at 40 V from the controller yields high torque even at lower speeds.

• Infinitely variable speed from 900 to 6,000 rpm
• Continuous triple ball bearing armature, direct drive without gearing
• Die-cast aluminium head with 43 mm European standard spindle neck
• Large switch with emergency function
• Control unit with full wave electronics for 230 V, 40 V DC secondary voltage
• Includes collets 2.35 / 3 / 3.2 / 4 / 5 / 6 mm, spanner and locking pin

Technical data

• Speed: infinitely variable 900 to 6,000 rpm
• Motor operating voltage: 40 V DC
• Control unit: full wave electronics, 230 V supply
• Maximum power consumption: 250 W
• Spindle neck: 43 mm (European standard)
• Collets: 2.35 / 3 / 3.2 / 4 / 5 / 6 mm
• Weight: 4.2 kg

Ideal for drilling and milling various materials in combination with suitable mill/drill stands. The compound table, drill stand and step clamps are not included.
