MicroClick-Drehmomentschlüssel MC 15 3-15 Nm 1/4" - Proxxon 23345
Torque wrench for the 3 to 15 Nm range with 1/4" square drive and automatic quick-release. When the pre-set torque is reached, a clearly audible and palpable click signals the exact tightening. The knurled ring at the handle end sets the value and locks it by sliding into position.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The MicroClick MC 15 tightens screws in a controlled way across the 3 to 15 Nm range. When the pre-set value is reached it releases briefly and gives an audible and palpable click.
- Accuracy +/- 4 %
- 1/4" square drive (6.3 mm) with adapter for 1/4" standard bits
- Reversible for clockwise and anticlockwise rotation
- Analogue display with additional micro-scale for fine adjustment
- Scale ring with 0.4 Nm graduation
- Steel shaft, double-nickel and matt chrome-plated
- Individually calibrated and final-inspected, with lasered serial number
Technical data
| Torque range | 3 - 15 Nm |
|---|---|
| Drive | 1/4" square (6.3 mm) |
| Accuracy | +/- 4 % |
| Scale graduation | 0.4 Nm |
| Overall length | 195 mm |
| Rotation | clockwise and anticlockwise |
| Weight | 0.438 kg |
| Manufacturer | Proxxon |
| Manufacturer Nr. | 23345 |
| EAN | 4006274233454 |
| HS-Code | 82041100 |
| GPSR manufacturer information | PROXXON S.A. Härebierg 6-10, LU-6868 Wecker, www.proxxon.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Taiwan |
| ESD version | TEC |

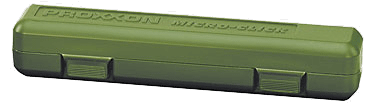

Supplied in a plastic case for safe storage. Suitable for full professional use.
Downloads
Datasheet
Accessories
ESD version
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
