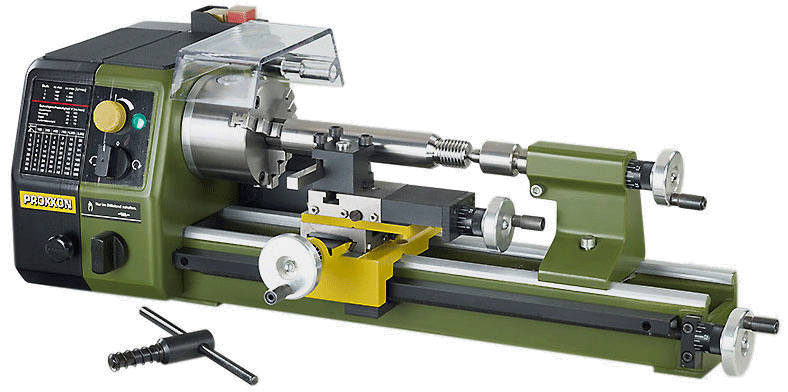

Precision Lathe PD 250/E 230V Centre Distance 250 mm - Proxxon 24002
Precision lathe for face, longitudinal and taper turning plus thread cutting in steel, brass, aluminium and plastic. The quiet DC special motor with three-stage belt drive and continuous speed control delivers high pulling power at low speeds.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The PD 250/E is a precision lathe for face, longitudinal and taper turning as well as thread cutting. It machines steel, brass, aluminium and plastic and accepts the PF 230 mill/drill head via a mounting flange.
- Cast-iron machine bed with wide prismatic guide for vibration-free work even at high loads
- Quiet DC special motor with three-stage belt drive, continuously adjustable from 100 rpm to 3,000 rpm, clockwise and anticlockwise rotation
- Precision-bearing main spindle with run-out of 1/100 mm without chuck, 10.5 mm opening and MK 2 bore
- Lathe chuck guard with safety shutdown and main switch with emergency stop and restart protection
- Automatic feed via lead and feed spindle, optionally 0.05 or 0.1 mm/rev
- Thread cutting device with change gears for left- and right-hand threads, pitches 0.5 to 1.5 mm
Technical data
| Weight | 16.016 kg |
|---|---|
| Manufacturer | Proxxon |
| Manufacturer Nr. | 24002 |
| EAN | 4006274240025 |
| HS-Code | 84581900 |
| GPSR manufacturer information | PROXXON S.A. Härebierg 6-10, LU-6868 Wecker, www.proxxon.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
- Voltage: 230 V, 50/60 Hz
- Centre distance: 250 mm
- Swing: 70 mm, height over cross slide 43 mm
- Spindle bore: 10.5 mm, MK 2 mount
- Speeds: 100 to 3,000 rpm continuous, three-stage belt drive
- Three-jaw chuck per DIN 8386 class 1: capacity with reversing jaws 2 to 75 mm, concentricity tolerance 0.04 mm
- Tailstock sleeve: Ø 18 mm, retractable up to 30 mm, MK 1 mount
- Cross slide travel: 60 mm, top slide travel: 45 mm
- Tool post for turning steels 8 x 8 mm
- Size: L 560 x W 270 x H 170 mm
- Weight: approx. 12 kg
For demanding turning and threading work in model making, fine mechanics and the workshop. Complete with three-jaw chuck, live centre and thread cutting device.
