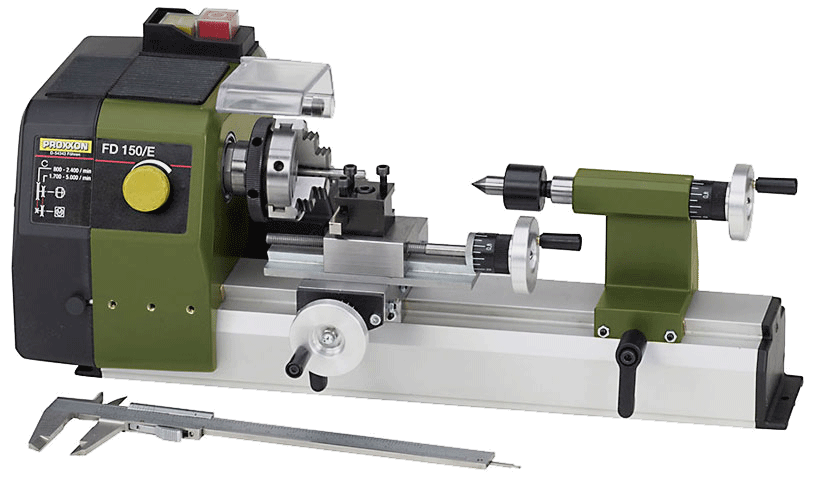

Precision Lathe FD 150/E 230V Centre Distance 150 mm - Proxxon 24150
Compact precision lathe for face, longitudinal, taper and boring work plus drilling and parting off. The two-stage belt drive with additional speed control reaches spindle speeds up to 5,000 rpm and delivers the right cutting speed even for the smallest parts.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The FD 150/E is a compact precision lathe for face turning, longitudinal turning, boring, taper turning, parting off and drilling. A two-stage belt drive with additional electronic speed control reaches spindle speeds up to 5,000 rpm, so even the smallest parts are machined at the right cutting speed.
- Quiet DC special motor with two-stage belt drive for high pulling power at low speeds
- Machine bed with dovetail guides of continuous-cast aluminium, headstock and tailstock of die-cast aluminium
- Precision-bearing main spindle with continuous 8.5 mm bore and seat for standard ER 11 collets
- Main switch with emergency stop function and restart protection
- Handwheels with zero-adjustable scale ring (1 division = 0.05 mm, 1 revolution = 1 mm)
- Top slide swivels up to +/- 45° for taper turning
Technical data
| Weight | 5.948 kg |
|---|---|
| Manufacturer | Proxxon |
| Manufacturer Nr. | 24150 |
| EAN | 4006274241503 |
| HS-Code | 84581900 |
| GPSR manufacturer information | PROXXON S.A. Härebierg 6-10, LU-6868 Wecker, www.proxxon.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Luxembourg |
| ESD version | TEC |
- Voltage: 230 V, 50/60 Hz
- Centre distance: 150 mm
- Swing: 55 mm, height over cross slide 33 mm
- Spindle bore: 8.5 mm
- Cross slide travel (X): 40 mm, top slide travel (Z): 60 mm
- Tool post for turning steels 6 x 6 mm
- Speeds stage 1: 800 to 2,800 rpm, stage 2: 1,500 to 5,000 rpm
- Three-jaw chuck: inside jaws 1 to 20 mm, outside jaws 20 to 50 mm
- Tailstock fit: MK 0/short
- Dimensions: approx. 360 x 150 x 150 mm
- Weight: approx. 4.5 kg
- Protection class: 1
Suitable for model making, fine mechanics and workshop prototyping of small turned and bored parts. Complete with three-jaw chuck and live centre.
