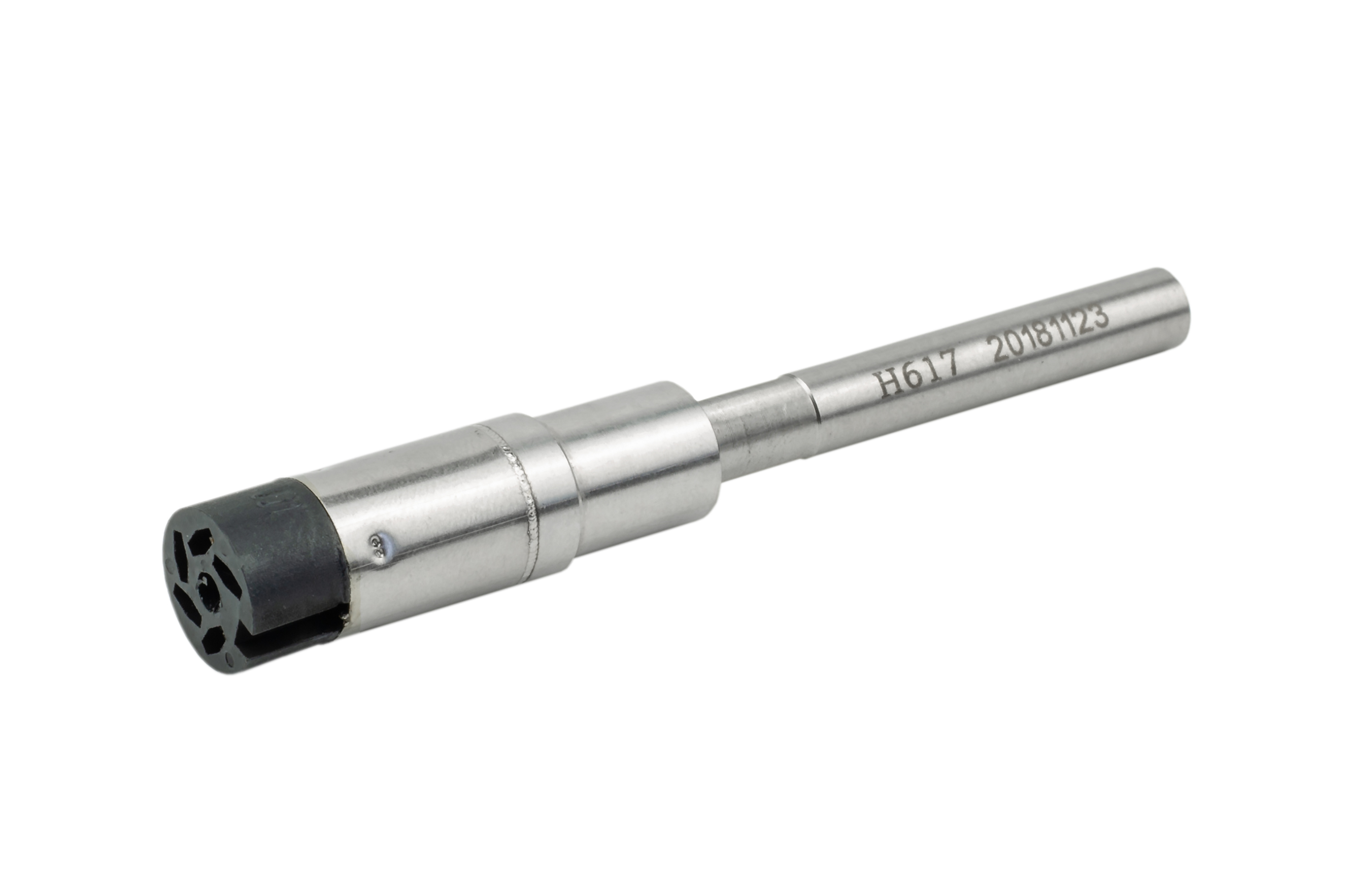

Heizkörper H617 für Station 860DA - Quick QUHK860DA
Restores the heating output of the 860DA hot air rework station when the air no longer reaches temperature. Ceramic H617 element rated 120 W, covering the working range of 100 to 450 °C and air flows of 0.3 to 6.8 l/min. Built for fine SMD work at low flow rates.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
When the 860DA still moves air but no longer holds the set temperature, the heating element is usually at the end of its life. The original H617 rated 120 W returns the station to its working range of 100 to 450 °C without buying a new unit.
What the element does
- 120 W is matched to the small air volumes of the 860DA, so temperature stays controllable from 0.3 to 6.8 l/min.
- Ceramic construction copes with the constant heat up and cool down cycles of a rework station better than an open wire coil design.
- The 100 to 450 °C range covers lead free soldering as well as gentle preheating at the low end.
- At 0.02 kg shipping weight the H617 is a standby part that fits in any service case.
Applications
Repair of the 860DA after falling or absent heating output, unstable temperature readings and overheating caused by blocked nozzles. The station itself is used for removing and placing SMD parts, connectors and populated assemblies.
Technical data
| Brand | Quick |
|---|---|
| Part number | QUHK860DA |
| Manufacturer designation | H617 |
| EAN | 4250078322481 |
| Power | 120 W |
| Temperature range | 100 to 450 °C |
| Station air flow | 0.3 to 6.8 l/min |
| Construction | ceramic heating element |
| Dimensions per supplier | 190 x 120 mm |
| Weight per supplier | 0.02 kg |
| Matching station | Quick 860DA |
| Manufacturer | Quick |
| Manufacturer Nr. | QUHK860DA |
| GPSR manufacturer information | Bräunlich GmbH Am Heideberg 26, DE 06886 Lutherstadt Wittenberg, www.braeunlich-gmbh.com |
| Condition of article | New |
| Article authenticity | Original product |
Scope of delivery
One H617 heating element for the Quick 860DA. It is not interchangeable with the H616A of the 861DW, which works at 1000 W and up to 500 °C. Fitting requires the handpiece to be opened.
