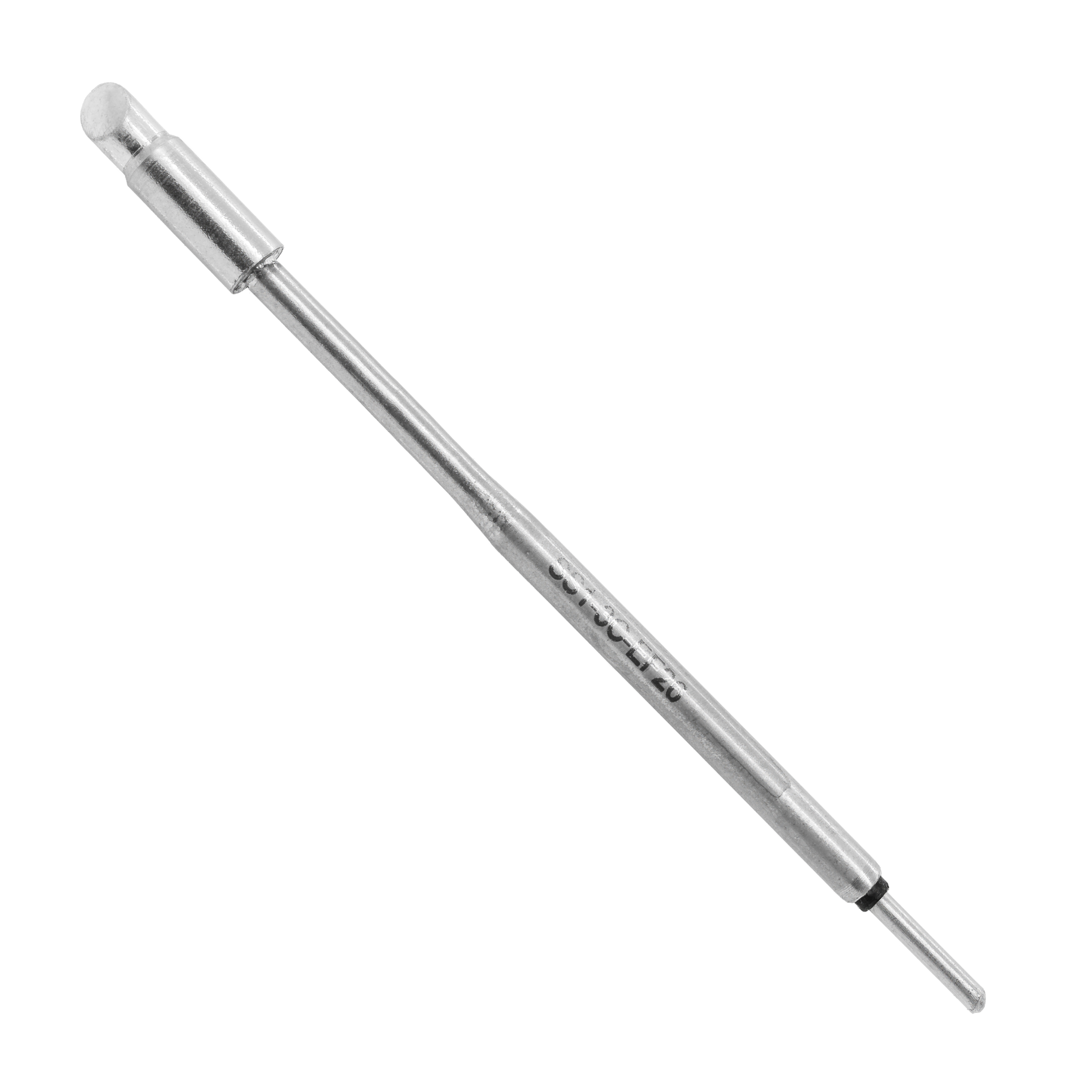

Cartridge tip of 3.0 mm with a face cut at 45 degrees, for the QUICK TS1. The angled face holds a bead of solder and releases it evenly when drawn along a row of pins. For drag soldering multi-pin packages and for joints that can only be reached at an angle.
Kartuschen-Lötspitze TS1, 45° angeschrägt 3,0 mm (SS1-3C) - Quick SS1-3C
QUICK
Original product
Net price (excl. VAT)
€5.46
Item
QCK-SS1-3C
Manufacturer no.
SS1-3C
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.SS1-3C
ConditionNew
Article
QCK-SS1-3C
Frequently Bought Together
A face cut at 45 degrees behaves differently from an edge, its slope holds a bead of solder and lays it down in a controlled way as the tip is drawn. At 3.0 mm across, this SS1 tip carries enough solder to serve a whole row of pins in one pass instead of dabbing joint by joint.
Features
- Face bevelled at 45 degrees, the solder bead stays on the face and is released as the tip is drawn along.
- Diameter of 3.0 mm, the largest contact area in the series next to the knife shape, with heat delivery to match.
- The angled cut still makes contact where the iron can only be brought in at a shallow angle.
- Cartridge design with short recovery time, which matters in drag soldering because heat is drawn continuously.
- RoHS compliant according to the manufacturer.
Technical data
| Brand | Quick |
| Part number | SS1-3C |
| Tip series | SS1 |
| Tip shape | Bevel, 45 degrees |
| Version | Straight |
| Tip diameter | 3.0 mm |
| Design | Cartridge tip with integrated heater |
| Fits | Quick TS1 |
| RoHS compliant | yes |
| Scope of delivery | 1 piece |
Application, scope of delivery and compatibility
For drag soldering SOIC and QFP rows, for leads with poor access and for rework where solder is added or taken away deliberately, on the QUICK TS1 cordless iron rated 10 W over 100 to 420 °C. Scope of delivery, one soldering tip. If a straight edge is wanted instead of a bevel, the same series offers SS1-1.6D and SS1-2.4D.
| Manufacturer Nr. | SS1-3C |
|---|---|
| Manufacturer | Quick |
| GPSR manufacturer information | Bräunlich GmbH Am Heideberg 26, DE 06886 Lutherstadt Wittenberg, www.braeunlich-gmbh.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
