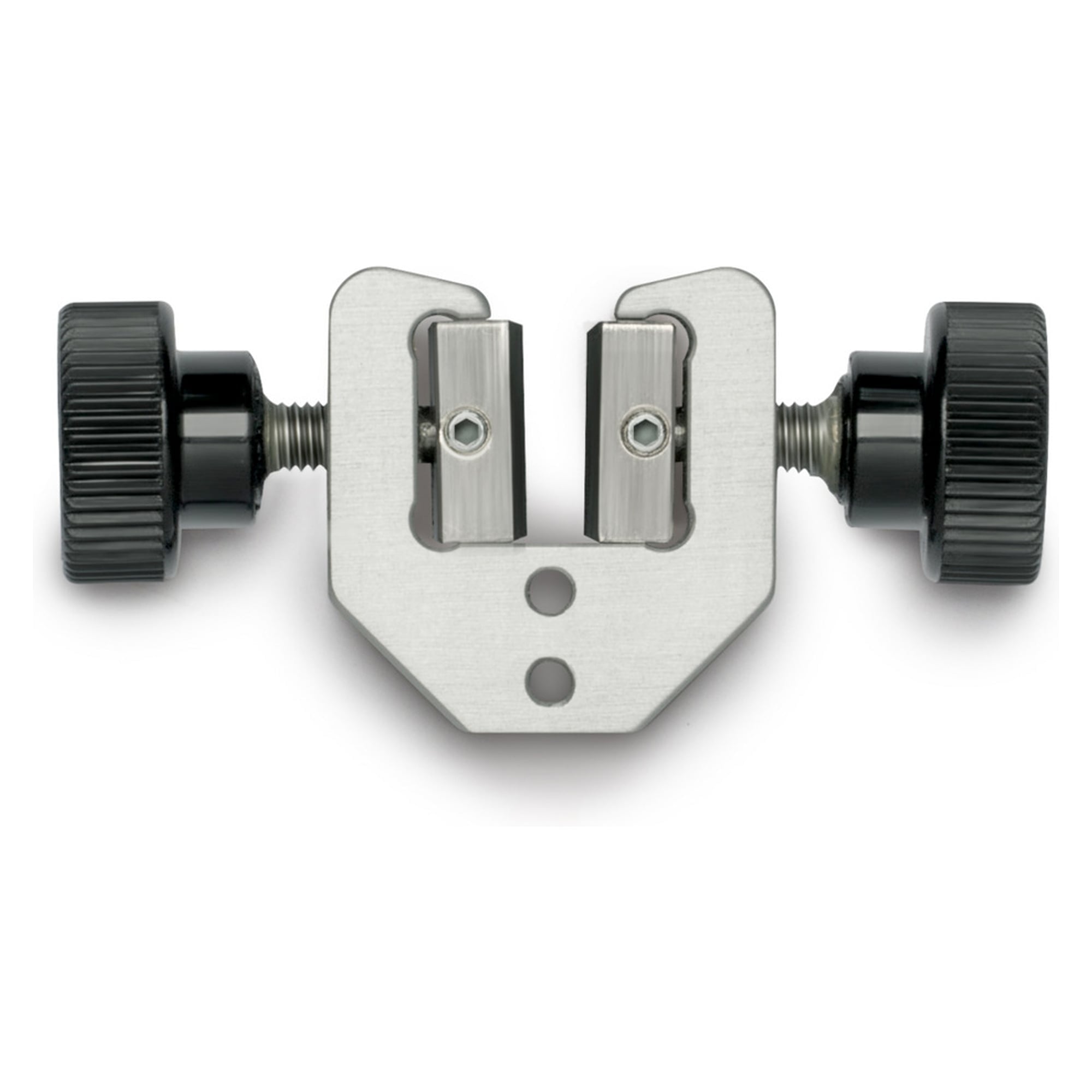

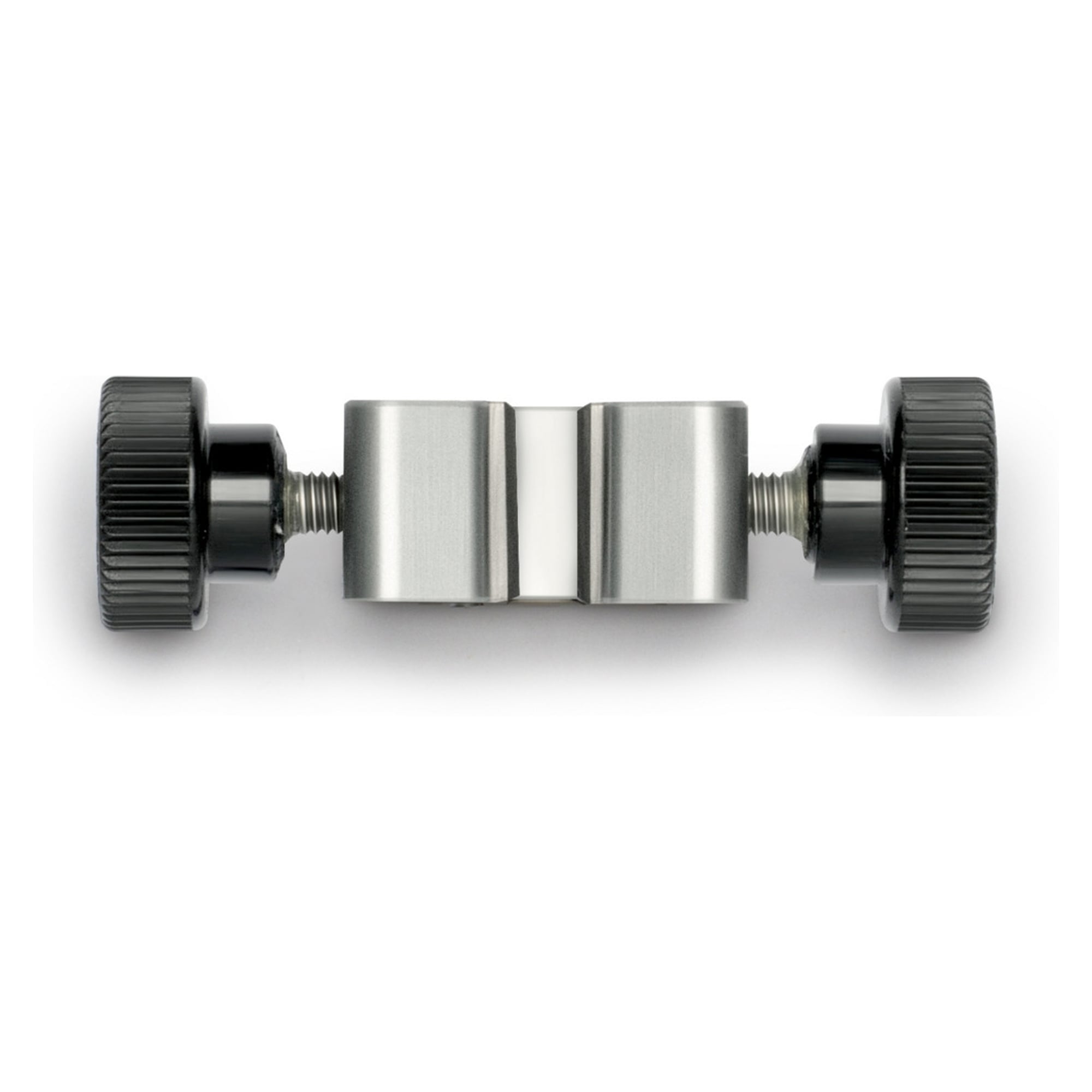

Screw tension clamp up to 100 N with pyramid grip jaws - SAUTER AD 9001
The SAUTER AD 9001 is an aluminium screw tension clamp for laboratory tensile force measurements up to 100 N. Jaws with pyramid grip are included and the clamp width is up to 15 mm. Suitable for SAUTER force gauges FC 10, FC 50, FC 100 and FL 5.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Low tensile forces in the lab call for a light clamp that does not distort the reading but still holds the specimen securely. The SAUTER AD 9001 screw tension clamp weighs only 0.05 kg and is rated for tensile forces up to 100 N. The supplied pyramid grip jaws stop the specimen from slipping.
Advantages
- Lightweight: aluminium, only 0.05 kg.
- Secure grip: pyramid grip jaws included, other jaws on request.
- For lab tests: tensile force up to 100 N, clamp width up to 15 mm, opening up to 8 mm.
- Compatible: with SAUTER FC 10, FC 50, FC 100 and FL 5.
Conformity and origin
EAN 4045761178670.
Technical data
| Max. tensile/compressive force | 100 N |
|---|---|
| Maximum clamp width | 15 mm |
| Maximum opening | 8 mm |
| Material | aluminium |
| Thread | M6 |
| Dimensions mounted (W x D x H) | 62 x 53 x 31 mm |
| Net weight | 0.05 kg |
| Weight | 0.05 kg |
| Manufacturer | Sauter |
| EAN | 4045761178670 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
Scope of delivery
1 piece incl. pyramid grip jaws. Depending on the instrument, adapters may be needed for mounting. Please state with your order which instrument the clamp will be used on, so the matching adapters can be supplied.
