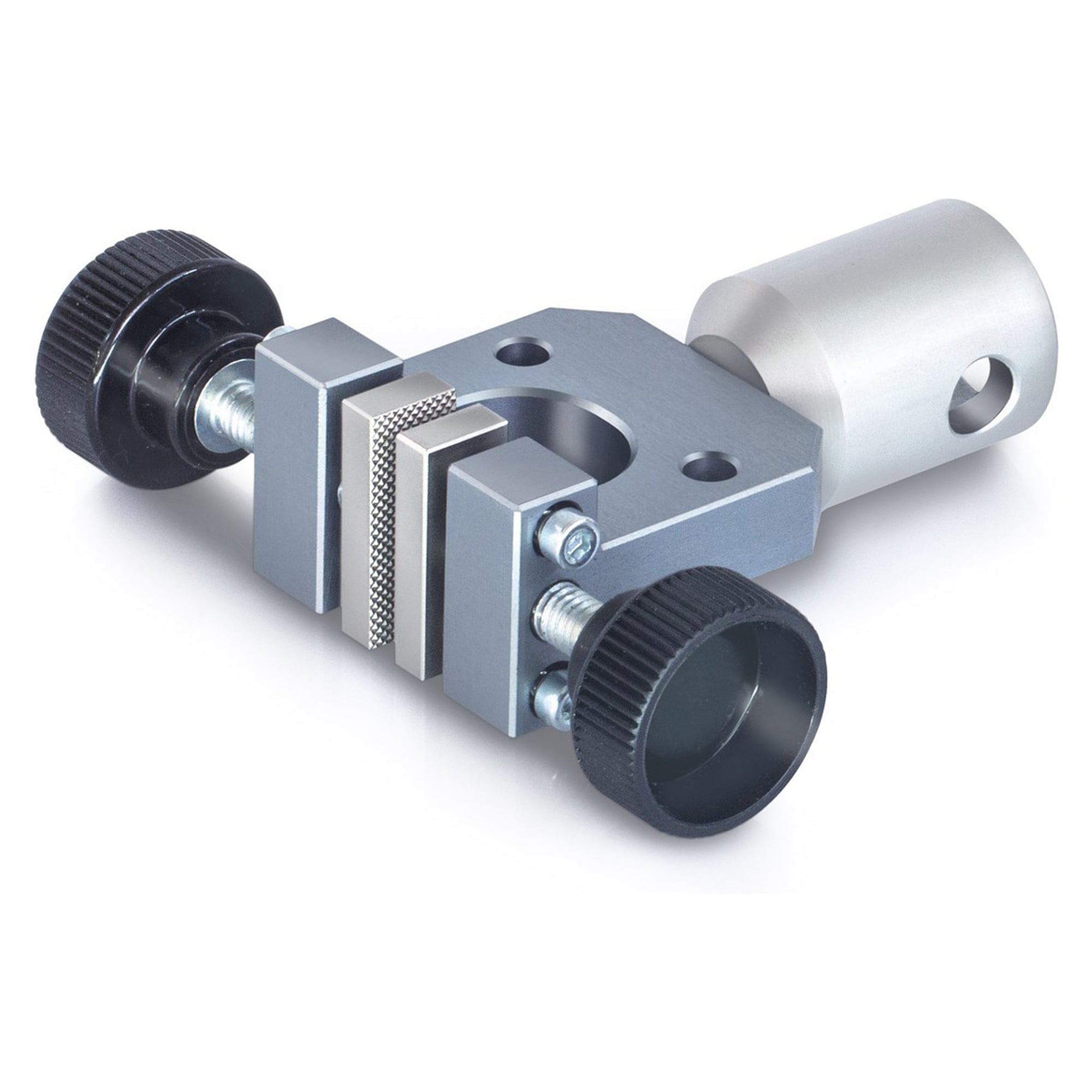

Screw tension clamp up to 400 N with pyramid grip jaws, M6 - SAUTER AD 9005
The SAUTER AD 9005 is an aluminium screw tension clamp for laboratory tensile force measurements up to 400 N. Jaws with pyramid grip are included and the clamp width is up to 25 mm. Suitable for SAUTER force gauges FC 10, FC 50, FC 100 and FL 5.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Films, threads and narrow strips need to sit securely in a lab tensile test without the clamp loading the measurement. The SAUTER AD 9005 aluminium screw tension clamp weighs 0.08 kg, is rated for tensile forces up to 400 N and holds specimens up to 25 mm wide.
Advantages
- Wide grip: clamp width up to 25 mm with an 8 mm opening.
- Secure grip: pyramid grip jaws included, other jaws on request.
- Lightweight: aluminium, 0.08 kg.
- M6 connection: force transmission through a threaded hole, suits SAUTER FC 10, FC 50, FC 100 and FL 5.
Conformity and origin
EAN 4045761178250.
Technical data
| Max. tensile/compressive force | 400 N |
|---|---|
| Maximum clamp width | 25 mm |
| Maximum opening | 8 mm |
| Material | aluminium |
| Mounting | M6 threaded hole |
| Dimensions mounted (W x D x H) | 82 x 40 x 25 mm |
| Net weight | 0.08 kg |
| Weight | 0.08 kg |
| Manufacturer | Sauter |
| EAN | 4045761178250 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
Scope of delivery
1 piece incl. pyramid grip jaws. Depending on the instrument, adapters may be needed for mounting. Please state with your order which instrument the clamp will be used on, so the matching adapters can be supplied.
