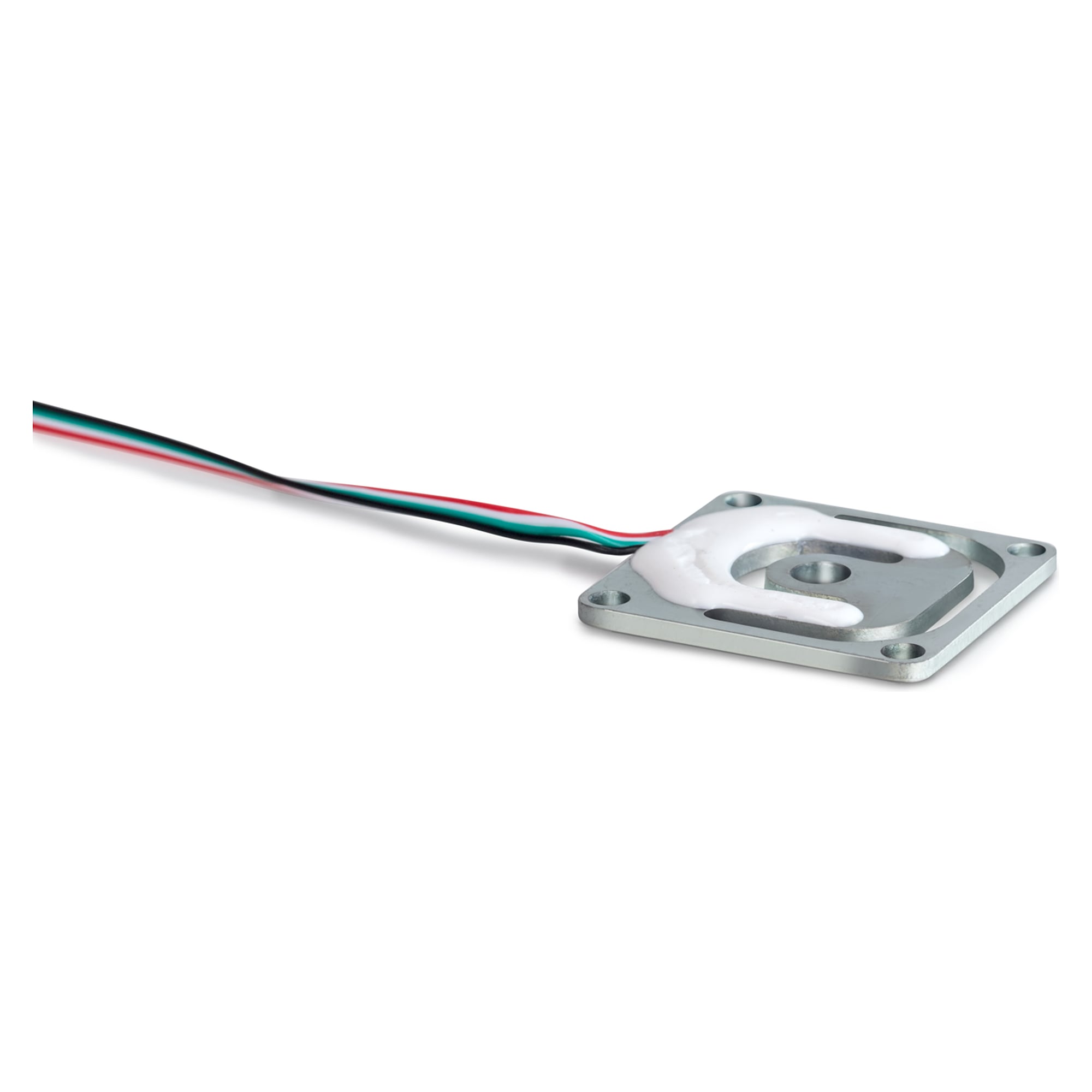

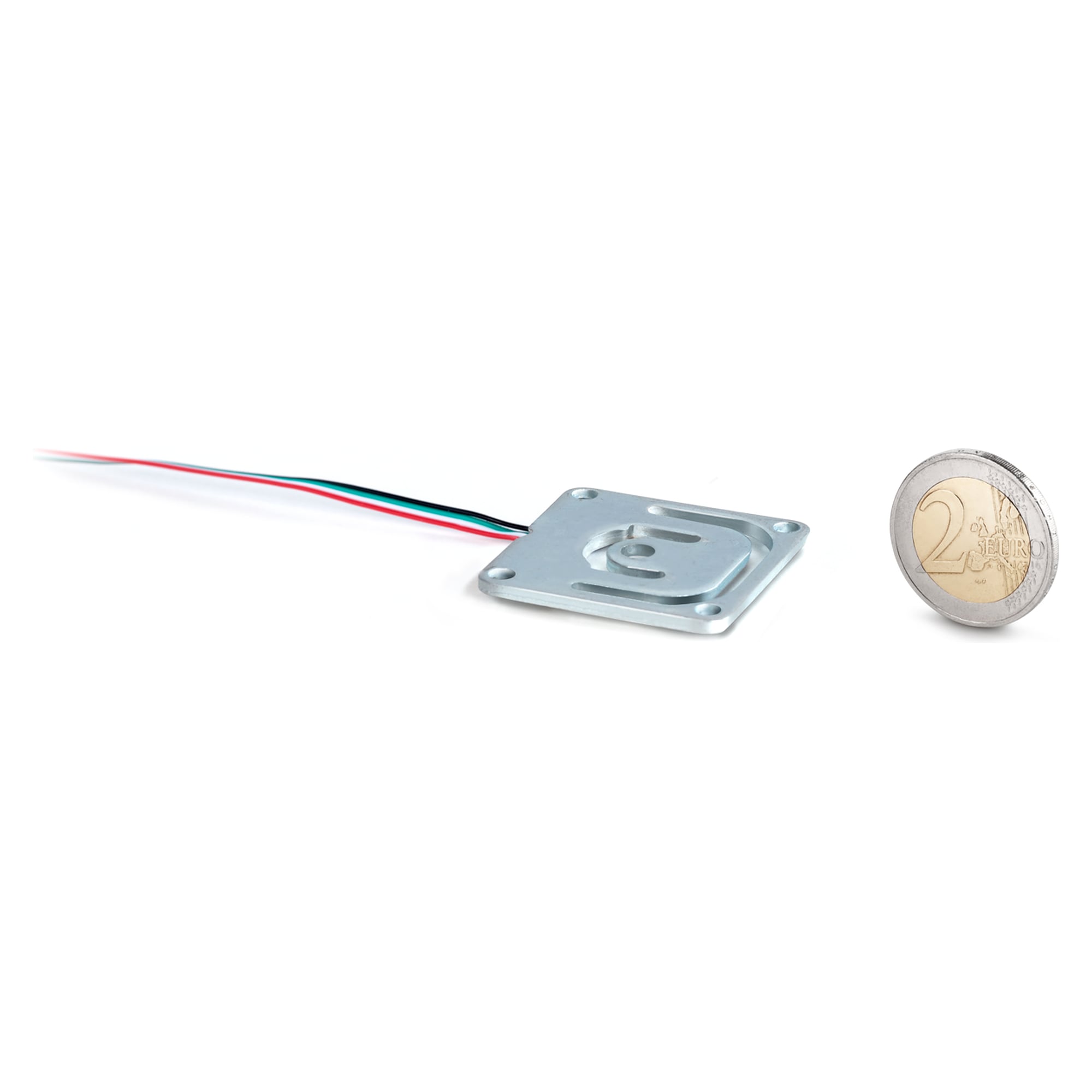

Load Cell 30 kg - SAUTER CK 30-Y1
The SAUTER CK 30-Y1 is a very flat miniature load cell in alloy steel for rated loads up to 30 kg. With a combined error of 0.05 % F.S. it delivers precise values at minimal build height. The full-bridge circuit allows single use or, via a junction box, operation as a group of several cells.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CK 30-Y1 brings precise force measurement up to 30 kg to scales where build height matters. The combined error of 0.05 % F.S. ensures reliable values, and the full bridge can run singly or grouped.
Benefits
- High precision: combined error 0.05 % F.S.
- Very low profile: for scales with minimal build height
- Alloy steel: load-bearing up to 30 kg rated load
- Full-bridge circuit: usable singly, grouped via junction box
- OIML class C1: defined accuracy for scale building
Applications
Suited to research and development, laboratory work, mechanical engineering and testing, robotics and automation, and the packaging industry, for example in building personal, kitchen or postal scales.
Compliance and origin
EAN 4045761246379. Customs tariff code 84239010. Country of origin China.
Technical data
| Weighing range (max) | 30 kg |
|---|---|
| Operating temperature | -20 °C to 50 °C |
| Accuracy class (OIML) | C1 |
| Combined error | 0.05 % F.S. |
| Force direction | Compression |
| Cable length | 0,45 m |
| Connection | 4-wire |
| Net weight | 0,10 kg |
| Weight | 0.1 kg |
| Manufacturer | Sauter |
| EAN | 4045761246379 |
| HS-Code | 84239010 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 30000 |
