Verifiable stainless steel load cell from SAUTER for compression forces up to 5000 kg (50 kN). OIML class C1 with 1000 e, built for vehicle and hopper scales. Wide temperature range from -50 °C to 70 °C.

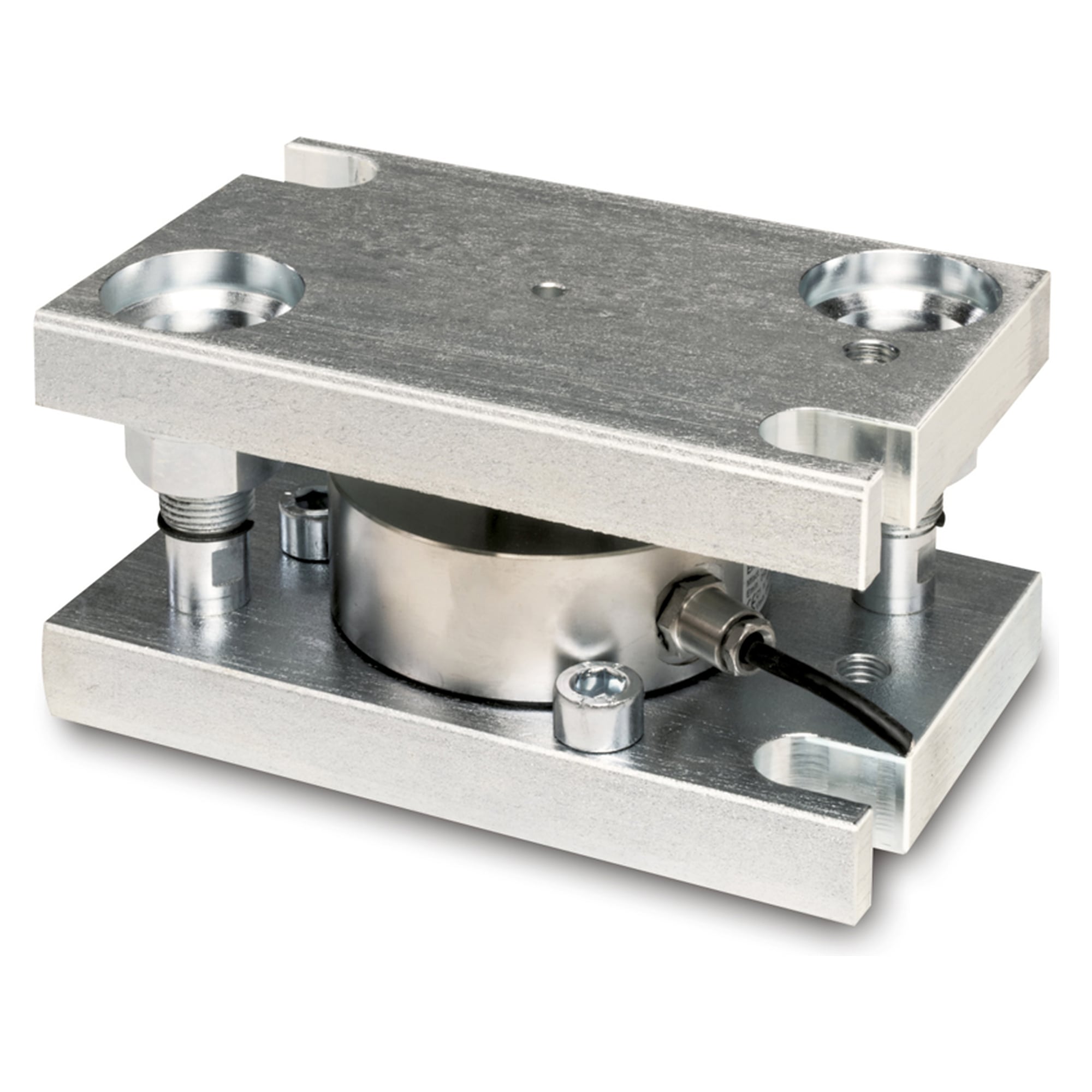

Load Cell 5000 kg - SAUTER CR 5000-1Q1
SAUTER
Original product
Net price (excl. VAT)
€223.44
Item
KER-CR 5000-1Q1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
EAN4045761222144
Country of originSpain
Customs tariff number90249000
ConditionNew
Article
KER-CR 5000-1Q1
Frequently Bought Together
-
This Item:
€223.44
-
Load Cell 1,5 kg - SAUTER CP 1500-0Y4
€43.12
-
Load Cell 5 kg - SAUTER CS 5-Y1
€270.48
Total price
The SAUTER CR 5000-1Q1 measures compression forces up to 5000 kg (50 kN) and is verifiable ex works to OIML class C1 with 1000 e. Its stainless steel load button is built for tough continuous duty on vehicle and hopper scales.
Benefits
- Verifiable ex works (OIML class C1, 1000 e): legally compliant weighing in regulated applications.
- Stainless steel load button: corrosion-resistant and sturdy for continuous field use.
- Rated load 5000 kg / 50 kN: designed for compression measurement on vehicle and hopper scales.
- Wide temperature range (-50 °C to 70 °C): reliable in frost and heat alike.
- Cable length 10 m: flexible routing to the indicator.
Technical data
- Rated capacity (Max): 5000 kg
- Force range (Max): 50 kN
- Force direction: Compression
- OIML class: C1
- Verifiable resolution: 1000 e
- Y value: 10000
- Operating temperature: -50 °C to 70 °C
- Dimensions (Ø×H): 82×44 mm
- Connection: 4-wire
- Cable length: 10 m
- Material: stainless steel
- Net weight: 1,2 kg
Applications
The CR 5000-1Q1 is used on vehicle scales, hopper scales and test rigs across industry, manufacturing and agriculture.
Compliance and origin
EAN 4045761222144. Customs tariff code 90249000. Country of origin: Spain.
| Manufacturer | Sauter |
|---|---|
| Country of Manufacture | Spain |
| EAN | 4045761222144 |
| Weight | 1.200000 |
| HS-Code | 90249000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Wägebereich max (g) | 5000000.000000 |
| Position sensing | No |
