The SAUTER CP 500-3P8 is a single-point load cell in aluminium for building verifiable bench and platform scales up to 500 kg. With OIML class C3 and 3000 divisions it delivers legally usable readings and carries a platform up to 600×600 mm. It is read out over a 6-wire connection with a 3 m cable.

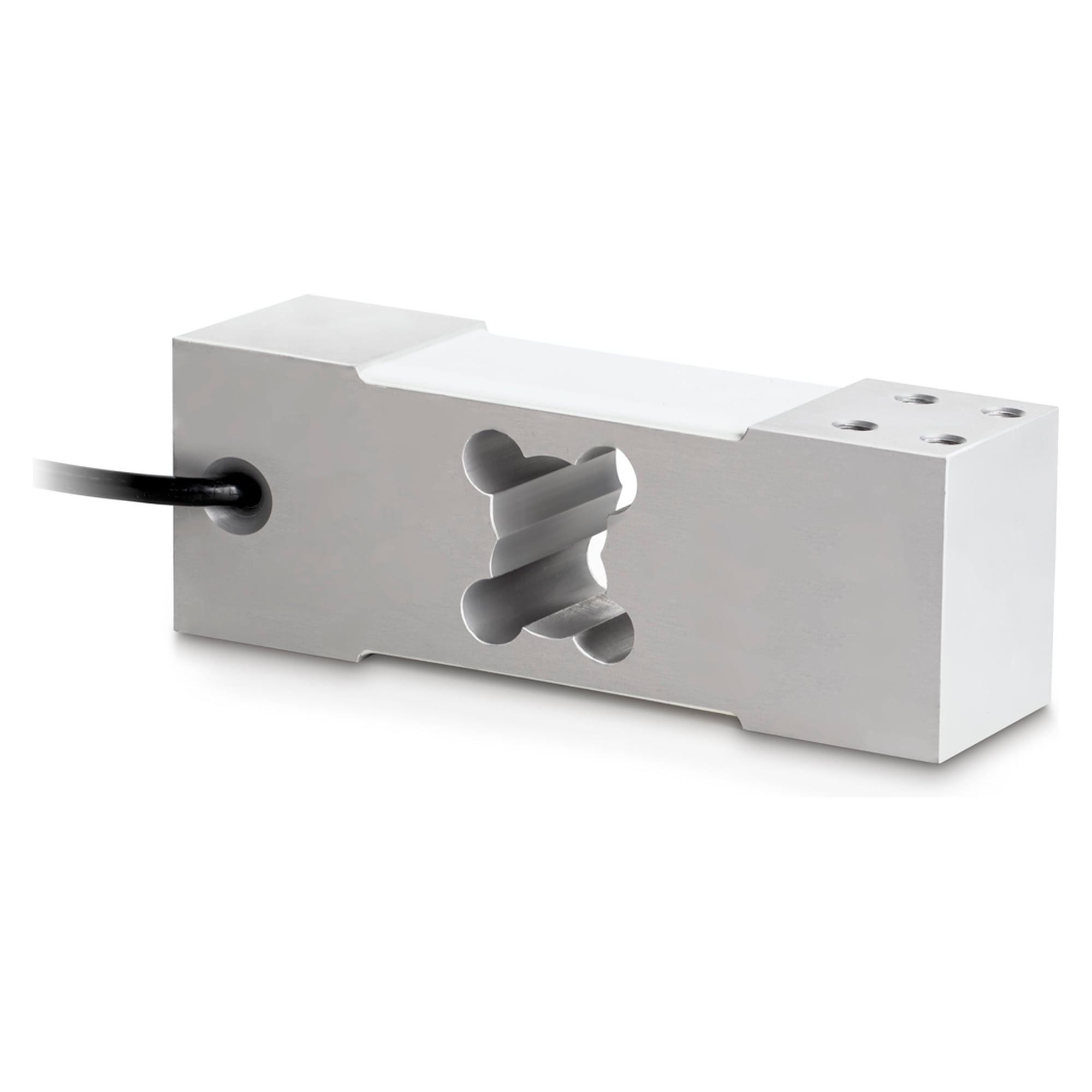

Load Cell 500 kg - SAUTER CP 500-3P8
SAUTER
Original product
Net price (excl. VAT)
€96.43
Item
KER-CP 500-3P8
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
EAN4045761308374
Country of originChina
Customs tariff number84239010
ConditionNew
Article
KER-CP 500-3P8
Frequently Bought Together
-
This Item:
€96.43
-
Load Cell 30 kg - SAUTER CP 30-3P7
€211.68
-
Load Cell 75 kg - SAUTER CB 75-3Q1
€180.32
Total price
The SAUTER CP 500-3P8 is a single-point load cell in aluminium for building verifiable bench and platform scales up to 500 kg. With OIML class C3 and 3000 divisions it delivers legally usable readings and carries a platform up to 600×600 mm.
Benefits
- Suitable for verified scales: OIML class C3 with 3000 divisions (e)
- Light, corrosion-protected body: made from aluminium
- Platform up to 600×600 mm: fits price-computing, bench and platform scales
- Ready to wire: 3 m cable, 6-wire technology
- Wide temperature range: -35 to 65 degrees Celsius
- Higher accuracy on request: OIML R60 class C4/C5
Technical data
- Rated capacity (Max): 500 kg
- OIML class: C3
- Resolution (verifiable): 3000 e
- Y-value: 10000
- Force direction: compression
- Max. platform size: 600×600 mm
- Cable length: 3 m
- Connection: 6-wire
- Operating temperature: -35 to 65 degrees Celsius
- Weight: 1,8 kg
- Material: aluminium
Applications
Typical fields of use are industry and manufacturing, the packaging industry, food and pharma, mechanical and plant engineering and research and development.
Compliance and origin
EAN 4045761308374, customs tariff number 84239010, country of origin China.
| Manufacturer | Sauter |
|---|---|
| Country of Manufacture | China |
| EAN | 4045761308374 |
| Weight | 1.800000 |
| HS-Code | 84239010 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Wägebereich max (g) | 500000.000000 |
| Position sensing | No |
