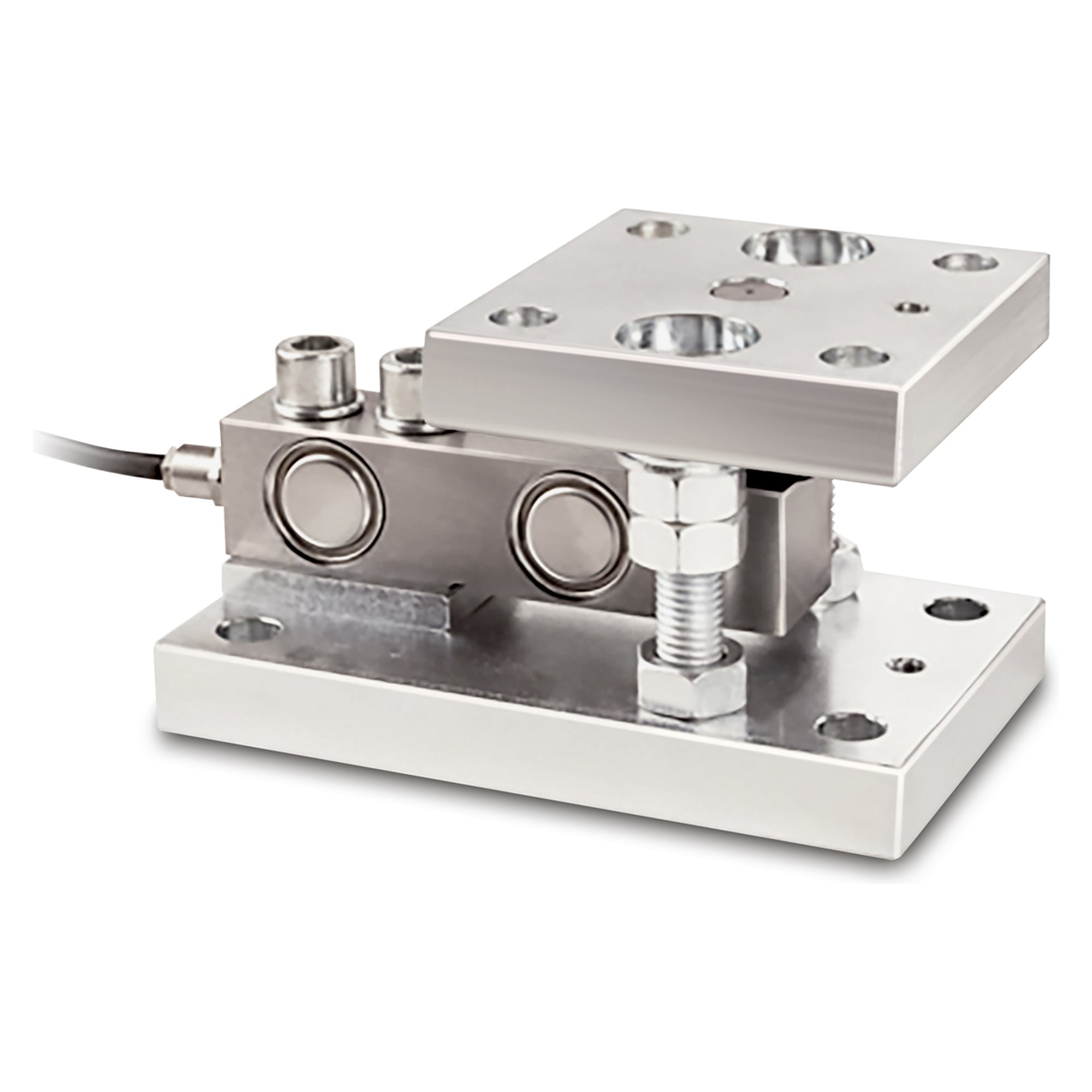

Load Cell 5000 kg - SAUTER CT 5000-3Q1
The SAUTER CT 5000-3Q1 is a stainless steel shear-beam load cell for compression loads up to 5000 kg. With OIML class C3 (3000 e) and a 6-wire connection, it suits platform, hopper and floor scales in demanding environments.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CT 5000-3Q1 is a stainless steel shear-beam load cell for loads up to 5000 kg. The 6-wire connection compensates long cable runs, so the cell keeps measuring stably from -30 °C to 70 °C even in large installations.
Benefits
- Verifiable sensing element (OIML C3, 3000 e): suitable for legal-for-trade results in verified scales
- Stainless steel shear beam: withstands harsh and humid environments
- Compression capacity up to 5000 kg: for platform, hopper and floor scales
- Wide temperature range (-30 °C to 70 °C): stable measurement in cold and heat
- 6-wire connection: compensates cable resistance over long runs
Applications
The load cell is used in industry and manufacturing, the chemical industry, food and pharmaceutical operations, the building materials industry as well as logistics and packaging.
Compliance and origin
EAN 4045761222212, customs tariff number 84239010, country of origin Spain.
Technical data
| Capacity (Max) | 5000 kg |
|---|---|
| Accuracy class (OIML) | C3 |
| Verification interval | 3000 e |
| Y value | 10000 |
| Force direction | compression |
| Operating temperature | -30 °C to 70 °C |
| Cable length | 5 m |
| Connection | 6-wire |
| Material | stainless steel |
| Net weight | 2,2 kg |
| Weight | 2.4 kg |
| Manufacturer | Sauter |
| EAN | 4045761222212 |
| HS-Code | 84239010 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Spain |
| Wägebereich max (g) | 5000000 |
