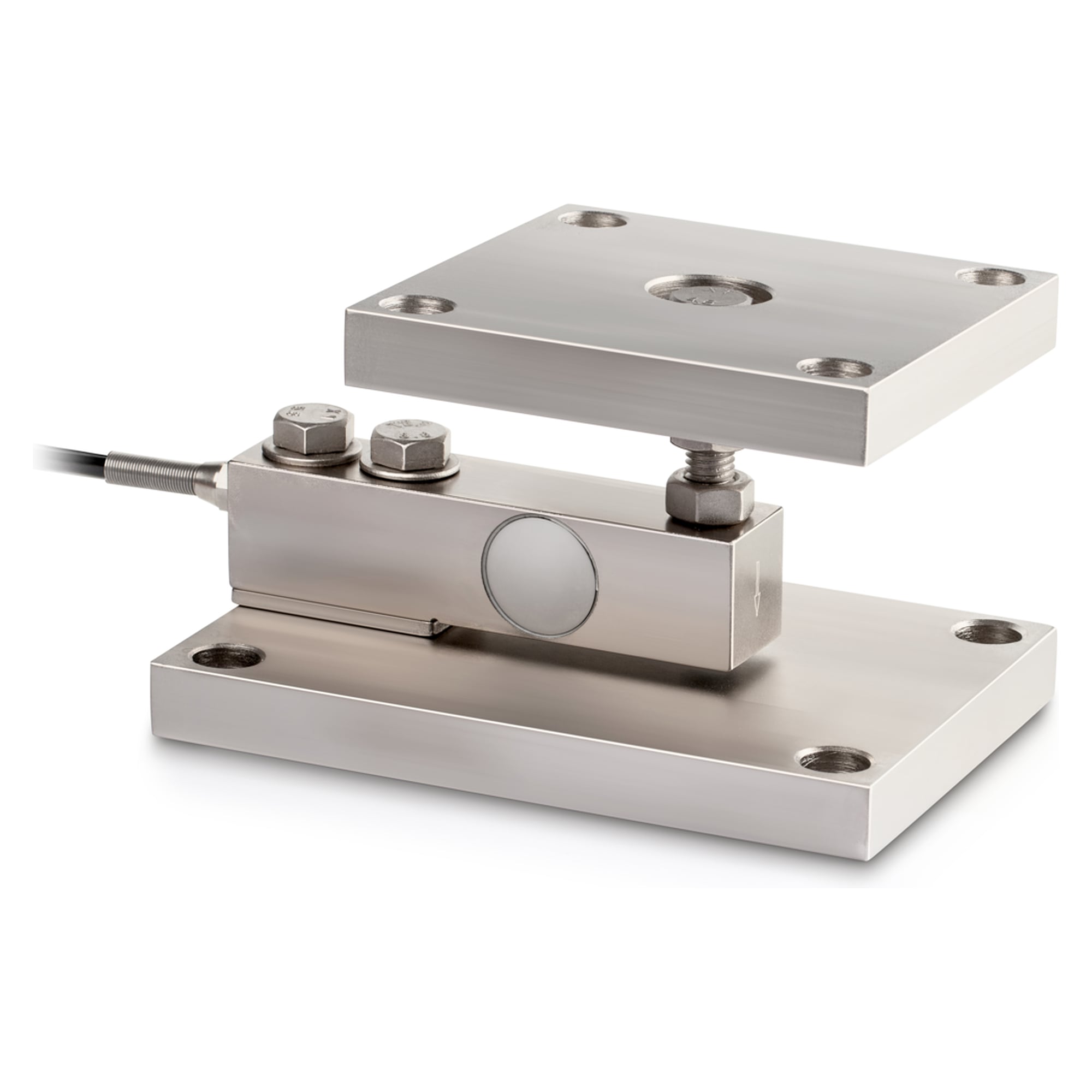

Load Cell 1500 kg - SAUTER CT 1500-3P1

The SAUTER CT 1500-3P1 picks up compression forces up to 1500 kg directly in platform scales, hopper scales and floor-recessed scales. Its stainless steel shear beam delivers repeatable readings to OIML class C3 with 3000 e, even under harsh operating conditions.

Benefits

• Legal-for-trade resolution (OIML C3, 3000 e): traceable weighing at a Y-value of 10000.
• Stainless steel shear beam: corrosion-resistant sensing body for chemical, food and wet environments.
• Wide temperature range (-35 bis 65 °C): reliable operation from cold zones to warm halls.
• Rated capacity 1500 kg in compression: sized for platform, hopper and floor scales.
• 4-wire connection, 6 m cable: easy integration into existing weighing setups; EX version, 6-wire and class C4 or C5 available on request.

Technical data

• Capacity (Max): 1500 kg
• OIML class: C3
• Resolution (verifiable): 3000 e
• Y-value: 10000
• Force direction: compression
• Operating temperature: -35 bis 65 °C
• Cable length: 6 m
• Load cell connection: 4-wire
• Net weight: 1,2 kg
• Gross weight: 1,2 kg

Applications

Typical uses include industry and manufacturing, the chemical industry, food and pharma, the building materials industry as well as logistics and packaging.

Compliance and origin

EAN 4045761221611, customs tariff code 84239010, country of origin China.
