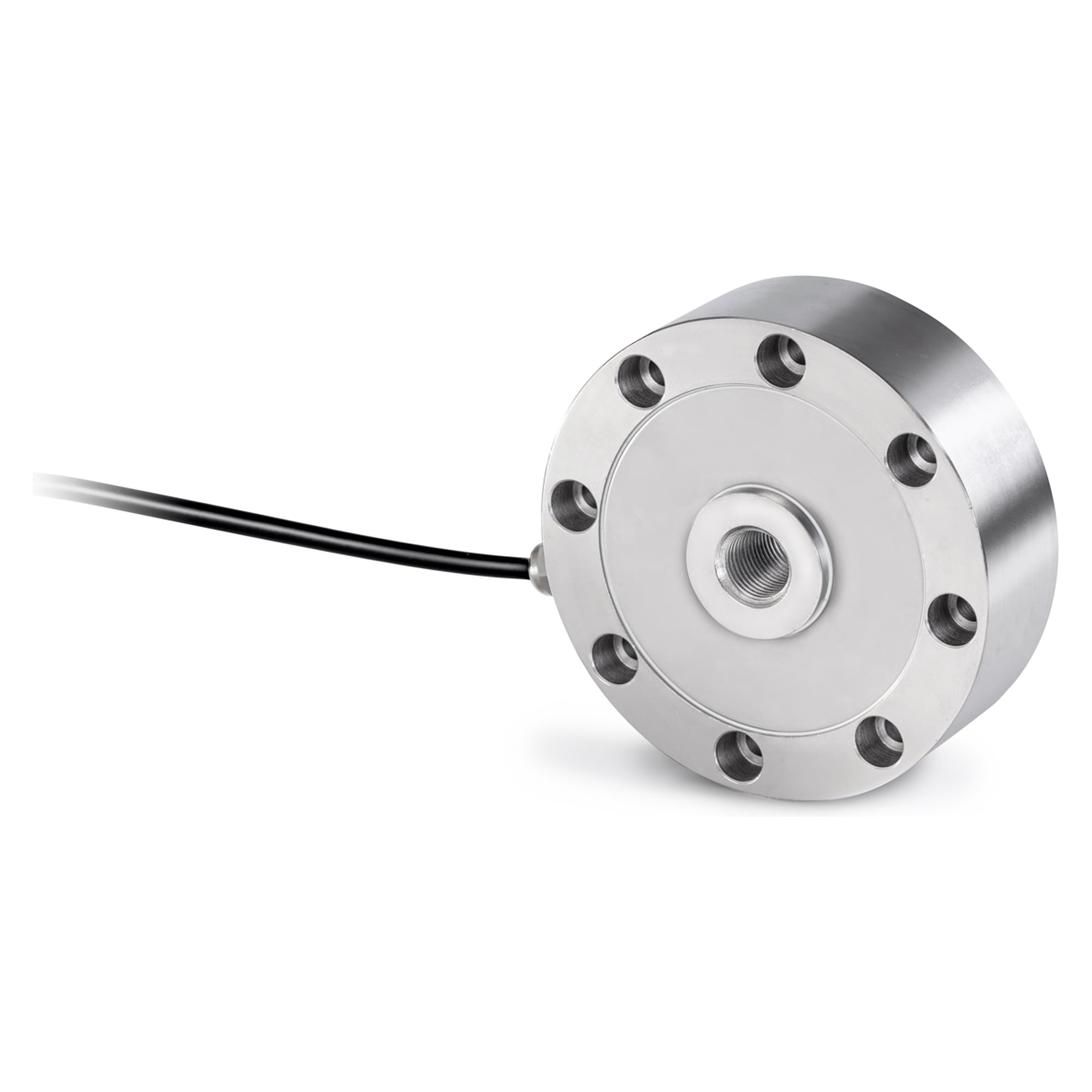

Load Cell 1000 kg - SAUTER CR 1000-1Y1
The SAUTER CR 1000-1Y1 is an alloy-steel force load cell for tension and compression measurements up to 1000 kg or 10 kN. With a combined error of 0.05 percent F.S. it suits force test benches and static weighing, and the load button for force introduction is included.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CR 1000-1Y1 measures both tension and compression up to 1000 kg or 10 kN, which makes it equally at home in force test benches and static weighing rigs. A combined error of 0.05 percent F.S. keeps readings repeatable, and force is applied either through the supplied load button or a threaded bore.
Benefits
- Tension and compression in one sensor: bidirectional force measurement up to 10 kN
- High precision: combined error of 0.05 percent F.S.

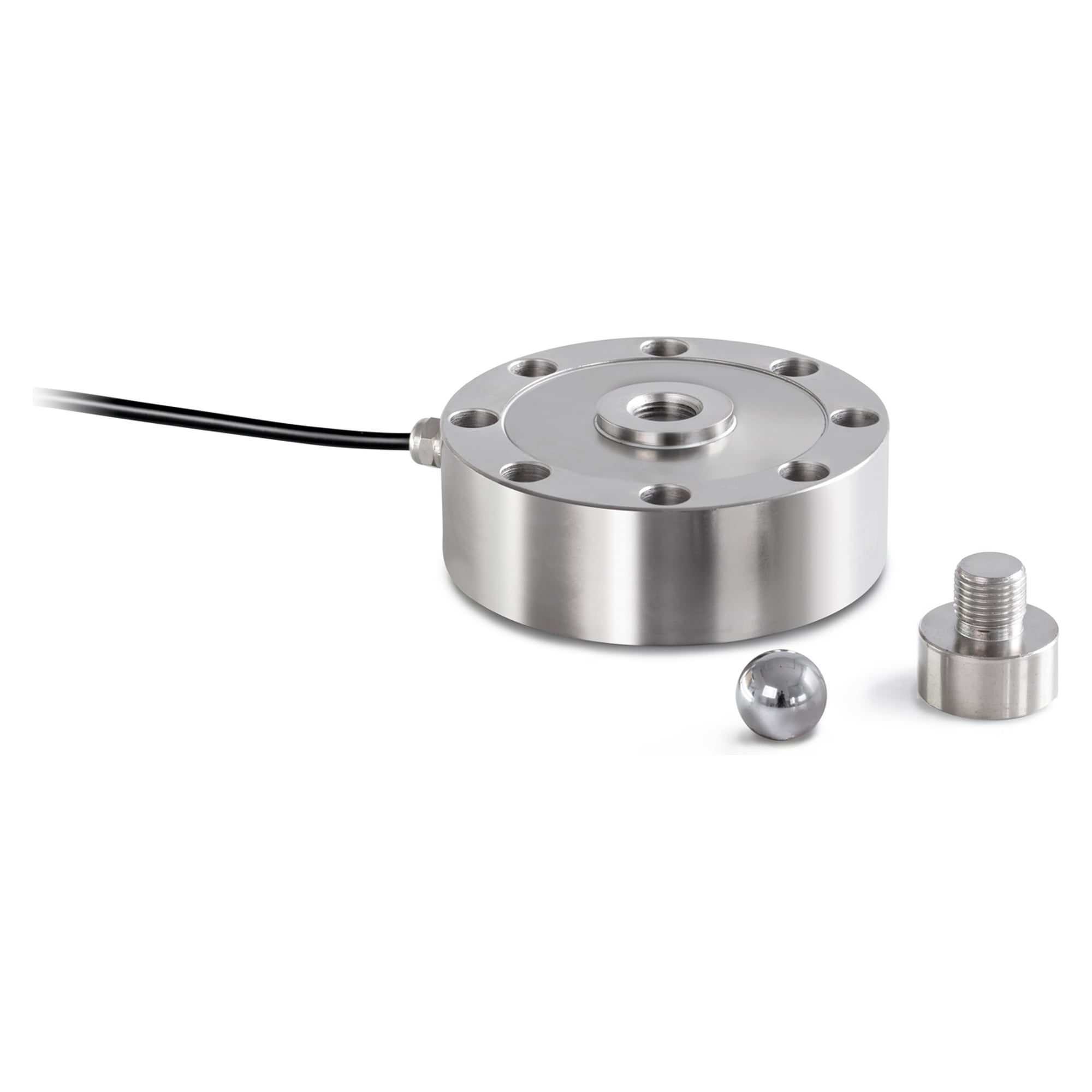

- Flexible force introduction: via the included load button or a threaded bore
- Compact alloy steel body: 105×37 mm (dia.×H) for integration into test rigs
Applications
Typical fields of use are industry and manufacturing, agriculture and test benches.
Compliance and origin
EAN 4045761246171, customs tariff number 90249000, country of origin China.
Technical data
| Rated capacity (Max) | 1000 kg |
|---|---|
| Force range (Max) | 10 kN |
| OIML class | C1 |
| Force direction | tension, compression |
| Dimensions (dia.×H) | 105×37 mm |
| Cable length | 3 m |
| Connection | 4-wire |
| Weight | 1,8 kg |
| Material | alloy steel |
| Manufacturer | Sauter |
| EAN | 4045761246171 |
| HS-Code | 90249000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Wägebereich max (g) | 1000000 |
