Digital Torque Gauge - SAUTER DA 10-3

In beverage, food and cosmetics production, the right closing torque decides sealing integrity and consumer convenience. The SAUTER DA 10-3 measures torque up to 10 Nm with 0,002 Nm and a 1000 Hz internal sampling rate, so even brief torque peaks are captured reliably.

Benefits

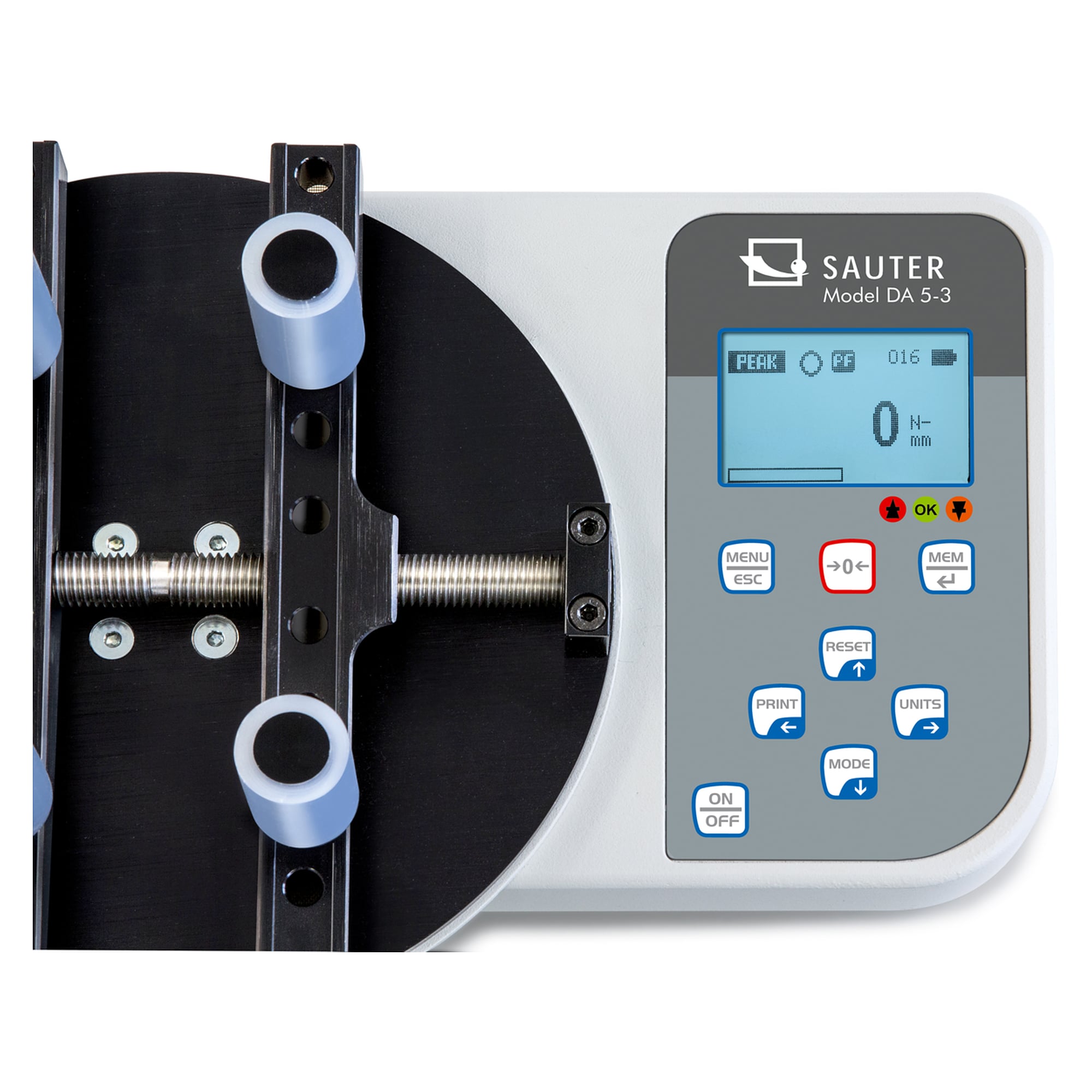

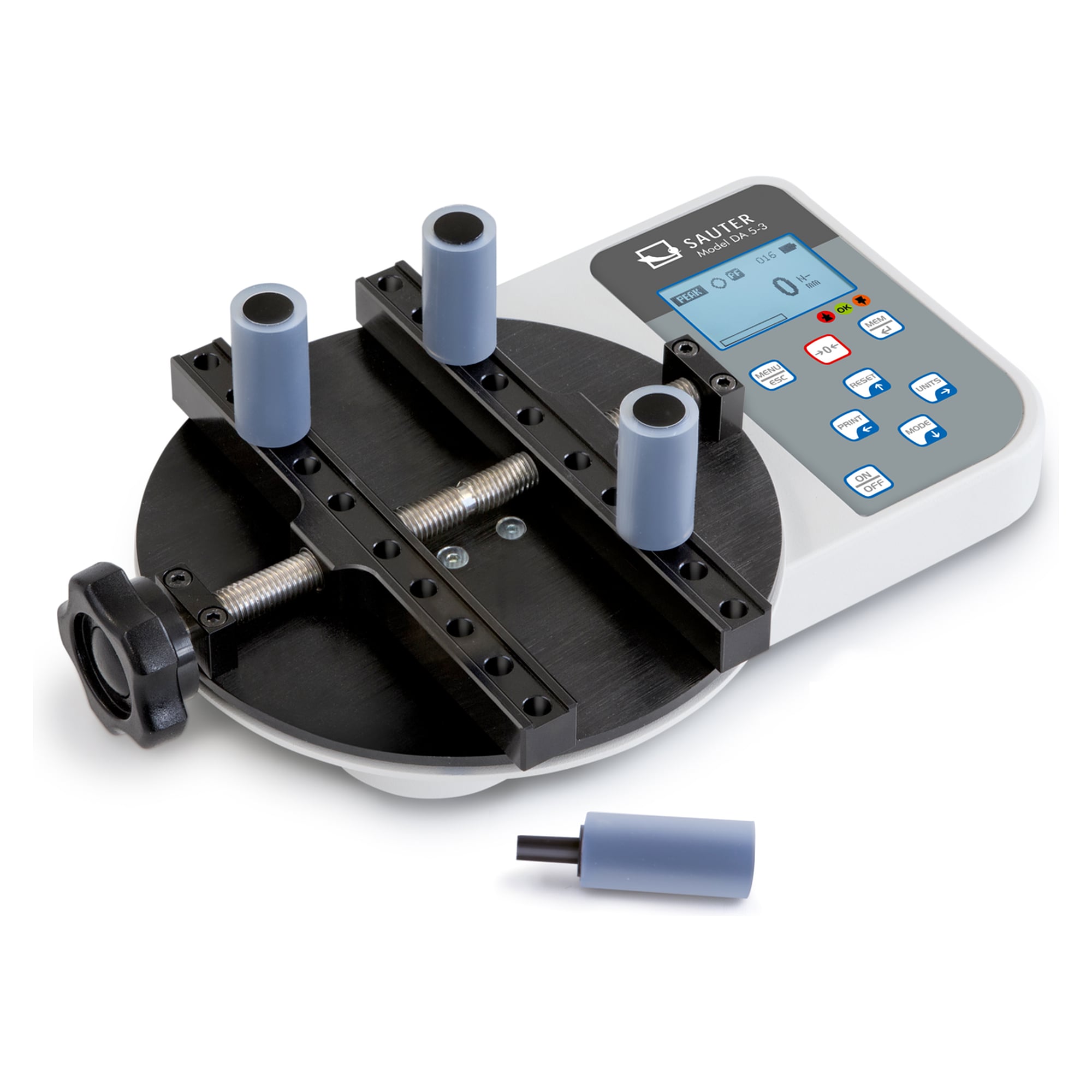

• Tool-free changeover: Quick-Pin system holds containers from 15 to 160 mm
• Both directions: measures opening and closing torque
• Fast pass/fail check: limit function with acoustic and visual signal
• Data capture: peak-hold for maximum values, track mode for continuous display
• Data output: RS-232 and USB as standard, internal memory for 500 readings
• Rugged: painted metal housing with LED capacity bar
• Cordless capable: mains and NiMH battery operation, up to 18 h

Technical data

• Torque range (max): 10 Nm
• Readability (d): 0,002 Nm
• Accuracy: 0,5% of full scale
• Overload protection: 120%
• Internal sampling rate: 1000 Hz
• Units: Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
• Display: Graphic LCD

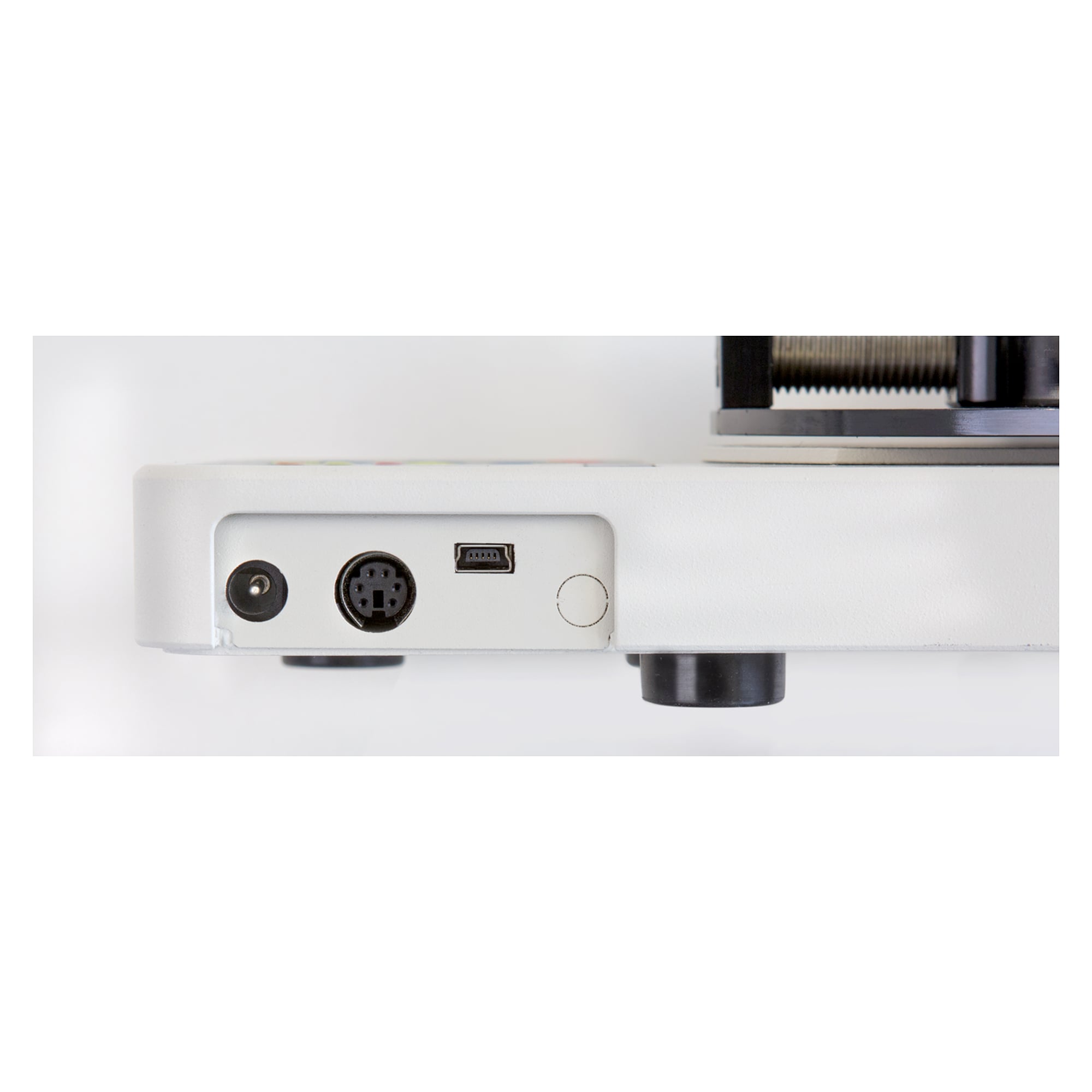

• Interfaces: RS-232 (standard), USB
• Power supply: NiMH battery and mains adapter
• Power supply input: 100 V - 240 V
• Battery life: 18 h
• Charging time: 14 h
• Operating temperature: 15 °C - 35 °C
• Housing dimensions (WxDxH): 250×160×100 mm
• Weight: 3,0 kg

Applications

The DA 10-3 is used in the food and cosmetics industries, in pharmaceutical applications, test laboratories and the chemical industry.

Compliance and origin

EAN 4045761193376, customs tariff number 90318080, country of origin Thailand.
