Digital Torque Gauge - SAUTER DA 1-4
The SAUTER DA 1-4 checks the opening and closing torque of screw caps up to 1 Nm with 0,2 mNm resolution. The Quick-Pin system clamps containers from 15 to 160 mm without tools, and the painted metal housing is built for continuous use. RS-232 and USB transfer up to 500 stored readings to the PC.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
In beverage, food and cosmetics production, the right closing torque decides sealing integrity and consumer convenience. The SAUTER DA 1-4 measures torque up to 1 Nm with 0,2 mNm and a 1000 Hz internal sampling rate, so even brief torque peaks are captured reliably.
Benefits

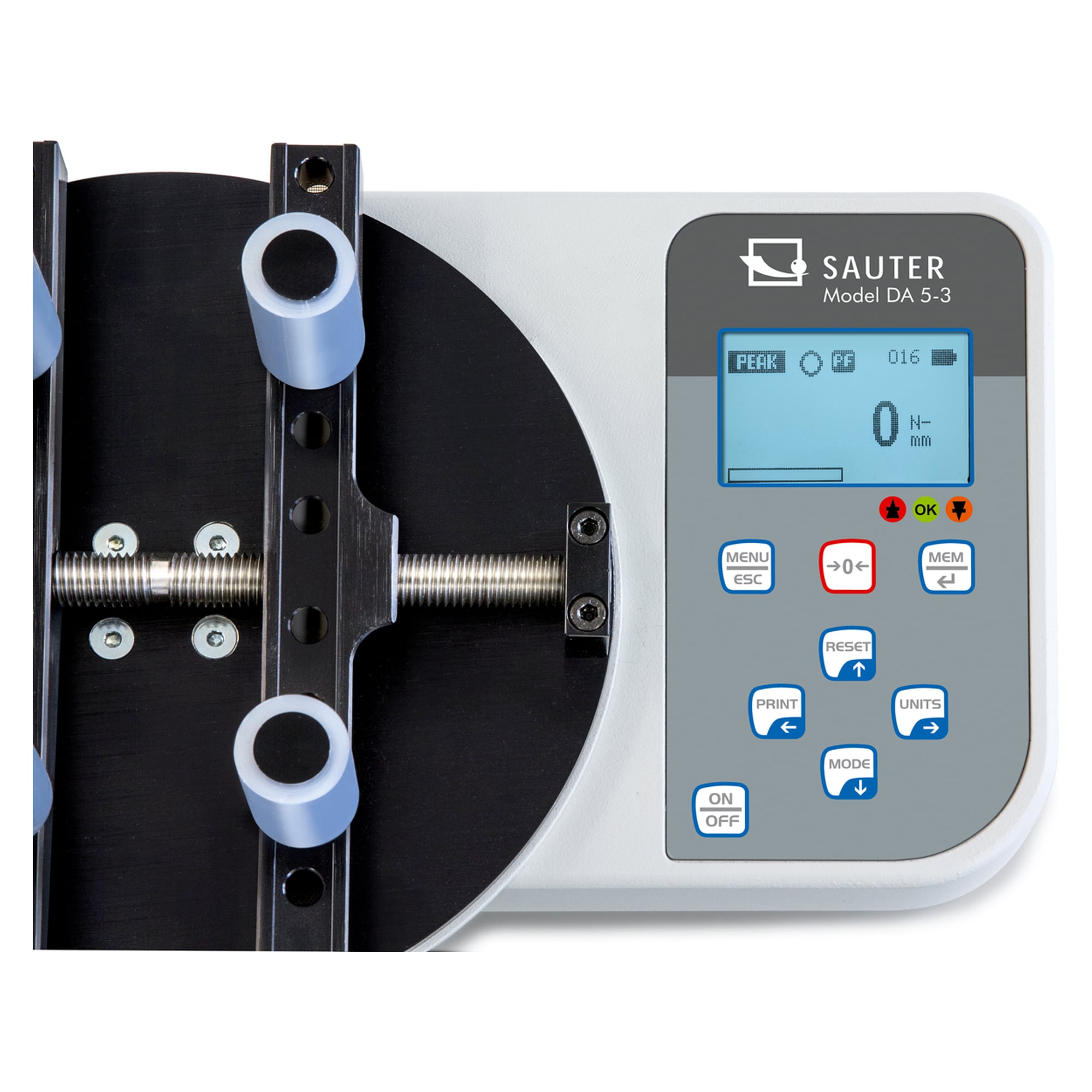

- Tool-free changeover: Quick-Pin system holds containers from 15 to 160 mm

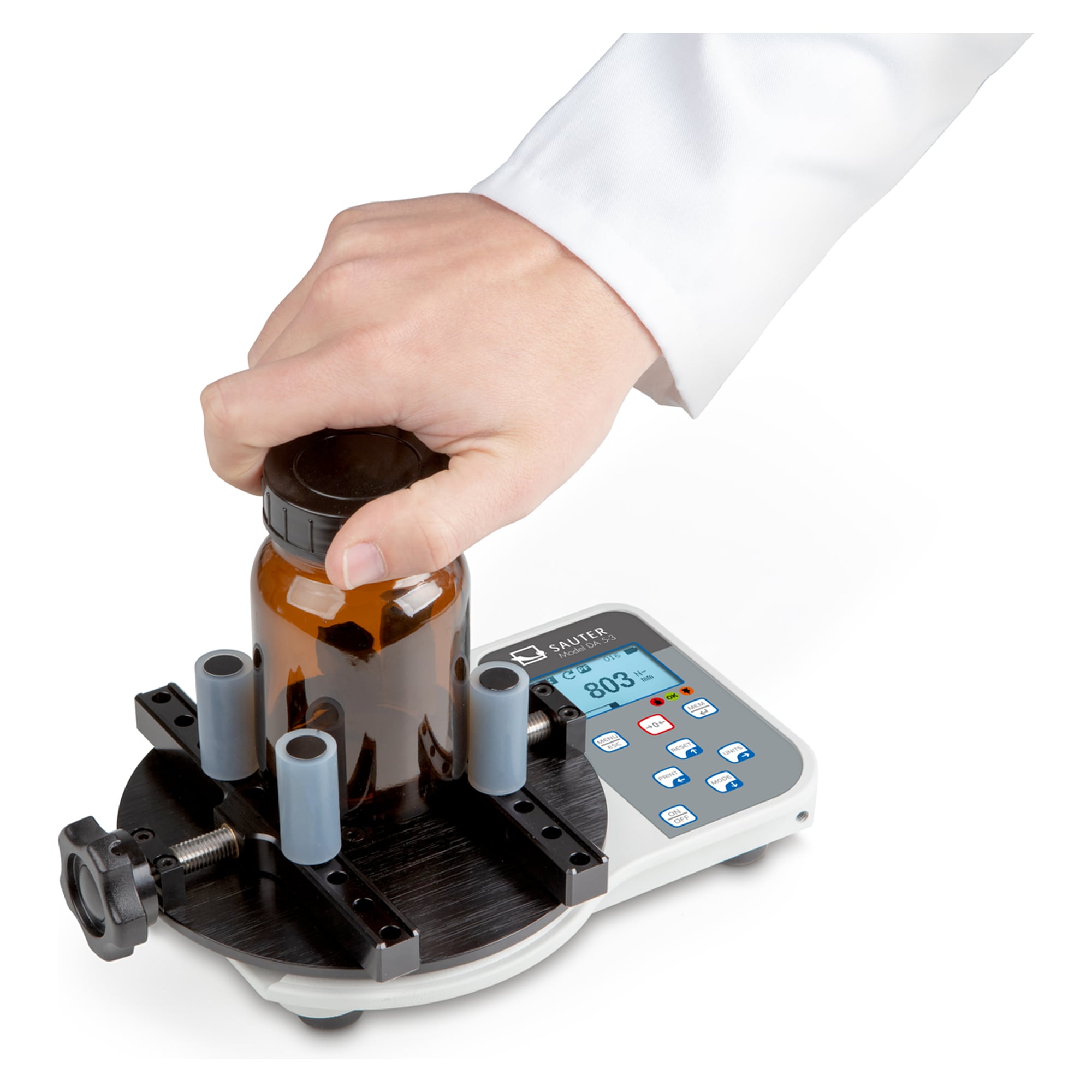

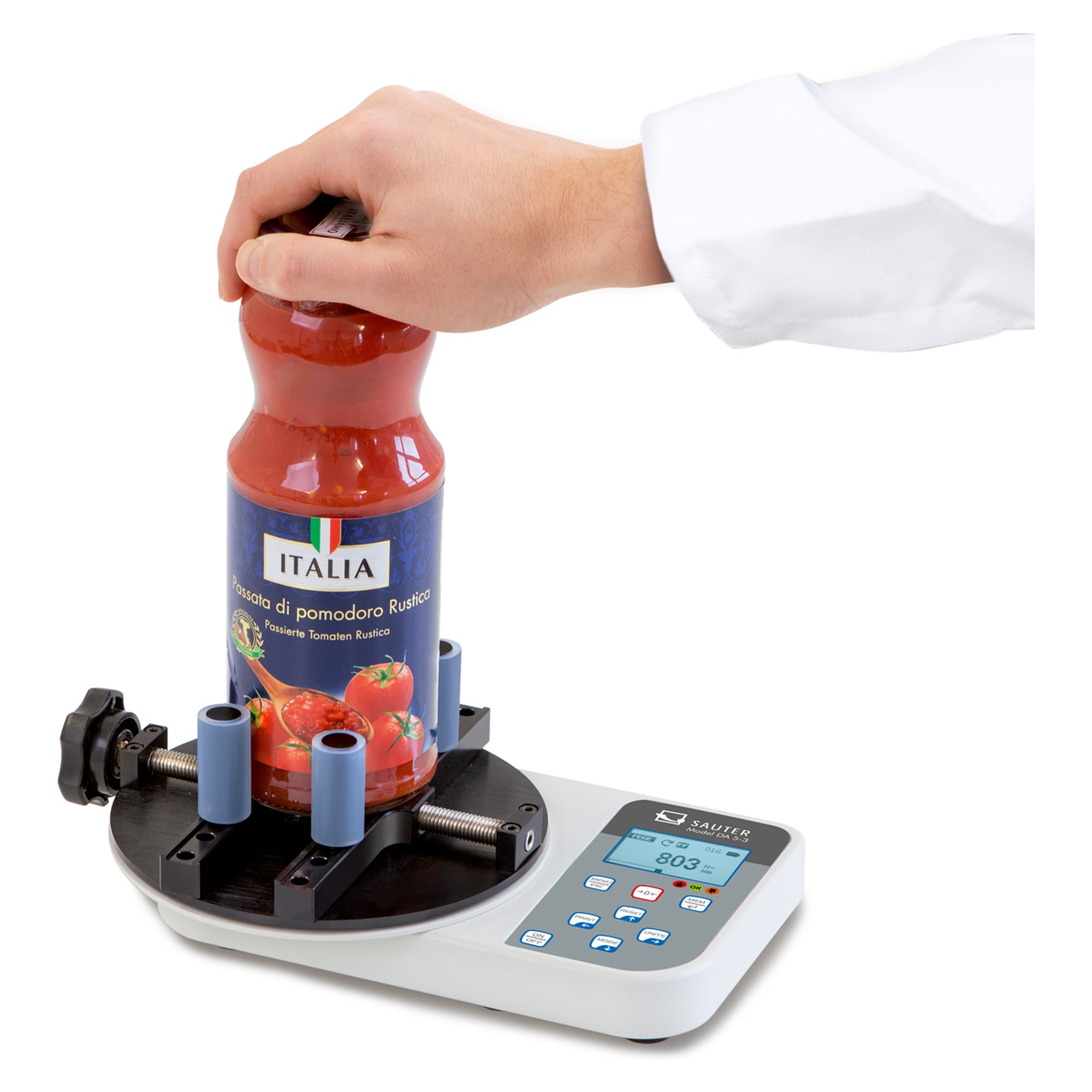

- Both directions: measures opening and closing torque
- Fast pass/fail check: limit function with acoustic and visual signal
- Data capture: peak-hold for maximum values, track mode for continuous display

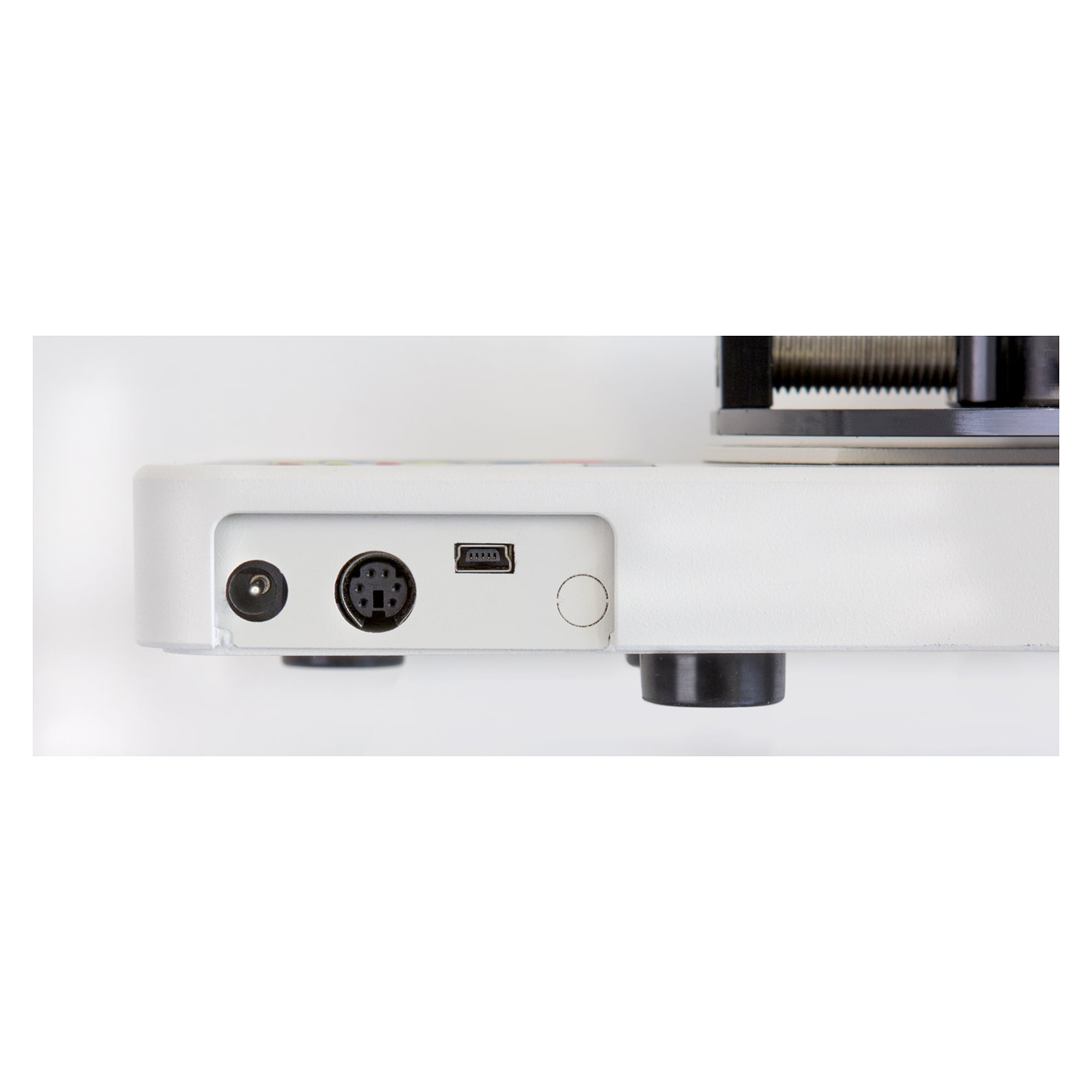

- Data output: RS-232 and USB as standard, internal memory for 500 readings
- Rugged: painted metal housing with LED capacity bar
- Cordless capable: mains and NiMH battery operation, up to 18 h
Applications
The DA 1-4 is used in the food and cosmetics industries, in pharmaceutical applications, test laboratories and the chemical industry.
Compliance and origin
EAN 4045761193406, customs tariff number 90318080, country of origin Thailand.
Technical data
| Torque range (max) | 1 Nm |
|---|---|
| Readability (d) | 0,2 mNm |
| Accuracy | 0,5% of full scale |
| Overload protection | 120% |
| Internal sampling rate | 1000 Hz |
| Units | Nm, kgf/cm, kgf/m, in/lbs, ft/lbs |
| Display | Graphic LCD |
| Interfaces | RS-232 (standard), USB |
| Power supply | NiMH battery and mains adapter |
| Power supply input | 100 V - 240 V |
| Battery life | 18 h |
| Charging time | 14 h |
| Operating temperature | 15 °C - 35 °C |
| Housing dimensions (WxDxH) | 260×160×60 mm |
| Weight | 3,0 kg |
| Manufacturer | Sauter |
| EAN | 4045761193406 |
| HS-Code | 90318080 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Thailand |
| Display type | Graphic LCD |
| Interface | RS-232, USB device |
