Mechanical force gauge 20 N with peak hold pointer - SAUTER FA 20-2025a
Mechanical force gauge for tensile and compressive forces up to 20 N with a readability of 0.1 N. The drag pointer of the SAUTER FA 20-2025a holds the peak force, read in Newton and kg in parallel. Use it hand-held or on manual test stands.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER FA 20-2025a covers test forces up to 20 N, for example on switches, springs or plug connections. A readability of 0.1 N is sufficient for daily incoming and series inspection, and the drag pointer holds the maximum for documentation.
Advantages
- Drag pointer: peak value stays put, reset at the push of a button
- Two units: Newton and kg on one scale
- Zeroing: done in seconds with the rotating dial
- No power supply: purely mechanical measurement, no battery needed
- Test stand mounting: fits all manual test stands, including the SAUTER TVO test stand sets
Applications
Quality control, production, electronics manufacturing, mechanical engineering and workshops, teaching and training.
Conformity and origin
EAN 4045761139916. Warranty 24 months.
Technical data
| Measuring range (Max) | 20 N |
|---|---|
| Readability (d) | 0.1 N |
| Tolerance | 1 % of Max |
| Overload protection | 150 % of Max |
| Force directions | tension and compression |
| Peak function | yes, drag pointer |
| Housing | plastic |
| Dimensions fully assembled (W x D x H) | 232 x 59 x 51 mm |
| Net weight | approx. 0.50 kg |
| Weight | 0.5 kg |
| Manufacturer | Sauter |
| EAN | 4045761139916 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
Scope of delivery

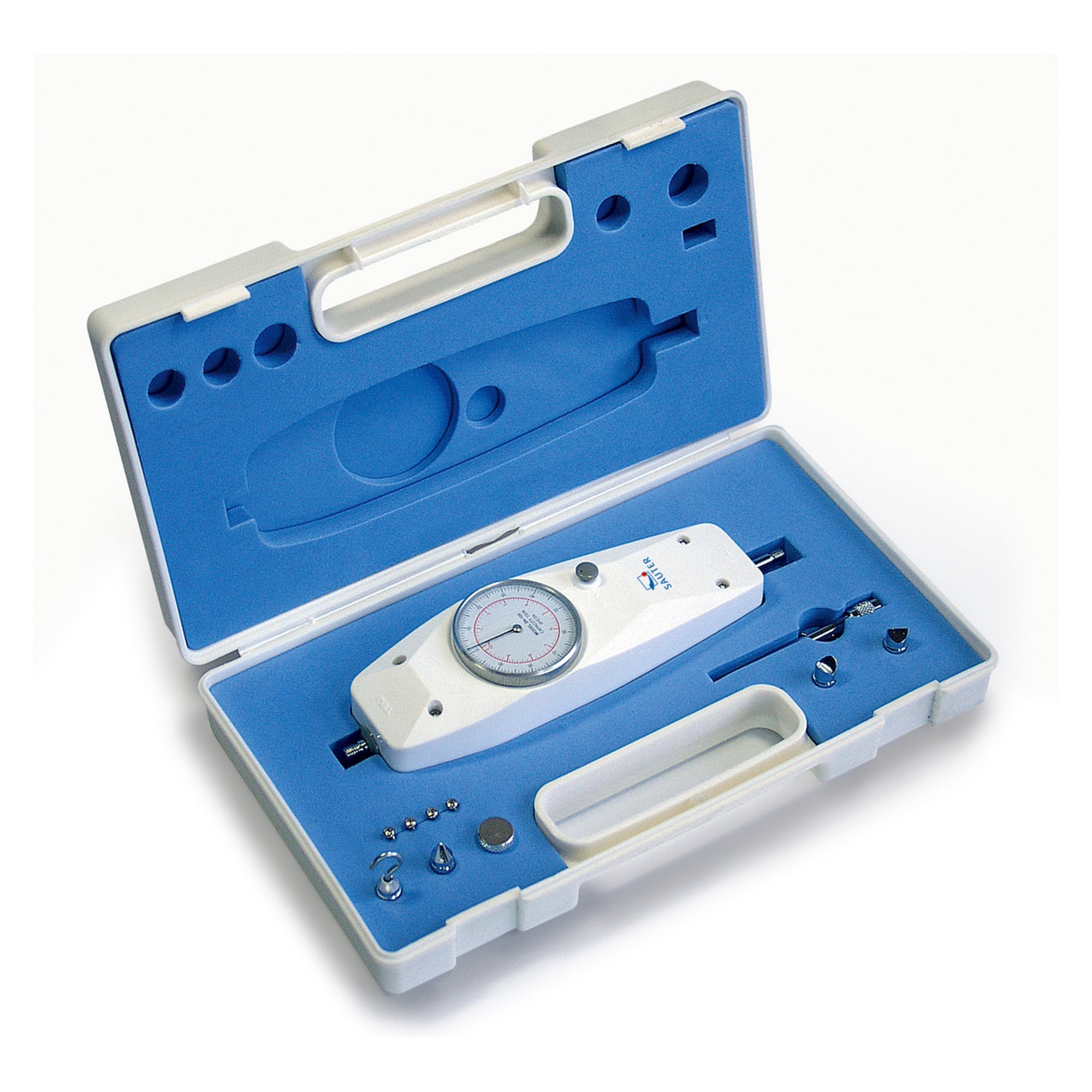

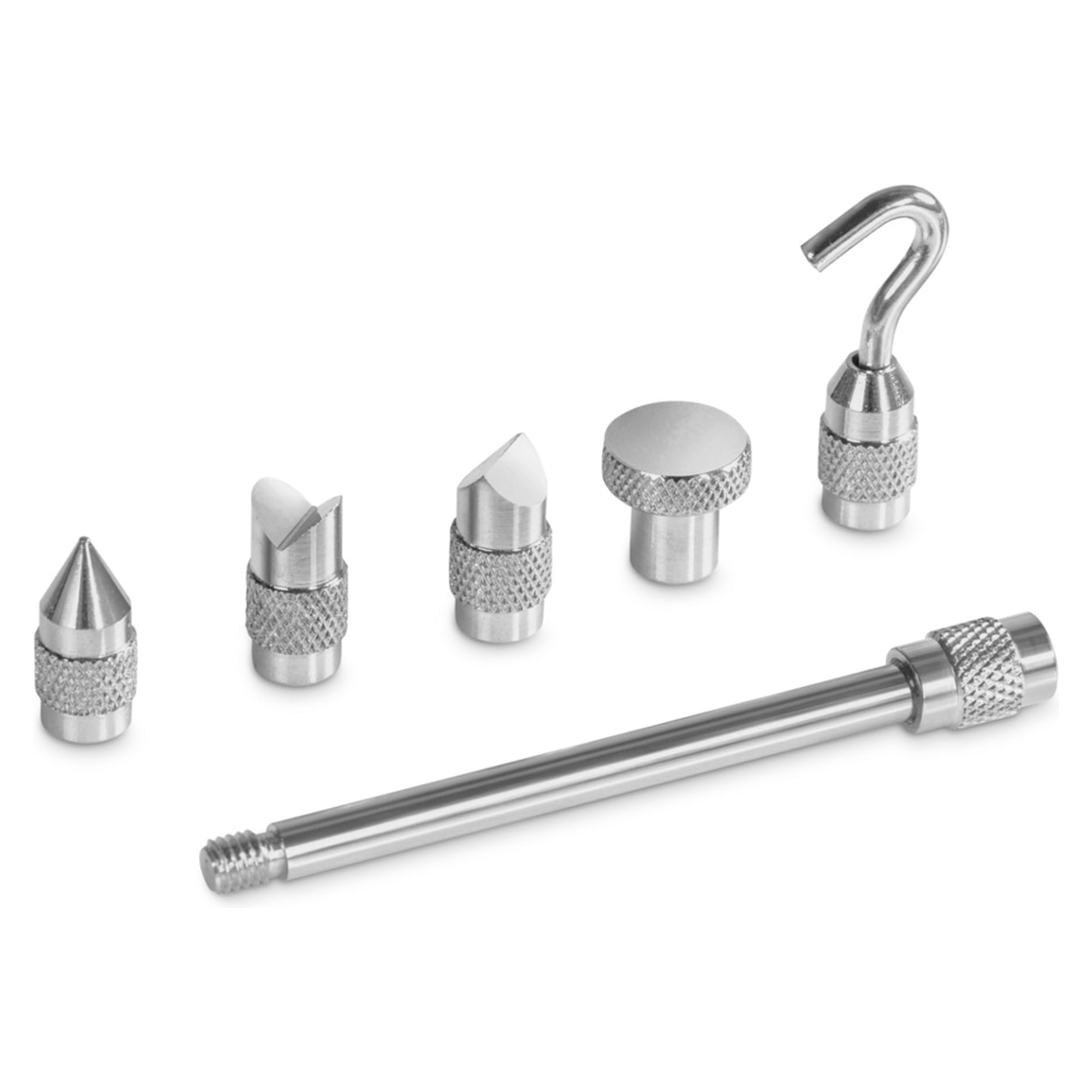

Force gauge with standard attachments including hook, 90 mm extension rod and carrying case.
