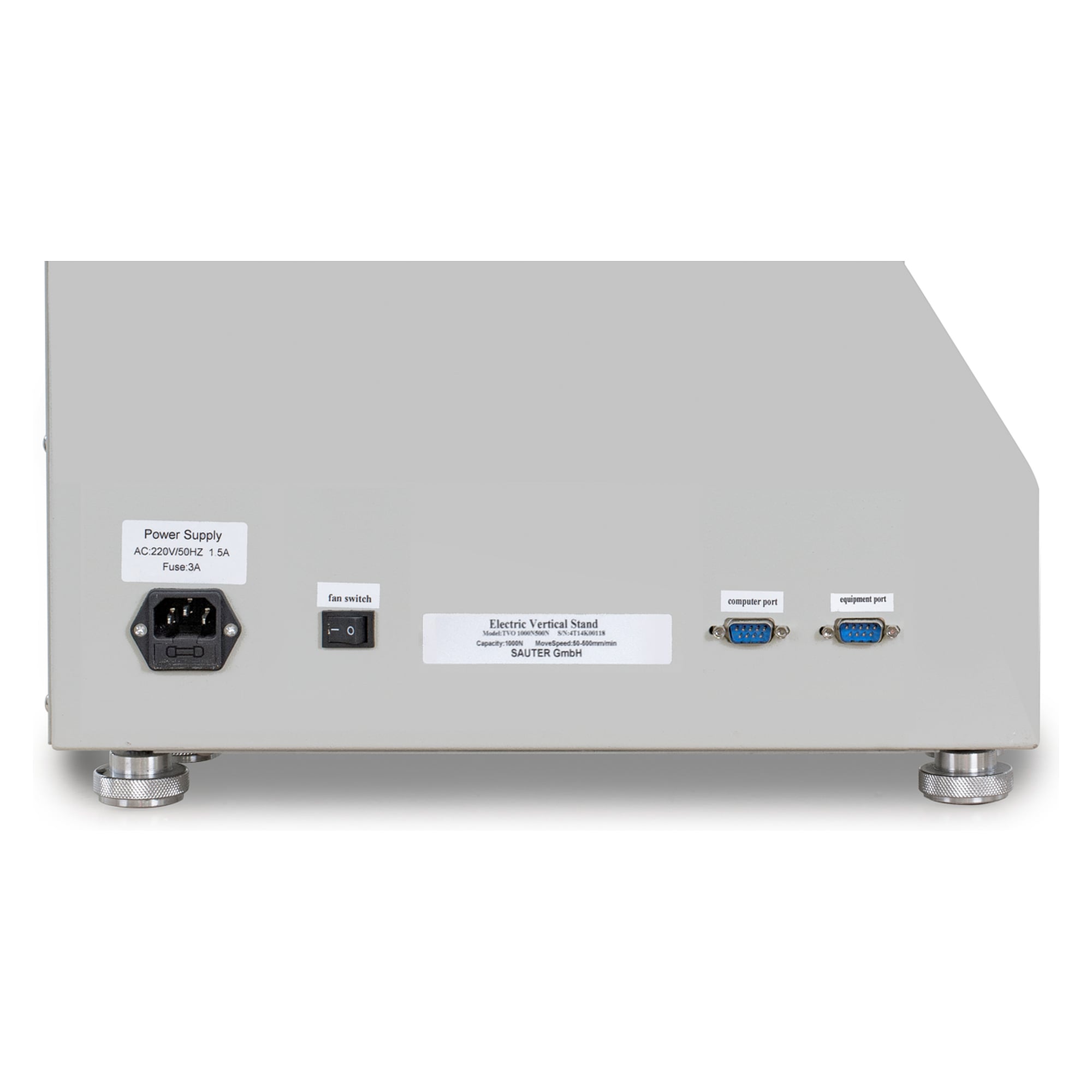

Test Stand Set - SAUTER TVO 2000N500S-LD
The motorized SAUTER TVO 2000N500S-LD test stand set combines the stand, the LD length system, the interface cable, the AFH LD software and the AFH 12 converter into a ready-to-use force-travel solution up to 2 kN. The stepper motor runs steadily from 1 to 500 mm/min and enables force-travel diagrams directly on the PC.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Series testing with force-travel evaluation needs a motorized drive that moves evenly even at full load. The SAUTER TVO 2000N500S-LD set delivers exactly that: a stepper motor up to 2 kN, test speed continuously adjustable from 1 to 500 mm/min, and an integrated LD length system with 700 mm range and 0.01 mm readability for diagrams on the PC.
Benefits
- Five components in one set: stand, LD system, cable, AFH LD software, AFH 12 converter
- Force-travel diagrams on the PC: LD range up to 700 mm, 0.01 mm readability, 0.5 % of max
- Constant speed: stepper motor, continuous 1 to 500 mm/min, precise start and stop without overrun
- Automatic or manual mode: control via panel or SAUTER AFH PC software
- Holds up to 2 kN: for SAUTER force gauges, together with TVO-A01
Applications
The set is used in industry (plastics, automotive, medical, metal), in laboratory work, in series quality control, in teaching and training and in the packaging industry.
Compliance and origin
EAN 4045761363076, customs tariff code 90249000, country of origin China.
Technical data
| Max force | 2 kN |
|---|---|
| Drive | stepper motor |
| Test speed | 1 to 500 mm/min |
| LD length system | up to 700 mm, 0.01 mm readability |
| Display | LED segments |
| Power supply | 230 V AC, 50 Hz, built-in power unit |
| Ambient temperature | 10 to 40 °C |
| Dimensions (W×D×H) | 1185×465×300 mm |
| Net weight | 60 kg |
| Weight | 75 kg |
| Manufacturer | Sauter |
| EAN | 4045761363076 |
| HS-Code | 90249000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Display type | LED segments |
