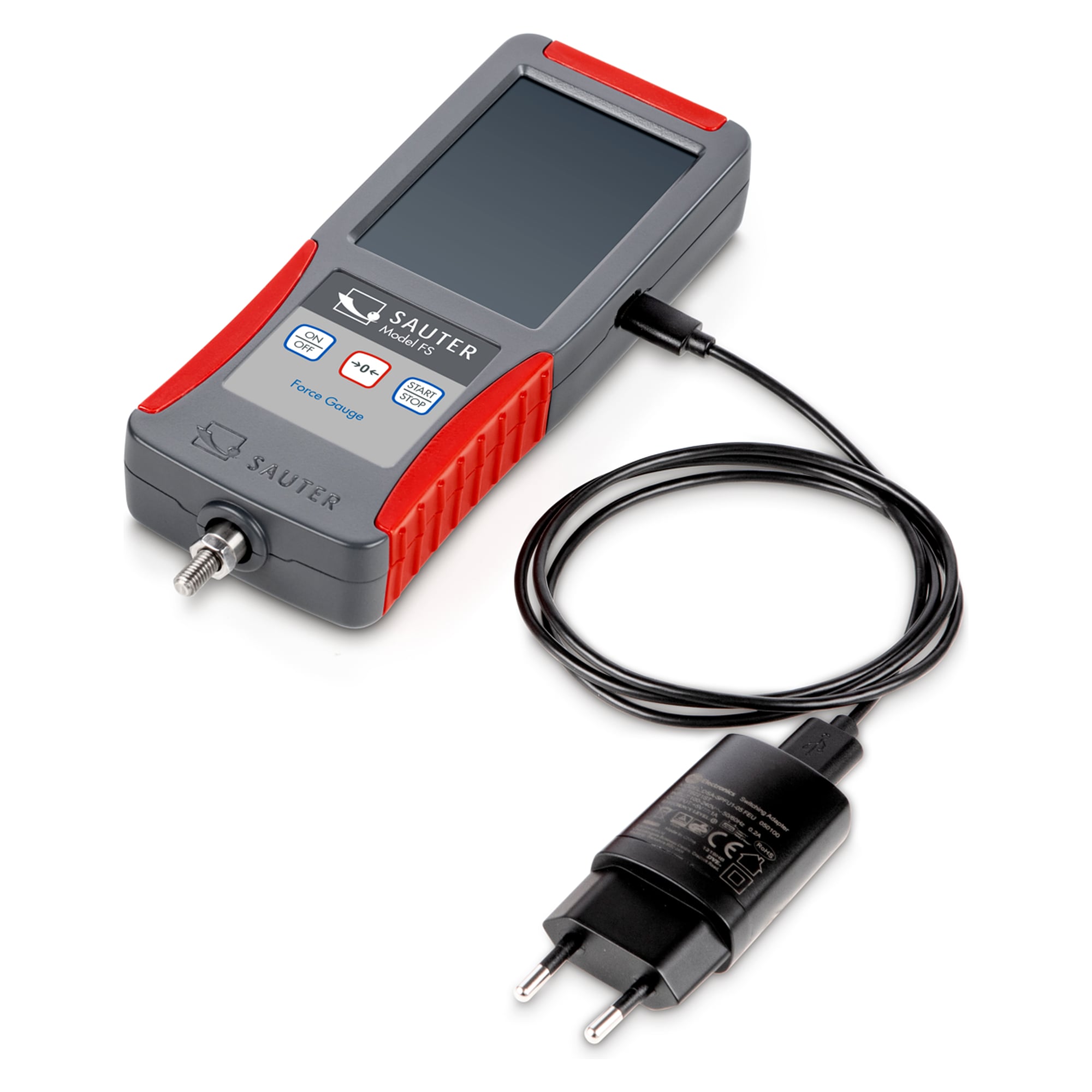

Digital Force Gauge - SAUTER FS 2-200
The SAUTER FS 2-200 digital force gauge measures tension and compression up to 200 N at a resolution of 0,04 N. Alongside the internal cell it takes up to four external SAUTER cells, and 150% overload protection guards the sensor.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Measuring tension and compression up to 200 N handheld or on a test stand works with the SAUTER FS 2-200 thanks to an internal cell and a resolution of 0,04 N.
Benefits
- Integrated load cell: measures tension and compression up to 200 N directly, resolution 0,04 N

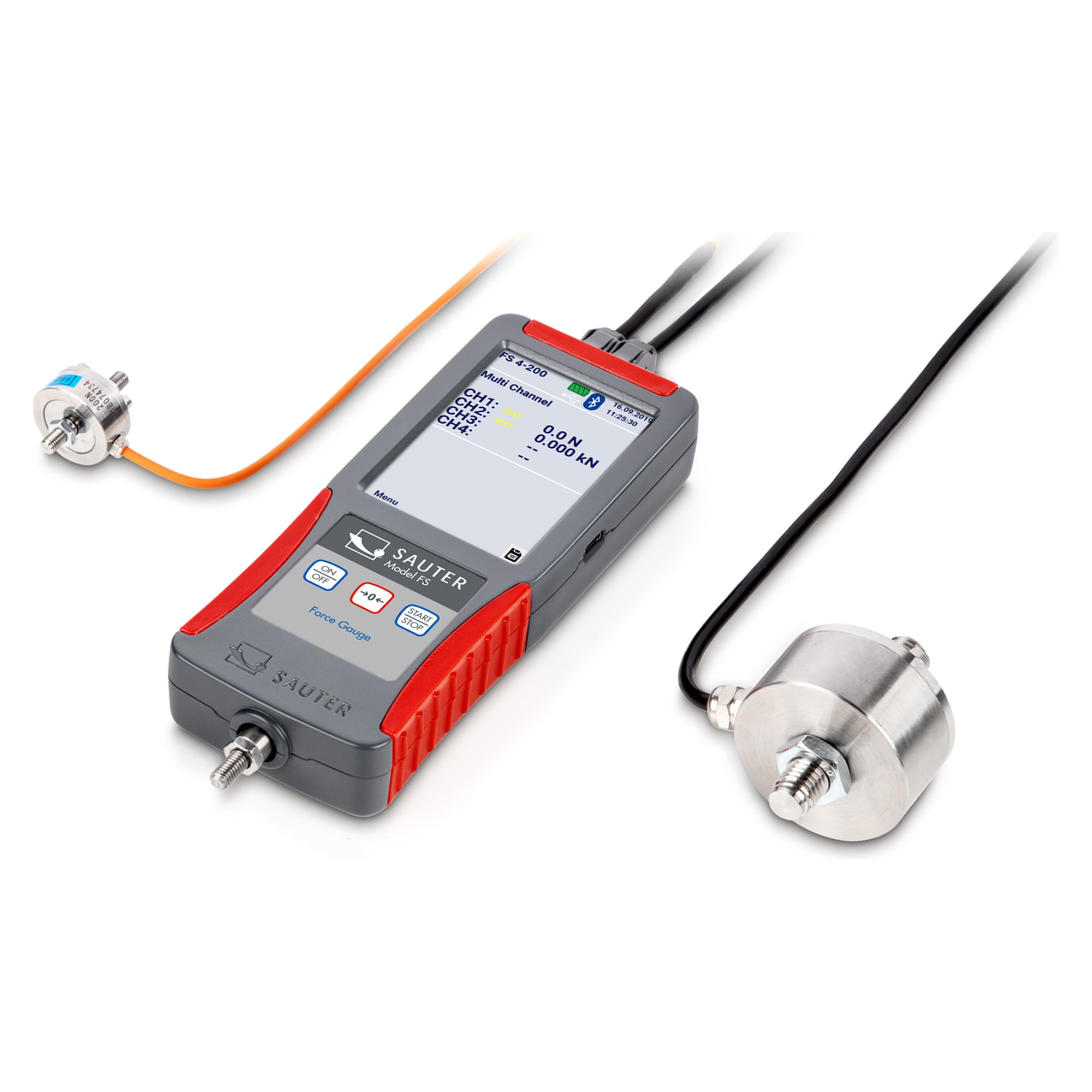

- Up to four external cells: compatible with all SAUTER strain-gauge load cells, and the internal cell is disabled while an external one is connected
- 150% overload protection: safeguards the internal cell against load peaks
- 1000 Hz sampling: peak-hold, track and tolerance functions for dynamic tests

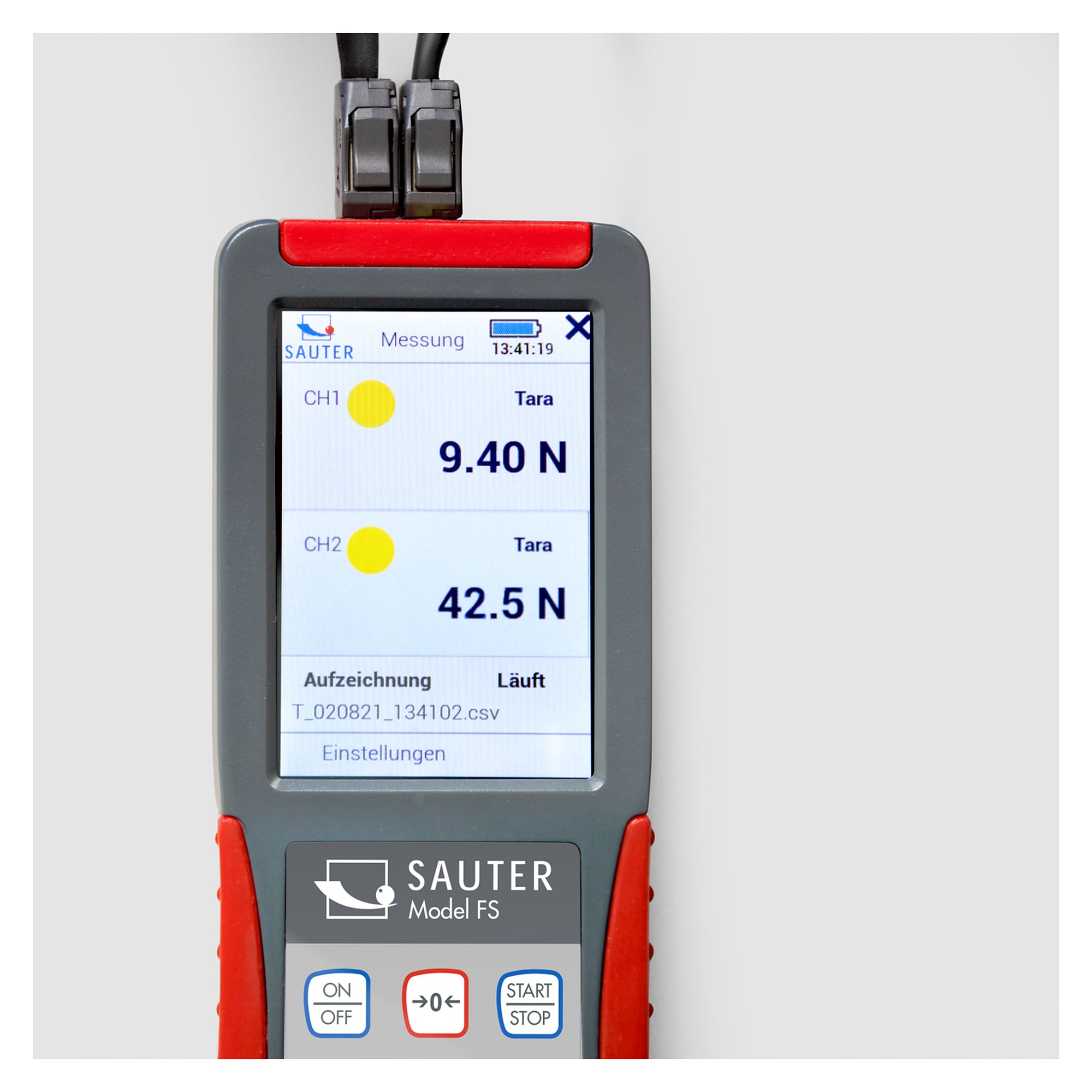

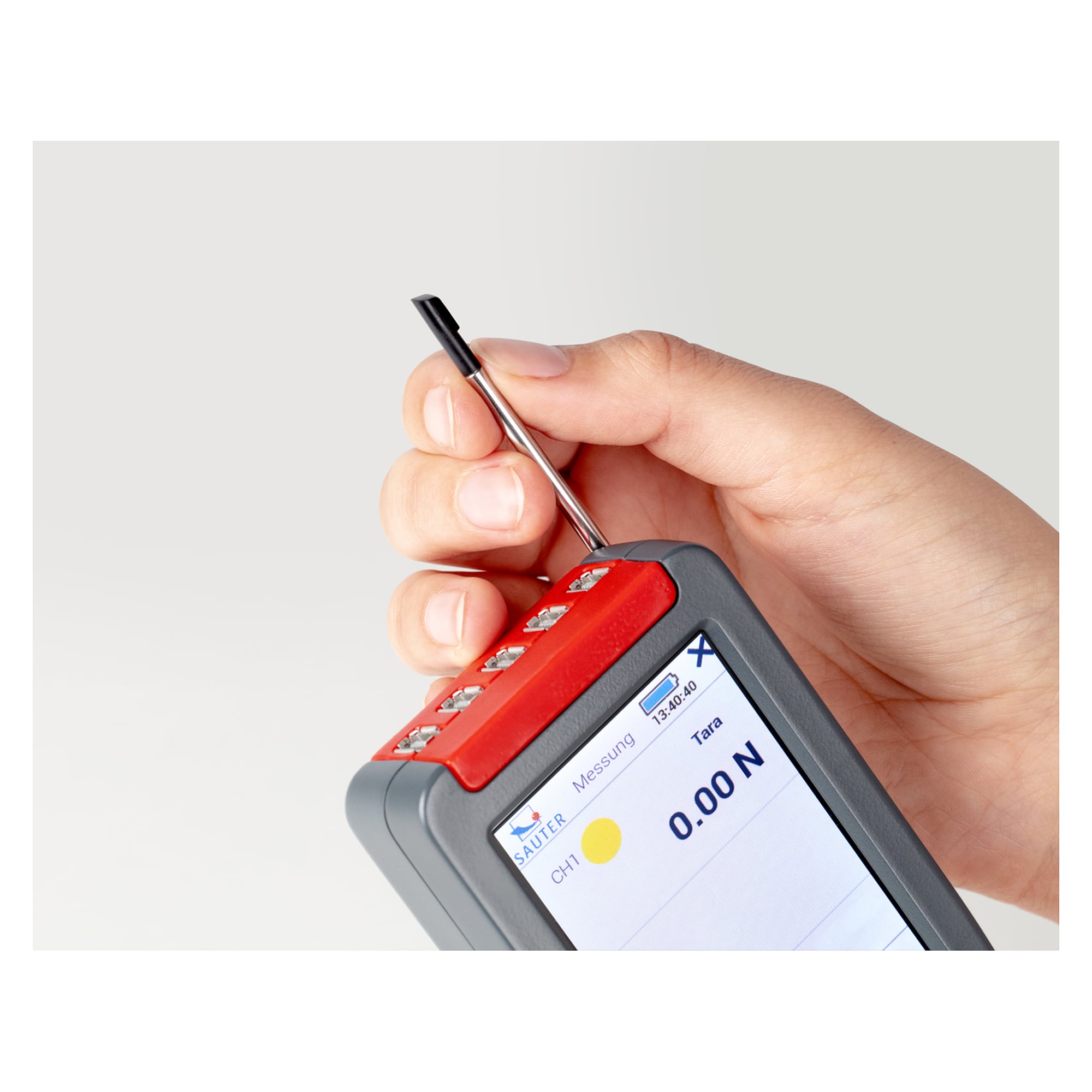

- 3,5" touchscreen and 16 GB memory: stylus operation, data transfer over USB

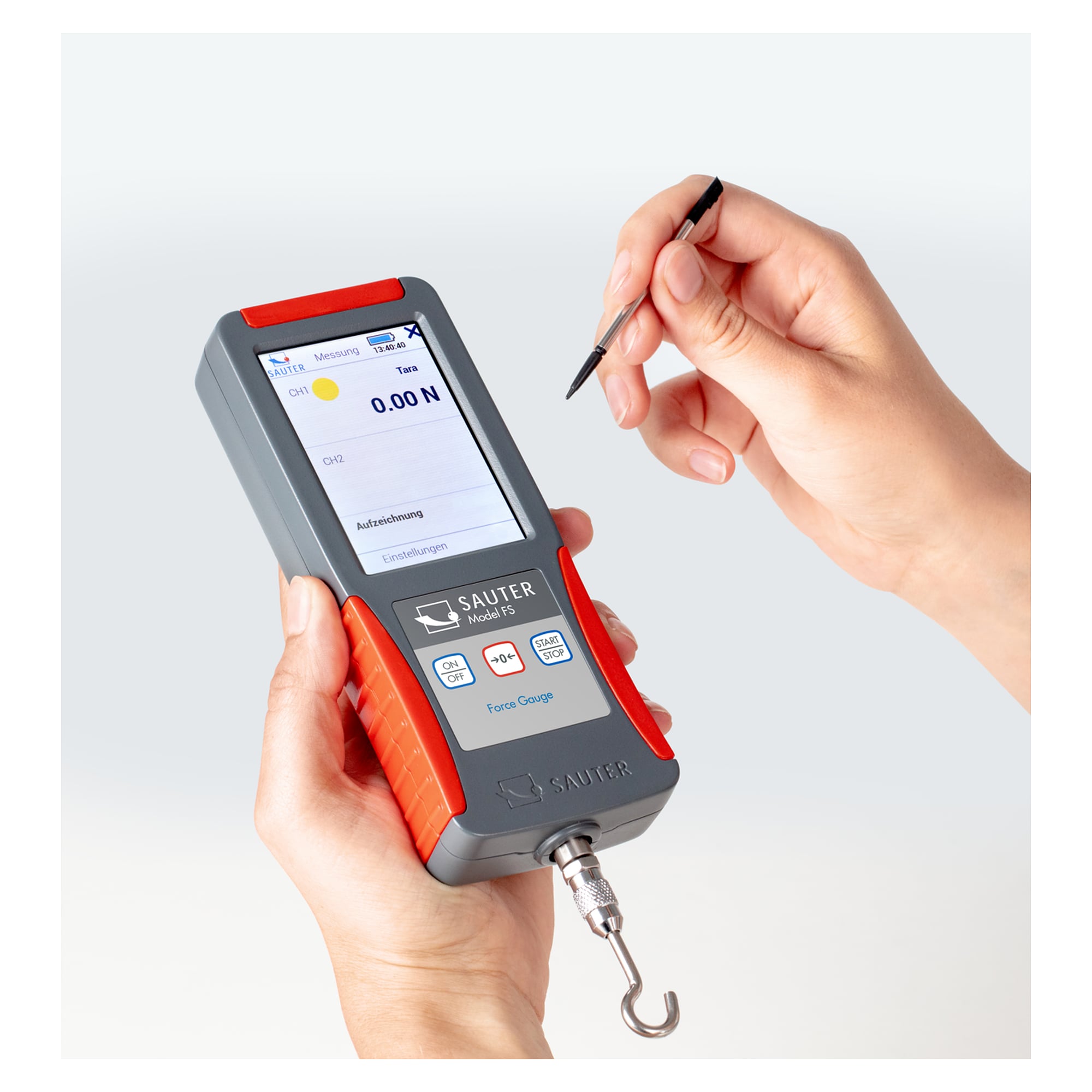

- Mobile or fixed use: mounts on any SAUTER test stand, supplied in a system case
Applications
The force gauge is used in test laboratories, research and development, the automotive industry, maintenance and servicing, and plastics processing.
Compliance and origin
EAN 4045761237001, customs tariff number 90248000. Country of origin: Germany.
Technical data
| Range (Max) | 200 N |
|---|---|
| Resolution (d) | 0,04 N |
| Force direction | Tension and compression |
| Overload protection | 150% |
| Sampling rate | 1000 Hz |
| Display | 3,5" touchscreen |
| Internal memory | 16 GB |
| Interface | USB |
| Power | Li-Ion battery and mains adapter, charge time 8 h |
| Dimensions | 71 x 31 x 180 mm |
| Housing | plastic |
| Net weight | 0,40 kg |
| Weight | 1.4 kg |
| Manufacturer | Sauter |
| EAN | 4045761237001 |
| HS-Code | 90248000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Material | Plastic |
