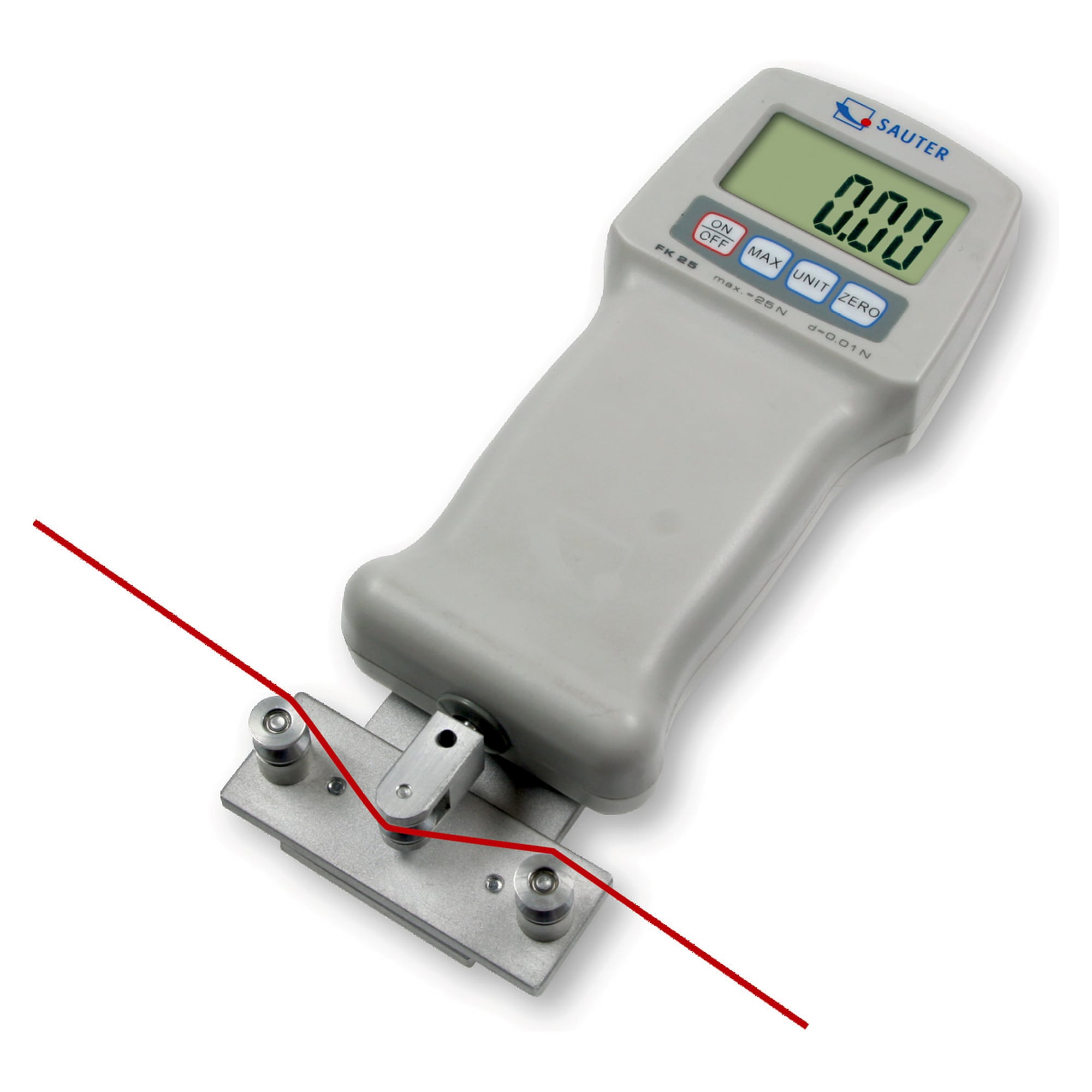

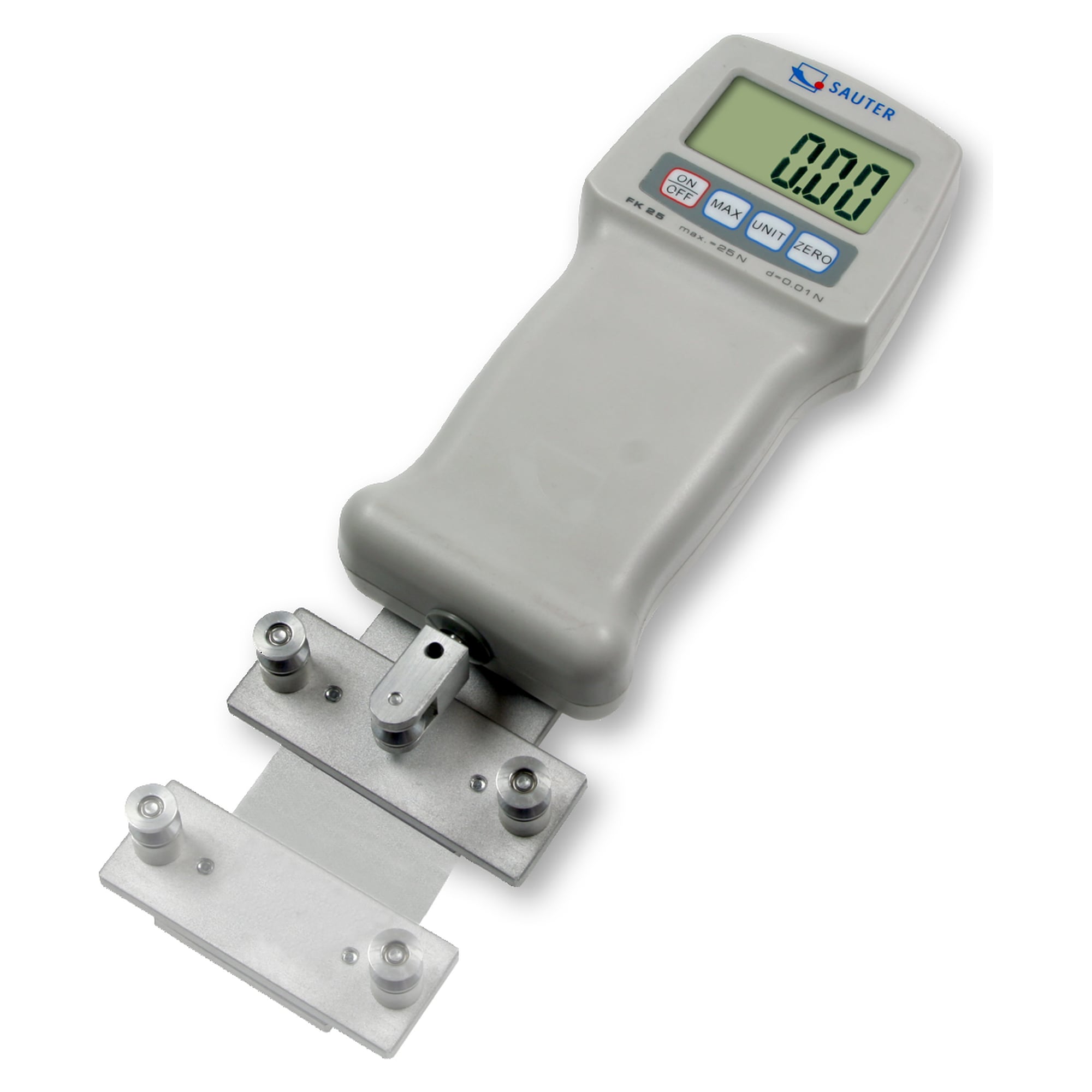

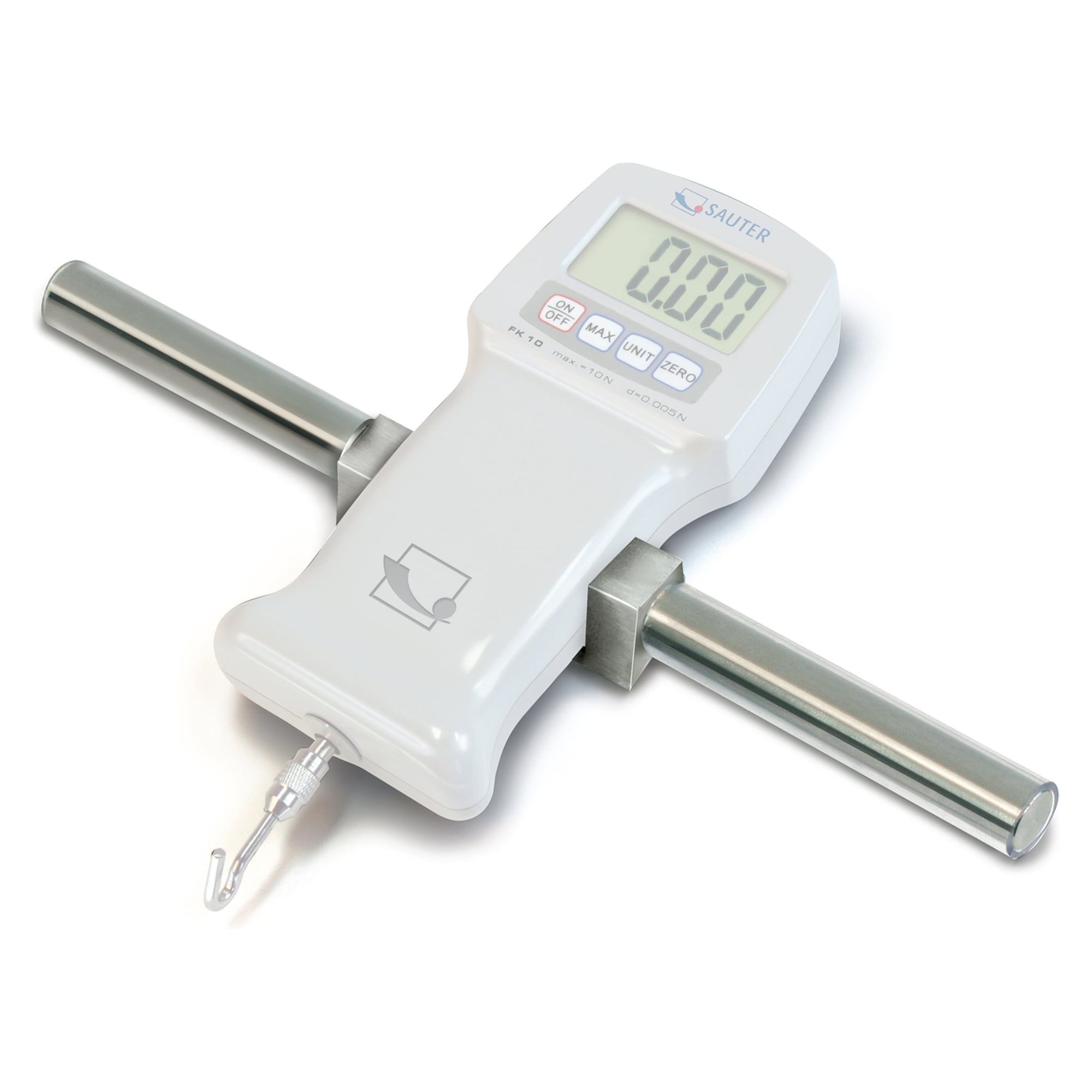

Digital Force Gauge Haken - SAUTER FK 10

When you need to capture tension and compression forces up to 10 N quickly and directly in the lab or on the production line, the SAUTER FK 10 is the tool for the job. This handheld force gauge resolves to 0,005 N and detects the direction of force automatically via its reversible display.

Benefits

• Tension and compression in one unit: measurement in both directions up to 10 N.
• Fine resolution: readability 0,005 N at a tolerance of 0,5% of the measuring range.
• Peak value captured reliably: peak hold freezes the maximum for about 10 s, track shows the curve continuously.
• Automatic direction detection: the reversible display recognises tension or compression on its own.
• Overload reserve: overload protection up to 200% of the range protects the load cell.
• Ergonomic and mobile: handy housing, battery operation (6× 1.5 V AA) for around 25 h of use.

Technical data

• Measuring range (max): 10 N
• Readability (d): 0,005 N
• Force directions: tension and compression
• Accuracy (tolerance): 0,5% of the measuring range
• Overload protection: 200% of the range
• Measuring frequency: 1000 Hz
• Load fitting: hook
• Display: LCD, reversible with backlight
• Power supply: 6× 1.5 V AA battery (alkaline manganese), mains adapter included, battery life approx. 25 h
• Dimensions (assembled, W×D×H): 195×83×35 mm
• Net weight: 0,75 kg
• Operating temperature: 10 °C to 30 °C
• Housing: plastic

Applications

The SAUTER FK 10 is used in test laboratories, in research and development, in the automotive industry and in maintenance and servicing. It also serves force measurement in plastics processing and in medical settings such as rehabilitation facilities, physiotherapy and occupational therapy practices, and residential and nursing care homes.

Compliance and origin

EAN 4045761139480. Customs tariff number 90248000. Country of origin: China.
